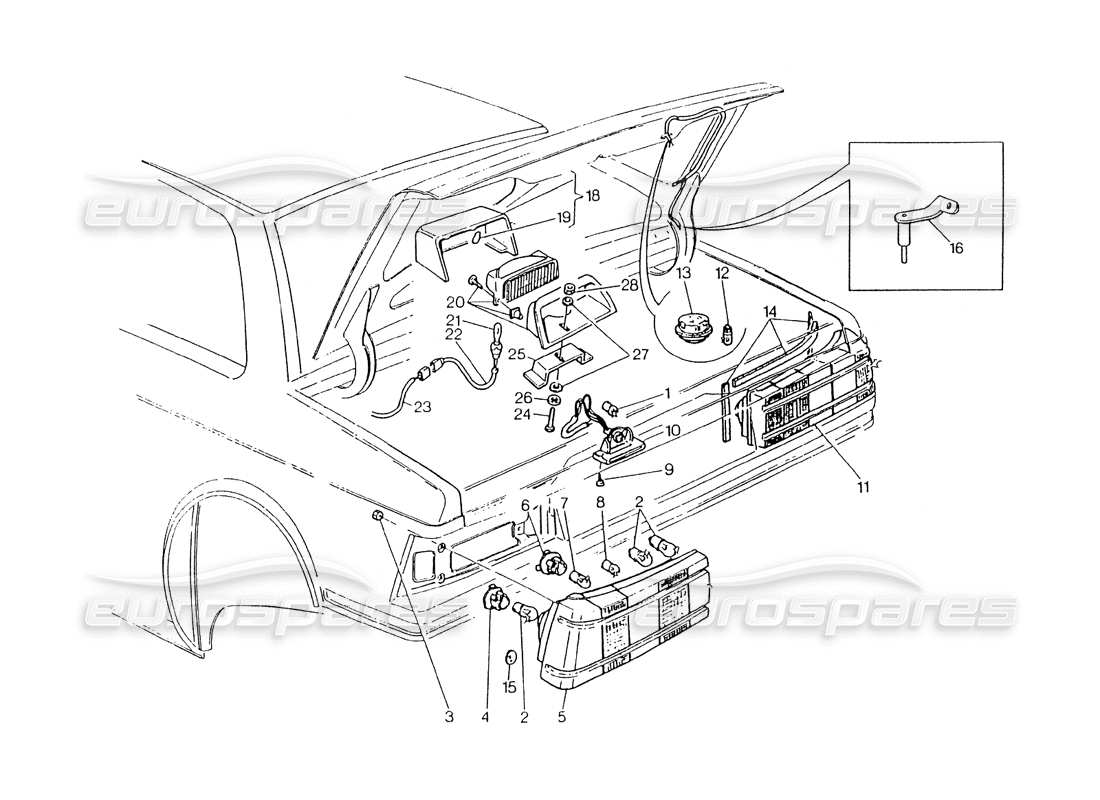

Maserati 418 / 4.24v / 430 Tail Lights Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 87540500
                                                12V 5U BULB
                                                from £0.52
                                                from £0.52
                                                # 002
                                                MPN: 87720021
                                                12V 21U BULB
                                                from £1.00
                                                from £1.00
                                                # 004
                                                MPN: 313120404
                                                SINGLE LIGHT BULB HOLDER
                                                from £4.04
                                                from £4.04
                                                # 005
                                                MPN: 313151153
                                                LH REAR LAMP
                                                from £288.68
                                                from £288.68
                                                This part replaces part number 313120138
                                                # 006
                                                MPN: 313120405
                                                DOUBLE LIGHT BULB HOLDER
                                                from £0.86
                                                from £0.86
                                                # 007
                                                MPN: 87720521
                                                12V 5/21W BULB
                                                from £3.08
                                                from £3.08
                                                # 010
                                                MPN: 30311111
                                                LICENSE - PLATE LAMP
                                                # 011
                                                MPN: 313151152
                                                RH REAR LAMP
                                                from £288.68
                                                from £288.68
                                                This part replaces part number 313120137
                                                # 012
                                                MPN: 87760005
                                                12V 5W BULB
                                                from £0.65
                                                from £0.65
                                                # 013
                                                MPN: 313153118
                                                CEILING LAMP
                                                from £10.04
                                                from £10.04
                                                # 014
                                                MPN: 313120407
                                                GASKET
                                                minimum order quantity = 4
                                                from £1.55
                                                from £1.55
                                                # 015
                                                MPN: 313120305
                                                SELFADHESIVE PAD
                                                from £2.36
                                                from £2.36
                                                # 016
                                                MPN: 30331111
                                                TRUNK LID SWITHC
                                                # 017
                                                -
                                                STOP LIGHT
                                                # 018
                                                MPN: 323132323
                                                COVER WITH SPRING (BEIGE)
                                                VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                                # 018
                                                MPN: 323132323
                                                COVER WITH SPRING (BEIGE)
                                                VALID FOR 58 / 59 / 62 ONLY SWEDEN
                                                # 018
                                                MPN: 323160334
                                                COVER WITH SPRING (GREY)
                                                VALID FOR 58 / 59 / 62 ONLY SWEDEN
                                                Supersession
                                                Supersession
                                                # 018
                                                MPN: 323160334
                                                COVER WITH SPRING (GREY)
                                                VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                                Supersession
                                                Supersession
                                                # 019
                                                MPN: 323132324
                                                SPRING
                                                VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                                from £0.70
                                                from £0.70
                                                # 020
                                                MPN: 323132105
                                                STOP LAMP WITH SUPPORT
                                                VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                                from £15.78
                                                from £15.78
                                                # 020
                                                MPN: 323132105
                                                STOP LAMP WITH SUPPORT
                                                VALID FOR 58 / 59 / 62 ONLY SWEDEN
                                                from £15.78
                                                from £15.78
                                                # 021
                                                MPN: 323132325
                                                BULB
                                                from £0.47
                                                from £0.47
                                                # 022
                                                MPN: 323132104
                                                LAMP HOLDER WITH CABLES
                                                from £3.65
                                                from £3.65
                                                # 023
                                                MPN: 323132102
                                                STOP CABLE KIT
                                                from £5.59
                                                from £5.59
                                                # 025
                                                MPN: 313137103
                                                BRACKET
                                                from £4.66
                                                from £4.66
                                                # 026
                                                MPN: 135600060
                                                SPRING WASHER
                                                from £0.78
                                                from £0.78
                                                # 027
                                                MPN: 163030060
                                                FLAT WASHER
                                                from £1.08
                                                from £1.08
