043 - Engine Compart. Electr. System,LH Steer.

Maserati 418 / 4.24v / 430 Engine Compart. Electr. System,LH Steer. Parts Diagram

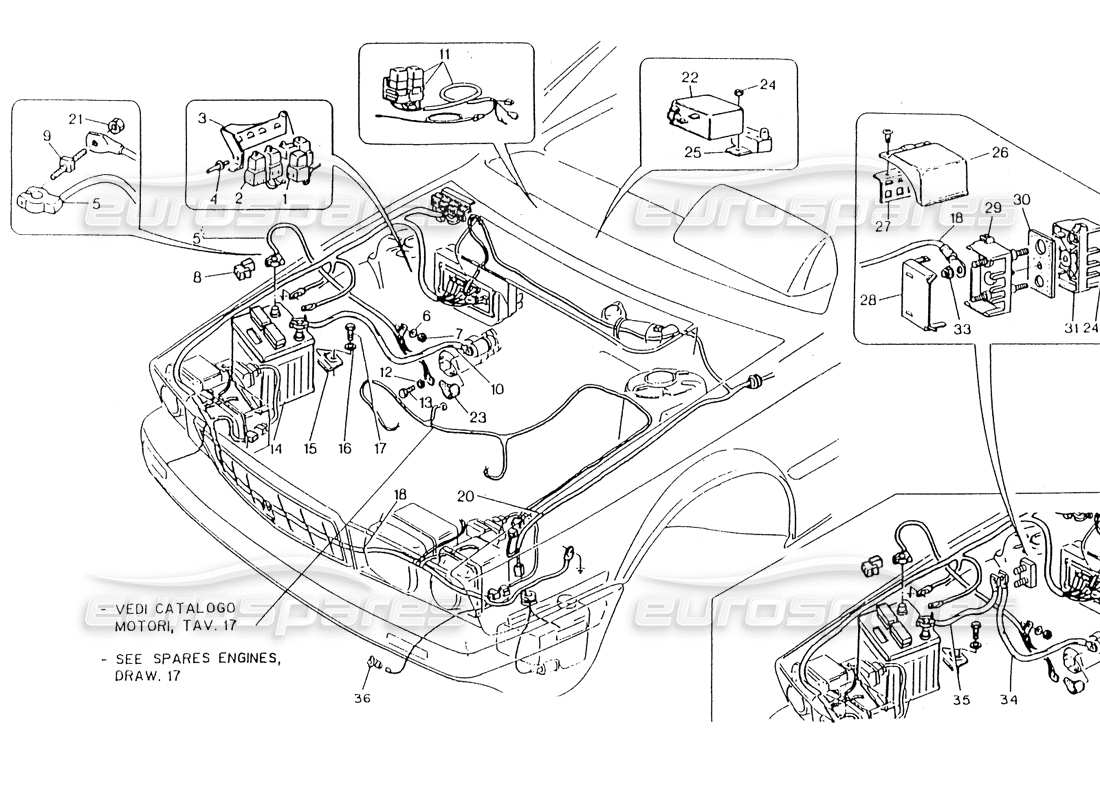

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 313320134
RELAY
VALID FOR 51 / 53 / 58 / 59 / 62
from £18.71
from £18.71
This part replaces part number 184101
# 002
MPN: 313353106
RELAY WITH FUSE
VALID FOR 51 / 53 / 58 / 59 / 62
from £8.75
from £8.75
This part replaces part number 313320106
# 003
MPN: 313020304
RELAY CONNECT. SUPPORT
VALID FOR 51 / 53 / 58 / 59 / 62
from £1.42
from £1.42
# 004
MPN: 164353075
RIVET
VALID FOR 51 / 53 / 58 / 59 / 62
# 005
MPN: 313752106
NEGATIVE BATTERY CABLE FOR ENGINE FRAME
VALID FORM 62
from £3.94
from £3.94
# 005
MPN: 313753106
NEGATIVE BATTERY CABLE FOR ENGINE FRAME
VALID FOR 51 / 53 / 58 / 59
from £4.29
from £4.29
# 006
MPN: 125300084
SPRING WASHER
VALID FOR 51 / 53 / 58 / 59 / 62
# 007
MPN: 125100080
NUT
VALID FOR 51 / 53 / 58 / 59 / 62
from £0.86
from £0.86
# 008
MPN: 313020300
CAP FOR POSITIVE TERMINAL
VALID FOR 51 / 53 / 58 / 59 / 62
from £1.11
from £1.11
# 009
MPN: 313720300
SEALED SCREW
VALID FOR 51 / 53 / 58 / 59 / 62
# 010
MPN: 313053117
POSITIVE BATTERY CABLE
Valid for 53
from £0.47
from £0.47
# 010
MPN: 313054117
POSITIVE .BATTERY CABLE
VALID FOR 51 / 58 / 59
Supersession
Supersession
This part replaces part number 313020117
# 011
MPN: 313053103
AUXILIARY RELAY WIRING HARNESS
VALID FOR 51 / 53 / 58 / 59 / 62
from £25.52
from £25.52
# 012
MPN: 135300084
SPRING WASHER
VALID FOR 51 / 53 / 58 / 59 / 62
# 013
MPN: 101208016
SCREW
VALID FOR 51 / 53 / 58 / 59 / 62
# 014
-
Battery
# 015
MPN: 313020314
BATTERY KEEP PLATE
VALID FOR 51 / 53 / 58 / 59 / 62
from £1.59
from £1.59
# 016
MPN: 138200080
WASHER
VALID FOR 51 / 53 / 58 / 59 / 62
# 017
MPN: 101208020
SCREW
VALID FOR 51 / 53 / 58 / 59 / 62
# 018
MPN: 31305243
RH ENGINE COMPART. WIRING HARNESS
Valid for 62
# 018
MPN: 313058143
RH ENGINE COMPART. WIRING HARNESS
VALID FOR 51 / 53 / 58 / 59
from £43.38
from £43.38
# 020
MPN: 313052142
LH ENGINE COMPART. WIRING HARNESS
Valid for 62
Supersession
Supersession
This part replaces part number 313053142
# 020
MPN: 313053142
LH ENGINE COMPART. WIRING HARNESS
VALID FOR 51 / 53 / 58 / 59
Supersession
Supersession
# 021
MPN: 125100060
NUT
VALID FOR 51 / 53 / 58 / 59 / 62
# 022
MPN: 323320193
DOOR ACTUATOR CONTROL UNIT
VALID FOR 51 / 53 / 58 / 59 / 62
from £23.63
from £23.63
# 023
MPN: 313020301
CAP
Valid for 62
from £14.35
from £14.35
# 024
MPN: 122600060
NUT
Valid for 62
# 025
MPN: 30301124
THERMAL SWITCH
Valid for 62
from £12.67
from £12.67
# 026
MPN: 313052337
ENGINE COMPARTMENT RELAY PROTECTION
Valid for 62
from £9.21
from £9.21
# 027
MPN: 313052303
RELAY SUPPORT BRACKET
Valid for 62
from £5.23
from £5.23
# 028
MPN: 393050340
COVER
Valid for 62
Supersession
Supersession
# 029
MPN: 393050342
Terminal Board
Valid for 62
from £10.34
from £10.34
# 030
MPN: 393050343
GASKET
Valid for 62
from £1.59
from £1.59
# 031
MPN: 393050341
INSULATOR
Valid for 62
from £2.20
from £2.20
# 032
MPN: 393050344
CONNECTING PAD
Valid for 62
from £1.83
from £1.83
# 033
MPN: 122600080
NUT
Valid for 62
# 034
MPN: 393050117
NODE/STARTER MOTOR POSITIVE CABLE
Valid for 62
from £19.60
from £19.60
# 035
MPN: 313052117
NODE/BATTERY CABLE
Valid for 62
from £26.22
from £26.22
# 036
MPN: 393650307
EXTERNAL TEMPERATURE PROBE
Valid for 62
from £28.37
from £28.37
