maserati 418 / 4.24v / 430 passenger comp. electr. system,rh steer. parts diagram

044 - Passenger Comp. Electr. System,RH Steer.

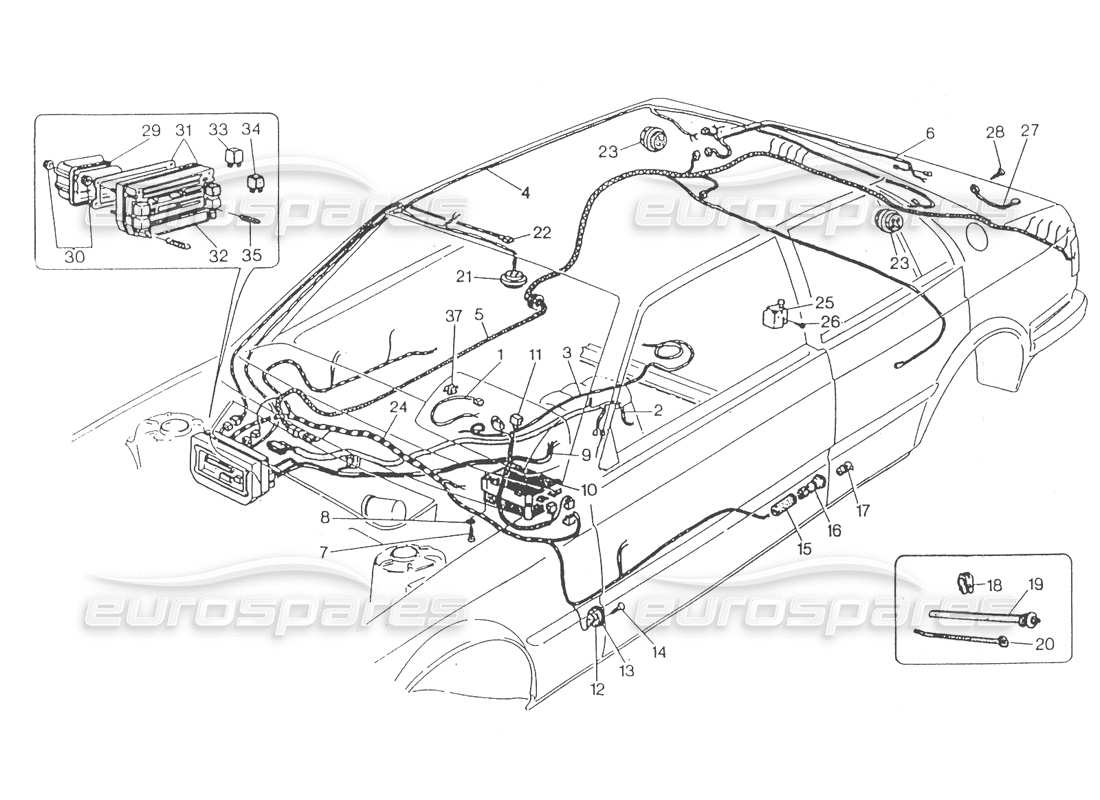

Maserati 418 / 4.24v / 430 Passenger Comp. Electr. System,RH Steer. Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 313020121
PULSE GENERATOR CABLE AND REVERSE GENERATOR CAB
Valid for 51 / 58
from £9.63
from £9.63
# 001
MPN: 313055121
PULSE GENERATOR CABLE
Valid for 53 / 59
from £4.06
from £4.06
# 001
MPN: 313055122
STARTING AND REVERSE GEAR CONTROL CABLE
Valid for 59
# 001
MPN: 323053121
REVERSE GEAR CABLE
Valid for 53 / 62
from £1.65
from £1.65
# 002
MPN: 323050110
CONSOLE CABLE ASSY
VALID FOR 51 / 53 / 58 / 59
from £46.77
from £46.77
# 002
MPN: 323062109
CONSOLE AND POWER SEAT ADVANCE UNIT CABLE ASSY
Valid for 62
from £16.99
from £16.99
# 003
MPN: 313030118
LOUDSPEAKER CABLE ASSY
Valid for 62
from £23.73
from £23.73
# 004
MPN: 313020112
CEILING LAMP CABLE
VALID FOR 51 / 53 / 58 / 59 / 62
from £28.97
from £28.97
# 005
MPN: 323056108
REAR WIRING HARNESS
VALID FOR 51 / 53 / 58 / 59 / 62
from £102.50
from £102.50
# 005
MPN: 323062108
REAR WIRING HARNESS
Valid for 62
from £109.45
from £109.45
# 006
MPN: 323056111
TRUNK WIRING HARNESS
VALID FOR 51 / 53 / 58 / 59 / 62
from £9.77
from £9.77
# 007
MPN: 119142380
SCREW
VALID FOR 51 / 53 / 58 / 59 / 62
# 008
MPN: 135900043
FLAT WASHER
VALID FOR 51 / 53 / 58 / 59 / 62
from £1.08
from £1.08
This part replaces part number 14496207
# 009
MPN: 313020144
INSTRUMENT PANEL WIRING HARNESS
Valid for 53
from £145.14
from £145.14
# 009
MPN: 323050144
INSTRUMENT PANEL WIRING HARNESS
VALID FOR 51 / 58 / 59
from £109.45
from £109.45
# 010
MPN: 313620107
CHECK CONTROL
VALID FOR 51 / 53 / 58 / 59 / 62
from £161.25
from £161.25
# 011
MPN: 313020113
CHECK/ INSTRUMENT WIRING HARNESS
Valid for 53
from £16.85
from £16.85
# 011
MPN: 323050113
CHECK/INSTRUMENT WIRING HARNESS
VALID FOR 51 / 58 / 59
from £25.32
from £25.32
# 012
MPN: 34331114
DOOR SWITCH
VALID FOR 51 / 53 / 58 / 59 / 62
# 013
MPN: 53211305
GASKET
VALID FOR 51 / 53 / 58 / 59 / 62
from £0.70
from £0.70
# 014
MPN: 119535130
SCREW
VALID FOR 51 / 53 / 58 / 59 / 62
# 015
MPN: 53311300
CUP
VALID FOR 51 / 53 / 58 / 59 / 62
from £0.70
from £0.70
# 016
MPN: 30311113
DOOR LIGHT
VALID FOR 51 / 53 / 58 / 59 / 62
from £4.13
from £4.13
# 017
MPN: 87720004
12V 4W BULB
VALID FOR 51 / 53 / 58 / 59 / 62
from £0.47
from £0.47
# 018
MPN: 53471340
CABLE CLAMP, HOLE DIA=6,5
VALID FOR 51 / 53 / 58 / 59 / 62
from £1.13
from £1.13
# 019
MPN: 313020307
STRAP
VALID FOR 51 / 53 / 58 / 59 / 62
Supersession
Supersession
# 020
MPN: 313020308
STRAP
VALID FOR 51 / 53 / 58 / 59 / 62
from £0.70
from £0.70
# 021
MPN: 313153117
CEILING LAMP WITH SPOT LIGHT
VALID FOR 51 / 53 / 58 / 59 / 62
from £10.04
from £10.04
# 022
MPN: 323020141
AUTOMATIC AIR CONDITIONER CABLE ASSY
VALID FOR 51 / 53 / 58 / 59 / 62
from £12.11
from £12.11
# 023
MPN: 313153118
CEILING LAMP
VALID FOR 51 / 53 / 58 / 59 / 62
from £10.04
from £10.04
# 024
MPN: 323050119
CENTRAL WIRING HARNESS
VALID FOR 51 / 58 / 59
from £276.05
from £276.05
# 024
MPN: 323056119
CENTRAL WIRING HARNESS
Valid for 53
from £174.86
from £174.86
# 025
MPN: 313330135
INERTIA SWITCH
VALID FOR 51 / 53 / 58 / 59 / 62
from £15.21
from £15.21
# 026
MPN: 119129095
SCREW
VALID FOR 51 / 53 / 58 / 59 / 62
# 027
MPN: 53301127
REAR WINDOW GROUND CABLE
VALID FOR 51 / 53 / 58 / 59 / 62
from £0.89
from £0.89
# 028
MPN: 119142130
SCREW
VALID FOR 51 / 53 / 58 / 59 / 62
# 029
MPN: 313020331
CONTROL UNIT GUARD
VALID FOR 51 / 53 / 58 / 59
from £1.94
from £1.94
# 029
MPN: 313052336
CONTROL UNIT GUARD
Valid for 62
from £0.70
from £0.70
# 030
MPN: 122600060
NUT
VALID FOR 51 / 53 / 58 / 59 / 62
# 031
MPN: 313020104
CONTROL UNIT ASSY
VALID FOR 51 / 53 / 58 / 59 / 62
from £253.17
from £253.17
# 032
MPN: 313020339
FUSE BOX COVER
VALID FOR 51 / 53 / 58 / 59 / 62
from £0.68
from £0.68
# 033
MPN: 313351139
RELAY
VALID FOR 51 / 53 / 58 / 59 / 62
from £2.00
from £2.00
This part replaces part number 30331137
# 034
MPN: 313320136
DIODE BRIDGE
VALID FOR 51 / 53 / 58 / 59 / 62
from £6.44
from £6.44
# 035
MPN: 87200005
5A FUSE
VALID FOR 51 / 53 / 58 / 59 / 62 NOT SUPPLIED
# 035
MPN: 87200008
16A FUSE
VALID FOR 51 / 53 / 58 / 59 / 62 NOT SUPPLIED
# 035
MPN: 87200016
8A FUSE
VALID FOR 51 / 53 / 58 / 59 / 62 NOT SUPPLIED
# 037
MPN: 313320333
CABLE CLIP
VALID FOR 51 / 53 / 58 / 59 / 62
from £0.70
from £0.70
