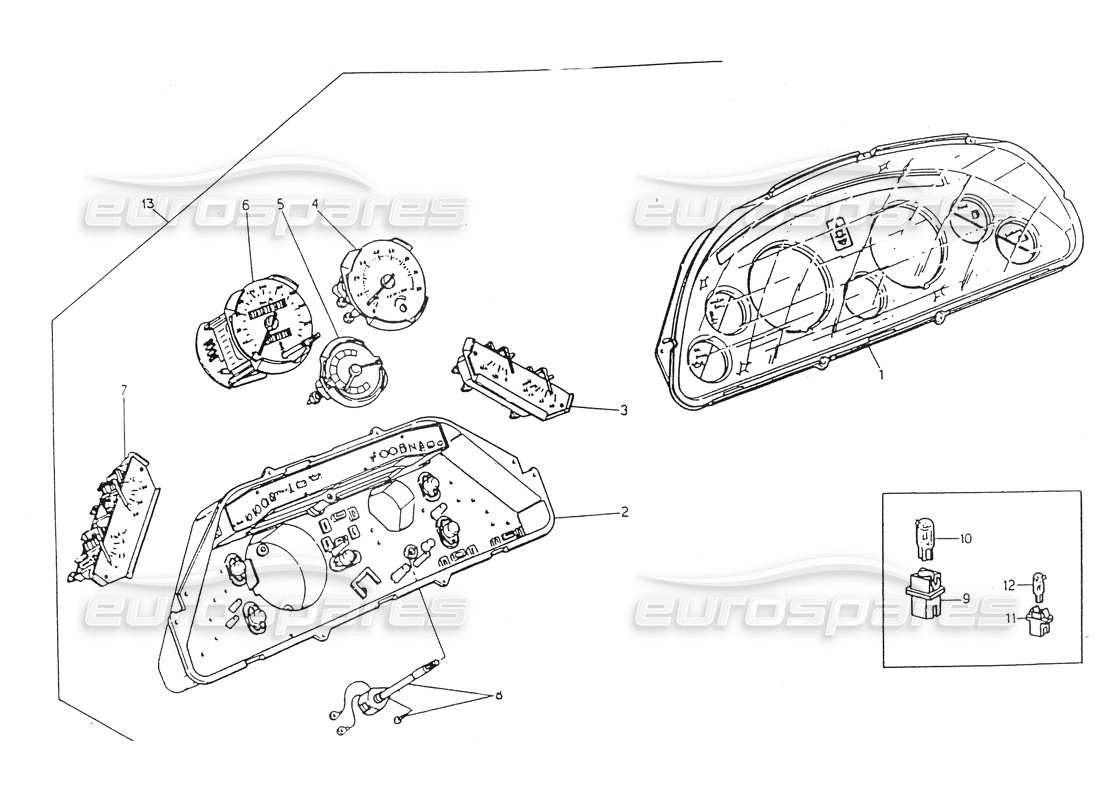

045 - Instrument Board, Jaeger

Maserati 418 / 4.24v / 430 Instrument Board, Jaeger Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 313632208
VISOR
Valid for 67 / 68
from £38.78
from £38.78
# 001
MPN: 323656208
VISOR
VALID FOR 51 / 53 / 58 / 59 / 77 / 78
from £75.47
from £75.47
# 002
MPN: 323620213
BOX , ASSY
VALID FOR 51 / 53 / 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £118.15
from £118.15
# 003
MPN: 313632206
FUEL LEVEL GAUGE AND VOLTMETER
VALID FOR 65 3VG / 65 4V / 66 / 67 / 68
from £184.91
from £184.91
# 003
MPN: 343600206
FUEL LEVEL GAUGE AND VOLTMETER
VALID FOR 51 / 53 / 58 / 59 / 77 / 78
from £80.21
from £80.21
# 004
MPN: 313632214
REV. COUNTER
VALID FOR 65 3VG / 65 4V / 66 / 67 / 68
from £102.57
from £102.57
# 004
MPN: 343600214
REV. COUNTER
VALID FOR 51 / 53 / 58 / 59 / 77 / 78
from £125.12
from £125.12
# 005
MPN: 323620204
TURBO BLOWER PRESSURE GAUGE
VALID FOR 65 3VG / 65 4V / 66 / 67 / 68
from £66.70
from £66.70
# 005
MPN: 343600204
TURBO BLOWER PRESSURE GAUGE
VALID FOR 51 / 53 / 58 / 59 / 77 / 78
from £95.73
from £95.73
# 006
MPN: 313671201
SPEEDOMETER (MPH)
VALID FOR 68 / 78 FIT FOR VEHICLES EQUIPPED WITH AUTOMATIC TRANSNISSION
from £68.53
from £68.53
# 006
MPN: 313675201
SPEEDOMETER C280 KM/H FULL SCALE)
VALID FOR 51 / 53 / 59 / 65 3V / 65 4V / 66 / 68 / 78
from £184.83
from £184.83
# 006
MPN: 323670201
SPEEDOMETER (MPH)
VALID FOR 67 / 77 FIT FOR VEHICLES EQUIPPED WITH MANUAL GEARSHIFT
# 006
MPN: 343600201
SPEEDOMETER (KM/H)
VALID FOR 58 / 67 / 77
from £375.36
from £375.36
# 007
MPN: 313632203
WATER THERM. /OIL PRESSURE GAUGE
VALID FOR 58 / 59 / 67 / 68 / 77 / 78
from £55.31
from £55.31
# 007
MPN: 343600203
WATER THERM. /OIL PRESSURE GAUGE
VALID FOR 51 / 53 / 58 / 59 / 65 3V / 65 4V / 66 / 77 / 78
from £36.56
from £36.56
# 008
MPN: 323620211
REHOSTAT
VALID FOR 51 / 53 / 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £10.16
from £10.16
# 009
MPN: 313620403
BULB HOLDER (3W)
VALID FOR 51 / 53 / 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
# 010
MPN: 87760003
BULB (12V-3W)
VALID FOR 51 / 53 / 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £0.47
from £0.47
# 011
MPN: 313620402
BULB HOLDER (1,2 U)
VALID FOR 51 / 53 / 58 / 59 / 67 / 68 / 77 / 78
# 012
MPN: 87760012
BULB 12V-1.2W
VALID FOR 51 / 53 / 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £0.47
from £0.47
# 013
MPN: 313627114
INSTRUMENTATION, ASSY
VALID FOR 77 ONLY GREAT BRITAIN
from £349.23
from £349.23
# 013
MPN: 313675114
INSTRUMENTATION, ASSY
VALID FOR 53 / 59 / 65 3V / 65 4V / 66 / 68 ONLY GREAT BRITAIN
from £380.29
from £380.29
# 013
MPN: 313675114
INSTRUMENTATION, ASSY
VALID FOR 78 GREAT BRITAIN EXCEPTED
from £380.29
from £380.29
# 013
MPN: 323651114
INSTRUMENTATION, ASSY (FOR ABS)
Valid for 51 / 59
from £349.23
from £349.23
# 013
MPN: 323654114
INSTRUMENTATION, ASSY (FOR ABS
Valid for 58
from £349.23
from £349.23
# 013
MPN: 323656114
INSTRUMENTATION. ASSY
Valid for 67
from £478.45
from £478.45
This part replaces part number 343600114
# 013
MPN: 323656114
INSTRUMENTATION, ASSY
VALID FOR 77 GREAT BRITAIN EXCEPTED
from £478.45
from £478.45
This part replaces part number 343600114
# 013
MPN: 323671114
INSTRUMENTATION, ASSY
VALID FOR 78 ONLY GREAT BRITAIN
from £345.96
from £345.96
