047.1 - Dashboard, RH Steering

Maserati 418 / 4.24v / 430 Dashboard, RH Steering Parts Diagram

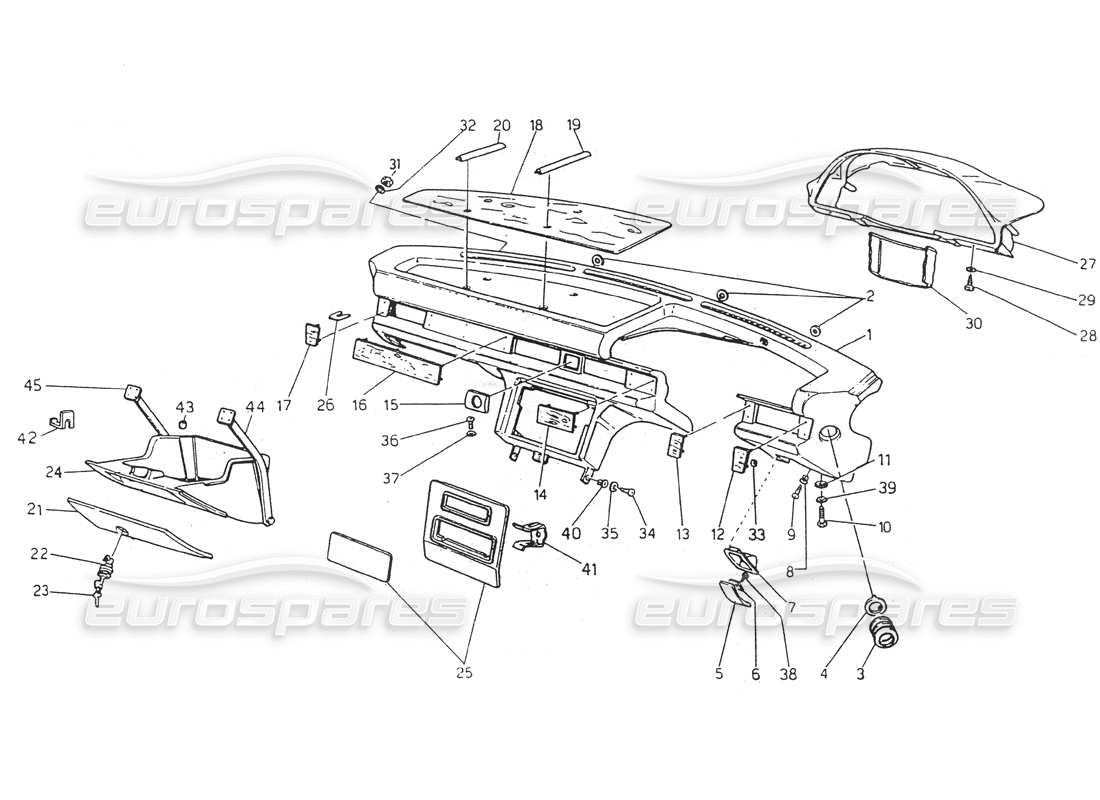

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 322371046
INSTRUMENT PANEL (LIGHT GREY LEATHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £701.25
from £701.25
# 001
MPN: 322371047
INSTRUMENT PANEL (BLACK LEATHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1,020.64
from £1,020.64
# 001
MPN: 322371049
INSTRUMENT PANEL (IVORY LEATHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £725.68
from £725.68
# 002
MPN: 312320384
GASKET
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.71
from £0.71
# 003
MPN: 315520320
BOOT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £16.73
from £16.73
# 004
MPN: 315520319
RING NUT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.59
from £1.59
# 005
MPN: 312353333
PANEL
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.72
from £1.72
# 006
MPN: 552315334
FLAT WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.11
from £1.11
# 007
MPN: 312353336
CONTROL LEVER SUPPORT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.11
from £1.11
This part replaces part number 312320336
# 008
MPN: 318320341
NUT SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.71
from £0.71
This part replaces part number 14229280
# 009
MPN: 119942160
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.47
from £0.47
# 010
MPN: 101208030
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 011
MPN: 169020508
WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 012
MPN: 322312153
LH SIDE FINISHINNG PLATE (RADICA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £34.06
from £34.06
# 013
MPN: 322312135
CENTER FINISHING PLATE (RADICA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £34.06
from £34.06
# 014
MPN: 322312139
CENTER FINISHING PLATE (RADICA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £76.11
from £76.11
# 015
MPN: 322312141
CLOCK HOUSING FINISHING BEZEL (RADICA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £91.69
from £91.69
# 016
MPN: 322312136
CENTER FINISHING PLATE (RADICA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £127.91
from £127.91
# 017
MPN: 322312154
RH FINISHING PLATE (RADICA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £34.06
from £34.06
# 018
MPN: 319327024
FINISHER (LIGHT BLUE ALCANTARA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £29.28
from £29.28
# 018
MPN: 322370175
FINISHER (DARK GREY ALCANTARA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 019
MPN: 322356191
CENTRAL UPPER MOULDING (ALCANTARA DARK GREY)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £10.71
from £10.71
# 019
MPN: 322356193
CENTRAL UPPER MOULDING (BLACK LEATHER)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £11.26
from £11.26
# 020
MPN: 322356192
RH UPPER MOULDING (DARK GREY ALCANTARA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £10.71
from £10.71
# 020
MPN: 322356194
RH UPPER MOULDING (BLACK LEATHER)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £11.26
from £11.26
# 021
MPN: 322356036
GLOVE BOX FLAP (LIGHT GREY LEATHER)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £53.48
from £53.48
# 021
MPN: 322356037
GLOVE BOX FLAP (BLACK LEATHER)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £51.99
from £51.99
# 021
MPN: 328912022
PANEL BOX FLAP (IVORY LEATHER)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £52.39
from £52.39
# 022
MPN: 372380012
lock
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £94.92
from £94.92
This part replaces part number 372330012
# 023
MPN: 312320376
GLOVE BOX KEY
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.55
from £0.55
# 024
MPN: 312353113
DASHBOARD GLOVE BOX
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £20.11
from £20.11
# 025
MPN: 328312243
PANEL (RADICA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
Supersession
Supersession
# 026
MPN: 312320381
SHIM
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.71
from £0.71
# 027
MPN: 322370186
INSTRUMENT HOUSING (DARK GREY ALCANTARA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £172.48
from £172.48
# 027
MPN: 322370188
INSTRUMENT HOUSING (BLACK LEATHER)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.11
from £1.11
# 028
MPN: 119935190
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.11
from £1.11
# 029
MPN: 318320443
WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.11
from £1.11
# 030
MPN: 322356180
STEERING COLUMN REAR TRIM (DARK GREY ALCANTARA)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £18.95
from £18.95
# 030
MPN: 322356182
STEERING COLUMN REAR TRIM (BLACK LEATHER)
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £19.51
from £19.51
# 031
MPN: 128350060
SELF LOCKING NUT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 032
MPN: 163030060
FLAT WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.11
from £1.11
# 033
MPN: 312320387
SPRING CLIP
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.71
from £0.71
# 034
MPN: 119142160
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.87
from £0.87
# 035
MPN: 135900043
FLAT WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.11
from £1.11
This part replaces part number 14496207
# 036
MPN: 119148160
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 037
MPN: 169020005
WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.11
from £1.11
# 038
MPN: 119142160
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.87
from £0.87
# 039
MPN: 135300084
SPRING WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 040
MPN: 312520499
NUT SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.71
from £0.71
# 041
MPN: 318320027
RADIO FIXING BRACKET
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.59
from £1.59
# 042
MPN: 312320339
GLOVE BOX LOCK STRIKER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.59
from £1.59
# 043
MPN: 312320324
GROMMET
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.71
from £0.71
# 044
MPN: 312320112
RH ARM
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £19.04
from £19.04
# 045
MPN: 312320111
LH ARM
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £7.23
from £7.23
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
