maserati 418 / 4.24v / 430 doors and internal trimming parts diagram

050 - Doors and Internal Trimming

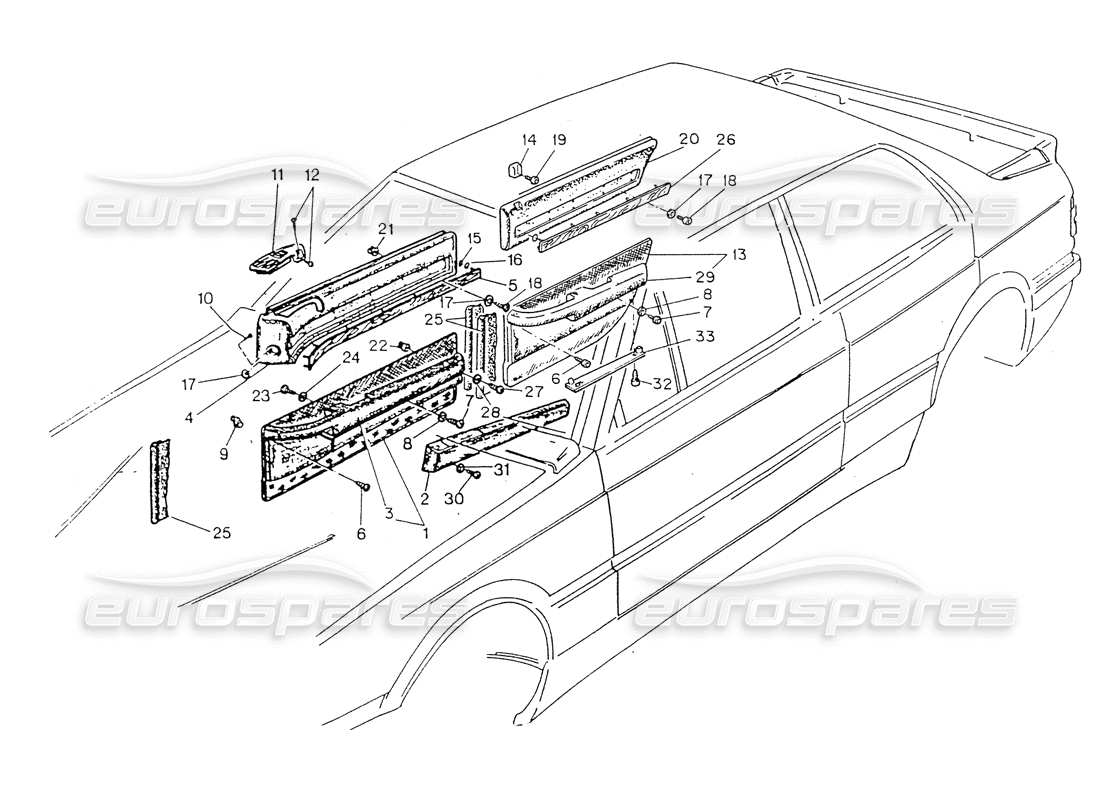

Maserati 418 / 4.24v / 430 Doors and Internal Trimming Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 328950141
                                                                  LH LINER (IVORY LEATHER AND ALCANTARA)
                                                                  VALID FOR 51 / 53 / 58 / 59 / 62
                                                                  from £324.18
                                                                  from £324.18
                                                                  # 001
                                                                  MPN: 328950142
                                                                  RH LINER (IVORY LEATHER AND ALCANTARA)
                                                                  VALID FOR 51 / 53 / 58 / 59 / 62
                                                                  from £324.18
                                                                  from £324.18
                                                                  # 001
                                                                  MPN: 328971141
                                                                  LH LINER (IVORY LEATHER AND ALCANTARA)
                                                                  VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                                                  # 001
                                                                  MPN: 328971142
                                                                  RH LINER (IVORY LEATHER AND ALCANTARA)
                                                                  VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                                                  # 001
                                                                  MPN: 329956321
                                                                  LH LINER (LIGHT GREY LEATHER AND ALCANTARA)
                                                                  VALID FOR 51 / 53 / 58 / 59 / 62
                                                                  from £97.46
                                                                  from £97.46
                                                                  # 001
                                                                  MPN: 329956322
                                                                  RH LINER (LIGHT GREY LEATHER AND ALCANTARA)
                                                                  VALID FOR 51 / 53 / 58 / 59 / 62
                                                                  from £88.12
                                                                  from £88.12
                                                                  # 001
                                                                  MPN: 329956351
                                                                  LH LINER (BLACK LEATHER AND ALCANT. DARK GRET)
                                                                  VALID FOR 51 / 53 / 58 / 59 / 62
                                                                  from £324.18
                                                                  from £324.18
                                                                  # 001
                                                                  MPN: 329956352
                                                                  RH LINER (BLACK LEATHER AND ALCANT. DARK GREY)
                                                                  VALID FOR 51 / 53 / 58 / 59 / 62
                                                                  from £324.18
                                                                  from £324.18
                                                                  # 001
                                                                  MPN: 329971321
                                                                  LH LINER (L1GTH GREY LEATHER AND ALCANTARA)
                                                                  VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                                                  from £88.12
                                                                  from £88.12
                                                                  # 001
                                                                  MPN: 329971322
                                                                  RH LINER (LIGHT GREY LEATHER AND ALCANTARA)
                                                                  VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                                                  from £88.12
                                                                  from £88.12
                                                                  # 001
                                                                  MPN: 329971351
                                                                  LH LINER (BLACK LEATHER AND ALCANT. DARK GREY)
                                                                  VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                                                  # 001
                                                                  MPN: 329971352
                                                                  RH LINER (BLACK LEATHER AND ALCANT. DARK GREY)
                                                                  VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                                                  # 002
                                                                  MPN: 328912159
                                                                  LH UNDER-ARMREST PANEL (IVORY LEATHER)
                                                                  from £230.17
                                                                  from £230.17
                                                                  # 002
                                                                  MPN: 328912160
                                                                  RH UNDER-ARMREST PANEL (IVORY LEATHER)
                                                                  from £51.11
                                                                  from £51.11
                                                                  # 002
                                                                  MPN: 329956159
                                                                  LH UNDER-ARMREST PANEL (LIGHT GREY LEATHER)
                                                                  from £107.65
                                                                  from £107.65
                                                                  # 002
                                                                  MPN: 329956160
                                                                  RH UNDER-ARMREST PANEL (LIGHT GREY LEATHER)
                                                                  from £41.07
                                                                  from £41.07
                                                                  # 002
                                                                  MPN: 329956223
                                                                  LH UNDER-ARMREST PANEL (BLACK LEATHER)
                                                                  from £13.86
                                                                  from £13.86
                                                                  # 002
                                                                  MPN: 329956224
                                                                  RH UNDER-ARMREST PANEL (BLACK LEATHER)
                                                                  from £14.25
                                                                  from £14.25
                                                                  # 003
                                                                  -
                                                                  SUPPLIED WITH POS. 1
                                                                  # 004
                                                                  MPN: 328950249
                                                                  LH FRONT UPPER PANEL DOOR (IVORY LEATHER)
                                                                  # 004
                                                                  MPN: 328950250
                                                                  RH FRONT UPPER PANEL DOOR (IVORY LEATHER)
                                                                  from £188.10
                                                                  from £188.10
                                                                  # 004
                                                                  MPN: 329956327
                                                                  LH FRONT UPPER PANEL DOOR (LIGHT GREY LEATHER)
                                                                  from £188.10
                                                                  from £188.10
                                                                  # 004
                                                                  MPN: 329956328
                                                                  RH FRONT UPPER PANEL DOOR (LIGHT GREY LEATHER)
                                                                  from £188.10
                                                                  from £188.10
                                                                  # 004
                                                                  MPN: 329956357
                                                                  LH FRONT UPPER PANEL DOOR (BLACK LEATHER)
                                                                  from £188.10
                                                                  from £188.10
                                                                  # 004
                                                                  MPN: 329956358
                                                                  RH FRONT UPPER PANEL DOOR (BLACK LEATHER)
                                                                  from £188.10
                                                                  from £188.10
                                                                  # 005
                                                                  MPN: 328312115
                                                                  LH FRONT BRIAR TRIM PANEL DOOR
                                                                  from £7.89
                                                                  from £7.89
                                                                  # 005
                                                                  MPN: 328312116
                                                                  RH FRONT BRIAR TRIM PANEL DOOR
                                                                  from £7.89
                                                                  from £7.89
                                                                  # 006
                                                                  MPN: 119148220
                                                                  SCREW
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 008
                                                                  MPN: 136110055
                                                                  FLAT WASHER
                                                                  from £0.78
                                                                  from £0.78
                                                                  # 009
                                                                  MPN: 53833471
                                                                  SPRING CLIP
                                                                  from £0.70
                                                                  from £0.70
                                                                  # 011
                                                                  MPN: 328350371
                                                                  LH FINISHER (COL. ANTRACITE)
                                                                  from £1.07
                                                                  from £1.07
                                                                  # 011
                                                                  MPN: 328350372
                                                                  RH FINISHER (COL. ANTRACITE)
                                                                  from £1.07
                                                                  from £1.07
                                                                  # 012
                                                                  MPN: 119529130
                                                                  SCREW
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 013
                                                                  MPN: 328950153
                                                                  LH REAR PANEL (IVORY LEATHER AND ALCANT
                                                                  from £192.24
                                                                  from £192.24
                                                                  # 013
                                                                  MPN: 328950154
                                                                  RH REAR PANEL (IVORY LEATHER AND ALCANT.)
                                                                  from £224.42
                                                                  from £224.42
                                                                  # 013
                                                                  MPN: 329956333
                                                                  LH REAR PAN. (LIGHT GREY LEATHER AND ALCANT.)
                                                                  from £202.97
                                                                  from £202.97
                                                                  # 013
                                                                  MPN: 329956334
                                                                  RH REAR PAN. (LIGHT GREY LEATH. AND ALCANT.)
                                                                  # 013
                                                                  MPN: 329956363
                                                                  LH REAR PANEL(BLACK LEATH. AND ALCANT. DARK GREY
                                                                  from £224.42
                                                                  from £224.42
                                                                  # 013
                                                                  MPN: 329956364
                                                                  RH REAR PANEL(BLACK LEATH. AND ALCANT. DARK GREY
                                                                  from £224.42
                                                                  from £224.42
                                                                  # 014
                                                                  MPN: 328350389
                                                                  SEAT
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 015
                                                                  MPN: 128300050
                                                                  NUT
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 10718011
                                                                  # 016
                                                                  MPN: 136110055
                                                                  FLAT WASHER
                                                                  from £0.78
                                                                  from £0.78
                                                                  # 017
                                                                  MPN: 135000043
                                                                  WASHER
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 018
                                                                  MPN: 161600510
                                                                  SCREW
                                                                  from £4.89
                                                                  from £4.89
                                                                  # 019
                                                                  MPN: 119529130
                                                                  SCREW
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 020
                                                                  MPN: 328950257
                                                                  LH REAR UPPER DOOR PANEL (IVORY LEATHER)
                                                                  # 020
                                                                  MPN: 328950258
                                                                  RH REAR UPPER DOOR PANEL (IVORY LEATHER)
                                                                  # 020
                                                                  MPN: 329956347
                                                                  LH REAR UPPER DOOR PANEL (LIGHT GREY LEATHER)
                                                                  from £179.06
                                                                  from £179.06
                                                                  # 020
                                                                  MPN: 329956348
                                                                  RH REAR UPPER DOOR PANEL (LIGHT GREY LEATHER)
                                                                  from £32.49
                                                                  from £32.49
                                                                  # 020
                                                                  MPN: 329956377
                                                                  LH REAR UPPER DOOR PANEL (BLACK LEATHER)
                                                                  # 020
                                                                  MPN: 329956378
                                                                  RH REAR UPPER DOOR PANEL (BLACK LEATHER)
                                                                  # 021
                                                                  MPN: 318320341
                                                                  NUT SCREW
                                                                  from £0.70
                                                                  from £0.70
                                                                  This part replaces part number 14229280
                                                                  # 022
                                                                  MPN: 53831380
                                                                  NUT SCREW
                                                                  from £0.70
                                                                  from £0.70
                                                                  # 024
                                                                  MPN: 163020060
                                                                  FLAT WASHER
                                                                  from £2.57
                                                                  from £2.57
                                                                  # 025
                                                                  MPN: 328912238
                                                                  TRIM (IVORY LEATHER)
                                                                  from £5.12
                                                                  from £5.12
                                                                  # 025
                                                                  MPN: 329956186
                                                                  TRIM (LIGHT GREY LEATHER)
                                                                  from £1.94
                                                                  from £1.94
                                                                  # 025
                                                                  MPN: 329956238
                                                                  TRIM (IVORY LEATHER)
                                                                  from £3.26
                                                                  from £3.26
                                                                  # 026
                                                                  MPN: 328312215
                                                                  LH DOOR PANEL BRIAR TRIM
                                                                  from £7.89
                                                                  from £7.89
                                                                  # 026
                                                                  MPN: 328312216
                                                                  RH DOOR PANEL BRIAR TRIM
                                                                  from £7.89
                                                                  from £7.89
                                                                  # 027
                                                                  MPN: 161600510
                                                                  SCREW
                                                                  from £4.89
                                                                  from £4.89
                                                                  # 028
                                                                  MPN: 30831442
                                                                  FLAT WASHER
                                                                  # 029
                                                                  -
                                                                  SUPPLIED WITH POS. 13
                                                                  # 030
                                                                  MPN: 119935190
                                                                  SCREW
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 031
                                                                  MPN: 30831442
                                                                  FLAT WASHER
                                                                  # 032
                                                                  MPN: 119935130
                                                                  SCREW
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 033
                                                                  MPN: 328912179
                                                                  LH REAR PANEL UNDER-ARMREST
                                                                  from £15.53
                                                                  from £15.53
                                                                  # 033
                                                                  MPN: 328912180
                                                                  RH REAR PANEL UNDER-ARMREST
                                                                  from £15.53
                                                                  from £15.53
                                                                  # 033
                                                                  MPN: 329956179
                                                                  LH REAR PAN. UNDER -ARMR. TRIM
                                                                  from £19.23
                                                                  from £19.23
                                                                  # 033
                                                                  MPN: 329956180
                                                                  RH REAR PAN. UNDER-ARMR. TRIM
                                                                  from £19.23
                                                                  from £19.23
                                                                  # 033
                                                                  MPN: 329956235
                                                                  LH REAR PAN. UNDER -ARMR. TRIM (BLACK LEATHER)
                                                                  from £19.23
                                                                  from £19.23
                                                                  # 033
                                                                  MPN: 329956236
                                                                  RH REAR PANEL UNDER-ARHREST TRIM (BLACK LEATH.)
                                                                  from £19.23
                                                                  from £19.23
