054 - Passenger Compartment Ventilation

Maserati 418 / 4.24v / 430 Passenger Compartment Ventilation Parts Diagram

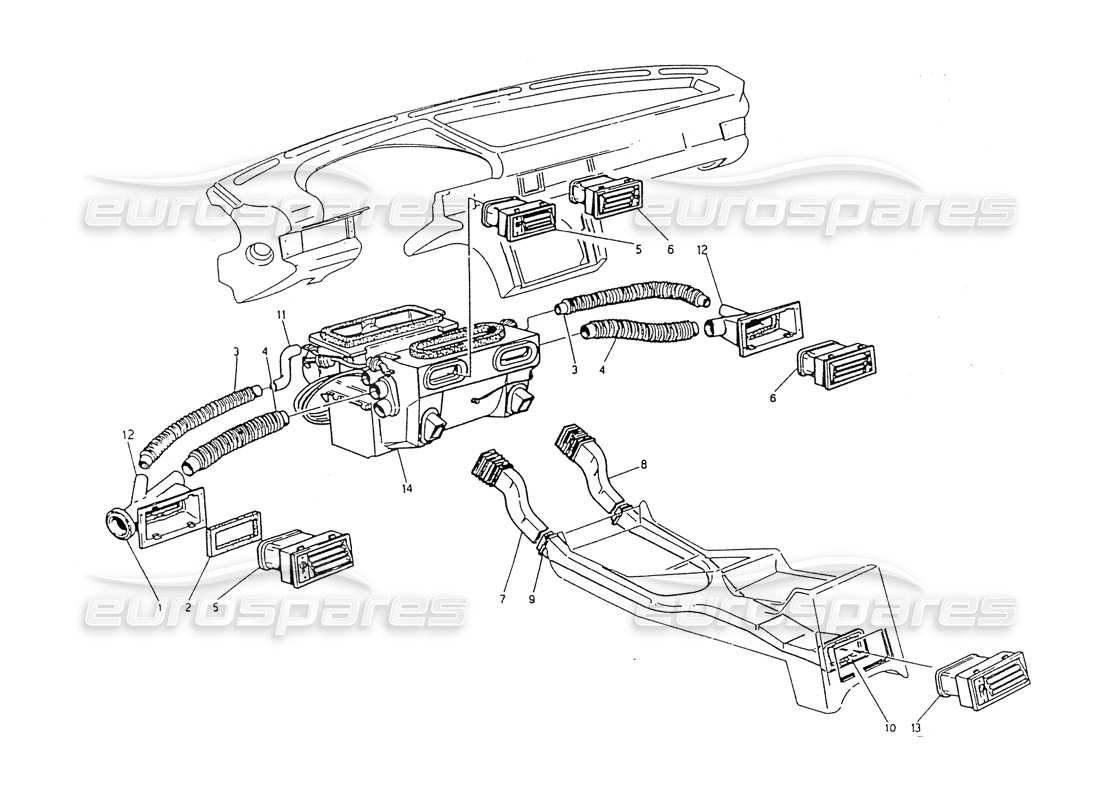

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 315520318
                            EXTERNAL GASKET
                            from £0.70
                            from £0.70
                            # 002
                            MPN: 315520317
                            INTERNAL GASKET
                            from £0.70
                            from £0.70
                            # 003
                            MPN: 315520314
                            DOOR VENTILATION DUCT
                            from £34.72
                            from £34.72
                            # 004
                            MPN: 315520316
                            DASHBOARD VENTILATION DUCT
                            from £41.01
                            from £41.01
                            # 005
                            MPN: 315553013
                            LH DASHBOARD DIFFUSER (ANTRACITE COLOR)
                            from £33.88
                            from £33.88
                            # 006
                            MPN: 315553014
                            RH DASHBOARD DIFFUSER (ANTRACITE COLOR)
                            from £18.02
                            from £18.02
                            # 007
                            MPN: 315520325
                            LH CONSOLE FRONT DUCT
                            from £2.80
                            from £2.80
                            # 008
                            MPN: 315520326
                            RH CONSOLE FRONT DUCT
                            from £2.80
                            from £2.80
                            # 009
                            MPN: 315520113
                            CONSOLE REAR COMPLETE DUCT
                            from £12.47
                            from £12.47
                            # 010
                            MPN: 315520329
                            GASKET
                            from £0.70
                            from £0.70
                            # 011
                            MPN: 315520313
                            LH SIDE DOOR VENTILATION SLEEVE
                            from £2.96
                            from £2.96
                            # 012
                            MPN: 315520110
                            AIR DUCT
                            Supersession
                            Supersession
                            # 013
                            MPN: 315553020
                            CONSOLE DIFFUSER (ANTRACITE COLOR)
                            from £11.23
                            from £11.23
                            This part replaces part number 315550020
                            # 014
                            MPN: 315551005
                            AIR CONDITIONER ASSY
                            VALID FOR 51 / 53 / 58 / 59 / 62
                            from £907.77
                            from £907.77
                            # 014
                            MPN: 315570005
                            AIR CONDITIONER ASSY
                            VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                            from £940.10
                            from £940.10
                            This part replaces part number 315527005
