056 - Sliding Roof

Maserati 418 / 4.24v / 430 Sliding Roof Parts Diagram

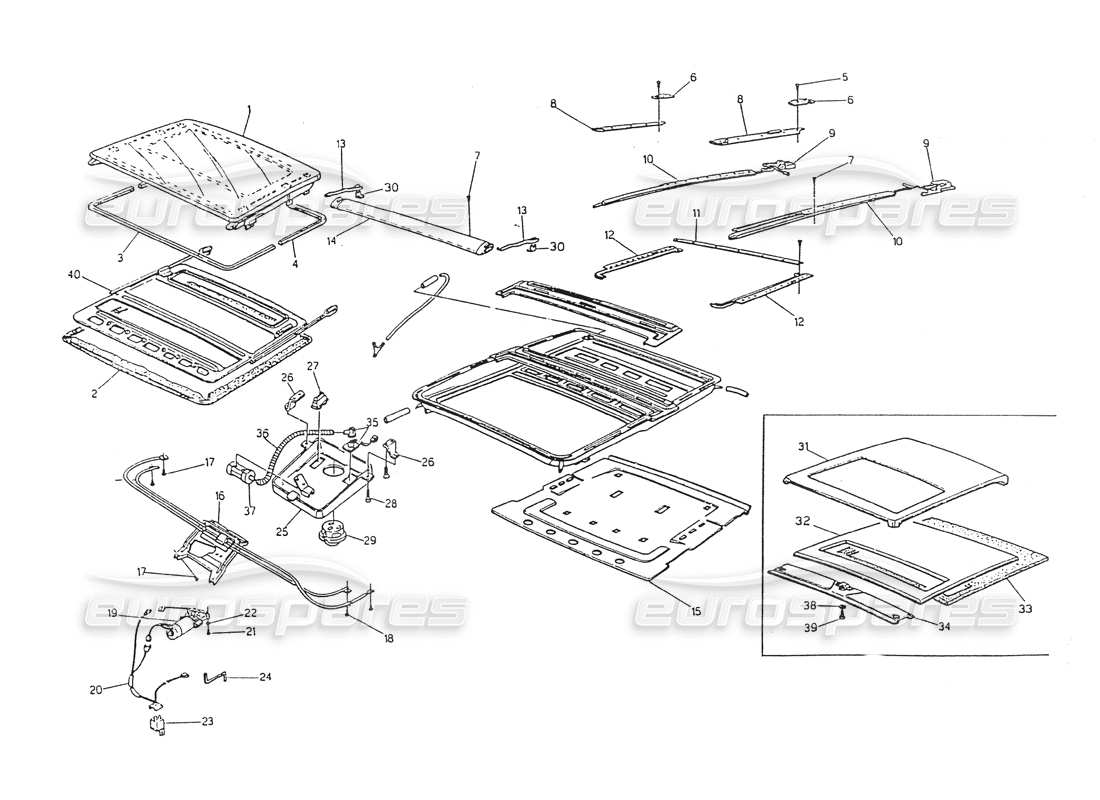

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 327920075
                                                                              MOVABLE PANEL KIT COMPLETE
                                                                              from £168.26
                                                                              from £168.26
                                                                              # 002
                                                                              MPN: 327956289
                                                                              COVERING (LIGHT GREY ALCANTARA)
                                                                              from £88.12
                                                                              from £88.12
                                                                              # 002
                                                                              MPN: 328912500
                                                                              COVERING (IVORY ALCANTARA)
                                                                              from £156.76
                                                                              from £156.76
                                                                              # 003
                                                                              MPN: 327920704
                                                                              FRONT GASKET
                                                                              from £25.30
                                                                              from £25.30
                                                                              This part replaces part number 327920703
                                                                              # 004
                                                                              MPN: 327920703
                                                                              REAR GASKET
                                                                              Supersession
                                                                              Supersession
                                                                              # 005
                                                                              MPN: 327920713
                                                                              SCREW
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 006
                                                                              MPN: 327920714
                                                                              RH PLATE
                                                                              from £5.43
                                                                              from £5.43
                                                                              # 006
                                                                              MPN: 327920715
                                                                              LH PLATE
                                                                              from £5.59
                                                                              from £5.59
                                                                              # 007
                                                                              MPN: 327920716
                                                                              SCREW
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 008
                                                                              MPN: 327920717
                                                                              LH SIDE GUIDE
                                                                              from £3.40
                                                                              from £3.40
                                                                              # 008
                                                                              MPN: 327920718
                                                                              RH SIDE GUIDE
                                                                              from £3.40
                                                                              from £3.40
                                                                              # 009
                                                                              MPN: 327920720
                                                                              RH GUIDE PANEL CARRIAGE
                                                                              from £22.58
                                                                              from £22.58
                                                                              # 009
                                                                              MPN: 327920721
                                                                              LH GUIDE PANEL CARRIAGE
                                                                              from £22.58
                                                                              from £22.58
                                                                              # 010
                                                                              MPN: 327920722
                                                                              RH INOX GUIDE COMP.
                                                                              from £7.15
                                                                              from £7.15
                                                                              # 010
                                                                              MPN: 327920723
                                                                              LH INOX GUIDE COMP.
                                                                              from £7.15
                                                                              from £7.15
                                                                              # 012
                                                                              MPN: 327920725
                                                                              RH SIDE GUIDE
                                                                              from £3.73
                                                                              from £3.73
                                                                              # 012
                                                                              MPN: 327920726
                                                                              LH SIDE GUIDE
                                                                              from £3.73
                                                                              from £3.73
                                                                              # 013
                                                                              MPN: 327920753
                                                                              BRACKET
                                                                              from £3.26
                                                                              from £3.26
                                                                              # 014
                                                                              MPN: 327920727
                                                                              BAFFLE COMPL.
                                                                              from £125.64
                                                                              from £125.64
                                                                              # 015
                                                                              MPN: 327920616
                                                                              PADDING
                                                                              from £314.30
                                                                              from £314.30
                                                                              # 016
                                                                              MPN: 327920261
                                                                              BRACKET
                                                                              from £14.82
                                                                              from £14.82
                                                                              # 017
                                                                              MPN: 327920734
                                                                              SCREW
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 018
                                                                              MPN: 327920735
                                                                              SCREW
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 019
                                                                              MPN: 327920736
                                                                              engine
                                                                              from £116.74
                                                                              from £116.74
                                                                              # 020
                                                                              MPN: 327920737
                                                                              WIRING HARNESS
                                                                              from £16.92
                                                                              from £16.92
                                                                              # 021
                                                                              MPN: 327920739
                                                                              SCREW
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 022
                                                                              MPN: 327920719
                                                                              WASHER
                                                                              from £1.40
                                                                              from £1.40
                                                                              # 023
                                                                              MPN: 327920738
                                                                              RELAY
                                                                              from £18.09
                                                                              from £18.09
                                                                              # 024
                                                                              MPN: 327920741
                                                                              LEVER
                                                                              from £1.55
                                                                              from £1.55
                                                                              # 025
                                                                              MPN: 327956275
                                                                              COVER AUTOM. CONDITIONER (LIGHT GREY LEATHER)
                                                                              # 025
                                                                              MPN: 327956277
                                                                              COVER AUTOM. CONDITIONER (BLACK LEATHER)
                                                                              from £40.97
                                                                              from £40.97
                                                                              # 025
                                                                              MPN: 328912508
                                                                              COVER AUTOM. CONDITIONER (IVORY LEATHER)
                                                                              from £81.07
                                                                              from £81.07
                                                                              # 026
                                                                              -
                                                                              BRAKET
                                                                              # 027
                                                                              MPN: 323350130
                                                                              SWITCH
                                                                              from £8.96
                                                                              from £8.96
                                                                              This part replaces part number 330915700
                                                                              # 028
                                                                              MPN: 119929250
                                                                              SCREW
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 029
                                                                              MPN: 313120117
                                                                              ROOF LAMP WITH SPOT LIGHT
                                                                              from £0.84
                                                                              from £0.84
                                                                              # 030
                                                                              MPN: 327920730
                                                                              BRACKET
                                                                              from £0.70
                                                                              from £0.70
                                                                              # 031
                                                                              MPN: 322520700
                                                                              OUTSIDE ROOF PANEL PADDING
                                                                              from £117.76
                                                                              from £117.76
                                                                              # 032
                                                                              MPN: 327920622
                                                                              FRONT PADDING
                                                                              # 033
                                                                              MPN: 327956293
                                                                              CEILING COVERING (LIGHT GREY ALCANTARA)
                                                                              from £46.34
                                                                              from £46.34
                                                                              # 033
                                                                              MPN: 328912501
                                                                              CEILING COVERING (IVORY ALCANTARA)
                                                                              # 034
                                                                              MPN: 327956282
                                                                              FRONT CROSS PADDING (LIGHT GREY LEATHER)
                                                                              Valid for 51 / 53
                                                                              # 034
                                                                              MPN: 327956282
                                                                              FRONT CROSS PADDING (LIGHT GREY LEATHER)
                                                                              VALID FOR 58 / 59 / 62 GERMANY EXCEPTED
                                                                              # 034
                                                                              MPN: 327956284
                                                                              FRONT CROSS PADDING (BLACK LEATHER)
                                                                              Valid for 51 / 53
                                                                              # 034
                                                                              MPN: 327956284
                                                                              FRONT CROSS PADDING (BLACK LEATHER)
                                                                              VALID FOR 58 / 59 / 62 GERMANY EXCEPTED
                                                                              # 034
                                                                              MPN: 327970283
                                                                              FRONT CROSS PADDING (LIGHT CREY LEATHER)
                                                                              VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                                                              # 034
                                                                              MPN: 327970283
                                                                              FRONT CROSS PADDING (LIGHT GREY LEATHER)
                                                                              VALID FOR 58 / 59 / 62 ONLY GERMANY
                                                                              # 034
                                                                              MPN: 327970285
                                                                              FRONT CROSS PADDING (BLACK LEATHER)
                                                                              VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                                                              # 034
                                                                              MPN: 327970285
                                                                              FRONT CROSS PADDING (BLACK LEATHER)
                                                                              VALID FOR 58 / 59 / 62 ONLY GERMANY
                                                                              # 034
                                                                              MPN: 328912507
                                                                              FRONT CROSS PADDING (IVORY LEATHER)
                                                                              VALID FOR 58 / 59 / 62 GERMANY EXCEPTED
                                                                              from £301.68
                                                                              from £301.68
                                                                              # 034
                                                                              MPN: 328912507
                                                                              FRONT CROSS PADDING (IVORY LEATHER)
                                                                              Valid for 51 / 53
                                                                              from £301.68
                                                                              from £301.68
                                                                              # 034
                                                                              MPN: 328970512
                                                                              FRONT CROSS PADDING (IVORY LEATHER)
                                                                              VALID FOR 58 / 59 / 62 ONLY GERMANY
                                                                              # 034
                                                                              MPN: 328970512
                                                                              FRONT CROSS PADDING (IVORY LEATHER)
                                                                              VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
                                                                              # 035
                                                                              MPN: 315520199
                                                                              ROOM TEMPERATURE PROBE
                                                                              from £28.20
                                                                              from £28.20
                                                                              # 036
                                                                              MPN: 315520467
                                                                              PIPE
                                                                              from £0.71
                                                                              from £0.71
                                                                              # 037
                                                                              MPN: 315520200
                                                                              FAN
                                                                              from £60.15
                                                                              from £60.15
                                                                              # 038
                                                                              MPN: 135900043
                                                                              FLAT WASHER
                                                                              from £1.08
                                                                              from £1.08
                                                                              This part replaces part number 14496207
                                                                              # 040
                                                                              MPN: 322520715
                                                                              SUNROOF FRAMEWORK
                                                                              from £0.47
                                                                              from £0.47
                                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
