003 - Cylinder Heads

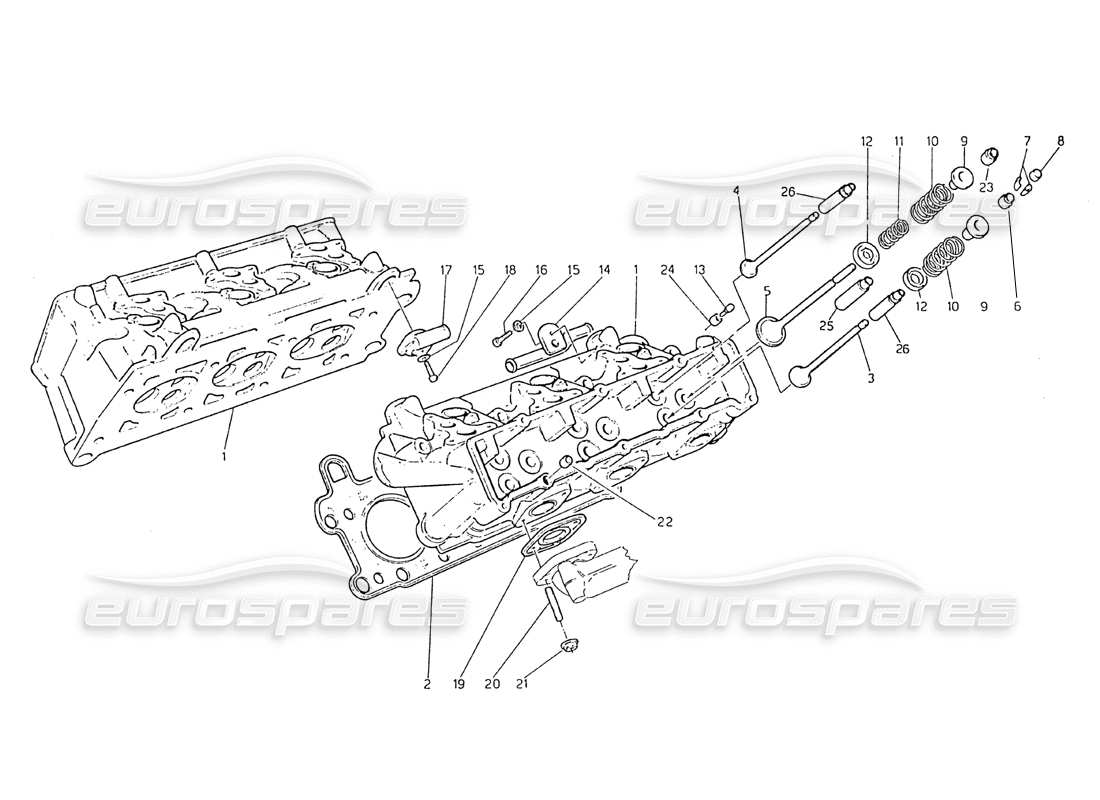

Maserati Biturbo 2.5 (1984) Cylinder Heads Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 310620003
CYLINDER HEAD
from £373.27
from £373.27
# 002
MPN: 473006001
CYLINDER HEADS GASKET
from £47.25
from £47.25
This part replaces part number 310654418
# 003
MPN: 310620301

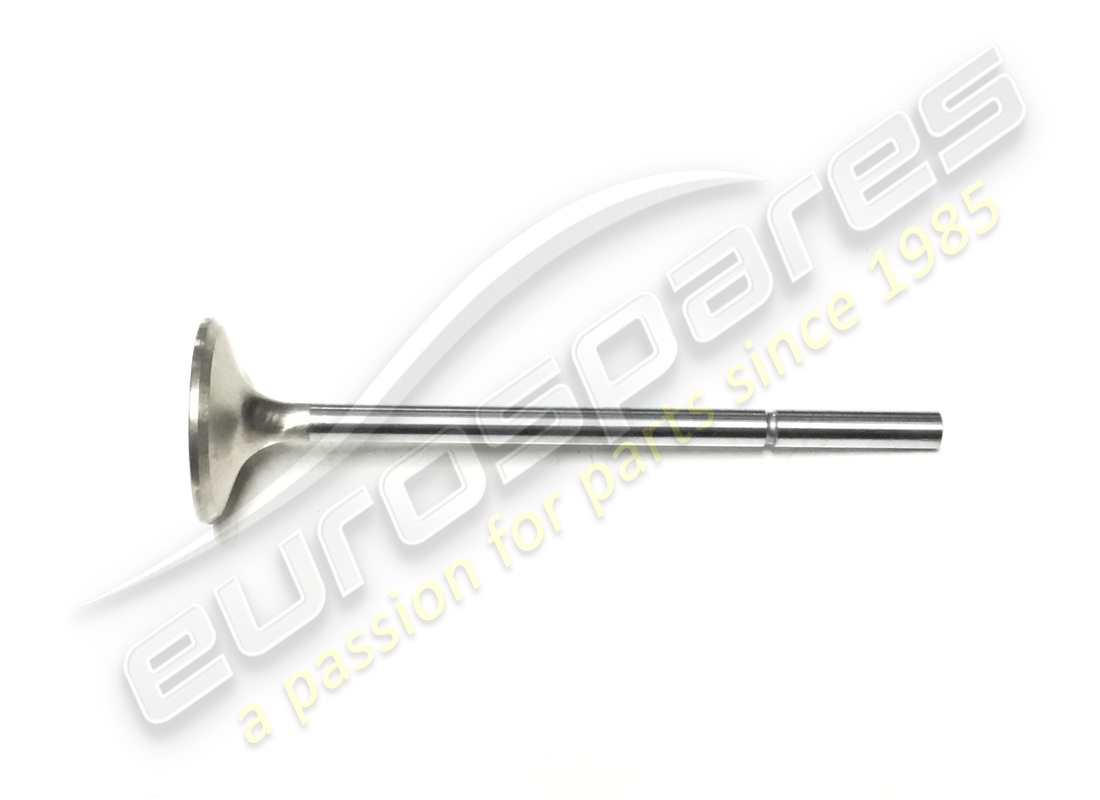

Inlet Valve 27MM
from £44.63
from £44.63
# 004
MPN: 310620302
Inlet Valve 23MM
from £7.48
from £7.48
# 005
MPN: 310620304

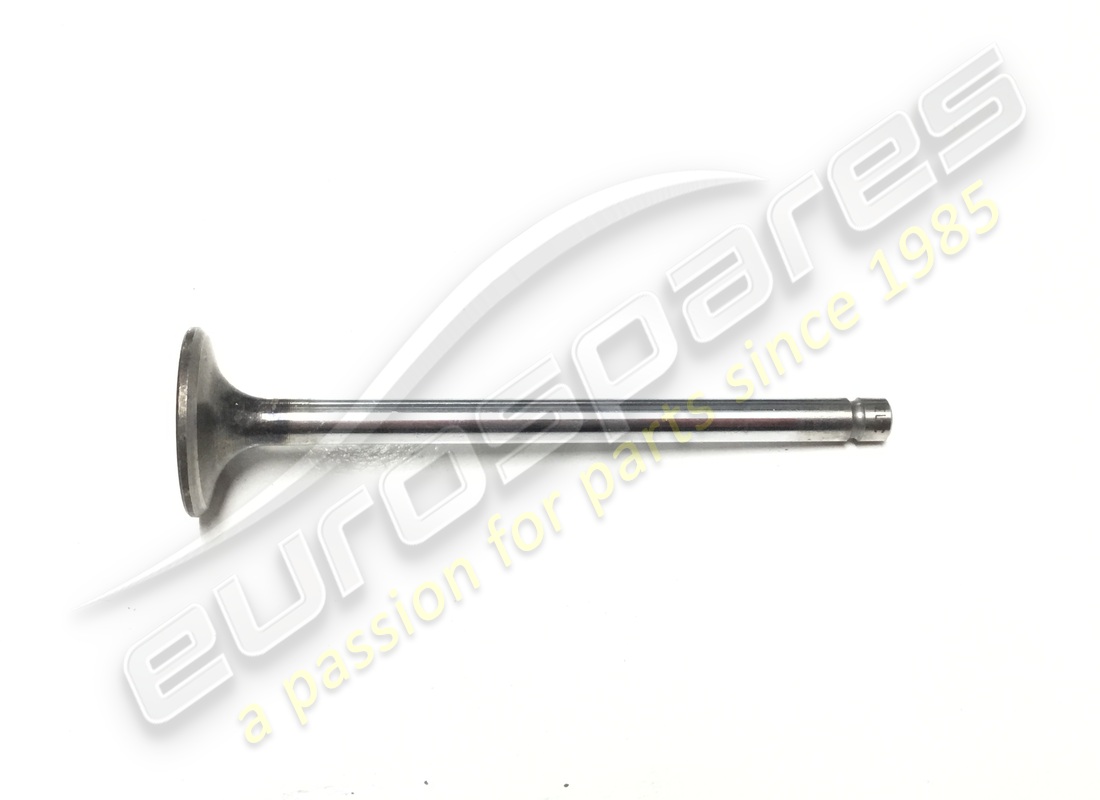

EXHAUST VALVE
from £42.00
from £42.00
# 006
MPN: 470002700
SEAL RING
from £3.45
from £3.45
This part replaces part number 310620317
# 007
MPN: 310620319
VALVE CONES
from £0.68
from £0.68
# 008
MPN: 310620321
VALVE ADJUSTING PIN
VALVE 2,100
from £1.07
from £1.07
# 008
MPN: 310620322
VALVE ADJUSTING PIN
VALVE 2,150
from £1.38
from £1.38
# 008
MPN: 310620323
VALVE ADJUSTING PIN
VALVE 2,200
from £2.14
from £2.14
# 008
MPN: 310620324
VALVE ADJUSTING PIN
VALVE 2,250
from £1.29
from £1.29
# 008
MPN: 310620325
VALVE ADJUSTING PIN
VALVE 2,300
from £2.14
from £2.14
# 008
MPN: 310620326
VALVE ADJUSTING PIN
VALVE 2,350
from £2.14
from £2.14
# 008
MPN: 310620327
VALVE ADJUSTING PIN
VALVE 2,400
from £1.62
from £1.62
# 008
MPN: 310620328
VALVE ADJUSTING PIN
VALVE 2,450
from £1.84
from £1.84
# 008
MPN: 310620329
VALVE ADJUSTING PIN
VALVE 2,500
# 008
MPN: 310620330
VALVE ADJUSLING PIN
VALVE 2,550
# 008
MPN: 310620331
VALVE ADJUSTING PIN
VALVE 2,600
Supersession
Supersession
# 008
MPN: 310620332
VALVE ADJUSTING PIN
VALVE 2,650
# 008
MPN: 310620333
VALVE ADJUSLING PIN
VALVE 2,700
# 008
MPN: 310620334
VALVE ADJUSTING PIN
VALVE 2,750
# 008
MPN: 310620335
VALVE ADJUSTING PIN
VALVE 2,800
# 008
MPN: 310620336
VALVE ADJUSTING PIN
VALVE 2,850
# 008
MPN: 310620337
VALVE ADJUSLING PIN
VALVE 2,900
# 008
MPN: 310620338
VALVE ADJUSLING PIN
VALVE 2,950
# 008
MPN: 310620339
VALVE ADJUSTING PIN
VALVE 3,000
from £4.37
from £4.37
# 008
MPN: 310620340
VALVE ADJUSTING PIN
VALVE 3,050
# 008
MPN: 310620341
VALVE ADJUSTING PIN
VALVE 3,100
# 008
MPN: 310620342
VALVE ADJUSTING PIN
VALVE 3,150
# 008
MPN: 310620343
VALVE ADJUSTING PIN
VALVE 3,200
# 008
MPN: 310620344
VALVE ADJUSTING PIN
VALVE 3,250
# 008
MPN: 310620345
VALVE ADJUSTING PIN
VALVE 3,300
# 008
MPN: 310620346
VALVE ADJUSTING PIN
VALVE 3,350
# 008
MPN: 310620347
VALVE ADJUSTING PIN
VALVE 3,400
# 008
MPN: 310620348
VALVE ADJUSTING PIN
VALVE 3,450
# 008
MPN: 310620349
VALVE ADJUSTING PIN
VALVE 3,550
# 008
MPN: 310620350
VALVE ADJUSTING PIN
VALVE 3,550
# 008
MPN: 310620351
VALVE ADJUSTING PIN
VALVE 3,600
# 008
MPN: 310620352
VALVE ADJUSTING PIN
VALVE 4,000
# 008
MPN: 310620373
VALVE ADJUSTING PIN
VALVE 3,650
# 008
MPN: 310620374
VALVE ADJUSTING PIN
VALVE 3,700
# 008
MPN: 310620375
VALVE ADJUSTING PIN
VALVE 3,750
# 008
MPN: 310620376
VALVE ADJUSTING PIN
VALVE 3,800
from £2.02
from £2.02
# 008
MPN: 310620377
VALVE ADJUSTING PIN
VALVE 3,850
from £1.57
from £1.57
# 008
MPN: 310620378
VALVE ADJUSTING PIN
VALVE 3,900
# 008
MPN: 310620379
VALVE ADJUSTING PIN
VALVE 3,950
# 008
MPN: 310620380
VALVE ADJUSTING PIN
VALVE 2,125
from £9.12
from £9.12
# 008
MPN: 310620381
VALVE ADJUSTING PIN
VALVE 2,175
from £1.92
from £1.92
# 008
MPN: 310620382
VALVE ADJUSTING PIN
VALVE 2,225
from £0.68
from £0.68
# 008
MPN: 310620383
VALVE ADJUSTING PIN
VALVE 2,275
from £2.83
from £2.83
# 008
MPN: 310620384
VALVE ADJUSTING PIN
VALVE 2,325
# 008
MPN: 310620385
VALVE ADJUSTING PIN
VALVE 2,375
# 008
MPN: 310620386
VALVE ADJUSTING PIN
VALVE 2,425
from £1.20
from £1.20
# 008
MPN: 310620387
VALVE ADJUSTING PIN
VALVE 2,475
# 008
MPN: 310620388
VALVE ADJUSTING PIN
VALVE 2,525
# 008
MPN: 310620389
VALVE ADJUSTING PIN
VALVE 2,575
# 008
MPN: 310620390
VALVE ADJUSTING PIN
VALVE 2,625
# 008
MPN: 310620391
VALVE ADJUSTING PIN
VALVE 2,675
# 008
MPN: 310620392
VALVE ADJUSTING PIN
VALVE 2,725
# 008
MPN: 310620393
VALVE ADJUSTING PIN
VALVE 2,775
# 008
MPN: 310620395
VALVE ADJUSTING PIN
VALVE 2,875
# 008
MPN: 310620396
VALVE ADJUSTING PIN
VALVE 2,925
# 008
MPN: 310620397
VALVE ADJUSTING PIN
VALVE 2,975
# 008
MPN: 310620398
VALVE ADJUSTING PIN
VALVE 3,025
# 008
MPN: 310620399
VALVE ADJUSTING PIN
VALVE 3,075
# 008
MPN: 310620400
VALVE ADJUSTING PIN
VALVE 3,125
# 008
MPN: 310620401
VALVE ADJUSTING PIN
VALVE 3,175
# 008
MPN: 310620402
VALVE ADJUSTING PIN
VALVE 3,225
# 008
MPN: 310620403
VALVE ADJUSTING PIN
VALVE 3,275
# 008
MPN: 310620404
VALVE ADJUSTING PIN
VALVE 3,325
# 008
MPN: 310620405
VALVE ADJUSTING PIN
VALVE 3,375
# 008
MPN: 310620406
VALVE ADJUSTING PIN
VALVE 3,425
# 008
MPN: 310620407
VALVE ADJUSTING PIN
VALVE 3,475
# 008
MPN: 310620408
VALVE ADJUSTING PIN
VALVE 3,525
Supersession
Supersession
# 008
MPN: 310620409
VALVE ADJUSTING PIN
VALVE 3,575
# 008
MPN: 310620410
VALVE ADJUSTING PIN
VALVE 3,625
# 008
MPN: 310620411
VALVE ADJUSTING PIN
VALVE 3,675
# 008
MPN: 310620412
VALVE ADJUSTING PIN
VALVE 3,725
from £1.54
from £1.54
# 008
MPN: 310620413
VALVE ADJUSTING PIN
VALVE 3,775
from £1.07
from £1.07
# 008
MPN: 310620414
VALVE ADJUSTING PIN
VALVE 3,825
from £2.30
from £2.30
# 008
MPN: 310620415
VALVE ADJUSTING PIN
VALVE 3,875
from £1.69
from £1.69
# 008
MPN: 310620417
VALVE ADJUSTING PIN
VALVE 3,975
from £0.68
from £0.68
# 008
MPN: 310620425
VALVE ADJUSTING PIN
VALVE 4,050
from £2.30
from £2.30
# 008
MPN: 310620426
VALVE ADJUSTING PIN
VALVE 4,100
from £0.68
from £0.68
# 008
MPN: 310620427
VALVE ADJUSTING PIN
VALVE 4,150
from £2.30
from £2.30
# 008
MPN: 310620428
VALVE ADJUSTING PIN
VALVE 4,200
from £0.68
from £0.68
# 008
MPN: 310620429
VALVE ADJUSTING PIN
VALVE 4,250
from £2.30
from £2.30
# 008
MPN: 310620430
VALVE ADJUSTING PIN
VALVE 4,300
from £0.58
from £0.58
# 008
MPN: 310620431
VALVE ADJUSTING PIN
VALVE 4,300
from £1.57
from £1.57
# 008
MPN: 310620432
VALVE ADJUSTING PIN
VALVE 4,400
from £2.30
from £2.30
# 008
MPN: 310620433
VALVE ADJUSTING PIN
VALVE 4,450
# 008
MPN: 310620434
VALVE ADJUSTING PIN
VALVE 4,500
from £2.30
from £2.30
# 008
MPN: 310620440
VALVE ADJUSTING PIN
VALVE 4,025
from £2.30
from £2.30
# 008
MPN: 310620441
VALVE ADJUSTING PIN
VALVE 4,075
from £2.30
from £2.30
# 008
MPN: 310620442
VALVE ADJUSTING PIN
VALVE 4,125
from £2.30
from £2.30
# 008
MPN: 310620443
VALVE ADJUSTING PIN
VALVE 4,175
from £2.30
from £2.30
# 008
MPN: 310620444
VALVE ADJUSTING PIN
VALVE 4,225
# 008
MPN: 310620445
VALVE ADJUSTING PIN
VALVE 4,275
# 008
MPN: 310620446
VALVE ADJUSTING PIN
VALVE 4,325
from £2.30
from £2.30
# 008
MPN: 310620447
VALVE ADJUSTING PIN
VALVE 4,375
from £2.30
from £2.30
# 008
MPN: 310620448
VALVE ADJUSTING PIN
VALVE 4,425
from £2.30
from £2.30
# 008
MPN: 310620449
VALVE ADJUSTING PIN
VALVE 4,475
from £2.30
from £2.30
# 008
MPN: 452032964
VALVE ADJUSTING PIN
VALVE 2,825
from £3.60
from £3.60
# 009
MPN: 310620355
UPPER VALVE SPRING RETAINER
# 010
MPN: 310620356
OUTSIDE VALVE SPRING
# 011
MPN: 310620358
INSIDE EXHAUST VALVE SPRING
# 012
MPN: 310620361
LOWER VALVE SPRING RETAINER
from £0.68
from £0.68
# 013
MPN: 310620365
DOWEL
# 014
MPN: 310625363
CONNECTION
from £44.78
from £44.78
# 015
MPN: 310620364
GASKET
from £5.56
from £5.56
# 016
MPN: 108006030
SCREW
# 017
MPN: 452009901
WATER CONNECTION
from £2.30
from £2.30
# 018
MPN: 14305924
SCREW
from £0.53
from £0.53
This part replaces part number 14305921 - and 1 more. Click to view details
# 019
MPN: 473362201
EXHAUST MANIFOLD GASKET
from £7.30
from £7.30
This part replaces part number 310650465
# 020
MPN: 310620370
STUD
from £14.64
from £14.64
# 021
MPN: 312020309
NUT
# 022
MPN: 310620369
DOWEL
from £1.92
from £1.92
# 023
MPN: 310620317
RUBBER
Supersession
Supersession
# 024
MPN: 310620362
FILTER
Supersession
Supersession
# 025
MPN: 310620005
EHAUST VALVE GUIDE
from £26.31
from £26.31
This part replaces part number 310620311
# 026
MPN: 310620313
INLET VALVE GUIDA
from £1.54
from £1.54
-part-diagram-004.webp "MASERATI BITURBO 2.5 (1984) CYLINDER BLOCK AND OIL SUMP PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI BITURBO 2.5 (1984) FASTENINGS AND BLOCK ACCESSORIES PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI BITURBO 2.5 (1984) CRANKSHAFT - PISTONS - CONNECTING RODS AND FLYWHEEL PARTS DIAGRAM")
-part-diagram-007.webp "MASERATI BITURBO 2.5 (1984) TIMING PARTS DIAGRAM")
-part-diagram-008.webp "MASERATI BITURBO 2.5 (1984) TIMING CONTROL PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI BITURBO 2.5 (1984) WATER PUMP AND OIL PUMP PARTS DIAGRAM")
-part-diagram-010.webp "MASERATI BITURBO 2.5 (1984) INTACK AND EXHAUST MANIFOLDS PARTS DIAGRAM")
-part-diagram-011.webp "MASERATI BITURBO 2.5 (1984) TURBOBLOWERS PARTS DIAGRAM")
-part-diagram-011.1.webp "MASERATI BITURBO 2.5 (1984) MABC SYSTEM PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI BITURBO 2.5 (1984) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-013.webp "MASERATI BITURBO 2.5 (1984) ENGINE COOLING PIPES AND THERMOSTAT PARTS DIAGRAM")
-part-diagram-014.webp "MASERATI BITURBO 2.5 (1984) RADIATOR AND COOLING FANS PARTS DIAGRAM")
-part-diagram-015.webp "MASERATI BITURBO 2.5 (1984) IGNITION SYSTEM AND DISTRIBUTOR PARTS DIAGRAM")
-part-diagram-016.webp "MASERATI BITURBO 2.5 (1984) ALTERNATOR AND BRACKET PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI BITURBO 2.5 (1984) AIR COMPRESSOR ANDF BRACKETS PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI BITURBO 2.5 (1984) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-019.webp "MASERATI BITURBO 2.5 (1984) MARELLI STARTER MOTOR PARTS DIAGRAM")
-part-diagram-020.webp "MASERATI BITURBO 2.5 (1984) STARTER MOTOR PARTS DIAGRAM")
-part-diagram-021.webp "MASERATI BITURBO 2.5 (1984) CARBURETOR, CHOKE AND ACCELERATOR CONTROLS PARTS DIAGRAM")
-part-diagram-022.webp "MASERATI BITURBO 2.5 (1984) CARBURETOR COMPONENTS PARTS DIAGRAM")
-part-diagram-023.webp "MASERATI BITURBO 2.5 (1984) AIR FILTER AND PIPES PARTS DIAGRAM")
-part-diagram-024.webp "MASERATI BITURBO 2.5 (1984) FUEL PIPES PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI BITURBO 2.5 (1984) FUEL TANK PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI BITURBO 2.5 (1984) CLUTCH PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI BITURBO 2.5 (1984) TRANSMISSION BOX PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI BITURBO 2.5 (1984) TRANSMISSION OUTSIDE CONTROLS PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI BITURBO 2.5 (1984) TRANSMISSION - INSIDE CONTROLS PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI BITURBO 2.5 (1984) TRANSMISSION DRIVING SHAFT PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI BITURBO 2.5 (1984) TRANSMISSION LAYSHAFT AND DIRECT PTO SHAFT PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI BITURBO 2.5 (1984) PROPELLER SHAFT AND CARRIER PARTS DIAGRAM")
-part-diagram-033.webp "MASERATI BITURBO 2.5 (1984) DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI BITURBO 2.5 (1984) STEERING SHAFT AND WHEEL PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI BITURBO 2.5 (1984) FRONT SUBFRAME AND STEERING RACK PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI BITURBO 2.5 (1984) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI BITURBO 2.5 (1984) FRONT SHOCK ABSORBERS PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI BITURBO 2.5 (1984) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI BITURBO 2.5 (1984) REAR SHOCK ABSORBER PARTS DIAGRAM")
-part-diagram-040.webp "MASERATI BITURBO 2.5 (1984) WHEELS, HUBS AND FRONT BRAKES PARTS DIAGRAM")
-part-diagram-041.webp "MASERATI BITURBO 2.5 (1984) HUBS, REAR BRAKES AND DRIVE SHAFTS PARTS DIAGRAM")
-part-diagram-042.webp "MASERATI BITURBO 2.5 (1984) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-043.webp "MASERATI BITURBO 2.5 (1984) PEDAL ASSY - BRAKE BOOSTER - CLUTCH PUMP PARTS DIAGRAM")
-part-diagram-044.webp "MASERATI BITURBO 2.5 (1984) HYDRAULIC BRAKE LINES PARTS DIAGRAM")
-part-diagram-045.webp "MASERATI BITURBO 2.5 (1984) BODY SHELL - OUTER PANELS PARTS DIAGRAM")
-part-diagram-046.webp "MASERATI BITURBO 2.5 (1984) BODY SHELL - INNER PARTS PARTS DIAGRAM")
-part-diagram-047.webp "MASERATI BITURBO 2.5 (1984) BODY SHELL - FRONT PANEL, ROOF PANEL, DOORS, BONNET, BOOT LID PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI BITURBO 2.5 (1984) BONNET - HINGES AND BONNET RELEASE PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI BITURBO 2.5 (1984) BOOT LID - HINGES, BOOT LID RELEASE PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI BITURBO 2.5 (1984) DOORS - HINGES AND INNER CONTROLS PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI BITURBO 2.5 (1984) DOORS - WINDOWS AND REGULATORS PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI BITURBO 2.5 (1984) RADIATOR GRILL - FINISHERS - FIXED GLASSES PARTS DIAGRAM")
-part-diagram-053.webp "MASERATI BITURBO 2.5 (1984) FRONT BUMPER AND SOUND PROOF FELTS PARTS DIAGRAM")
-part-diagram-054.webp "MASERATI BITURBO 2.5 (1984) REAR BUMPER PARTS DIAGRAM")
-part-diagram-055.webp "MASERATI BITURBO 2.5 (1984) SPARE WHEEL LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-056.webp "MASERATI BITURBO 2.5 (1984) BOOT - BADGES, CARPET AND TOOLS PARTS DIAGRAM")
-part-diagram-057.webp "MASERATI BITURBO 2.5 (1984) WINDSHIELD WIPER - WASHER PARTS DIAGRAM")
-part-diagram-058.webp "MASERATI BITURBO 2.5 (1984) HEAD AND TAIL LIGHTS PARTS DIAGRAM")
-part-diagram-059.webp "MASERATI BITURBO 2.5 (1984) WIRING HARNES AND ELECTRICAL COMPONENTS PARTS DIAGRAM")
-part-diagram-060.webp "MASERATI BITURBO 2.5 (1984) INSTRUMENTATION AND ELECTRICAL CONTROLS PARTS DIAGRAM")
-part-diagram-061.webp "MASERATI BITURBO 2.5 (1984) INSTRUMENT PANEL AND CONSOLE PARTS DIAGRAM")
-part-diagram-062.webp "MASERATI BITURBO 2.5 (1984) VENTILATION PARTS DIAGRAM")
-part-diagram-063.webp "MASERATI BITURBO 2.5 (1984) CONDITIONING SET PARTS DIAGRAM")
-part-diagram-064.webp "MASERATI BITURBO 2.5 (1984) TRIM PARTS DIAGRAM")
-part-diagram-065.webp "MASERATI BITURBO 2.5 (1984) FRONT AND REAR SEAT PARTS DIAGRAM")
-part-diagram-066.webp "MASERATI BITURBO 2.5 (1984) SEAT BELTS, MIRRORS AND SUN VISOR PARTS DIAGRAM")
-part-diagram-067.webp "MASERATI BITURBO 2.5 (1984) CARPET AND FELTS PARTS DIAGRAM")
-part-diagram-002.webp "MASERATI BITURBO 2.5 (1984) GASKET SET AND OIL SEALS FOR BLOCK OVERHAUL PARTS DIAGRAM")
