maserati biturbo 2.5 (1984) water pump and oil pump parts diagram

009 - Water Pump and Oil Pump

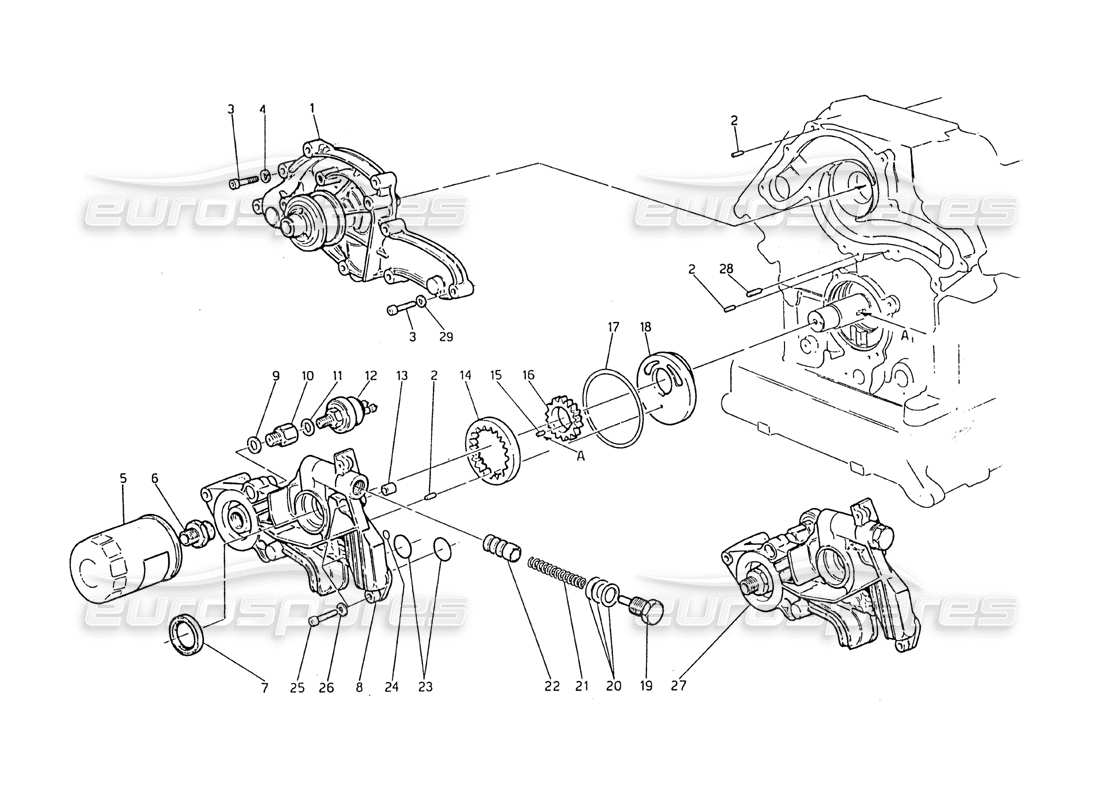

Maserati Biturbo 2.5 (1984) Water Pump and Oil Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Key
                                                          Price
                                                          # 001
                                                          MPN: 470045900
                                                          WATER PUMP + GASKET
                                                          from £309.75
                                                          from £309.75
                                                          This part replaces part number 314020012
                                                          WATER PUMP ASSY (470045900) Eurospares Approved Part - New In stock
                                                          COMPLETE WATER PUMP Genuine Maserati Part - New (to order)
                                                          # 002
                                                          MPN: 314020329
                                                          ROLLER
                                                          from £1.99
                                                          from £1.99
                                                          ROLLER D.4X8 Genuine Maserati Part - New (to order)
                                                          # 005
                                                          MPN: 311820100
                                                          OIL FILTER
                                                          from £30.40
                                                          from £30.40
                                                          UFI-562317120 OIL FILTER Genuine Maserati Part - New In stock
                                                          # 007
                                                          MPN: 311020368
                                                          OIL SEAL
                                                          from £8.25
                                                          from £8.25
                                                          This part replaces part number 190400351
                                                          SEALING RING D.35X50X7 (311020368) Eurospares Approved Part - New In stock
                                                          SEALING RING D.35X50X7 Genuine Maserati Part - New (to order)
                                                          # 008
                                                          MPN: 311820322
                                                          HOUSING
                                                          from £164.95
                                                          from £164.95
                                                          HOUSING Genuine Maserati Part - New (to order)
                                                          # 009
                                                          MPN: 311820302
                                                          SEAL
                                                          from £2.35
                                                          from £2.35
                                                          TRANSMITTER GASKET,D.16.2X21 Genuine Maserati Part - New (to order)
                                                          # 010
                                                          MPN: 311820303
                                                          ADAPTER
                                                          from £22.30
                                                          from £22.30
                                                          ADAPTER Genuine Maserati Part - New In stock
                                                          # 011
                                                          MPN: 311820304
                                                          SEAL
                                                          from £1.54
                                                          from £1.54
                                                          TRANSMITTER GASKET Genuine Maserati Part - New In stock
                                                          # 012
                                                          MPN: 30361105
                                                          OIL PRESSURE SWITCH
                                                          OIL PRESSURE SWITCH Genuine Maserati Part - New (to order)
                                                          # 013
                                                          MPN: 311820308
                                                          BUSH
                                                          from £0.68
                                                          from £0.68
                                                          DOWEL D.10X8X8.25 Genuine Maserati Part - New (to order)
                                                          # 014
                                                          MPN: 311820324
                                                          DRIVEN GEAR
                                                          from £4.46
                                                          from £4.46
                                                          DRIVEN GEAR Genuine Maserati Part - New (to order)
                                                          # 015
                                                          MPN: 311820311
                                                          ROLLER
                                                          from £1.02
                                                          from £1.02
                                                          ROLLER Genuine Maserati Part - New (to order)
                                                          # 016
                                                          MPN: 311820323
                                                          DRIVING GEAR
                                                          from £5.96
                                                          from £5.96
                                                          PUMP DRIVING GEAR Genuine Maserati Part - New (to order)
                                                          # 017
                                                          MPN: 192420395
                                                          RUBBER RING
                                                          RUBBER RING Genuine Maserati Part - New (to order)
                                                          # 018
                                                          MPN: 311820316
                                                          OIL PUMP COVER
                                                          from £21.11
                                                          from £21.11
                                                          OIL PUMP COVER Genuine Maserati Part - New (to order)
                                                          # 020
                                                          MPN: 311820317
                                                          SEAL
                                                          from £0.68
                                                          from £0.68
                                                          GASKET D.22.5X30X1 Genuine Maserati Part - New (to order)
                                                          # 022
                                                          MPN: 311820319
                                                          VALVE
                                                          from £12.08
                                                          from £12.08
                                                          PRESSURE ADJUSTMENT VALVE Genuine Maserati Part - New (to order)
                                                          # 023
                                                          MPN: 14454181
                                                          RUBBER RING
                                                          from £1.15
                                                          from £1.15
                                                          RUBBER WASHER 28.3X31.86X1.7 Genuine Maserati Part - New In stock
                                                          # 024
                                                          MPN: 14452981
                                                          RUBBER RING
                                                          from £0.78
                                                          from £0.78
                                                          O.R.GASKET. (14452981) Genuine Ferrari Part - New In stock
                                                          O-RING D. 9.25X1 Genuine Maserati Part - New In stock
                                                          # 027
                                                          MPN: 311820002
                                                          OIL PUMP, ASSY
                                                          (includes parts n. 6-9-10-11-12-14-18-19-20-22)
                                                          from £279.12
                                                          from £279.12
                                                          OIL PUMP, ASSY Genuine Maserati Part - New (to order)
                                                          # 028
                                                          MPN: 107406008
                                                          DOWEL
                                                          DOWEL Genuine Maserati Part - New (to order)
