maserati biturbo 2.5 (1984) transmission outside controls parts diagram

028 - Transmission Outside Controls

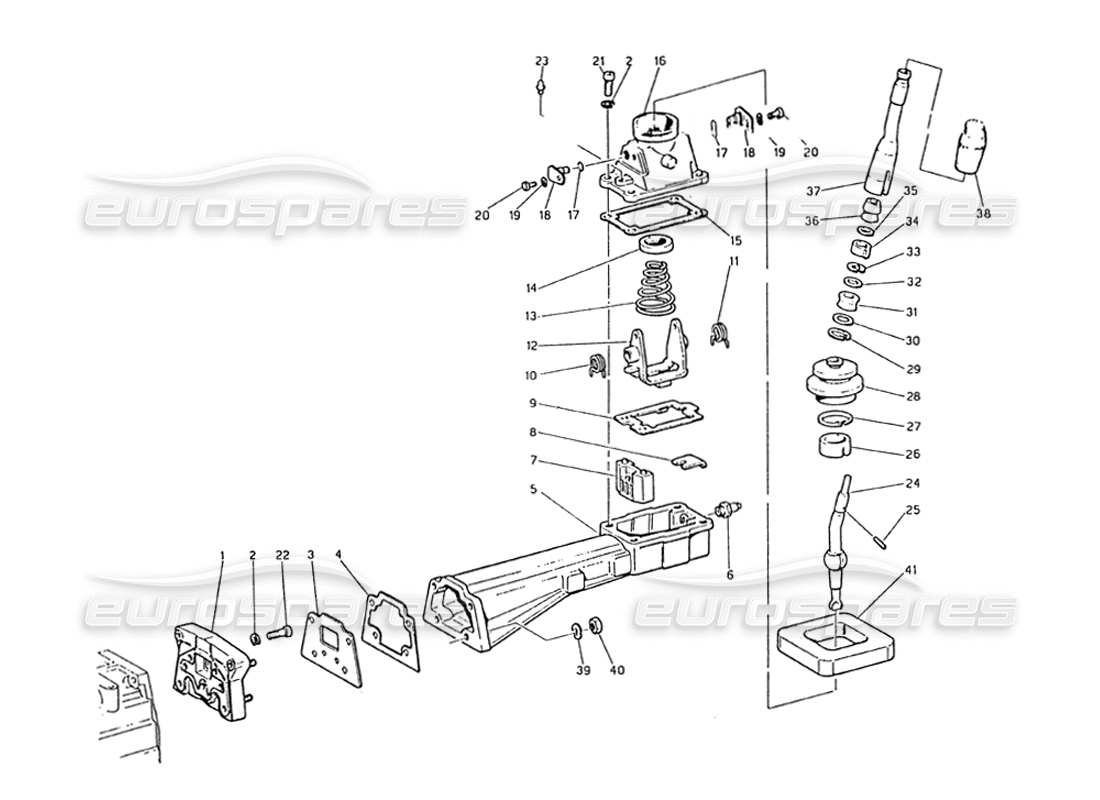

Maserati Biturbo 2.5 (1984) Transmission Outside Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Key
                                                                                    Price
                                                                                    # 001
                                                                                    MPN: 315220104
                                                                                    DAMPER
                                                                                    from £178.19
                                                                                    from £178.19
                                                                                    Maserati PART 315220104 Genuine Maserati Part - New (to order)
                                                                                    # 002
                                                                                    MPN: 315220376
                                                                                    SPRING WASHER
                                                                                    SPRING WASHER Genuine Maserati Part - New (to order)
                                                                                    # 003
                                                                                    MPN: 316220317
                                                                                    SPACER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    Genuine Maserati Part (no longer available to order)
                                                                                    # 003
                                                                                    MPN: 316220317
                                                                                    SPACER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    Genuine Maserati Part (no longer available to order)
                                                                                    # 004
                                                                                    MPN: 315220318
                                                                                    GASKET
                                                                                    from £2.30
                                                                                    from £2.30
                                                                                    GASKET Genuine Maserati Part - New (to order)
                                                                                    # 005
                                                                                    MPN: 315220316
                                                                                    CANTILEVER
                                                                                    from £95.84
                                                                                    from £95.84
                                                                                    ARM Genuine Maserati Part - New (to order)
                                                                                    # 006
                                                                                    MPN: 313320131
                                                                                    SWITCH
                                                                                    from £78.00
                                                                                    from £78.00
                                                                                    REVERSE GEAR BUTTON Genuine Maserati Part - New (to order)
                                                                                    # 007
                                                                                    MPN: 315220319
                                                                                    GUIDE
                                                                                    from £5.91
                                                                                    from £5.91
                                                                                    GUIDE Genuine Maserati Part - New (to order)
                                                                                    # 008
                                                                                    MPN: 315220320
                                                                                    PLATE
                                                                                    from £2.30
                                                                                    from £2.30
                                                                                    Piastrina Genuine Maserati Part - New (to order)
                                                                                    # 009
                                                                                    MPN: 315220322
                                                                                    PLATE
                                                                                    from £18.84
                                                                                    from £18.84
                                                                                    PLATE Genuine Maserati Part - New (to order)
                                                                                    # 010
                                                                                    MPN: 315220323
                                                                                    SPRING
                                                                                    from £4.26
                                                                                    from £4.26
                                                                                    SPRING Genuine Maserati Part - New (to order)
                                                                                    # 011
                                                                                    MPN: 315220324
                                                                                    SPRING
                                                                                    from £5.04
                                                                                    from £5.04
                                                                                    SPRING Genuine Maserati Part - New (to order)
                                                                                    # 012
                                                                                    MPN: 314820375
                                                                                    SUPPORT
                                                                                    SUPPORT Genuine Maserati Part - New (to order)
                                                                                    # 013
                                                                                    MPN: 315220326
                                                                                    SPRING
                                                                                    from £0.98
                                                                                    from £0.98
                                                                                    SPRING Genuine Maserati Part - New (to order)
                                                                                    # 014
                                                                                    MPN: 315220327
                                                                                    RING
                                                                                    from £4.14
                                                                                    from £4.14
                                                                                    SUPPORT RING Genuine Maserati Part - New (to order)
                                                                                    # 015
                                                                                    MPN: 315220328
                                                                                    GASKET
                                                                                    from £0.68
                                                                                    from £0.68
                                                                                    GASKET Genuine Maserati Part - New (to order)
                                                                                    # 016
                                                                                    MPN: 315220016
                                                                                    CONTROL TURRET
                                                                                    from £164.95
                                                                                    from £164.95
                                                                                    CONTROL TURRET Genuine Maserati Part - New (to order)
                                                                                    # 017
                                                                                    MPN: 315220332
                                                                                    GASKET
                                                                                    from £0.68
                                                                                    from £0.68
                                                                                    RING,ZF 0634.313.050 Genuine Maserati Part - New (to order)
                                                                                    # 018
                                                                                    MPN: 315220335
                                                                                    GUIDE PIN
                                                                                    from £35.17
                                                                                    from £35.17
                                                                                    GUIDE PIN Genuine Maserati Part - New (to order)
                                                                                    # 019
                                                                                    MPN: 315220330
                                                                                    SPRING WASHER
                                                                                    from £1.30
                                                                                    from £1.30
                                                                                    RONDELLA ELASTICA ZF.0630.30 Genuine Maserati Part - New (to order)
                                                                                    # 020
                                                                                    MPN: 315220374
                                                                                    SCREW
                                                                                    from £2.45
                                                                                    from £2.45
                                                                                    VITE ZF.0636.015.294 Genuine Maserati Part - New (to order)
                                                                                    # 021
                                                                                    MPN: 315220377
                                                                                    SCREW
                                                                                    from £2.45
                                                                                    from £2.45
                                                                                    SCREW Genuine Maserati Part - New (to order)
                                                                                    # 022
                                                                                    MPN: 314820367
                                                                                    SCREW
                                                                                    from £5.99
                                                                                    from £5.99
                                                                                    VITE ZF.0770.000.024 Genuine Maserati Part - New (to order)
                                                                                    # 023
                                                                                    MPN: 315220333
                                                                                    BREATHER
                                                                                    from £1.92
                                                                                    from £1.92
                                                                                    SCREW Genuine Maserati Part - New (to order)
                                                                                    # 024
                                                                                    MPN: 315220338
                                                                                    CONTROL LEVER
                                                                                    from £183.11
                                                                                    from £183.11
                                                                                    CONTROL LEVER Genuine Maserati Part - New (to order)
                                                                                    # 025
                                                                                    MPN: 315220339
                                                                                    PIN
                                                                                    from £0.68
                                                                                    from £0.68
                                                                                    PIN Genuine Maserati Part - New (to order)
                                                                                    # 026
                                                                                    MPN: 315220343
                                                                                    BUSH
                                                                                    from £2.83
                                                                                    from £2.83
                                                                                    BUSHING 1255.306.244 Genuine Maserati Part - New (to order)
                                                                                    # 027
                                                                                    MPN: 315220344
                                                                                    RING
                                                                                    from £1.54
                                                                                    from £1.54
                                                                                    ANELLO Genuine Maserati Part - New (to order)
                                                                                    # 028
                                                                                    MPN: 315220345
                                                                                    RUBBER CASING
                                                                                    from £24.13
                                                                                    from £24.13
                                                                                    GAITER ZF.1255306258 Genuine Maserati Part - New (to order)
                                                                                    # 029
                                                                                    MPN: 315220383
                                                                                    RETAINING WASHER
                                                                                    from £1.62
                                                                                    from £1.62
                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                    # 030
                                                                                    MPN: 315220392
                                                                                    SPACER
                                                                                    SPACER Genuine Maserati Part - New (to order)
                                                                                    # 031
                                                                                    MPN: 315220348
                                                                                    RUBBER
                                                                                    from £7.13
                                                                                    from £7.13
                                                                                    RUBBER BUSHING ZF.1255306600 Genuine Maserati Part - New (to order)
                                                                                    # 032
                                                                                    MPN: 315220349
                                                                                    WASHER
                                                                                    from £9.96
                                                                                    from £9.96
                                                                                    SPACER Genuine Maserati Part - New (to order)
                                                                                    # 033
                                                                                    MPN: 315220378
                                                                                    RETAINING RING
                                                                                    from £0.68
                                                                                    from £0.68
                                                                                    RETAINING RING Genuine Maserati Part - New (to order)
                                                                                    # 034
                                                                                    MPN: 315220351
                                                                                    COUPLING
                                                                                    from £1.07
                                                                                    from £1.07
                                                                                    BUSHING 1255306598 Genuine Maserati Part - New (to order)
                                                                                    # 035
                                                                                    MPN: 315220380
                                                                                    SPACER
                                                                                    from £5.67
                                                                                    from £5.67
                                                                                    SPACER Genuine Maserati Part - New (to order)
                                                                                    # 036
                                                                                    MPN: 315220353
                                                                                    RUBBER
                                                                                    from £17.54
                                                                                    from £17.54
                                                                                    RUBBER WASHER 1255.306.599 Genuine Maserati Part - New (to order)
                                                                                    # 037
                                                                                    MPN: 315220354
                                                                                    LEVER EXTENSION
                                                                                    from £59.76
                                                                                    from £59.76
                                                                                    LEVER EXTENSION Genuine Maserati Part - New (to order)
                                                                                    # 038
                                                                                    MPN: 315220101
                                                                                    KNOB
                                                                                    from £13.02
                                                                                    from £13.02
                                                                                    GEARBOX LEVER KNOB Genuine Maserati Part - New (to order)
                                                                                    # 039
                                                                                    MPN: 314820371
                                                                                    SPRING WASHER
                                                                                    SPRING WASHER Genuine Maserati Part - New (to order)
                                                                                    # 039
                                                                                    MPN: 314820371
                                                                                    SPRING WASHER
                                                                                    SPRING WASHER Genuine Maserati Part - New (to order)
                                                                                    # 040
                                                                                    MPN: 314820370
                                                                                    NUT
                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                    # 041
                                                                                    MPN: 315220302
                                                                                    GASKET BETWEEN TRANS. AND BODY SHELL
                                                                                    from £1.92
                                                                                    from £1.92
                                                                                    Guarnizione Genuine Maserati Part - New (to order)
