maserati biturbo 2.5 (1984) front bumper and sound proof felts parts diagram

053 - Front Bumper and Sound Proof Felts

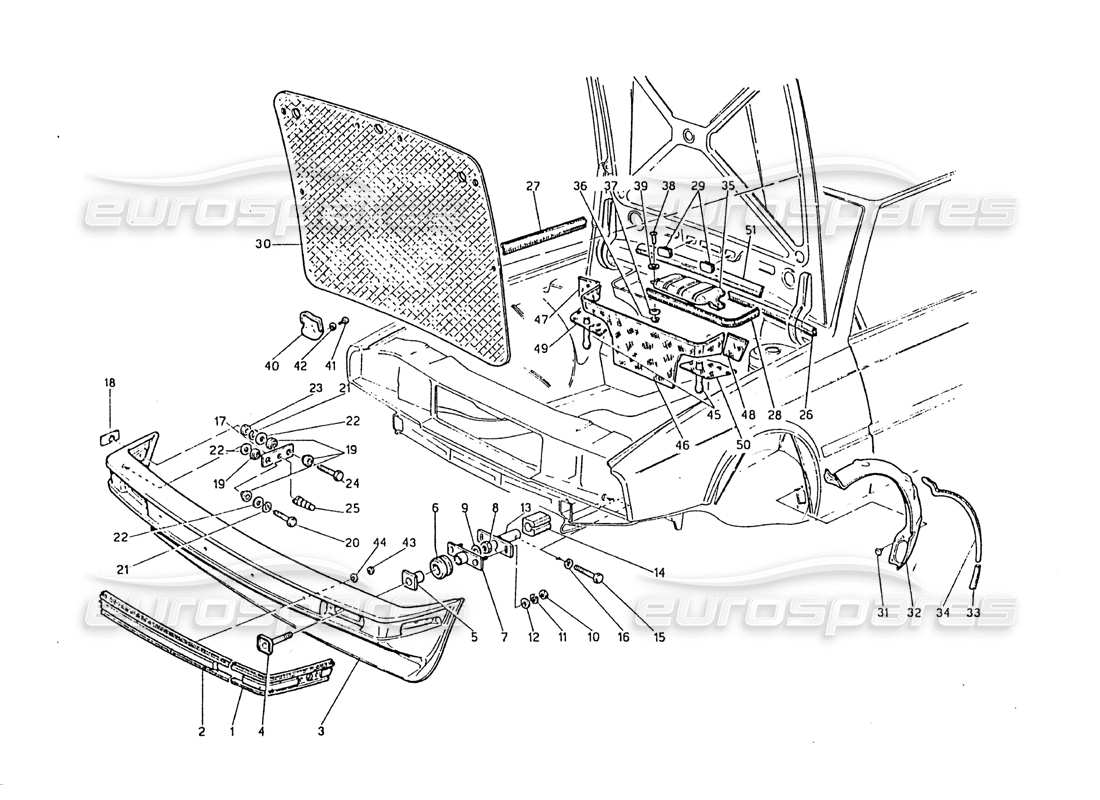

Maserati Biturbo 2.5 (1984) Front Bumper and Sound Proof Felts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                          #
                                                                                                          Part number
                                                                                                          Description
                                                                                                          Key
                                                                                                          Price
                                                                                                          # 000
                                                                                                          MPN: 316320008
                                                                                                          Bumper assy (Not supplied)
                                                                                                          BUMPER ASSEMBLY (NOT SUPPLIED) Genuine Maserati Part - New (to order)
                                                                                                          # 001
                                                                                                          MPN: 316320103
                                                                                                          LH SEALING
                                                                                                          from £4.53
                                                                                                          from £4.53
                                                                                                          LH GASKET FOR BUMPER Genuine Maserati Part - New (to order)
                                                                                                          # 001
                                                                                                          MPN: 316320104
                                                                                                          RH SEALING
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                                          # 002
                                                                                                          MPN: 316320106
                                                                                                          CENTRAL GASKET FOR FRONT BUMPER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                                          # 003
                                                                                                          MPN: 316320100
                                                                                                          FRONT BUMPER
                                                                                                          from £755.26
                                                                                                          from £755.26
                                                                                                          PARAURTI ANTERIORE Genuine Maserati Part - New (to order)
                                                                                                          # 004
                                                                                                          MPN: 316320112
                                                                                                          STIFFENER
                                                                                                          from £47.01
                                                                                                          from £47.01
                                                                                                          CENTR. BUMPER COUPL. REINFOR Genuine Maserati Part - New (to order)
                                                                                                          # 005
                                                                                                          MPN: 316320114
                                                                                                          SPACER PLATE
                                                                                                          from £0.68
                                                                                                          from £0.68
                                                                                                          SPACER PLATE Genuine Maserati Part - New (to order)
                                                                                                          # 006
                                                                                                          MPN: 316320315
                                                                                                          ELASTIC RUBBER LUG
                                                                                                          from £1.92
                                                                                                          from £1.92
                                                                                                          Maserati PART 316320315 Genuine Maserati Part - New (to order)
                                                                                                          # 007
                                                                                                          MPN: 316320117
                                                                                                          SUPPORT PLATE
                                                                                                          from £7.05
                                                                                                          from £7.05
                                                                                                          PLATE Genuine Maserati Part - New (to order)
                                                                                                          # 009
                                                                                                          MPN: 136110110
                                                                                                          WASHER
                                                                                                          from £2.14
                                                                                                          from £2.14
                                                                                                          WASHER 10X30X2.5 Genuine Maserati Part - New In stock
                                                                                                          # 010
                                                                                                          MPN: 125100080
                                                                                                          NUT
                                                                                                          from £0.86
                                                                                                          from £0.86
                                                                                                          DADO Genuine Maserati Part - New (to order)
                                                                                                          # 012
                                                                                                          MPN: 136110090
                                                                                                          WASHER
                                                                                                          from £1.07
                                                                                                          from £1.07
                                                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                                                          # 013
                                                                                                          MPN: 316320121
                                                                                                          SUPPORT BRACKET
                                                                                                          from £53.90
                                                                                                          from £53.90
                                                                                                          FRONT/REAR BUMPER CENT. MOUN. BRA Genuine Maserati Part - New (to order)
                                                                                                          # 014
                                                                                                          MPN: 316320325
                                                                                                          RUBBER LUG
                                                                                                          from £1.54
                                                                                                          from £1.54
                                                                                                          BUMPER SUPPORT Genuine Maserati Part - New (to order)
                                                                                                          # 016
                                                                                                          MPN: 135300150
                                                                                                          SPRING WASHER
                                                                                                          from £1.07
                                                                                                          from £1.07
                                                                                                          RONDELLA Genuine Maserati Part - New In stock
                                                                                                          # 017
                                                                                                          MPN: 316320337
                                                                                                          LEVER
                                                                                                          from £1.54
                                                                                                          from £1.54
                                                                                                          LEVER Genuine Maserati Part - New (to order)
                                                                                                          # 018
                                                                                                          MPN: 316320125
                                                                                                          PLATE
                                                                                                          from £1.07
                                                                                                          from £1.07
                                                                                                          PLATE Genuine Maserati Part - New (to order)
                                                                                                          # 019
                                                                                                          MPN: 316320334
                                                                                                          SPACER
                                                                                                          from £1.15
                                                                                                          from £1.15
                                                                                                          SPACER FOR FR. BUMPER SIDE COUPLI Genuine Maserati Part - New In stock
                                                                                                          # 022
                                                                                                          MPN: 163030080
                                                                                                          WASHER
                                                                                                          from £1.13
                                                                                                          from £1.13
                                                                                                          RONDELLA Genuine Maserati Part - New In stock
                                                                                                          # 023
                                                                                                          MPN: 125100080
                                                                                                          NUT
                                                                                                          from £0.86
                                                                                                          from £0.86
                                                                                                          DADO Genuine Maserati Part - New (to order)
                                                                                                          # 025
                                                                                                          MPN: 374330426
                                                                                                          SILENTBLOC ADJUSTER
                                                                                                          from £1.07
                                                                                                          from £1.07
                                                                                                          This part replaces part number 53431319
                                                                                                          TAMPONCINO Genuine Maserati Part - New In stock
                                                                                                          # 026
                                                                                                          MPN: 314320357
                                                                                                          INSULATING PADDING
                                                                                                          from £6.36
                                                                                                          from £6.36
                                                                                                          This part replaces part number 318720301
                                                                                                          ENGINE COMPT. GASKET L=1330 Genuine Maserati Part - New (to order)
                                                                                                          # 027
                                                                                                          MPN: 314320359
                                                                                                          RUBBER STRIP
                                                                                                          from £28.30
                                                                                                          from £28.30
                                                                                                          GASKET Genuine Maserati Part - New (to order)
                                                                                                          # 028
                                                                                                          MPN: 314320358
                                                                                                          RUBBER STRIP
                                                                                                          from £4.14
                                                                                                          from £4.14
                                                                                                          RUBBER STRIP Genuine Maserati Part - New (to order)
                                                                                                          # 029
                                                                                                          MPN: 53211300
                                                                                                          PLUG
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                                          # 030
                                                                                                          MPN: 314320362
                                                                                                          INSULATING PADDING
                                                                                                          from £235.60
                                                                                                          from £235.60
                                                                                                          This part replaces part number 314320361
                                                                                                          ENGINE COMPT. LID SOUNDPR. PANEL Genuine Maserati Part - New (to order)
                                                                                                          # 031
                                                                                                          MPN: 312520509
                                                                                                          SCREW PLUG
                                                                                                          from £1.07
                                                                                                          from £1.07
                                                                                                          This part replaces part number 312025509
                                                                                                          FASTENING BUTTON Genuine Maserati Part - New (to order)
                                                                                                          # 032
                                                                                                          MPN: 312520505
                                                                                                          LH MUDGUARD
                                                                                                          from £21.93
                                                                                                          from £21.93
                                                                                                          LH MUDGUARD Genuine Maserati Part - New (to order)
                                                                                                          # 032
                                                                                                          MPN: 312520506
                                                                                                          RH MUDGUARD
                                                                                                          from £21.93
                                                                                                          from £21.93
                                                                                                          RH MUDGUARD Genuine Maserati Part - New (to order)
                                                                                                          # 033
                                                                                                          MPN: 312520507
                                                                                                          RUBBER STRIP
                                                                                                          from £4.14
                                                                                                          from £4.14
                                                                                                          PART Genuine Maserati Part - New (to order)
                                                                                                          # 034
                                                                                                          MPN: 342500508
                                                                                                          RUBBER STRIP
                                                                                                          from £4.14
                                                                                                          from £4.14
                                                                                                          This part replaces part number 312520508 - and 1 more. Click to view details
                                                                                                          PART Genuine Maserati Part - New (to order)
                                                                                                          # 035
                                                                                                          MPN: 312520510
                                                                                                          WATER SHIELD
                                                                                                          from £2.80
                                                                                                          from £2.80
                                                                                                          WATER SHIELD Genuine Maserati Part - New (to order)
                                                                                                          # 036
                                                                                                          MPN: 319220324
                                                                                                          NUT
                                                                                                          from £0.63
                                                                                                          from £0.63
                                                                                                          This part replaces part number 82457087
                                                                                                          Retaining Clip Genuine Maserati Part - New In stock
                                                                                                          # 037
                                                                                                          MPN: 312520511
                                                                                                          WATER SEAL
                                                                                                          from £1.70
                                                                                                          from £1.70
                                                                                                          Guarnizione Genuine Maserati Part - New (to order)
                                                                                                          # 039
                                                                                                          MPN: 169020005
                                                                                                          WASHER
                                                                                                          from £1.07
                                                                                                          from £1.07
                                                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                                                          # 040
                                                                                                          MPN: 312520145
                                                                                                          HORN SHIELD
                                                                                                          from £2.27
                                                                                                          from £2.27
                                                                                                          HORN SHIELD Genuine Maserati Part - New (to order)
                                                                                                          # 041
                                                                                                          MPN: 30151340
                                                                                                          SCREW
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          SCREW Genuine Maserati Part - New (to order)
                                                                                                          # 044
                                                                                                          MPN: 136110055
                                                                                                          WASHER
                                                                                                          from £0.76
                                                                                                          from £0.76
                                                                                                          FLAT WASHER 5.3X15X1.3 Genuine Maserati Part - New In stock
                                                                                                          # 045
                                                                                                          MPN: 312120321
                                                                                                          DRAIN PIPE
                                                                                                          from £1.40
                                                                                                          from £1.40
                                                                                                          UPPER DASHBOARD SMALL DRAINING PI Genuine Maserati Part - New (to order)
                                                                                                          # 046
                                                                                                          MPN: 311520300
                                                                                                          INSTRUMENT PANEL FELT
                                                                                                          INSTRUMENT PANEL FELT Genuine Maserati Part - New (to order)
                                                                                                          # 047
                                                                                                          MPN: 311520302
                                                                                                          RH SIDE FELT
                                                                                                          from £2.94
                                                                                                          from £2.94
                                                                                                          R.H SIDE FELT Genuine Maserati Part - New (to order)
                                                                                                          # 048
                                                                                                          MPN: 311520301
                                                                                                          LH SIDE FELT
                                                                                                          from £2.94
                                                                                                          from £2.94
                                                                                                          LH SIDE FELT Genuine Maserati Part - New (to order)
                                                                                                          # 049
                                                                                                          MPN: 311520304
                                                                                                          LH FELT
                                                                                                          from £4.89
                                                                                                          from £4.89
                                                                                                          LH FELT Genuine Maserati Part - New (to order)
                                                                                                          # 050
                                                                                                          MPN: 311520303
                                                                                                          RH FELT
                                                                                                          from £10.05
                                                                                                          from £10.05
                                                                                                          RH FELT Genuine Maserati Part - New (to order)
                                                                                                          # 051
                                                                                                          MPN: 312520513
                                                                                                          RUBBER STRIP SEAL WATER
                                                                                                          from £0.68
                                                                                                          from £0.68
                                                                                                          PROFILE 53871317 L=405 Genuine Maserati Part - New (to order)
