008 - timing control

Maserati Biturbo Spider Timing Control Parts Diagram

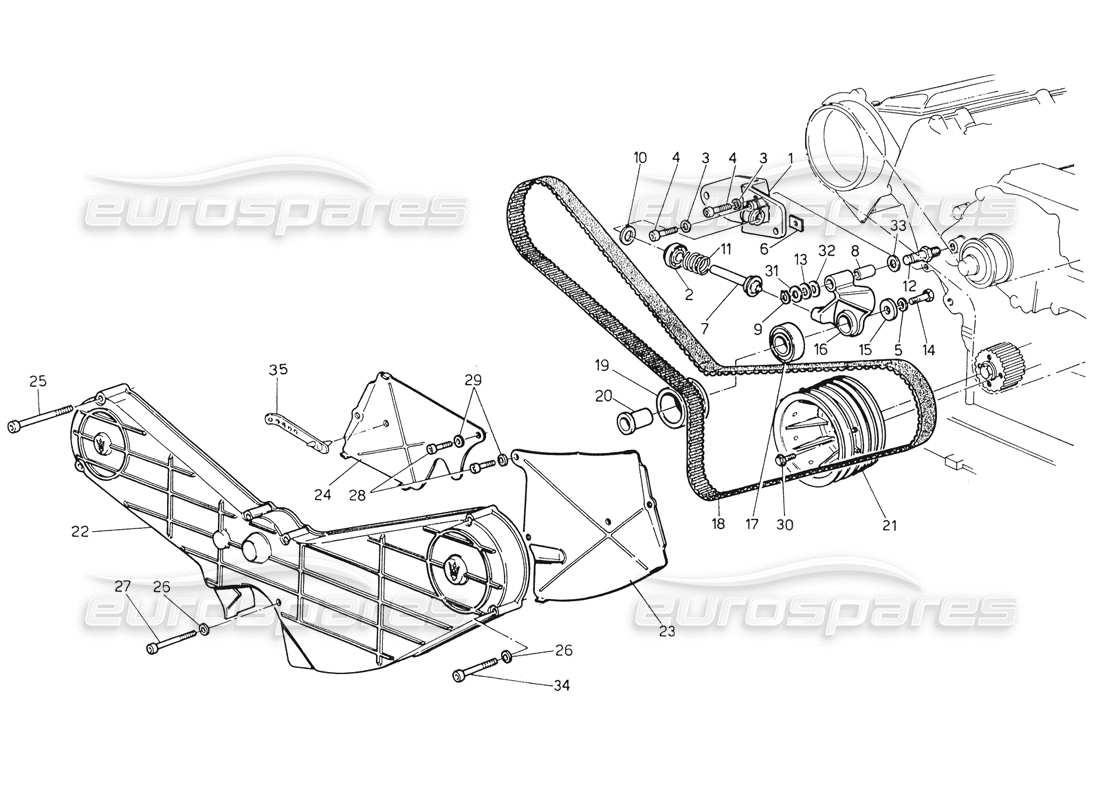

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 002
                                                      MPN: 311020367
                                                      SPRING ADJUSTMENT (NOT SUPPLIED IN SINGLE PART)
                                                      (Details delivered withkit guide pulley 311020005)
                                                      # 004
                                                      MPN: 14306424
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 14306421
                                                      # 006
                                                      MPN: 311037365
                                                      SPACER (NOT SUPPLIED IN SINGLE PART)
                                                      (Details delivered withkit guide pulley 311020005)
                                                      # 007
                                                      MPN: 311020363
                                                      SPRING CAP (NOT SUPPLIED IN SINGLE PART)
                                                      (Details delivered withkit guide pulley 311020005)
                                                      # 008
                                                      MPN: 470037700
                                                      BUSH (NOT SUPPLIED IN SINGLE PART)
                                                      (Details delivered withkit guide pulley 311020005)
                                                      from £9.25
                                                      from £9.25
                                                      This part replaces part number 311020336
                                                      # 009
                                                      MPN: 151100120
                                                      RETAINING RING (NOT SUPPLIED IN SINGLE PART)
                                                      (Details delivered withkit guide pulley 311020005)
                                                      # 010
                                                      MPN: 311020342
                                                      WASHER
                                                      from £1.08
                                                      from £1.08
                                                      # 012
                                                      MPN: 470037600
                                                      GUIDE PULLEY PIN
                                                      from £41.64
                                                      from £41.64
                                                      This part replaces part number 311020343
                                                      # 013
                                                      MPN: 311020334
                                                      WASHER
                                                      from £1.08
                                                      from £1.08
                                                      # 016
                                                      MPN: 311020110
                                                      SUPPORT WITH BUSH (NOT SUPPLIED IN SINGLE PART)
                                                      (Details delivered withkit guide pulley 311020005)
                                                      Supersession
                                                      Supersession
                                                      # 017
                                                      MPN: 311020107
                                                      TIMING BEARING
                                                      from £99.75
                                                      from £99.75
                                                      # 018
                                                      MPN: 311020349
                                                      TIMING BELT
                                                      from £23.03
                                                      from £23.03
                                                      # 019
                                                      MPN: 311020350
                                                      BEARING COVER
                                                      from £56.75
                                                      from £56.75
                                                      # 020
                                                      MPN: 311020353
                                                      PIN
                                                      from £132.27
                                                      from £132.27
                                                      # 021
                                                      MPN: 311050113
                                                      PULLEY
                                                      from £26.51
                                                      from £26.51
                                                      # 022
                                                      MPN: 311620300
                                                      FRONT CASE
                                                      from £257.60
                                                      from £257.60
                                                      # 025
                                                      MPN: 14305924
                                                      SCREW
                                                      from £0.51
                                                      from £0.51
                                                      This part replaces part number 14305921 - and 1 more. Click to view details
                                                      # 027
                                                      MPN: 14304821
                                                      SCREW
                                                      from £0.53
                                                      from £0.53
                                                      # 029
                                                      MPN: 311620303
                                                      WASHER
                                                      from £1.08
                                                      from £1.08
                                                      # 030
                                                      MPN: 311030360
                                                      BOLT
                                                      from £0.70
                                                      from £0.70
                                                      # 031
                                                      MPN: 311020352
                                                      WASHER
                                                      from £1.08
                                                      from £1.08
                                                      # 032
                                                      MPN: 311020354
                                                      WASHER
                                                      from £1.08
                                                      from £1.08
