maserati biturbo spider evaporation system (lh steering without lambda feeler) parts diagram

010.1 - Evaporation System (LH Steering Without Lambda Feeler)

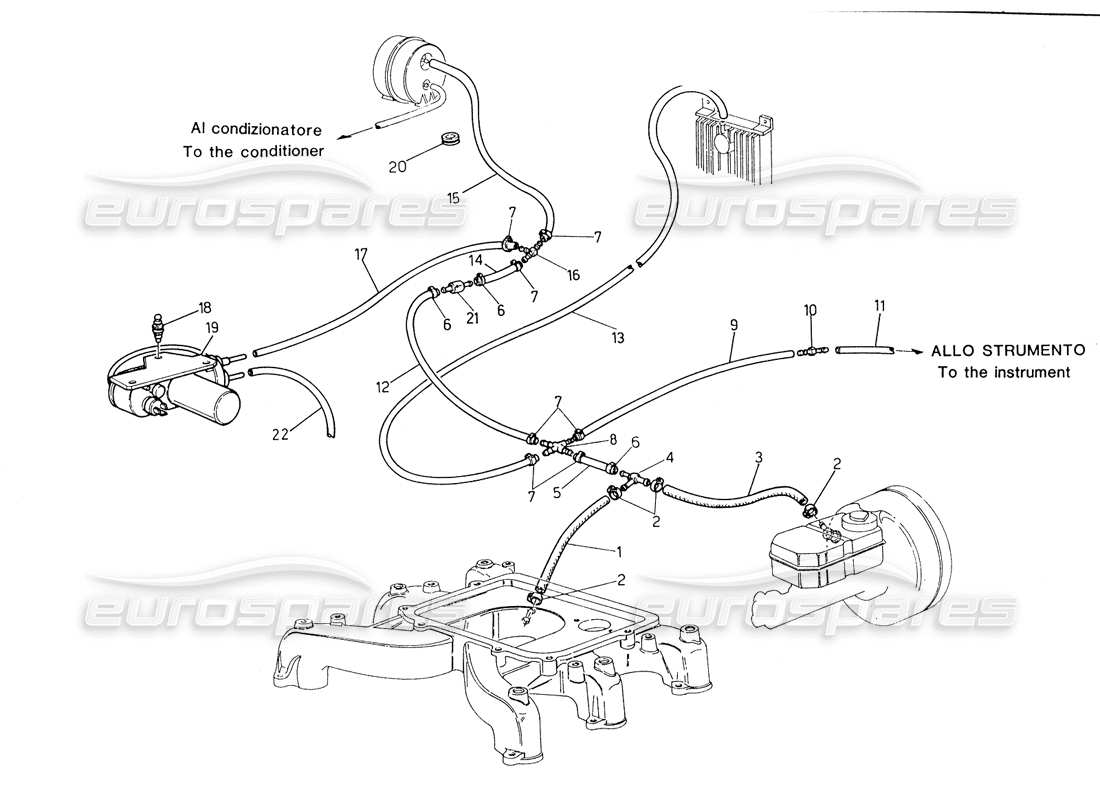

Maserati Biturbo Spider Evaporation System (L.H. Steering Without Lambda Feeler) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 312020332
SLEEVE L-150 MM
Valid for 00
# 002
MPN: 312020404
CLAMP
Valid for 00
from £4.17
from £4.17
# 003
MPN: 319220496
SLEEVE L-350 MM
Valid for 00
Supersession
Supersession
# 004
MPN: 312020337
THREE WAY CONNECTOR
Valid for 00
from £18.25
from £18.25
# 005
MPN: 312030521
SLEEVE L-260 MM
Valid for 00
from £0.98
from £0.98
# 006
MPN: 312050310
CLAMP
Valid for 00
from £1.08
from £1.08
# 008
MPN: 312030422
FOUR WAY CONNECTOR
Valid for 00
from £0.98
from £0.98
# 009
MPN: 312030482
SLEEVE
Valid for 00
Supersession
Supersession
# 010
MPN: 313620303
CONNECTOR
Valid for 00
from £0.78
from £0.78
# 011
MPN: 313620304
SLEEVE
Valid for 00
Supersession
Supersession
# 012
MPN: 312053506
SLEEVE L-70 MM
Valid for 00
# 013
MPN: 312020506
SLEEVE L-620 MM
Valid for 00
from £2.18
from £2.18
# 015
MPN: 313620311
SLEEVE L-200 MM
Valid for 00
Supersession
Supersession
# 016
MPN: 312020336
THREE WAY CONNECTOR
Valid for 00
from £0.84
from £0.84
# 017
MPN: 325520447
SLEEVE L-1300 MM
Valid for 00
Supersession
Supersession
# 018
MPN: 325520345
RUBBER
Valid for 00
from £1.08
from £1.08
# 019
MPN: 325520172
VACUUM PUMP
Valid for 00
from £99.75
from £99.75
# 020
MPN: 165010100
WIRE INLET
Valid for 00
from £0.98
from £0.98
# 021
MPN: 315520169
NOT RETURN VALVE
Valid for 00
from £6.98
from £6.98
# 022
MPN: 325520348
SLEEVE L-200 MM
Valid for 00
from £0.57
from £0.57
