011 - Lubrication Turboblowers

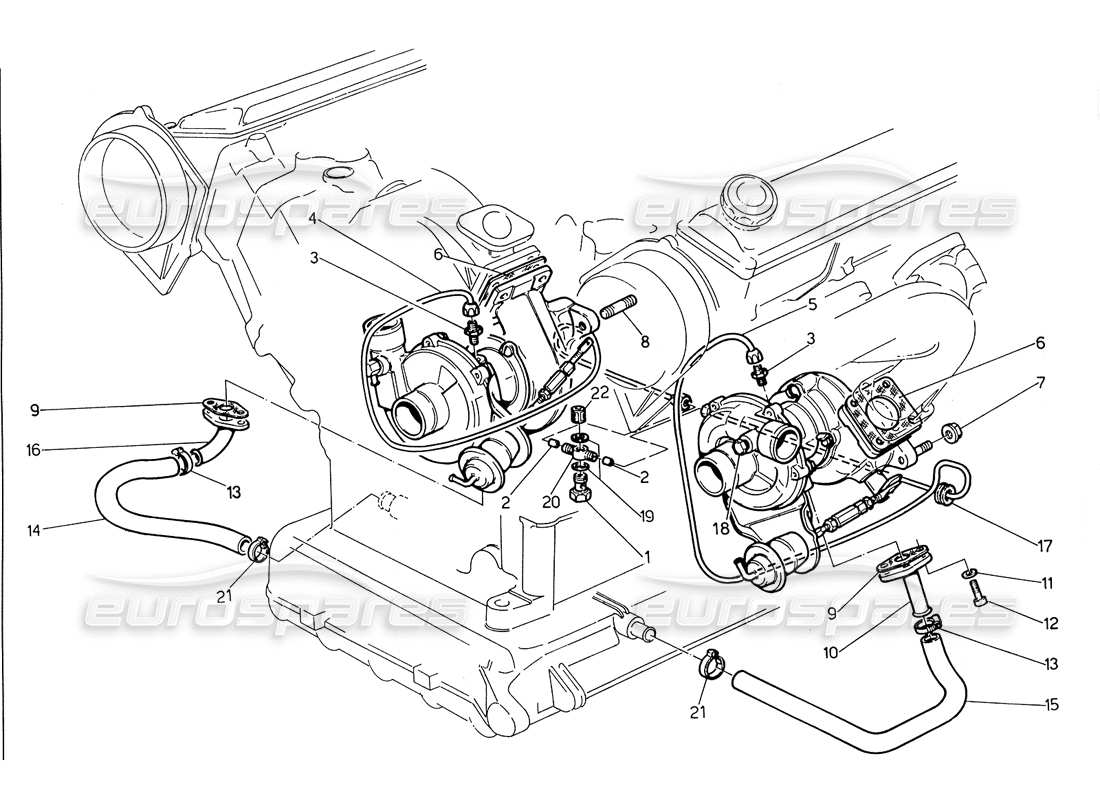

Maserati Biturbo Spider Lubrication Turboblowers Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 312020344
CONNECTOR SCREW
Valid for 02, 03, 10, 11, 44, 45
from £5.16
from £5.16
# 002
MPN: 312020328
PIPE CONN, TO FIX. BUNDY PIPE
Valid for 02, 03, 10, 11, 44, 45
# 003
MPN: 312020308
CONNECTOR SCREW
Valid for 02, 03, 10, 11, 44, 45
from £13.03
from £13.03
# 004
MPN: 312020022
BUNDY PIPE FOR RH TURBOB.
Valid for 00
from £96.24
from £96.24
# 004
MPN: 342000022
BUNDY PIPE FOR RH TURBOB.
Valid for 02, 03, 10, 11, 40, 41, 44, 45
# 005
MPN: 312020021
BUNDY PIPE FOR LH TURBOB.
Valid for 00
from £96.24
from £96.24
# 005
MPN: 342000021
BUNDY PIPE FOR LH TURBOB.
Valid for 02, 03, 10, 11, 40, 41, 44, 45
# 006
MPN: 312020307
GASKET
from £5.20
from £5.20
# 006
MPN: 580362400
GASKET
Valid for 02, 03, 10, 11, 40, 41, 44, 45
from £9.45
from £9.45
This part replaces part number 342000303
# 007
MPN: 312020309
NUT
# 008
MPN: 312020327
STUD
from £5.90
from £5.90
# 009
MPN: 571362600
GASKET
from £4.91
from £4.91
This part replaces part number 312020310
# 010
MPN: 312020115
LH OIL OUTLET CONNECTOR
Valid for 00
# 010
MPN: 342000115
LH OIL OUTLET CONNECTOR
Valid for 02, 03, 10, 11, 40, 41, 44, 45
# 011
MPN: 138410060
WASHER
# 012
MPN: 108006014
SCREW
# 013
MPN: 312020410
CLAMP
from £2.23
from £2.23
# 014
MPN: 467364300
OIL OUTLET SLEEVE (RH TURBOB.)
from £61.52
from £61.52
This part replaces part number 312020408
# 015
MPN: 452364402
OIL OUTLET SLEEVE (LH TURBOB.)
from £71.77
from £71.77
This part replaces part number 312020105
# 016
MPN: 312020108
OIL OUTLET CONNECTOR (RH TURBOB.)
Valid for 00
# 016
MPN: 342000108
OIL OUTLET CONNECTOR (RH TURBOB.)
Valid for 02, 03, 10, 11, 40, 41, 44, 45
# 017
MPN: 312020368
VIRE INLET
from £0.89
from £0.89
# 018
MPN: 312020376
PLUG
from £1.64
from £1.64
# 019
MPN: 312020353
GASKET
from £0.74
from £0.74
# 020
MPN: 312020351
EYE CONNECTOR
# 021
MPN: 312420504
CLAMP
from £1.14
from £1.14
# 022
MPN: 311850329
OIL FILTER FOR TURBOBLOWERS
