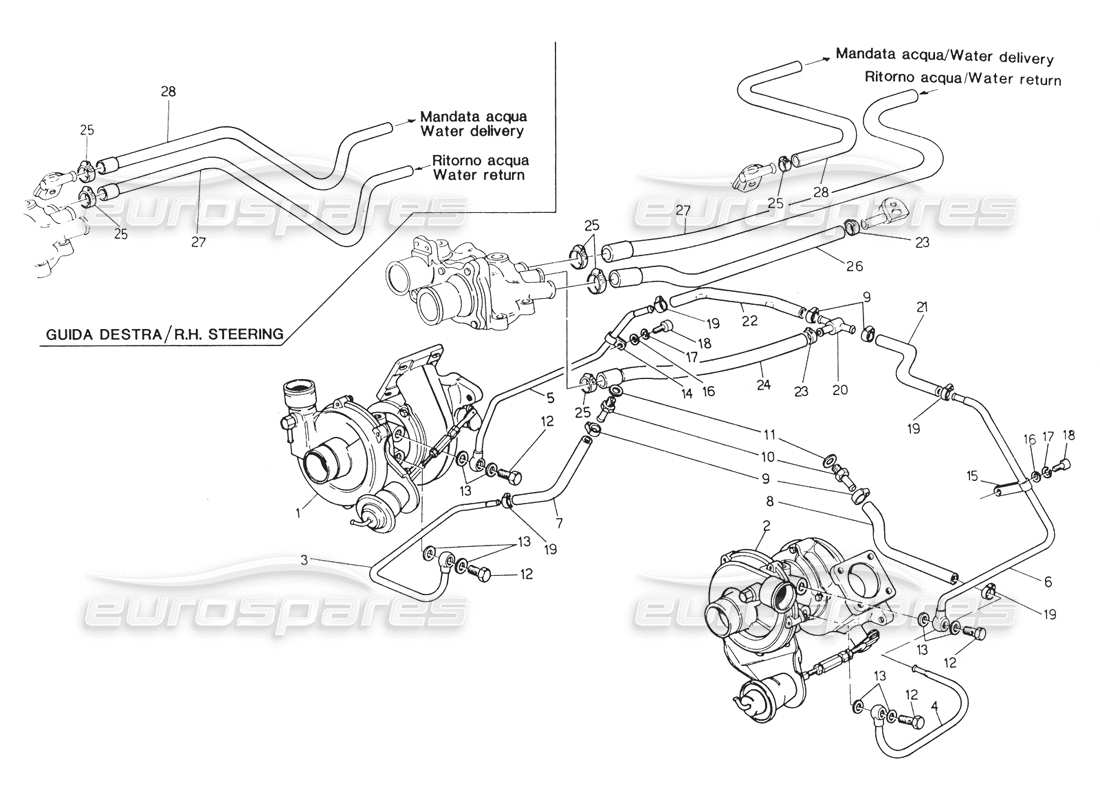

011.2 - Water Cooled Turboblowers

Maserati Biturbo Spider Water Cooled Turboblowers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 312020024
                                            RH WATER COOLED TURBOBLOWER
                                            Valid for 00
                                            from £854.06
                                            from £854.06
                                            # 001
                                            MPN: 342000004
                                            RH WATER COOLED TURBOBLOWER
                                            Valid for 02, 03, 10, 11, 40, 41, 44, 45
                                            Supersession
                                            Supersession
                                            # 002
                                            MPN: 312020023
                                            LH WATER COOLED TURBOBLOWER
                                            Valid for 00
                                            from £854.06
                                            from £854.06
                                            # 002
                                            MPN: 467360100
                                            LH WATER COOLED TURBOBLOWER
                                            Valid for 02, 03, 10, 11, 40, 41, 44, 45
                                            from £978.89
                                            from £978.89
                                            This part replaces part number 342000003
                                            # 003
                                            MPN: 312020138
                                            RH WATER DELIVERY PIPE
                                            Supersession
                                            Supersession
                                            # 004
                                            MPN: 312020137
                                            LH WATER DELIVERY PIPE
                                            # 005
                                            MPN: 312020124
                                            RH WATER RETURN
                                            Valid for 00
                                            from £7.41
                                            from £7.41
                                            # 005
                                            MPN: 342000124
                                            RH WATER RETURN
                                            Valid for 02, 03, 10, 11, 40, 41, 44, 45
                                            # 006
                                            MPN: 312020122
                                            LH WATER RETURN
                                            Valid for 00
                                            from £14.34
                                            from £14.34
                                            # 006
                                            MPN: 342000122
                                            LH WATER RETURN
                                            Valid for 02, 03, 10, 11, 40, 41, 44, 45

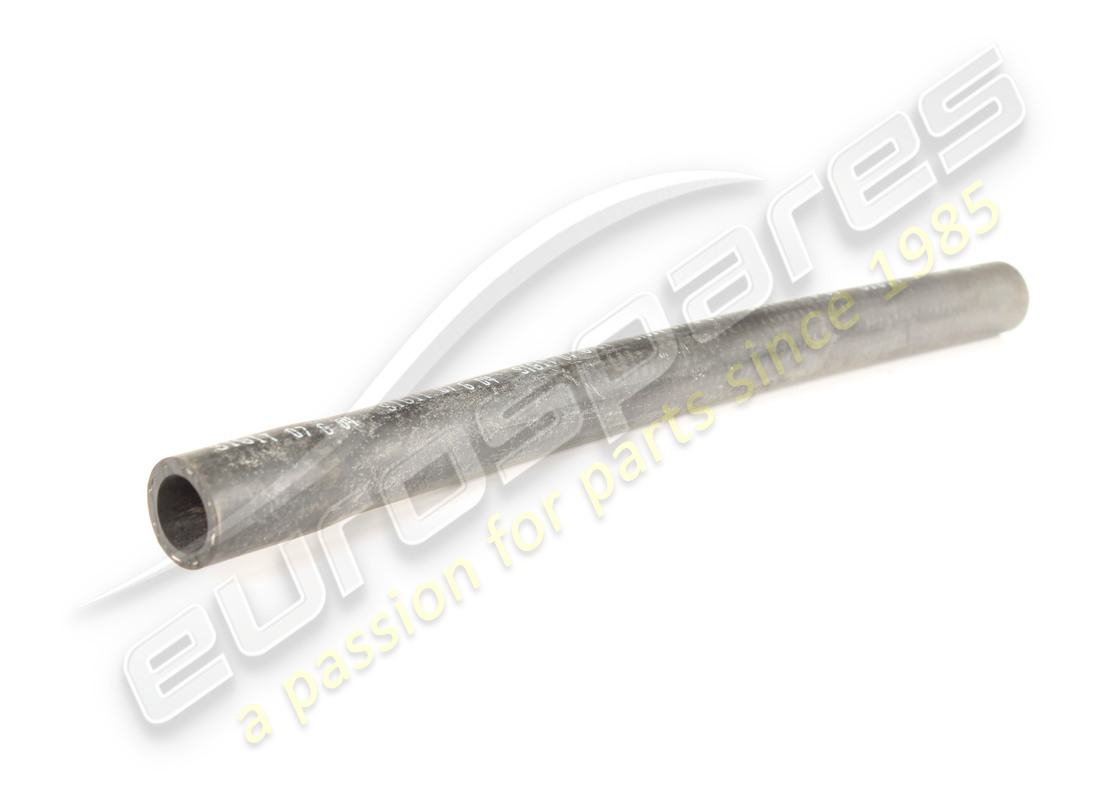

                                            # 007
                                            MPN: 452369601
                                            RH WATER DELIVERY SLEEVE
                                            from £35.39
                                            from £35.39
                                            # 008
                                            MPN: 452369701
                                            LH WATER DELIVERY SLEEVE
                                            from £12.94
                                            from £12.94

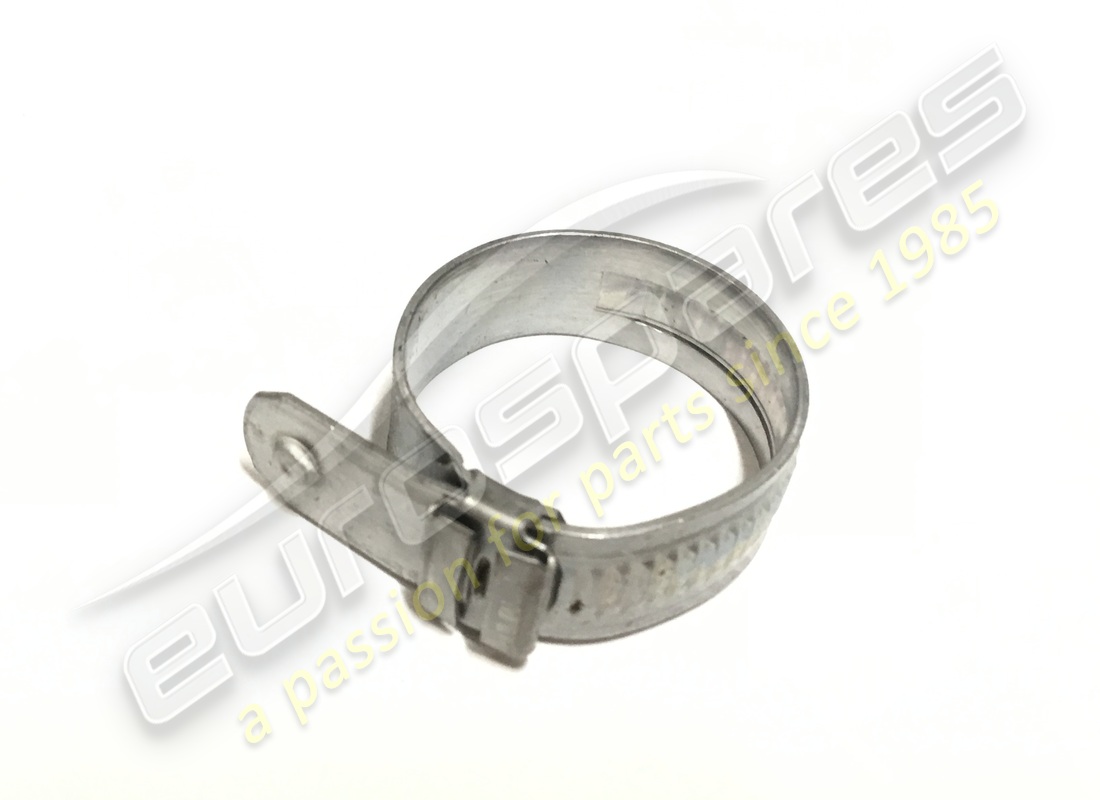

                                            # 009
                                            MPN: 312020404
                                            CLAMP
                                            from £4.16
                                            from £4.16
                                            # 011
                                            MPN: 319220424
                                            GASKET
                                            from £0.69
                                            from £0.69
                                            # 013
                                            MPN: 312020430
                                            GASKET
                                            (minimum order quantity = 10)
                                            from £0.74
                                            from £0.74
                                            # 014
                                            MPN: 312020433
                                            RH CLAMP
                                            from £1.74
                                            from £1.74
                                            # 015
                                            MPN: 312020432
                                            LH CLAMP
                                            from £1.92
                                            from £1.92
                                            # 016
                                            MPN: 312220411
                                            WASHER
                                            from £0.47
                                            from £0.47
                                            # 018
                                            MPN: 108006012
                                            SCREW
                                            from £0.54
                                            from £0.54
                                            # 020
                                            MPN: 312020407
                                            Y-CONNECTOR
                                            from £70.29
                                            from £70.29
                                            # 021
                                            MPN: 470369200
                                            LH WATER RETURN SLEEVE
                                            from £19.45
                                            from £19.45
                                            This part replaces part number 312020423 - and 1 more. Click to view details
                                            # 022
                                            MPN: 312020422
                                            RH WATER RETURN SLEEVE
                                            # 023
                                            MPN: 312020410
                                            CLAMP
                                            from £2.15
                                            from £2.15
                                            # 024
                                            MPN: 312020462
                                            WATER RETURN SLEEVE
                                            from £13.84
                                            from £13.84
                                            # 025
                                            MPN: 314022365
                                            CLAMP
                                            # 026
                                            MPN: 315520352
                                            HEATING SYSTEM RETURN SLEEVE
                                            from £33.23
                                            from £33.23
                                            # 027
                                            MPN: 312020517
                                            HEATING SYSTEM WATER RETURN
                                            Valid for 00, 02, 03, 10, 11
                                            Supersession
                                            Supersession
                                            # 027
                                            MPN: 345524359
                                            HEATING SYSTEM WATER RETURN
                                            Valid for 40, 41, 44, 45
                                            # 028
                                            MPN: 311848301
                                            HEATING SYSTEM DELIVERY SLEEVE
                                            Valid for 40, 41, 44, 45
                                            # 028
                                            MPN: 312020464
                                            HEATING SYSTEM DELIVERY SLEEVE
                                            Valid for 00, 02, 03, 10, 11
                                            Supersession
                                            Supersession
