![maserati biturbo spider exhaust system with catalys parts diagram](/img/CxIAAMTaOW5_nGU17Lr0fUkRlCEahQa5rqe54vsFC6pOOFJmo40dAw%3D%3D/maserati-biturbo-spider-part-diagram-012.2.webp)

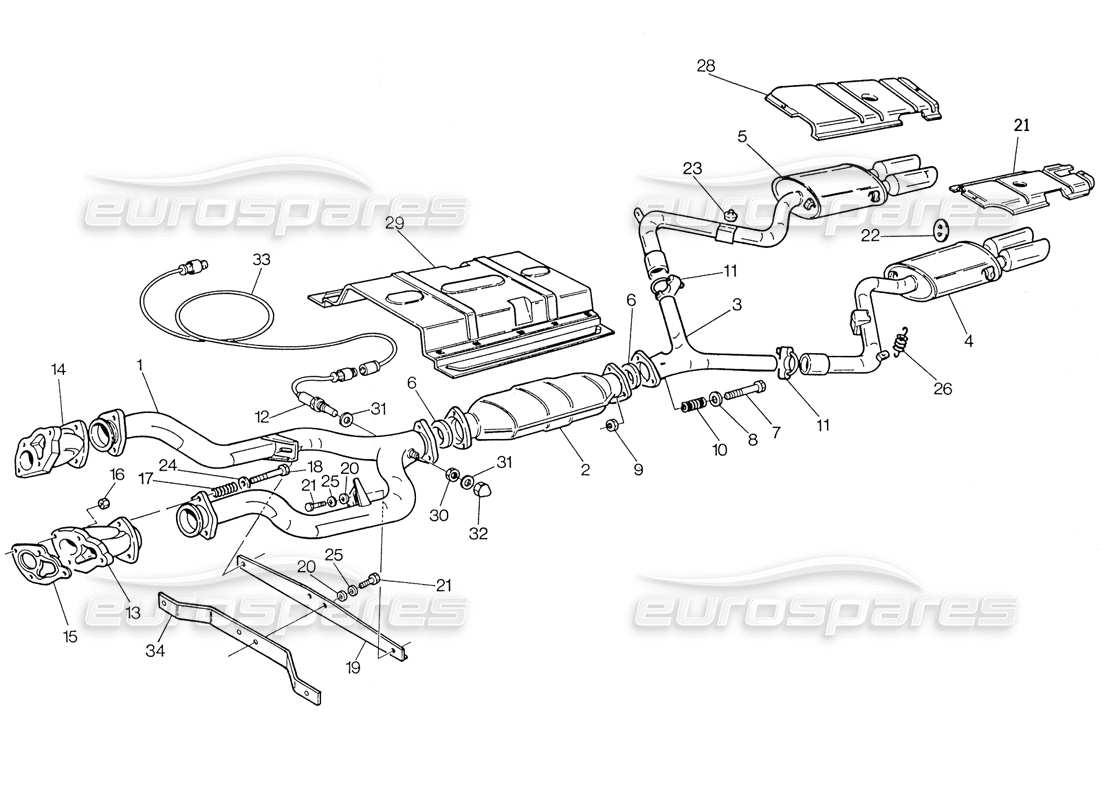

012.2 - Exhaust System With Catalys
Maserati Biturbo Spider Exhaust System With Catalys Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 329060104
FRONT EXHAUST PIPE
Valid for 02, 03, 10, 11, 44, 45
from £690.71
from £690.71
# 002
MPN: 329060105
PAINT CATALYS
Valid for 02, 03, 10, 11, 44, 45
from £264.11
from £264.11
# 003
MPN: 399002106
CENTRAL PIPE, ASSY
Valid for 02, 03, 10, 11, 44, 45
from £59.83
from £59.83
# 004
MPN: 399000109
REAR SILENCER PIPE LH
Valid for 02, 03, 10, 11, 44, 45
from £177.57
from £177.57
# 005
MPN: 369012110
REAR SILENCER PIPE RH
Valid for 02, 03, 10, 11, 44, 45 - USE PART NUMBER : 369005110
from £525.72
from £525.72
This part replaces part number 369005110 - and 1 more. Click to view details
# 006
MPN: 339050305
SEALING RING
Valid for 02, 03, 10, 11, 44, 45
from £10.29
from £10.29
# 007
MPN: 14421074
SCREW
Valid for 02, 03, 10, 11, 44, 45
from £4.91
from £4.91
This part replaces part number 14421071
# 008
MPN: 14496601
WASHER
Valid for 02, 03, 10, 11, 44, 45
Supersession
Supersession
# 009
MPN: 125100100
NUT
Valid for 02, 03, 10, 11, 44, 45
# 010
MPN: 319030313
SPRING
Valid for 02, 03, 10, 11, 44, 45
from £1.43
from £1.43
# 011
MPN: 329050008
CLAMP
Valid for 02, 03, 10, 11, 44, 45
# 012
MPN: 473082340
LAMBDA SENSOR
Valid for 02, 03, 10, 11, 44, 45
from £493.64
from £493.64
# 013
MPN: 467361901
LH MANIFOLD
Valid for 02, 03, 10, 11, 44, 45
from £99.83
from £99.83
# 014
MPN: 467361801
RH MANIFOLD
Valid for 02, 03, 10, 11, 44, 45
from £99.83
from £99.83
# 015
MPN: 580362400
GASKET
Valid for 02, 03, 10, 11, 44, 45
from £9.45
from £9.45
This part replaces part number 342000303
# 016
MPN: 312020309
NUT
Valid for 02, 03, 10, 11, 44, 45
# 017
MPN: 319020303
SPRING
Valid for 02, 03, 10, 11, 44, 45
from £2.99
from £2.99
# 018
MPN: 349000301
SCREW
Valid for 02, 03, 10, 11, 44, 45
from £3.19
from £3.19
# 019
MPN: 319020107
SUPPORT (FOR MANUAL TRANSM. AND 3 HP AUT. TRANSM.)
Valid for 02, 03, 10, 11, 44, 45
from £1.43
from £1.43
# 020
MPN: 138200080
WASHER
Valid for 02, 03, 10, 11, 44, 45
# 021
MPN: 101208016
SCREW
Valid for 02, 03, 10, 11, 44, 45
# 022
MPN: 319020300
SUPPORT
Valid for 02, 03, 10, 11, 44, 45
from £1.62
from £1.62
# 023
MPN: 312120300
BUFFER
Valid for 02, 03, 10, 11, 44, 45
from £2.16
from £2.16
# 024
MPN: 14496601
WASHER
Valid for 02, 03, 10, 11, 44, 45
Supersession
Supersession
# 025
MPN: 163020080
WASHER
Valid for 02, 03, 10, 11, 44, 45
from £1.09
from £1.09
# 026
MPN: 319030312
SPRING
Valid for 02, 03, 10, 11, 44, 45
from £1.43
from £1.43
# 027
MPN: 319053115
LH SCREEN
Valid for 02, 03, 10, 11, 44, 45
from £12.31
from £12.31
# 028
MPN: 399002120
RH SCREEN
Valid for 02, 03, 10, 11, 44, 45
# 029
MPN: 329060118
CENTRAL SCREEN
Valid for 02, 03, 10, 11, 44, 45
from £14.39
from £14.39
# 030
MPN: 319030329
NUT
Valid for 02, 03, 10, 11, 44, 45
from £0.78
from £0.78
# 031
MPN: 134700105
WASHER
Valid for 02, 03, 10, 11, 44, 45
from £1.09
from £1.09
# 032
MPN: 319030328
CUP NUT
Valid for 02, 03, 10, 11, 44, 45
from £1.64
from £1.64
# 033
MPN: 323760108
CABLE FOR LAMBDA FEELER
Valid for 02, 03, 10, 11, 44, 45
from £9.05
from £9.05
# 034
MPN: 319055108
SUPPORT (FOR 4 HP AUT TRANSM.)
Valid for 03, 11, 45
from £4.59
from £4.59
