015 - Ignition System - Distributor

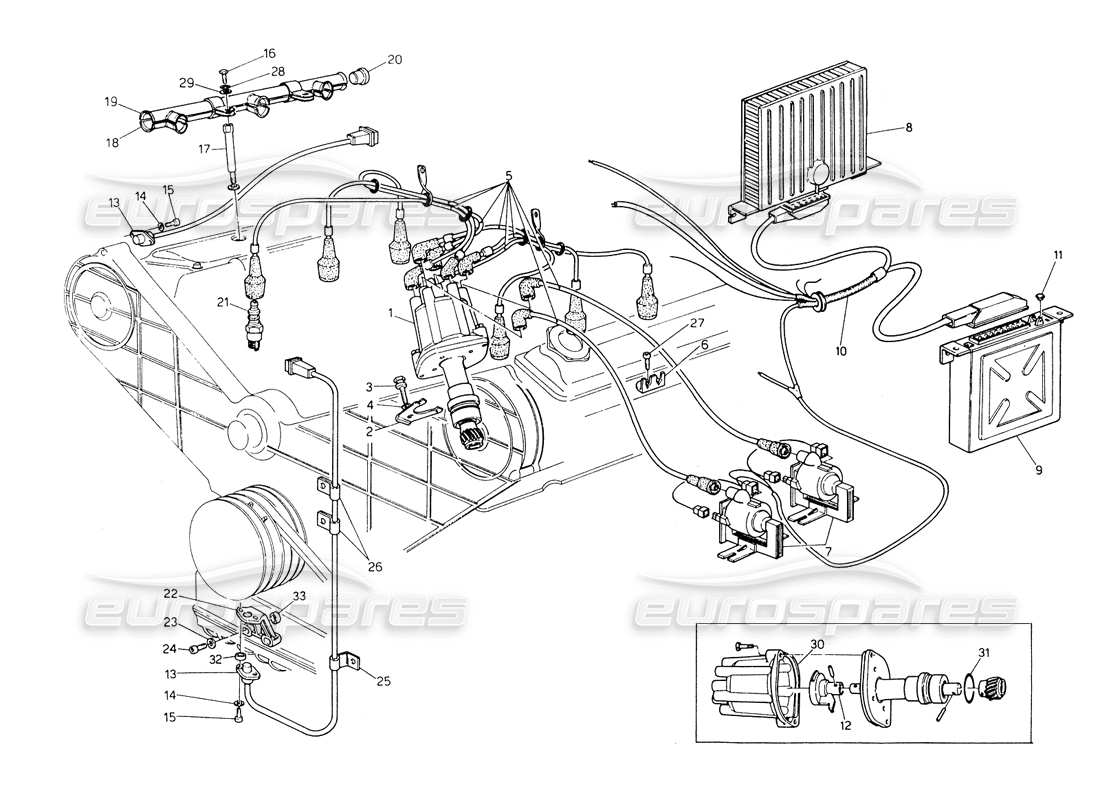

Maserati Biturbo Spider Ignition System - Distributor Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 313220219/a
DISTRIBUTOR ASSY
Complete unit
# 002
MPN: 313220406
DISTRIBUTOR BRACKET
# 003
MPN: 313250407
BOLT
# 004
MPN: 135600080
SPRING WASHER
# 005
MPN: 313250220
SPARK PLUGS CABLE SET
use part number: MHT005
from £327.58
from £327.58
# 005
MPN: MHT005
COMPLETE HT LEADS SET
valid for 2.8 twin coil
from £181.05
from £181.05
# 006
MPN: 313220408
BRACKET
# 007
MPN: 313220110/A
IGNITION COIL
Supersession
Supersession
# 008
MPN: 313222107
MARELLI IGNITION BOX
Valid for 05
from £1,129.91
from £1,129.91
# 008
MPN: 323260107
MARELLI IGNITION BOX
Valid for 02, 03, 10, 11, 44, 45
from £907.84
from £907.84
# 008
MPN: 343200107
ELECTRONIC CONTROL UNIT
(MED 602 E) Microplex - Magneti Marelli
from £804.81
from £804.81
# 009
MPN: 313722105
WEBER IGNITION BOX
Valid for 05
# 009
MPN: 323760150
WEBER IGNITION BOX
Valid for 02, 03, 10, 11, 44, 45
# 009
MPN: 343700150
WEBER IGNITION BOX
Valid for 40, 41
# 010
MPN: 313747101
IGNITION WIRING HARNESS
Valid for 40, 41, 44, 45
from £388.63
from £388.63
# 010
MPN: 323760101
IGNITION WIRING HARNESS
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
This part replaces part number 313720101
# 011
MPN: 313720336
PLUG (BLACK)
from £0.70
from £0.70
# 012
MPN: 313220222
ROTOR ARM
from £97.00
from £97.00
# 013
MPN: 470069400
ELECTROMAGNETIC SENSOR
from £90.00
from £90.00
# 014
MPN: 138410050
WASHER
# 015
MPN: 313720314
SCREW
# 016
MPN: 108006020
SCREW Ø 6 X 1 X 20
# 017
MPN: 319220425
COLUMN
# 018
MPN: 313720318
LOWER PART CABLE
from £0.70
from £0.70
# 019
MPN: 313720319
UPPER PART CABLE
from £6.01
from £6.01
# 020
MPN: 313720320
PLUG
# 021
MPN: 313220224
SPARK PLUG NGK
Use part number 100604/A
from £3.22
from £3.22
This part replaces part number 313220210
# 022
MPN: 313720317
ELECTROMAGNETIC SENSOR SUPPORT
Supersession
Supersession
# 023
MPN: 313720323
WASHER
# 024
MPN: 313720322
SCREW
from £1.32
from £1.32
# 025
MPN: 313720315
CLAMP
# 026
MPN: 313720316
CLAMP
# 027
MPN: 108006025
SCREW
# 028
MPN: 138410060
SPRING WASHER
# 029
MPN: 312220411
WASHER
from £0.47
from £0.47
# 030
MPN: 313220221
DISTRIBUTOR CAP
from £236.25
from £236.25
# 031
MPN: 192415330
SEAL RING
from £1.05
from £1.05
# 032
MPN: 470061801
SPACER
from £0.68
from £0.68
This part replaces part number 313720327
# 033
MPN: 310850350
BUSHING
from £1.09
from £1.09
