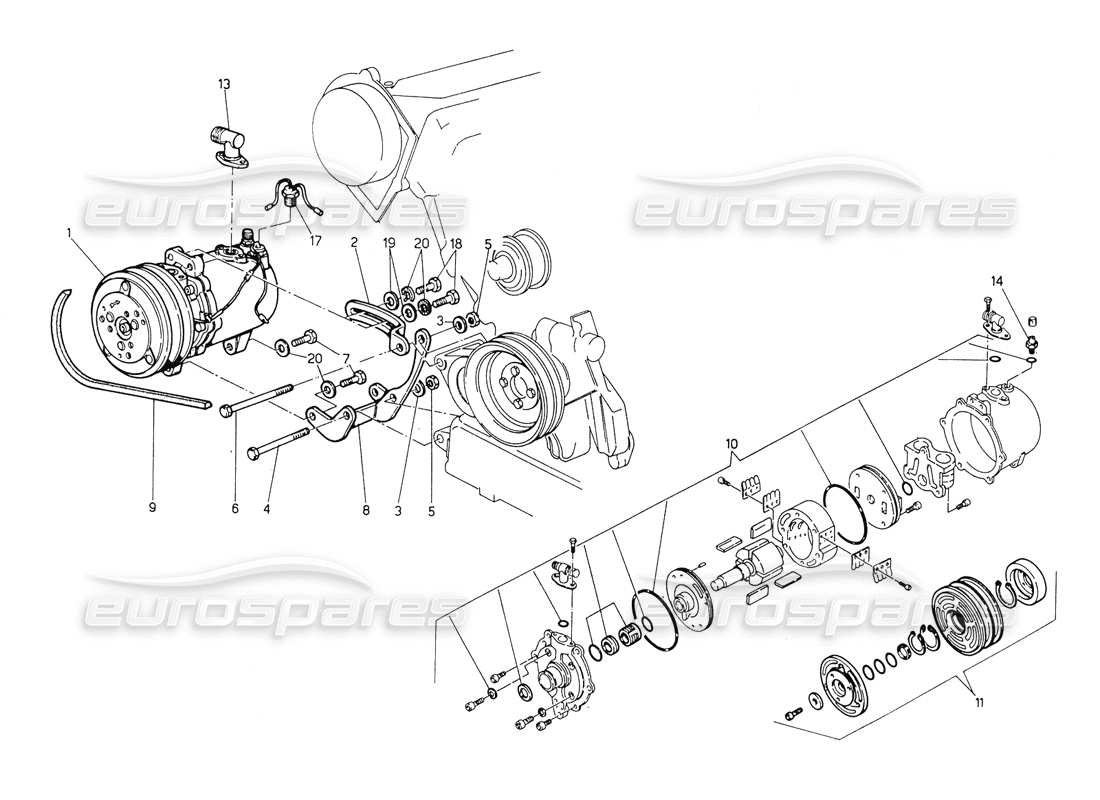

maserati biturbo spider air compressor and brackets parts diagram

017 - Air Compressor and Brackets

Maserati Biturbo Spider Air Compressor and Brackets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 315522016
                                    Air cond. compressor (pulley Ø116)
                                    # 002
                                    MPN: 315520125
                                    THRUST PAD
                                    from £3.04
                                    from £3.04
                                    # 003
                                    MPN: 14496601
                                    WASHER
                                    Supersession
                                    Supersession
                                    # 009

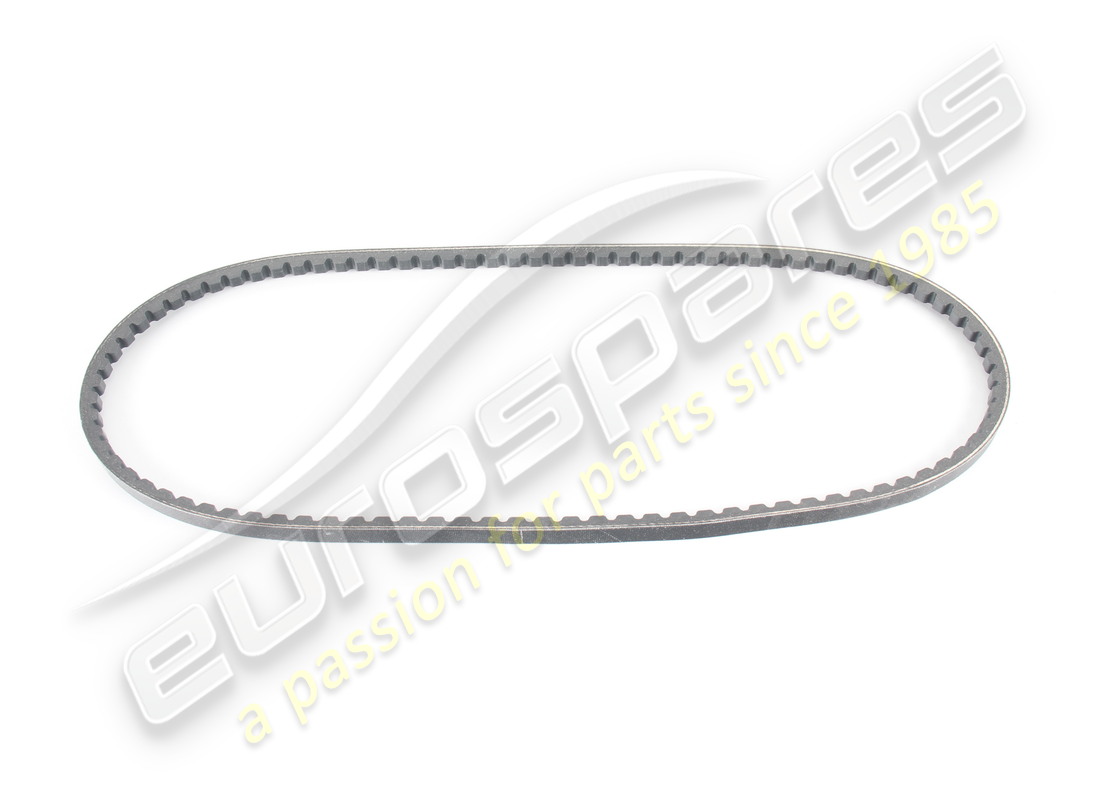

                                    MPN: 315522342
                                    BELT
                                    from £7.99
                                    from £7.99
                                    # 010
                                    MPN: 315520008
                                    OVERHAUL KIT
                                    from £26.55
                                    from £26.55
                                    # 011
                                    MPN: 315520024
                                    MAGNETIC CLUTCH KIT
                                    from £315.32
                                    from £315.32
                                    # 013
                                    MPN: 315532128
                                    EXHAUST VALVE
                                    from £6.27
                                    from £6.27
                                    # 014
                                    MPN: 315520124
                                    SERVICE VALVE
                                    from £21.70
                                    from £21.70
                                    # 017
                                    MPN: 315520131
                                    THERMAL SWITCH
                                    from £6.04
                                    from £6.04
                                    # 018
                                    MPN: 101210030
                                    BOLT
                                    from £1.55
                                    from £1.55
                                    # 020
                                    MPN: 135500100
                                    SPRING WASHER
                                    from £0.77
                                    from £0.77
