021.1 - Heat Exchanger - Pipes

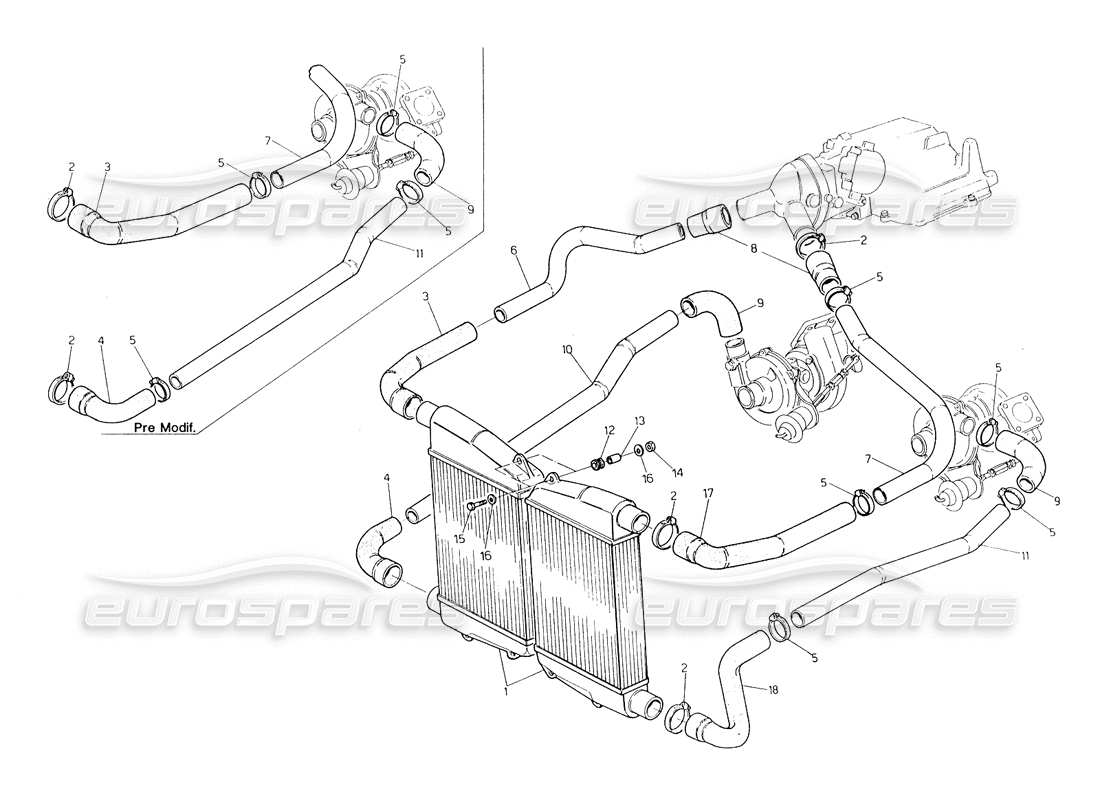

Maserati Biturbo Spider Heat Exchanger - Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 001
                                      MPN: 473360500
                                      AIR-AIR EXCHANGER
                                      from £120.75
                                      from £120.75
                                      This part replaces part number 312020141 - and 1 more. Click to view details
                                      AIR-AIR EXCHANGER,BLACK PAINT Genuine Maserati Part - New (to order)
                                      AIR-AIR EXCHANGER,BLACK PAINT Genuine Maserati Part - Used In stock
                                      # 002
                                      MPN: 312020136
                                      CLAMP
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 003
                                      MPN: 312020480
                                      UPPER SLEEVEPRE MODIF.
                                      Maserati PART 312020480 Genuine Maserati Part - New (to order)
                                      # 003
                                      MPN: 312020480
                                      UPPER SLEEVE RH (AFTER MODIF.)
                                      Maserati PART 312020480 Genuine Maserati Part - New (to order)
                                      # 004
                                      MPN: 453363540
                                      LOWER SLEEVE (PRE MODIF.)
                                      from £8.31
                                      from £8.31
                                      Manicotto Genuine Maserati Part - New (to order)
                                      # 004
                                      MPN: 453363540
                                      LOWER SLEEVE RH (AFTER MODIF.)
                                      from £8.31
                                      from £8.31
                                      Manicotto Genuine Maserati Part - New (to order)
                                      # 005
                                      MPN: 312420106
                                      CLAMP
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 006
                                      MPN: 312021478
                                      RH UPPER AIR PIPE
                                      Maserati PART 312021478 Genuine Maserati Part - New (to order)
                                      # 007
                                      MPN: 312021472
                                      LH UPPER AIR PIPE
                                      from £23.32
                                      from £23.32
                                      LH PIPE Genuine Maserati Part - New (to order)
                                      # 008
                                      MPN: 312020467
                                      CONVEYOR UPPER SLEEVE
                                      Maserati PART 312020467 Genuine Maserati Part - New (to order)
                                      # 009
                                      MPN: 312450336
                                      LOWER TURBOBLOWER SLEEVE
                                      from £12.30
                                      from £12.30
                                      This part replaces part number 312421336
                                      TURBO-EXCH. SLEEVE,IN.D.36-42 Genuine Maserati Part - New (to order)
                                      # 010
                                      MPN: 312021476
                                      RH LOWER AIR PIPE
                                      Maserati PART 312021476 Genuine Maserati Part - New (to order)
                                      # 011
                                      MPN: 312021475
                                      LH LOWER AIR PIPE (PRE MODIF.)
                                      from £33.96
                                      from £33.96
                                      LH PIPE Genuine Maserati Part - New (to order)
                                      # 011
                                      MPN: 312053475
                                      LH LOWER AIR PIPE (AFTER MODIF)
                                      from £24.10
                                      from £24.10
                                      Maserati PART 312053475 Genuine Maserati Part - New (to order)
                                      # 012
                                      MPN: 312020484
                                      WIRE INLET
                                      from £0.69
                                      from £0.69
                                      CABLE HOLDER Genuine Maserati Part - New (to order)
                                      # 014
                                      MPN: 128300060
                                      NUT
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 017
                                      MPN: 312053480
                                      UPPER SLEEVE L. H.(AFTER MODIF.)
                                      Maserati PART 312053480 Genuine Maserati Part - New (to order)
                                      # 018
                                      MPN: 312053481
                                      LOWER SLEEWE L. H.(AFTER MODIF.)
                                      from £176.79
                                      from £176.79
                                      SLEEVE Genuine Maserati Part - New (to order)
