023 - FUEL TANK

Maserati Biturbo Spider Fuel Tank Parts Diagram

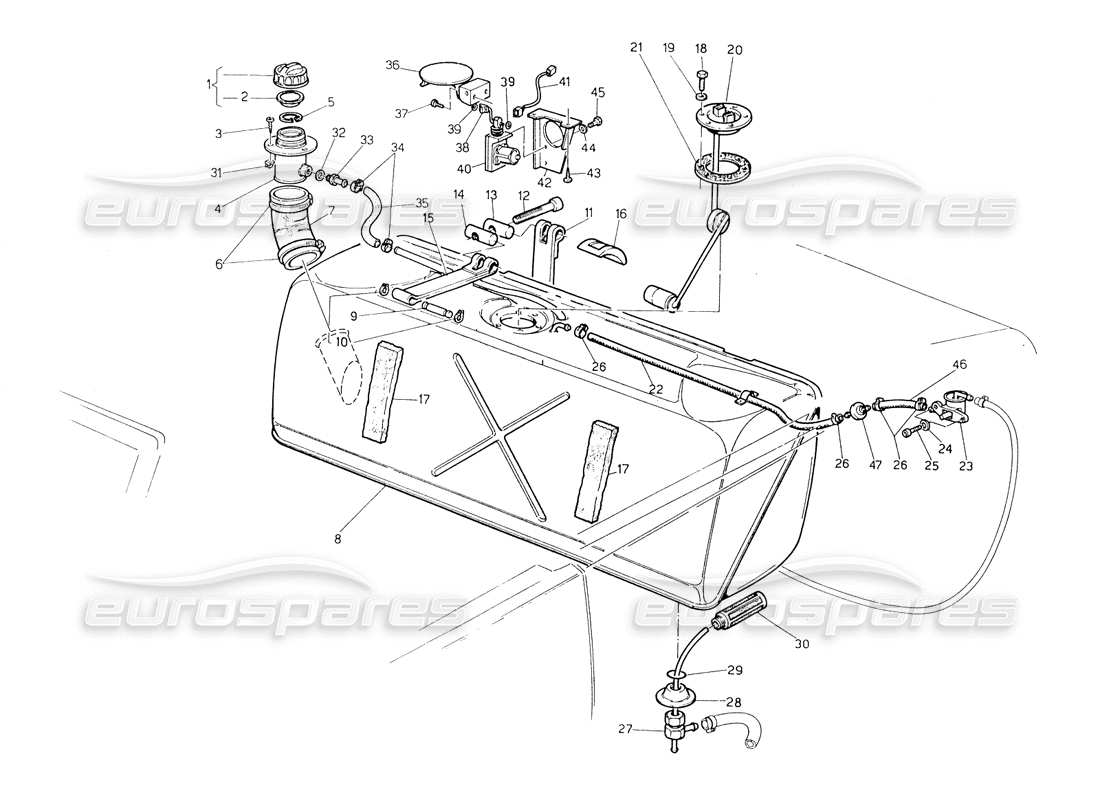

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 319220354
                                                                                          TANK PLUG WITH GASKET
                                                                                          from £9.62
                                                                                          from £9.62
                                                                                          This part replaces part number 319220007
                                                                                          # 002
                                                                                          MPN: 329232355
                                                                                          TANK PLUG GASKET
                                                                                          from £10.22
                                                                                          from £10.22
                                                                                          # 003
                                                                                          MPN: 119948160
                                                                                          SCREW
                                                                                          from £0.84
                                                                                          from £0.84
                                                                                          # 004
                                                                                          MPN: 339220115
                                                                                          FILLERCAP
                                                                                          Valid for 00, 40, 41
                                                                                          from £27.29
                                                                                          from £27.29
                                                                                          # 004
                                                                                          MPN: 339232114
                                                                                          FILLERCAP
                                                                                          Valid for 02, 03, 10, 11, 44, 45
                                                                                          from £21.79
                                                                                          from £21.79
                                                                                          # 006
                                                                                          MPN: 186404087
                                                                                          CLAMP
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 007
                                                                                          MPN: 339220382
                                                                                          SLEEVE FOR FUEL INLET.
                                                                                          Valid for 00, 40, 41
                                                                                          from £6.06
                                                                                          from £6.06
                                                                                          # 007
                                                                                          MPN: 339232382
                                                                                          SLEEVE FOR FUEL INLET.
                                                                                          Valid for 02, 03, 10, 11, 44, 45
                                                                                          from £98.91
                                                                                          from £98.91
                                                                                          # 008
                                                                                          MPN: 339220103
                                                                                          FUELTANK
                                                                                          from £142.76
                                                                                          from £142.76
                                                                                          # 009
                                                                                          MPN: 30921336
                                                                                          PIN
                                                                                          from £3.64
                                                                                          from £3.64
                                                                                          # 010
                                                                                          MPN: 150800050
                                                                                          SEEGER RING
                                                                                          # 011
                                                                                          MPN: 319220106
                                                                                          LOWER STRIP TO FIX. TANK
                                                                                          from £7.73
                                                                                          from £7.73
                                                                                          # 012
                                                                                          MPN: 53921333
                                                                                          SCREW
                                                                                          from £1.85
                                                                                          from £1.85
                                                                                          # 013
                                                                                          MPN: 53921331
                                                                                          PIN FOR STRIP
                                                                                          from £1.55
                                                                                          from £1.55
                                                                                          # 014
                                                                                          MPN: 53921332
                                                                                          PIN FOR STRIP
                                                                                          from £2.31
                                                                                          from £2.31
                                                                                          # 015
                                                                                          MPN: 339220385
                                                                                          UPPER STRIP TO FIX. TANK
                                                                                          # 016
                                                                                          MPN: 319220337
                                                                                          BLOCK
                                                                                          from £1.93
                                                                                          from £1.93
                                                                                          # 017
                                                                                          MPN: 319220398
                                                                                          LENGHT FELT.
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 018
                                                                                          MPN: 53361308
                                                                                          SCREW
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 019
                                                                                          MPN: 136220043
                                                                                          WASHER
                                                                                          # 020
                                                                                          MPN: 313620111
                                                                                          FUEL FLOAT GAUGE
                                                                                          from £53.21
                                                                                          from £53.21
                                                                                          # 021
                                                                                          MPN: 33331300
                                                                                          GASKET
                                                                                          from £1.93
                                                                                          from £1.93
                                                                                          # 022
                                                                                          MPN: 319220389
                                                                                          PIPE TO CONN, TANK TO RELIEF VALVE
                                                                                          from £5.43
                                                                                          from £5.43
                                                                                          # 023
                                                                                          MPN: 319220102
                                                                                          TIP CONTROL VALVE
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 025
                                                                                          MPN: 119142160
                                                                                          SCREW
                                                                                          from £0.84
                                                                                          from £0.84
                                                                                          # 026
                                                                                          MPN: 30921110
                                                                                          CLAMP
                                                                                          # 027
                                                                                          MPN: 319220017
                                                                                          EXHAUST FUEL CONNECTOR
                                                                                          from £7.89
                                                                                          from £7.89
                                                                                          # 028
                                                                                          MPN: 319220362
                                                                                          GASKET
                                                                                          from £1.08
                                                                                          from £1.08
                                                                                          # 029
                                                                                          MPN: 319220315
                                                                                          GASKET
                                                                                          from £0.70
                                                                                          from £0.70
                                                                                          # 030
                                                                                          MPN: 319220107
                                                                                          CONN, FILTER
                                                                                          from £1.14
                                                                                          from £1.14
                                                                                          # 031
                                                                                          MPN: 319220324
                                                                                          BLOCK TO FIX. UNION PIPE
                                                                                          from £0.64
                                                                                          from £0.64
                                                                                          This part replaces part number 82457087
                                                                                          # 032
                                                                                          MPN: 339220504
                                                                                          GASKET
                                                                                          from £0.70
                                                                                          from £0.70
                                                                                          # 033
                                                                                          MPN: 339220117
                                                                                          CONNECTION
                                                                                          from £3.59
                                                                                          from £3.59
                                                                                          # 034
                                                                                          MPN: 30921110
                                                                                          CLAMP
                                                                                          # 035
                                                                                          MPN: 339220505
                                                                                          DRAIN PIPE
                                                                                          from £2.88
                                                                                          from £2.88
                                                                                          # 036
                                                                                          MPN: 332520143
                                                                                          FUEL DOOR, ASSY
                                                                                          from £2.75
                                                                                          from £2.75
                                                                                          # 037
                                                                                          MPN: 167570512
                                                                                          FIXING SCREW SUPPORT DOOR
                                                                                          from £1.55
                                                                                          from £1.55
                                                                                          # 038
                                                                                          MPN: 332520144
                                                                                          DOOR PALLET GASOLINE
                                                                                          from £18.47
                                                                                          from £18.47
                                                                                          # 039
                                                                                          MPN: 53451389
                                                                                          SPRING WASHER
                                                                                          from £1.08
                                                                                          from £1.08
                                                                                          # 040
                                                                                          MPN: 323320195
                                                                                          FUEL DOOR ACTUATOR
                                                                                          from £27.59
                                                                                          from £27.59
                                                                                          This part replaces part number 313320195
                                                                                          # 042
                                                                                          MPN: 333320196
                                                                                          DOOR FUEL ACTUATOR FIXING BRACKET
                                                                                          # 043
                                                                                          MPN: 101206014
                                                                                          BRACKET FIXING SCREW
                                                                                          # 044
                                                                                          MPN: 135700050
                                                                                          WASEHR
                                                                                          from £1.08
                                                                                          from £1.08
                                                                                          # 045
                                                                                          MPN: 119148160
                                                                                          BRACKET FIXING SCREW
                                                                                          # 046
                                                                                          MPN: 319220390
                                                                                          SLEEVE TO CONN, RELIEF VALVE TO TIP CONTROL VALVE
                                                                                          # 047
                                                                                          MPN: 319220134
                                                                                          PRESSURE RELIEF VALVE
                                                                                          Supersession
                                                                                          Supersession
