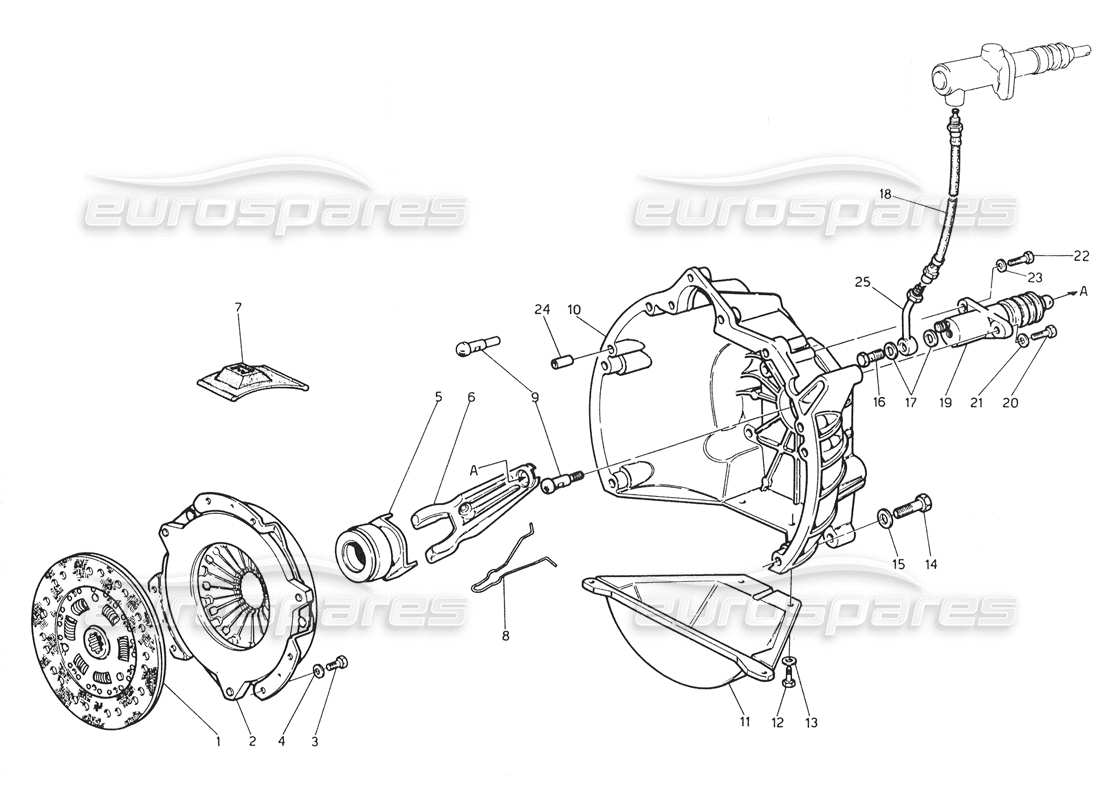

Maserati Biturbo Spider Clutch Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: AE1073K

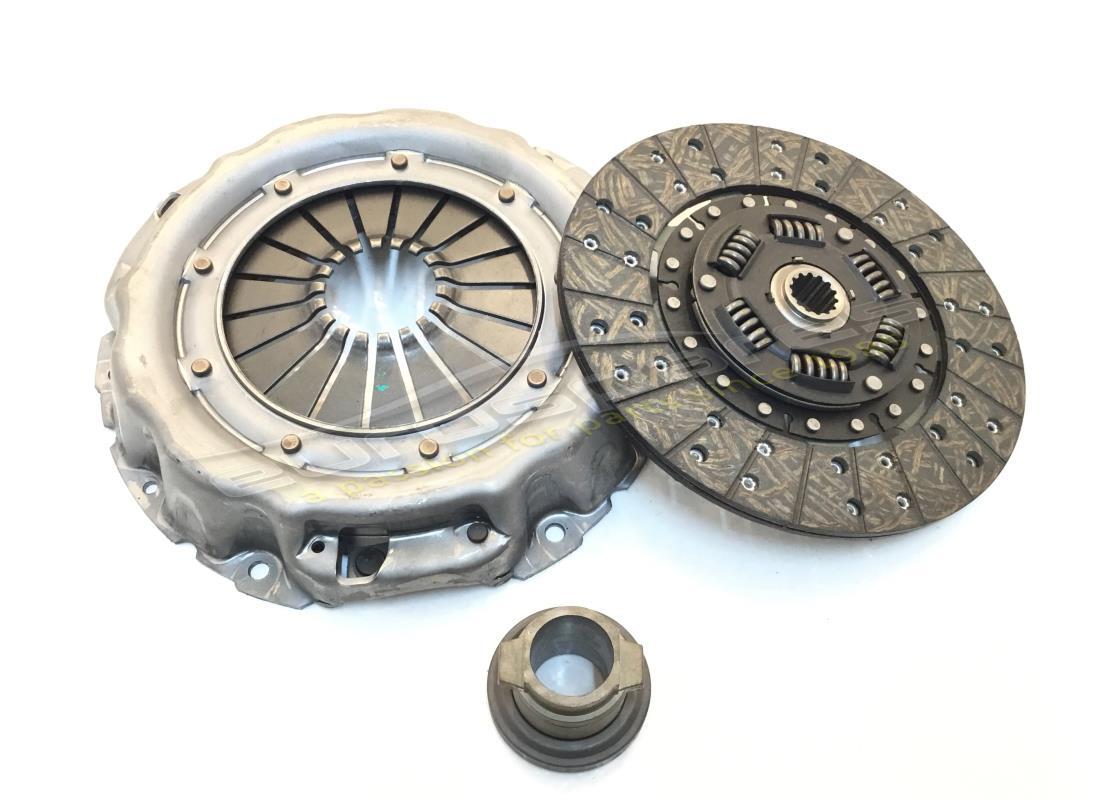

Complete Clutch kit (240 mm)
Vaild for 2.8cc / Includes Disc, Cover & Bearing.
from £574.58
from £574.58
# 001
MPN: 314620105
CLUTCH PLATE
(2.0 - 2.5 ltr 3v. only) 215 mm
from £163.67
from £163.67
This part replaces part number 314620104
# 002
MPN: 314620101
CLUTCH DEVICE
(valid for 2,0 model)
from £464.10
from £464.10
This part replaces part number 314620100
# 002
MPN: 344600111
CLUTCH DEVICE
(valid for 2,8 models)
from £397.50
from £397.50
This part replaces part number 344600112
# 003
MPN: 101208018
SCREW
Valid for 00, 02, 10, 40, 44
# 004
MPN: 138200080
SPRING WASHER
Valid for 00, 02, 10, 40, 44
# 005
MPN: 314620108
THRUST BEARING
Valid for 00, 02, 10, 40, 44
from £44.06
from £44.06
# 006
MPN: 314620302
THRUST LEVER
Valid for 00, 02, 10, 40, 44
from £157.20
from £157.20
# 007
MPN: 314620301
DUST COVER
Valid for 00, 02, 10, 40, 44
from £1.08
from £1.08
# 008
MPN: 314620307
SPRING
Valid for 00, 02, 10, 40, 44
from £0.98
from £0.98
# 009
MPN: 314620306
PLUNGER
Valid for 00, 02, 10, 40, 44
from £1.08
from £1.08
# 010
MPN: 314620312
FLYWHEEL HOUSING
Valid for 00, 02, 10, 40, 44
from £91.61
from £91.61
# 011
MPN: 314620317
FASTENER
Valid for 00, 02, 10, 40, 44
from £0.74
from £0.74
# 012
MPN: 101206010
SCREW
Valid for 00, 02, 10, 40, 44
# 013
MPN: 135600060
WASHER
Valid for 00, 02, 10, 40, 44
from £0.77
from £0.77
# 014
MPN: 100710040
SCREW
Valid for 00, 02, 10, 40, 44
# 015
MPN: 138410100
SPRING WASHER
Valid for 00, 02, 10, 40, 44
# 016
MPN: 318220320
PIPE UNION
Valid for 00, 02, 10, 40, 44
from £6.01
from £6.01
# 017
MPN: 318220321
GASKET
Valid for 00, 02, 10, 40, 44
from £0.69
from £0.69
# 018
MPN: 318220112
PIPE
Valid for 00, 02, 10, 40, 44
from £43.37
from £43.37
# 018
MPN: 318227112
PIPE
Valid for 00, 02, 10, 40, 44
from £41.76
from £41.76
# 019
MPN: 318220104

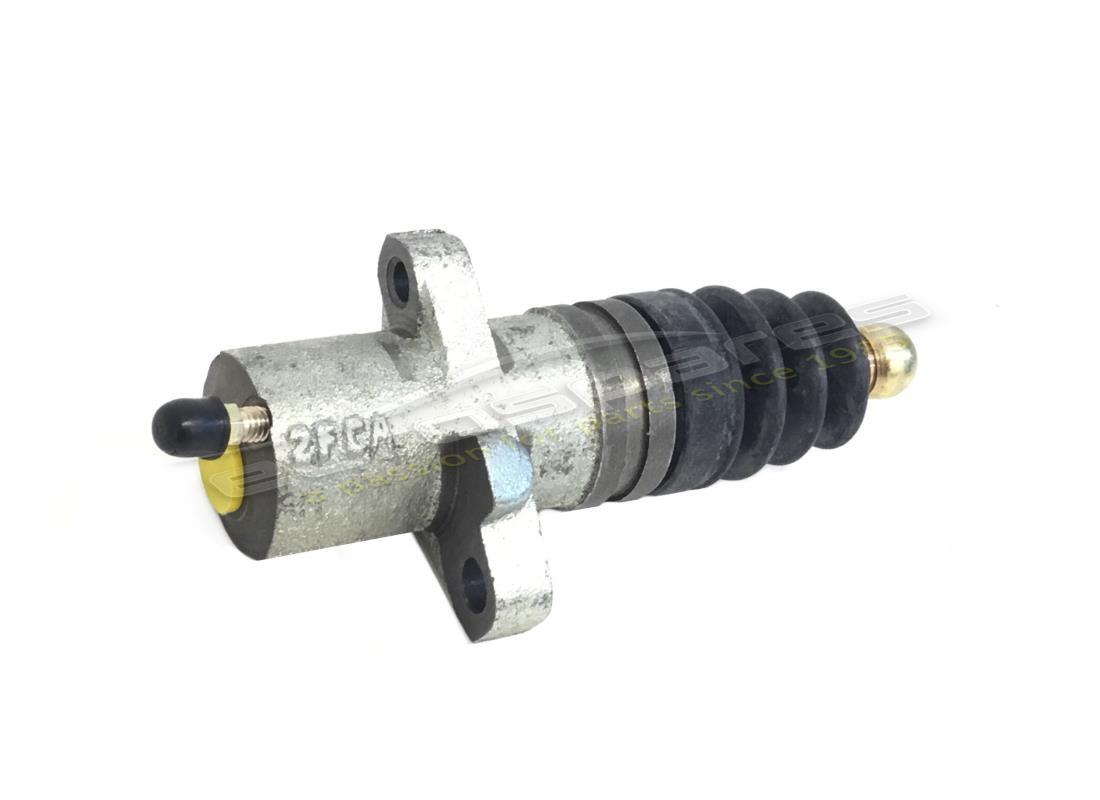

CLUTCH CYLINDER
Valid for 00, 02, 10, 40, 44
from £131.25
from £131.25
# 020
MPN: 100708030
SCREW
Valid for 00, 02, 10, 40, 44
# 021
MPN: 135600080
WASHER
Valid for 00, 02, 10, 40, 44
# 022
MPN: 101206022
SCREW
Valid for 00, 02, 10, 40, 44
# 023
MPN: 135600060
WASHER
Valid for 00, 02, 10, 40, 44
from £0.77
from £0.77
# 024
MPN: 310420311
DOWEL
Valid for 00, 02, 10, 40, 44
from £9.63
from £9.63
# 025
MPN: 318220110
EYELET CONNECTOR
Valid for 00, 02, 10
from £1.12
from £1.12
# 025
MPN: 318227110
EYELET CONNECTOR
Valid for 40, 44
from £3.71
from £3.71
