maserati biturbo spider transmission box parts diagram

025 - Transmission Box

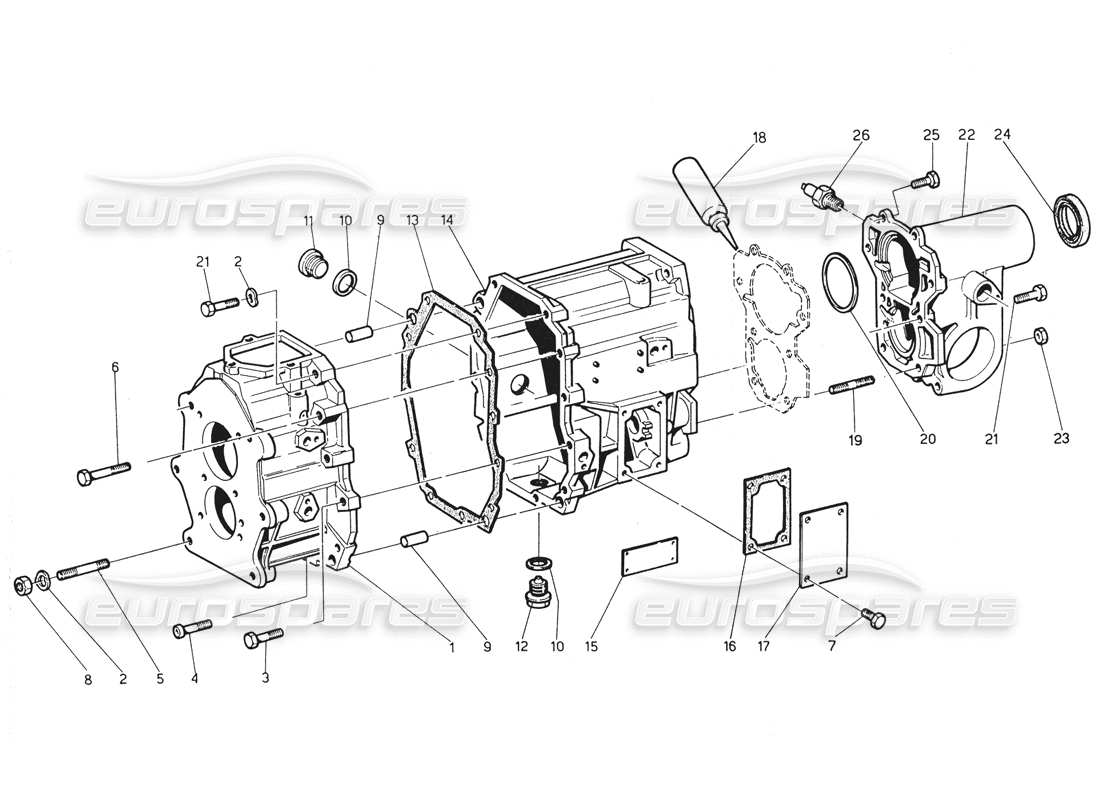

Maserati Biturbo Spider Transmission Box Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 000
MPN: 314820006
TRANSMISSION BOX ASSY RAPP. 5TH 0.79
Valid for 00, 02, 10, 40, 44
from £1,514.00
from £1,514.00
CAMBIO LUNGO RAPP 5 VELOC 0, Genuine Maserati Part - New (to order)
# 000
MPN: 314825009
TRANSMISSION BOX ASSY RAPP. 5TH 0.87 (AFTER MODIF.)
Valid for 02, 40, 44
from £1,092.14
from £1,092.14
CPL. GEARBOX Genuine Maserati Part - New (to order)
# 001
MPN: 314820310
TRANS. HOUSING FRONT SIDE
Valid for 00, 02, 10, 40, 44
from £178.15
from £178.15
TRANS. HOUSING FRONT Genuine Maserati Part - New (to order)
# 002
MPN: 138410100
SPRING WASHER
Valid for 00, 02, 10, 40, 44
Maserati PART 138410100 Genuine Maserati Part - New (to order)
# 003
MPN: 314820361
SCREW
Valid for 00, 02, 10, 40, 44
SCREW Genuine Maserati Part - New (to order)
# 004
MPN: 314820365
SCREW
Valid for 00, 02, 10, 40, 44
SCREW Genuine Maserati Part - New (to order)
# 005
MPN: 314820318
STUD
Valid for 00, 02, 10, 40, 44
STUD Genuine Maserati Part - New (to order)
# 006
MPN: 314820360
SCREW
Valid for 00, 02, 10, 40, 44
from £13.13
from £13.13
SCREW Genuine Maserati Part - New (to order)
# 007
MPN: 314820364
SCREW
Valid for 00, 02, 10, 40, 44
from £1.85
from £1.85
SCREW Genuine Maserati Part - New (to order)
# 008
MPN: 314820300
NUT
Valid for 00, 02, 10, 40, 44
from £0.77
from £0.77
NUT Genuine Maserati Part - New (to order)
# 009
MPN: 314820317
CENTERING PIN
Valid for 00, 02, 10, 40, 44
CENTERING PIN Genuine Maserati Part - New (to order)
# 010
MPN: 314820320
SEAL RING
Valid for 00, 02, 10, 40, 44
from £1.04
from £1.04
SEAL RING Genuine Maserati Part - New (to order)
# 011
MPN: 314820363
OIL FILTER PLUG
Valid for 00, 02, 10, 40, 44
from £2.85
from £2.85
OIL FILLER CAP Genuine Maserati Part - New (to order)
# 012
MPN: 314820362
OIL DRAIN PLUG
Valid for 00, 02, 10, 40, 44
from £9.63
from £9.63
OIL DRAIN PLUG Genuine Maserati Part - New (to order)
# 013
MPN: 314820323
GASKET
Valid for 00, 02, 10, 40, 44
from £9.20
from £9.20
GASKET Genuine Maserati Part - New (to order)
# 014
MPN: 314820324
TRANS. HOUSING REAR SIDE
Valid for 00, 02, 10, 40, 44
from £396.85
from £396.85
TRANS. HOUSING REAR Genuine Maserati Part - New (to order)
# 015
MPN: 314820329
MARKING PLATE (5TH R-0.79)
Valid for 00, 02, 10, 40, 44
Marking plate (R-0.79) Genuine Maserati Part - New (to order)
# 015
MPN: 314825328
MARKING PLATE (5TH R-0.87)
Valid for 00, 02, 10, 40, 44
Marking plate (R-0.87) Genuine Maserati Part - New (to order)
# 016
MPN: 314820325
GASKET
Valid for 00, 02, 10, 40, 44
from £3.24
from £3.24
GASKET ZF.1255301029 Genuine Maserati Part - New (to order)
# 017
MPN: 314820326
COVER
Valid for 00, 02, 10, 40, 44
from £2.29
from £2.29
COVER Genuine Maserati Part - New (to order)
# 018
MPN: 315020385
SILICON TUBE
Valid for 00, 02, 10, 40, 44
from £19.01
from £19.01
CARTRIDGE Genuine Maserati Part - New (to order)
# 019
MPN: 314820369
STUD
Valid for 00, 02, 10, 40, 44
from £1.55
from £1.55
STUD Genuine Maserati Part - New (to order)
# 020
MPN: 314820341
THRUST RING (1 )
Valid for 00, 02, 10, 40, 44
from £3.55
from £3.55
SHIMMING WASHER Genuine Maserati Part - New (to order)
# 020
MPN: 314820342
THRUST RING (0,9)
Valid for 00, 02, 10, 40, 44
from £3.55
from £3.55
THRUST RING (0,9) Genuine Maserati Part - New (to order)
# 020
MPN: 314820343
THRUST RING (0,8)
Valid for 00, 02, 10, 40, 44
from £3.55
from £3.55
SHIMMING WASHER Genuine Maserati Part - New (to order)
# 020
MPN: 314820344
THRUST RING (0,7)
Valid for 00, 02, 10, 40, 44
from £3.55
from £3.55
THRUST RING (0,7) Genuine Maserati Part - New (to order)
# 020
MPN: 314820345
THRUST RING (0,6)
Valid for 00, 02, 10, 40, 44
from £3.55
from £3.55
THRUST RING (0,6) Genuine Maserati Part - New (to order)
# 020
MPN: 314820346
THRUST RING (0,5)
Valid for 00, 02, 10, 40, 44
from £3.55
from £3.55
THRUST RING (0,5) Genuine Maserati Part - New (to order)
# 020
MPN: 314820347
THRUST RING (0,4)
Valid for 00, 02, 10, 40, 44
from £3.55
from £3.55
THRUST RING (0,4) Genuine Maserati Part - New (to order)
# 020
MPN: 314820348
THRUST RING (1,1)
Valid for 00, 02, 10, 40, 44
from £3.55
from £3.55
RONDELLA RASAM Genuine Maserati Part - New (to order)
# 020
MPN: 314820349
THRUST RING (1,2)
Valid for 00, 02, 10, 40, 44
from £1.63
from £1.63
RONDELLA RASAM Genuine Maserati Part - New (to order)
# 020
MPN: 314820350
THRUST RING (1 ,3)
Valid for 00, 02, 10, 40, 44
from £1.63
from £1.63
RONDELLA RASAM Genuine Maserati Part - New (to order)
# 020
MPN: 314820351
THRUST RING (1 ,4)
Valid for 00, 02, 10, 40, 44
from £1.63
from £1.63
RONDELLA RASAM Genuine Maserati Part - New (to order)
# 020
MPN: 314820352
THRUST RING (1,5)
Valid for 00, 02, 10, 40, 44
from £3.55
from £3.55
THRUST RING (1,5) Genuine Maserati Part - New (to order)
# 020
MPN: 314820353
THRUST RING (1,6)
Valid for 00, 02, 10, 40, 44
from £1.63
from £1.63
RONDELLA RASAM Genuine Maserati Part - New (to order)
# 020
MPN: 314820354
THRUST RING (1,7)
Valid for 00, 02, 10, 40, 44
from £3.55
from £3.55
THRUST RING (1,7) Genuine Maserati Part - New (to order)
# 020
MPN: 314820355
THRUST RING (1 ,8)
Valid for 00, 02, 10, 40, 44
from £3.55
from £3.55
RONDELLA RASAM Genuine Maserati Part - New (to order)
# 020
MPN: 314820356
THRUST RING (1,9)
Valid for 00, 02, 10, 40, 44
from £1.63
from £1.63
RONDELLA RASAM Genuine Maserati Part - New (to order)
# 021
MPN: 314820368
SCREW
Valid for 00, 02, 10, 40, 44
SCREW Genuine Maserati Part - New (to order)
# 022
MPN: 314820334
REAR COVER
Valid for 00, 02, 10, 40, 44
from £137.28
from £137.28
Maserati PART 314820334 Genuine Maserati Part - New (to order)
# 023
MPN: 314820370
NUT
Valid for 00, 02, 10, 40, 44
NUT Genuine Maserati Part - New (to order)
# 024
MPN: 314820336
SEAL RING
Valid for 00, 02, 10, 40, 44
from £22.95
from £22.95
ZF SEALING RING 0634.300.470 Genuine Maserati Part - New (to order)
# 025
MPN: 314820367
SCREW
Valid for 00, 02, 10, 40, 44
from £6.04
from £6.04
VITE ZF.0770.000.024 Genuine Maserati Part - New (to order)
# 026
MPN: 313620106
GENERATOR
Valid for 00, 02, 10, 40, 44
from £57.74
from £57.74
PULSE GENERATOR Genuine Maserati Part - New (to order)
PULSE GENERATOR Eurospares Approved Part - New (to order)
