maserati biturbo spider automatic transmission - converter (3 hp) parts diagram

029.1 - Automatic Transmission - Converter (3 HP)

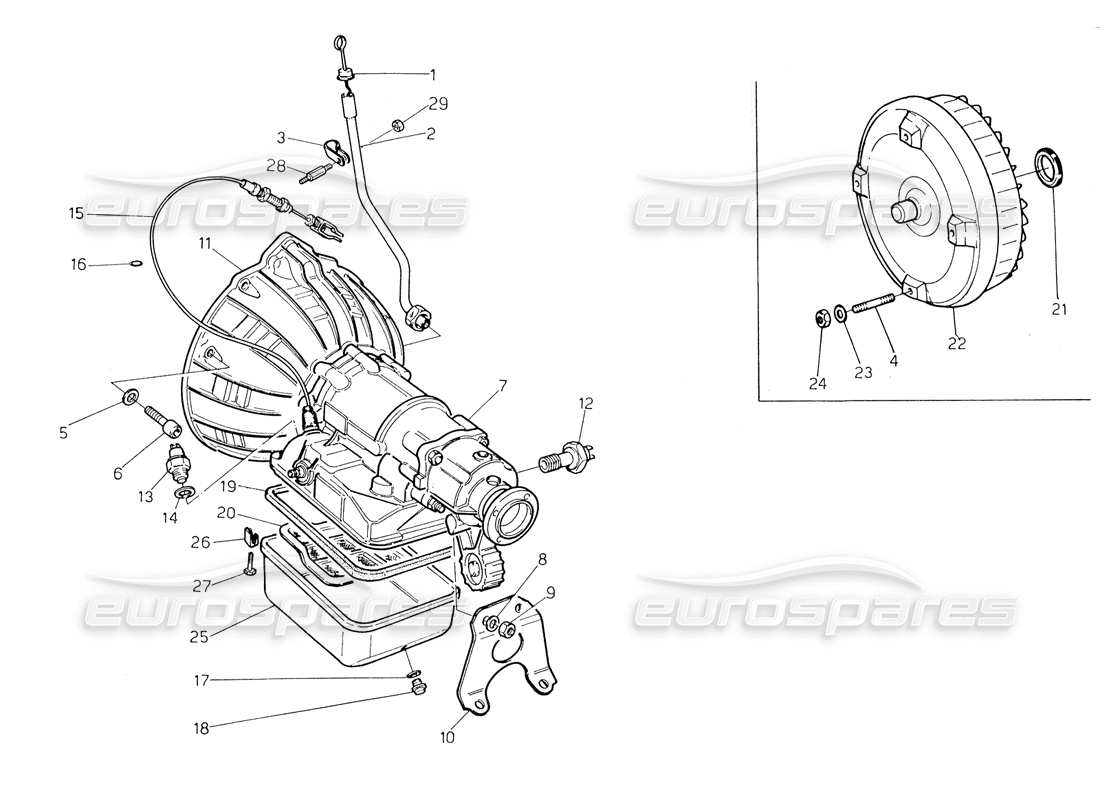

Maserati Biturbo Spider Automatic Transmission - Converter (3 HP) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 000
MPN: 314838009
AUTOMATIC TRANSMISSION WITH BELL AND CONVERTER 3HP22
Valid for 03, 11, 41, 45
Supersession
Supersession
# 001
MPN: 315232156
oil dipstick
Valid for 03, 11, 41, 45
from £3.24
from £3.24
# 002
MPN: 315232157
OIL GAITER
Valid for 03, 11, 41, 45
# 003
MPN: 315232413
CLAMP
Valid for 03, 11, 41, 45
from £1.92
from £1.92
# 004
MPN: 314632308
STUD
Valid for 03, 11, 41, 45
from £1.18
from £1.18
# 005
MPN: 138410100
WASHER
Valid for 03, 11, 41, 45
# 006
MPN: 108010040
SCREW
Valid for 03, 11, 41, 45
# 007
MPN: 314832014
AUTOMATIC TRANSMISSION (WITHOUT BELL AND CONVERTER)
Valid for 03, 11, 41, 45
# 008
MPN: 138200080
WASHER
Valid for 03, 11, 41, 45
# 009
MPN: 125100080
NUT
Valid for 03, 11, 41, 45
from £0.86
from £0.86
# 010
MPN: 319032310
AUTOMATIC TRANSMISSION SUPPORT
Valid for 03, 11, 41, 45
from £4.16
from £4.16
# 011
MPN: 314632312
CONVERTER BELL
Valid for 03, 11, 41, 45
from £69.88
from £69.88
# 012
MPN: 313620106
TRIGGER PULSE GENERATOR
Valid for 03, 11, 41, 45
from £57.54
from £57.54
# 013
MPN: 313332131
SWITCH
Valid for 03, 11, 41, 45
from £13.99
from £13.99
# 014
MPN: 313332132
GASKET
Valid for 03, 11, 41, 45
# 015
MPN: 314838100
CABLE
Valid for 03, 11, 41, 45
from £5.16
from £5.16
# 016
MPN: 314832314
GASKET
Valid for 03, 11, 41, 45
from £2.31
from £2.31
# 017
MPN: 314832307
GASKET
Valid for 03, 11, 41, 45
# 018
MPN: 314832308
OILPLUG
Valid for 03, 11, 41, 45
# 019
MPN: 314832309
GASKET
Valid for 03, 11, 41, 45
from £13.10
from £13.10
# 020
MPN: 314832310
OIL FILTER
Valid for 03, 11, 41, 45
from £21.83
from £21.83
# 021
MPN: 314832311
SEAL RING
Valid for 03, 11, 41, 45
from £9.17
from £9.17
# 022
MPN: 314632100
CONVERTER
Valid for 03, 11, 41, 45
from £555.62
from £555.62
# 023
MPN: 138200080
WASHER
Valid for 03, 11, 41, 45
# 024
MPN: 314632309
NUT
Valid for 03, 11, 41, 45
Supersession
Supersession
This part replaces part number 128350080
# 025
MPN: 314832102
oil sump
Valid for 03, 11, 41, 45
from £40.68
from £40.68
# 026
MPN: 314832312
HOOK SUPPORT
Valid for 03, 11, 41, 45
from £5.93
from £5.93
# 027
MPN: 314832313
SCREW
Valid for 03, 11, 41, 45
# 028
MPN: 312032446
COLUMN
Valid for 03, 11, 41, 45
# 029
MPN: 125100080
NUT
Valid for 03, 11, 41, 45
from £0.86
from £0.86
