034.1 - Power Steering System (R.H, Steering)

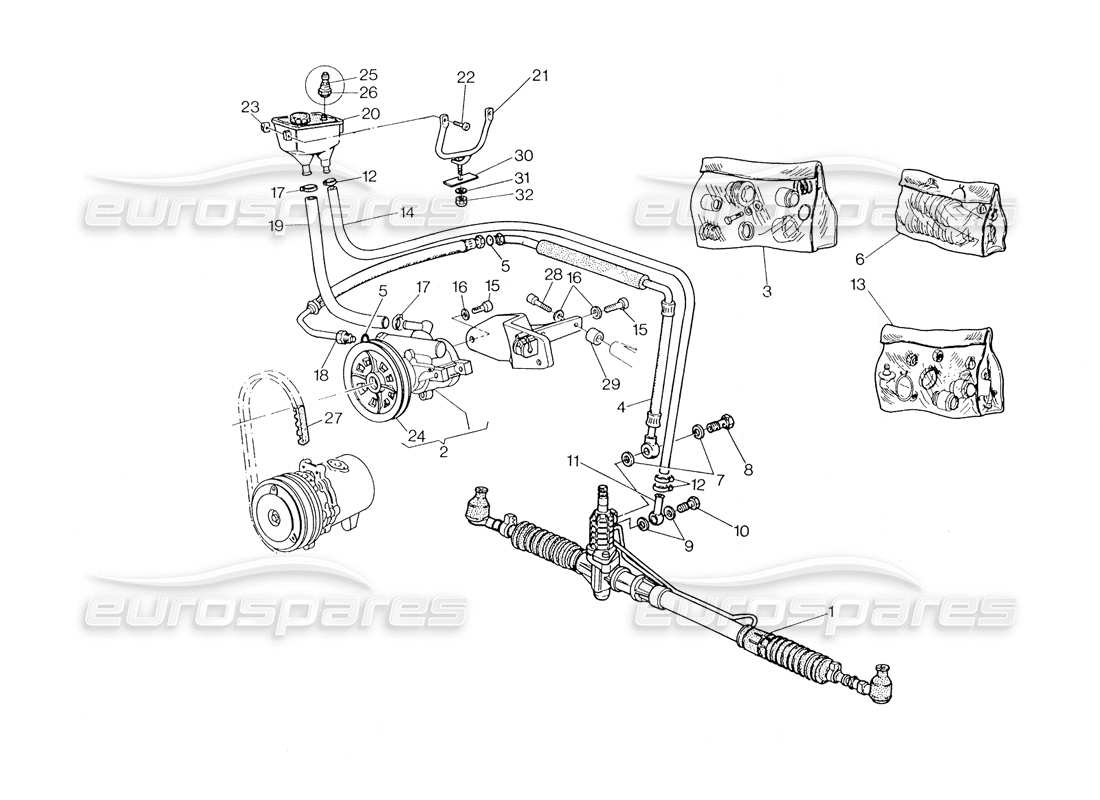

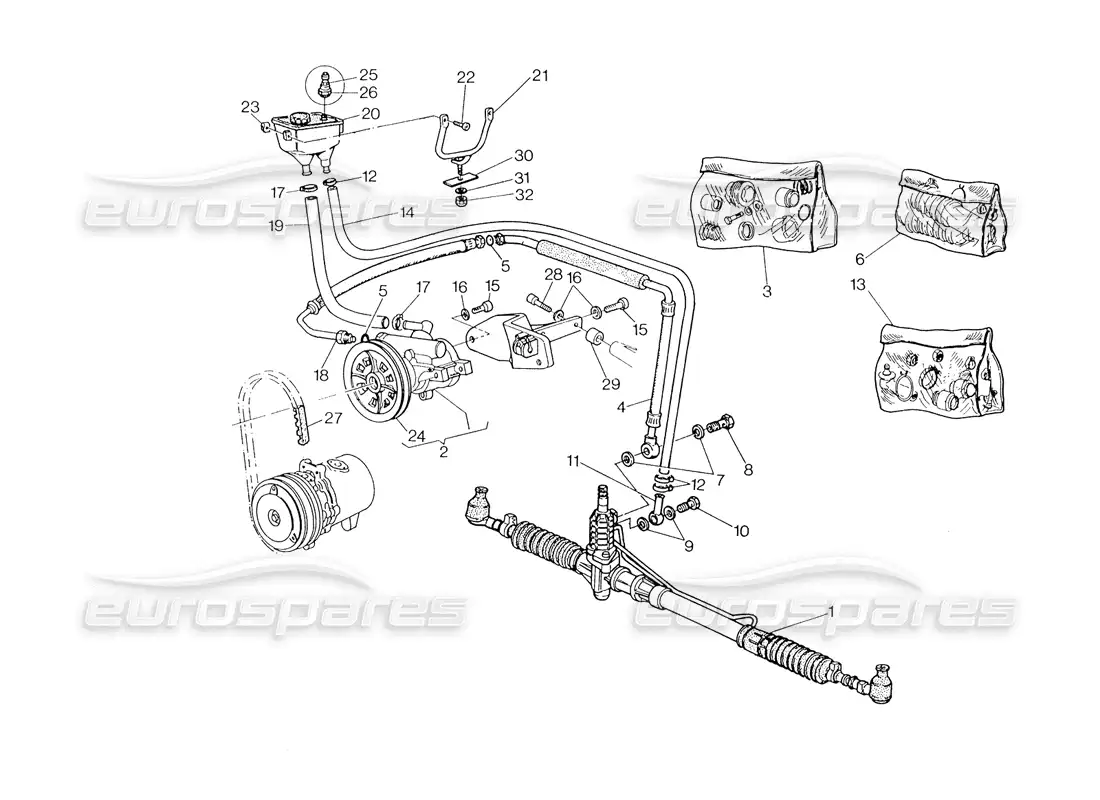

Maserati Biturbo Spider Power Steering System (R.H, Steering) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 397850225
LHD POWER STEERING BOX (POST. MOD.)
Replaces 397850125
from £747.23
from £747.23
This part replaces part number 397850125
# 001
MPN: 397870225
RHD POWER STEERING BOX
from £507.53
from £507.53
This part replaces part number 317870125
# 002
MPN: 317832104
PUMP WITH PULLEY
Valid for 40, 41, 44, 45
from £182.05
from £182.05
# 003
MPN: 310232040
PIPES AND RACCORDS OVERHAUL KIT
Valid for 40, 41, 44, 45
from £32.68
from £32.68
# 004
MPN: 317827139
PIPE
Valid for 40, 41, 44, 45
from £97.61
from £97.61
# 005
MPN: 192415108
RUBBER
Valid for 40, 41, 44, 45
from £1.28
from £1.28
# 006
MPN: 390250080
CUPS AND CLAMPS OVERHAUL KIT
Valid for 40, 41, 44, 45
from £130.22
from £130.22
This part replaces part number 320250033
# 007
MPN: 317832381
GASKET
Valid for 40, 41, 44, 45
# 008
MPN: 317832380
SCREW
Valid for 40, 41, 44, 45
from £9.28
from £9.28
# 009
MPN: 317832378
GASKET
Valid for 40, 41, 44, 45
from £0.71
from £0.71
# 010
MPN: 317832377
SCREW
Valid for 40, 41, 44, 45
from £3.74
from £3.74
# 011
MPN: 317832135
UNION
Valid for 40, 41, 44, 45
from £19.38
from £19.38
# 012
MPN: 317832389
CLAMP
Valid for 40, 41, 44, 45
from £1.98
from £1.98
# 013
MPN: 320250034
Track Rod Ends
Track rod ends only
from £317.40
from £317.40
# 014
MPN: 317827385
COUPLING
Valid for 40, 41, 44, 45
from £17.71
from £17.71
# 015
MPN: 138411080
SCREW
Valid for 40, 41, 44, 45
# 016
MPN: 138410080
WASHER
Valid for 40, 41, 44, 45
# 017
MPN: 168403022
CLAMP
Valid for 40, 41, 44, 45
# 018
MPN: 317827138
PIPE
Valid for 40, 41, 44, 45
from £23.93
from £23.93
# 019
MPN: 317832370
COUPLING
Valid for 40, 41, 44, 45
Supersession
Supersession
# 020
MPN: 317832130
OIL TANK (PRE MOD.)
Valid for 40, 41, 44, 45
Supersession
Supersession
# 020
MPN: 397850130
OIL TANK
from £21.47
from £21.47
This part replaces part number 317853130
# 021
MPN: 317832131
BRACKET (PRE MOD.)
Valid for 40, 41, 44, 45
Supersession
Supersession
# 021
MPN: 317853131
BRACKET (AFTER MOD.)
Valid for 40, 41, 44, 45
from £7.93
from £7.93
This part replaces part number 317832131
# 022
MPN: 119148130
SCREW
Valid for 40, 41, 44, 45
from £0.87
from £0.87
# 023
MPN: 163610050
CLIP
Valid for 40, 41, 44, 45
from £0.47
from £0.47
# 024
MPN: 317832368
BELT PULLEY (NON SUPPLIED)
Valid for 40, 41, 44, 45
# 025
MPN: 316220107
VALVE
Valid for 40, 41, 44, 45
from £18.15
from £18.15
# 026
MPN: 317853391
NUT
Valid for 40, 41, 44, 45
from £2.22
from £2.22
# 027
MPN: 317837372
POWER STEERING BELT
Valid for 40, 41, 44, 45
from £12.50
from £12.50
# 028
MPN: 108008040
SCREW
Valid for 40, 41, 44, 45
# 029
MPN: 311032370
SPACER
Valid for 40, 41, 44, 45
# 030
MPN: 317832366
PLATE (NON SUPPLIED)
Valid for 40, 41, 44, 45
# 030
MPN: 317853366
PLATE (AFTER MOD.)
Valid for 40, 41, 44, 45
# 031
MPN: 138410080
WASHER
Valid for 40, 41, 44, 45
# 032
MPN: 122600080
NUT
Valid for 40, 41, 44, 45
