040 - Hubs, Rear Brakes and Drive Shafts

Maserati Biturbo Spider Hubs, Rear Brakes and Drive Shafts Parts Diagram

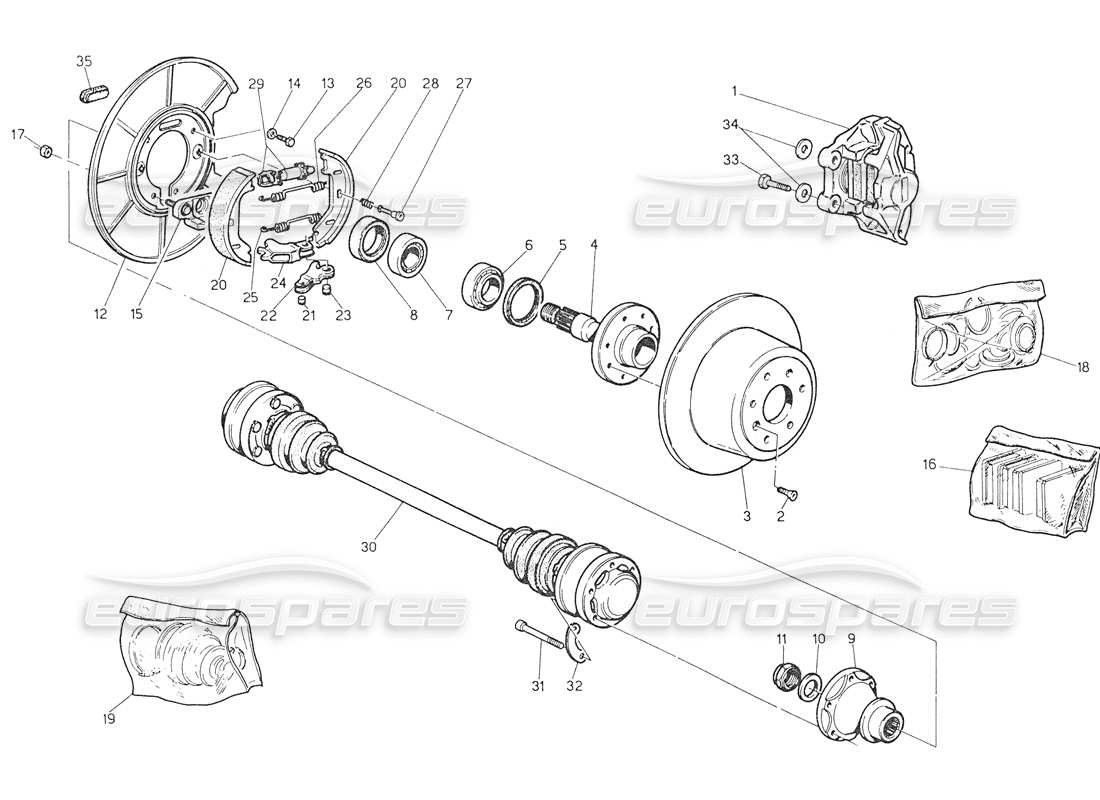

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 317220111
                                                                      REAR CALIPER LH ASSEMBLY
                                                                      Supersession
                                                                      Supersession
                                                                      # 001
                                                                      MPN: 317220112
                                                                      REAR CALIPER RH ASSEMBLY
                                                                      Supersession
                                                                      Supersession
                                                                      # 002
                                                                      MPN: 108506020
                                                                      BRAKE DISC BOLT
                                                                      from £1.11
                                                                      from £1.11
                                                                      # 003
                                                                      MPN: 347201351
                                                                      REAR BRAKE DISC
                                                                      from £480.98
                                                                      from £480.98
                                                                      # 004
                                                                      MPN: 347200126
                                                                      REAR HUB SHAFT
                                                                      from £242.13
                                                                      from £242.13
                                                                      # 005
                                                                      MPN: 317220347
                                                                      SEALING RING
                                                                      from £1.62
                                                                      from £1.62
                                                                      # 006
                                                                      MPN: 317220343
                                                                      OUTER BEARING
                                                                      from £150.84
                                                                      from £150.84
                                                                      # 007
                                                                      MPN: 327256345
                                                                      INNER BEARING
                                                                      from £167.80
                                                                      from £167.80
                                                                      # 008
                                                                      MPN: 317220346
                                                                      SEALING RING
                                                                      from £2.32
                                                                      from £2.32
                                                                      # 009
                                                                      MPN: 347200355
                                                                      SLEEVE
                                                                      from £63.99
                                                                      from £63.99
                                                                      # 010
                                                                      MPN: 317220348
                                                                      REAR THRUST RING FOR SLEEVE (PRE MODIF.)
                                                                      Supersession
                                                                      Supersession
                                                                      # 010
                                                                      MPN: 327256354
                                                                      REAR THRUST RING FOR SLEEVE (AFTER MODIF.)
                                                                      from £1.63
                                                                      from £1.63
                                                                      This part replaces part number 317220348
                                                                      # 011
                                                                      MPN: 317220340
                                                                      GROOVED NUT
                                                                      Supersession
                                                                      Supersession
                                                                      # 012
                                                                      MPN: 317020111
                                                                      LH REAR BRAKE COVER
                                                                      from £73.19
                                                                      from £73.19
                                                                      # 012
                                                                      MPN: 317020112
                                                                      RH REAR BRAKE COVER
                                                                      from £73.19
                                                                      from £73.19
                                                                      # 014
                                                                      MPN: 135600060
                                                                      SPRING WASHER
                                                                      from £0.77
                                                                      from £0.77
                                                                      # 015
                                                                      MPN: 318020115
                                                                      BRACKET FOR HAND BRAKE CABLE
                                                                      from £18.09
                                                                      from £18.09
                                                                      # 016
                                                                      MPN: 310220035
                                                                      REAR BRAKE PADS
                                                                      Supersession
                                                                      Supersession
                                                                      # 017
                                                                      MPN: 128350080
                                                                      NUT
                                                                      Supersession
                                                                      Supersession
                                                                      # 018
                                                                      MPN: 310220032
                                                                      REAR BRAKE CALIPER OVERHAUL SET
                                                                      each caliper
                                                                      from £33.27
                                                                      from £33.27
                                                                      # 019
                                                                      MPN: 310220036
                                                                      BELLOW AND CLIPS SET
                                                                      from £94.83
                                                                      from £94.83
                                                                      # 020
                                                                      MPN: 328060111
                                                                      BRAKE SHOE ASSEMBLY WIHOUT AMIANTHUS
                                                                      from £31.84
                                                                      from £31.84
                                                                      This part replaces part number 318020111
                                                                      # 021
                                                                      MPN: 318020332
                                                                      PIN FOR LEVER
                                                                      from £1.39
                                                                      from £1.39
                                                                      # 022
                                                                      MPN: 318020330
                                                                      CONTROL LEVER
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 023
                                                                      MPN: 318020333
                                                                      PIN FOR LEVER
                                                                      from £1.85
                                                                      from £1.85
                                                                      # 024
                                                                      MPN: 318020331
                                                                      PRESSURE SHOE
                                                                      from £1.55
                                                                      from £1.55
                                                                      # 025
                                                                      MPN: 318020334
                                                                      LOWER DRAW SPRING
                                                                      from £19.80
                                                                      from £19.80
                                                                      # 026
                                                                      MPN: 318020335
                                                                      UPPER DRAW SPRING
                                                                      from £1.41
                                                                      from £1.41
                                                                      # 027
                                                                      MPN: 318020336
                                                                      BRAKE SHOE PIN
                                                                      from £8.48
                                                                      from £8.48
                                                                      # 028
                                                                      MPN: 318020337
                                                                      SPRING FOR PIN
                                                                      from £8.48
                                                                      from £8.48
                                                                      # 029
                                                                      MPN: 318020113
                                                                      ADJUSTING DEVICE FOR HAND BRAKE
                                                                      from £6.81
                                                                      from £6.81
                                                                      # 030
                                                                      MPN: 316020105
                                                                      DRIVE SHAFT ASSEMBLY
                                                                      from £438.51
                                                                      from £438.51
                                                                      # 032
                                                                      MPN: 316020310
                                                                      PLATE FOR BOLT
                                                                      from £1.93
                                                                      from £1.93
                                                                      # 033
                                                                      MPN: 101210030
                                                                      BOLT
                                                                      from £1.55
                                                                      from £1.55
                                                                      # 034
                                                                      MPN: 14496601
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 035
                                                                      MPN: 317020328
                                                                      PLUG
                                                                      from £0.69
                                                                      from £0.69
