042 - Pedal Assy - Brake Booster Clutch Pump for LHD

Maserati Biturbo Spider Pedal Assy - Brake Booster Clutch Pump for LHD Parts Diagram

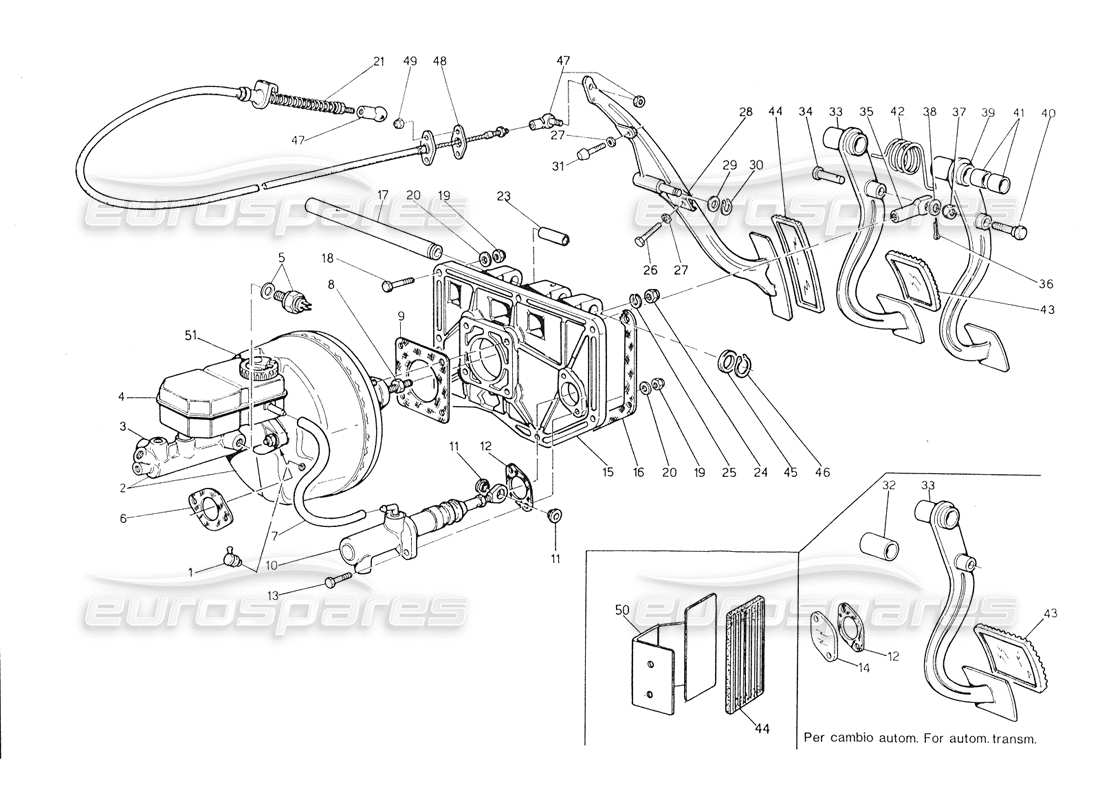

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 317420108
      VALVE
      Valid for 00, 02, 03, 10, 11
      from £16.22
      from £16.22
      NOT BACKFLOW VALVE Genuine Maserati Part - New (to order)
      # 002
      MPN: 317420112
      BRAKE BOOSTER WITH PUMP ASSY
      from £642.04
      from £642.04
      This part replaces part number 317420103
      BRAKE PUMP Genuine Maserati Part - New (to order)
      # 003
      MPN: 317420101
      BRAKE PUMP
      from £364.55
      from £364.55
      BRAKE PUMP Genuine Maserati Part - New (to order)
      BRAKE PUMP Original Equipment - New In stock
      # 004
      MPN: 317420104
      OIL TANK
      Valid for 00, 02, 03, 10, 11
      from £19.27
      from £19.27
      PUMP TANK Genuine Maserati Part - New (to order)
      # 005
      MPN: 313320187
      SWITCH
      Valid for 00, 02, 03, 10, 11
      from £46.30
      from £46.30
      HYDRAULIC STOP SWITCH Genuine Maserati Part - New (to order)
      # 006
      MPN: 317420304
      GASKET
      Valid for 00, 02, 03, 10, 11
      from £1.61
      from £1.61
      BRAKE MASTER CYLINDER GASKET Genuine Maserati Part - New (to order)
      # 007
      MPN: 318220329
      TUBE
      Valid for 00, 02, 10
      from £1.09
      from £1.09
      LINE Genuine Maserati Part - New (to order)
      # 008
      MPN: 125300100
      NUT
      Valid for 00, 02, 03, 10, 11
      NUT Genuine Maserati Part - New (to order)
      # 009
      MPN: 317420303
      GASKET
      Valid for 00, 02, 03, 10, 11
      from £1.61
      from £1.61
      BRAKE SERVO FASTENING GASKET Genuine Maserati Part - New (to order)
      # 010
      MPN: 318220101
      PUMP
      Valid for 00, 02, 10
      from £64.79
      from £64.79
      PUMP Genuine Maserati Part - New (to order)
      PUMP Eurospares Approved Part - New In stock
      # 011
      MPN: 318420325
      BUSH
      Valid for 00, 02, 10
      from £1.13
      from £1.13
      CLUTCH PEDAL CTRL ROD BUSHIN Genuine Maserati Part - New (to order)
      # 012
      MPN: 318220307
      GASKET
      Valid for 00, 02, 03, 10, 11
      from £1.13
      from £1.13
      Guarnizione Genuine Maserati Part - New (to order)
      # 013
      MPN: 100708040
      SCREW
      Valid for 00, 02, 03, 10, 11
      Maserati PART 100708040 Genuine Maserati Part - New (to order)
      # 014
      MPN: 318432322
      COVER
      Valid for 03, 11
      COVER Genuine Maserati Part - New (to order)
      # 015
      MPN: 318420304
      SUPPORT
      Valid for 00, 02, 03, 10, 11
      from £14.47
      from £14.47
      Maserati PART 318420304 Genuine Maserati Part - New (to order)
      # 016
      MPN: 318420348
      GASKET
      Valid for 00, 02, 03, 10, 11
      from £0.73
      from £0.73
      GASKET Genuine Maserati Part - New (to order)
      # 017
      MPN: 318420328
      PIN
      Valid for 00, 02, 03, 10, 11
      from £8.62
      from £8.62
      PEDAL PIN Genuine Maserati Part - New (to order)
      # 018
      MPN: 100708030
      SCREW
      Valid for 00, 02, 03, 10, 11
      Maserati PART 100708030 Genuine Maserati Part - New (to order)
      # 019
      MPN: 128350080
      NUT
      Valid for 00, 02, 03, 10, 11
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 020
      MPN: 135900084
      WASHER
      Valid for 00, 02, 03, 10, 11
      Maserati PART 135900084 Genuine Maserati Part - New (to order)
      # 021
      MPN: 317420113
      SERVO BRAKE
      Valid for 00, 02, 03, 10, 11
      from £99.75
      from £99.75
      SERVO BRAKE Genuine Maserati Part - New (to order)
      # 022
      MPN: 318420110
      SUPPORT
      Valid for 00, 02, 03, 10, 11
      from £3.06
      from £3.06
      SUPPORTO Genuine Maserati Part - New (to order)
      # 023
      MPN: 318420334
      BUSH
      Valid for 00, 02, 03, 10, 11
      from £1.61
      from £1.61
      BOCCOLA ELAST ANTIFR PEDALE Genuine Maserati Part - New (to order)
      # 024
      MPN: 125100080
      NUT
      Valid for 00, 02, 03, 10, 11
      from £0.86
      from £0.86
      DADO Genuine Maserati Part - New (to order)
      # 025
      MPN: 138410080
      WASHER
      Valid for 00, 02, 03, 10, 11
      from £2.28
      from £2.28
      Maserati PART 138410080 Genuine Maserati Part - New (to order)
      # 026
      MPN: 101206040
      SCREW
      Valid for 00, 02, 03, 10, 11
      from £0.47
      from £0.47
      VITE FINE CORSA Genuine Maserati Part - New (to order)
      # 027
      MPN: 125100060
      NUT
      Valid for 00, 02, 03, 10, 11
      Maserati PART 125100060 Genuine Maserati Part - New (to order)
      # 028
      MPN: 318420113
      Accelerator Pedal
      Valid for 00, 02, 03, 10, 11
      from £31.40
      from £31.40
      PEDALE ACCELERATORE Genuine Maserati Part - New (to order)
      # 029
      MPN: 318420114
      WASHER
      Valid for 00, 02, 03, 10, 11
      from £1.94
      from £1.94
      END-OF-TRAVEL RUBBER BUSHING Genuine Maserati Part - New (to order)
      # 030
      MPN: 150800090
      RING
      Valid for 00, 02, 03, 10, 11
      from £0.47
      from £0.47
      SEEGER Genuine Maserati Part - New (to order)
      # 031
      MPN: 318420114
      PLUG
      Valid for 00, 02, 03, 10, 11
      from £1.94
      from £1.94
      END-OF-TRAVEL RUBBER BUSHING Genuine Maserati Part - New (to order)
      # 032
      MPN: 318432318
      SPACER
      Valid for 03, 11
      from £1.13
      from £1.13
      BOCCOLE Genuine Maserati Part - New (to order)
      # 033
      MPN: 318420104
      BRAKE PEDAL (CARS WITH MANUAL TRANSMISSION)
      Valid for 00, 02, 10
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 033
      MPN: 318432104
      BRAKE PEDAL (CARS WITH AUTOMATIC TRANSMISSION)
      Valid for 03, 11
      from £18.28
      from £18.28
      Maserati PART 318432104 Genuine Maserati Part - New (to order)
      # 034
      MPN: 318420312
      PIN
      Valid for 00, 02, 03, 10, 11
      PIN Genuine Maserati Part - New (to order)
      # 035
      MPN: 317420300
      PIN
      Valid for 00, 02, 03, 10, 11
      from £0.73
      from £0.73
      THRUST PAD Genuine Maserati Part - New (to order)
      # 036
      MPN: 146503220
      COTTER NUT WASHER
      Valid for 00, 02, 03, 10, 11
      Maserati PART 146503220 Genuine Maserati Part - New (to order)
      # 037
      MPN: 128300100
      NUT
      Valid for 00, 02, 10
      Maserati PART 128300100 Genuine Maserati Part - New (to order)
      # 038
      MPN: 135910105
      WASHER
      Valid for 00, 02, 03, 10, 11
      Maserati PART 135910105 Genuine Maserati Part - New (to order)
      # 039
      MPN: 318420108
      CLUTCH PEDAL
      Valid for 00, 02, 10
      from £6.20
      from £6.20
      Maserati PART 318420108 Genuine Maserati Part - New (to order)
      # 040
      MPN: 318420326
      PEDAL COVER
      Valid for 00, 02, 10
      from £8.62
      from £8.62
      THRUST PAD PIN Genuine Maserati Part - New (to order)
      # 041
      MPN: 318420320
      WASHER
      Valid for 00, 02, 03, 10, 11
      from £10.08
      from £10.08
      RUBBER BUSHING ON BRAKE PIN Genuine Maserati Part - New (to order)
      # 042
      MPN: 318420308
      SPRING WASHER
      Valid for 00, 02, 03, 10, 11
      from £2.19
      from £2.19
      BRAKE AND CLUTCH PEDAL RETURN SPR Genuine Maserati Part - New (to order)
      # 043
      MPN: 318420300
      head
      Valid for 00, 02, 10
      from £3.38
      from £3.38
      BRAKE AND CLUTCH PEDAL COVER 1 Genuine Maserati Part - New (to order)
      # 043
      MPN: 318432300
      GASKET
      Valid for 03, 11
      from £2.69
      from £2.69
      COPRIPEDALE FRENO M138CB Genuine Maserati Part - New (to order)
      # 044
      MPN: 318420301
      NUT
      Valid for 00, 02, 03, 10, 11
      from £1.61
      from £1.61
      COPRIPEDALE ACCELERATORE M13 Genuine Maserati Part - New (to order)
      COPRIPEDALE ACCELERATORE M13 Genuine Maserati Part - Used In stock
      # 045
      MPN: 318420321
      CABLE
      Valid for 00, 02, 03, 10, 11
      WASHER Genuine Maserati Part - New (to order)
      # 046
      MPN: 151100180
      CABLE
      Valid for 00, 02, 03, 10, 11
      from £0.73
      from £0.73
      CIRCLIP Genuine Maserati Part - New In stock
      # 047
      MPN: 318420116
      SCREW
      Valid for 00, 02, 03, 10, 11
      from £3.78
      from £3.78
      ACCELERATOR JOINT Genuine Maserati Part - New (to order)
      # 048
      MPN: 318220300
      BUSH
      Valid for 00, 02, 03, 10, 11
      from £0.73
      from £0.73
      GASKET Genuine Maserati Part - New (to order)
      # 049
      MPN: 128350060
      SPRING
      Valid for 00, 02, 03, 10, 11
      Maserati PART 128350060 Genuine Maserati Part - New (to order)
      # 050
      MPN: 318220010
      PEDAL COVER
      Valid for 00, 02, 10
      Maserati PART 318220010 Genuine Maserati Part - New (to order)
      # 050
      MPN: 318255010
      PEDAL COVER
      Valid for 03, 11
      from £3.25
      from £3.25
      ACCELERATOR CONTROL CABLE Genuine Maserati Part - New (to order)
