maserati biturbo spider body shell: inner panels parts diagram

045 - Body Shell: Inner Panels

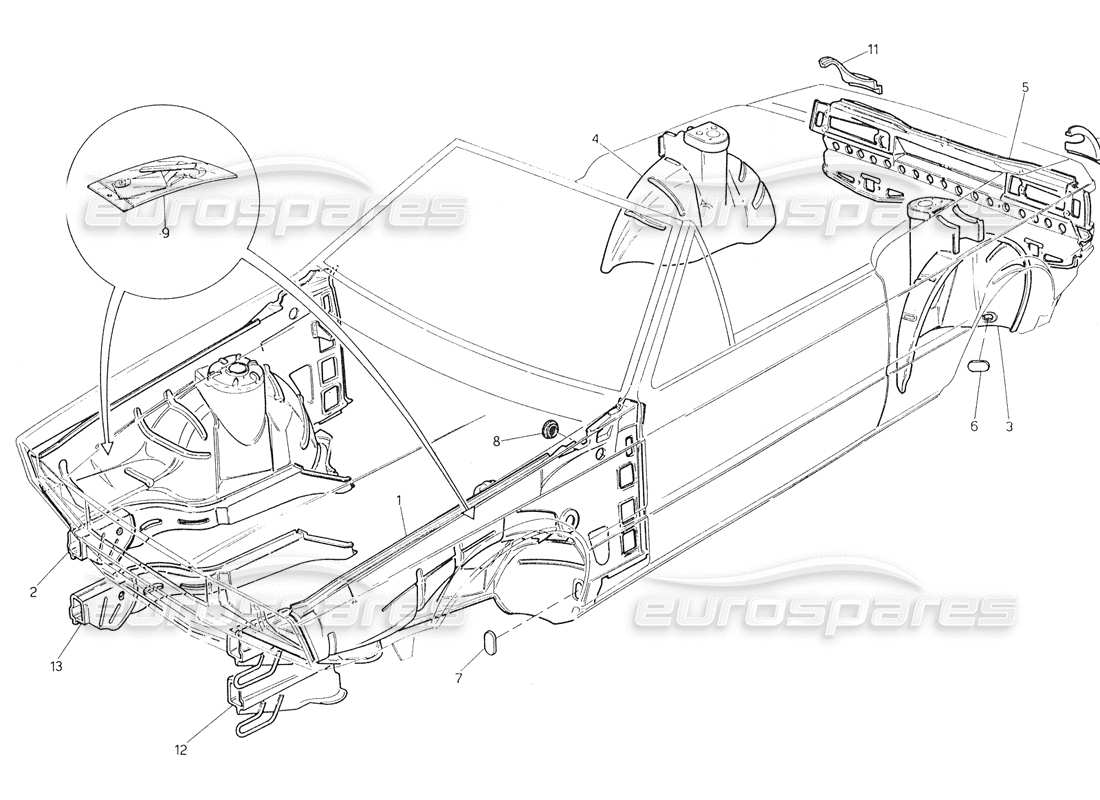

Maserati Biturbo Spider Body Shell: Inner Panels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 311350111
                          LH INSIDE FRONT BODY-SIDE, ASSY
                          Supersession
                          Supersession
                          This part replaces part number 311320111 - and 1 more. Click to view details
                          # 002
                          MPN: 311320112
                          RH INSIDE FRONT BODY-SIDE, ASSY
                          # 002
                          MPN: 311353112
                          RH INSIDE FRONT BODY-SIDE, ASSY (AFTER MOD.)
                          Valid for 00, 02, 03, 10, 11
                          from £1,343.36
                          from £1,343.36
                          # 003
                          MPN: 331320219
                          LH INSIDE REAR CASE, ASSY
                          from £154.16
                          from £154.16
                          # 004
                          MPN: 331320220
                          RH INSIDE REAR CASE, ASSY
                          from £151.01
                          from £151.01
                          # 005
                          MPN: 311327228
                          REAR BODY PANEL, ASSY
                          # 006
                          MPN: 312120307
                          CAP
                          from £0.69
                          from £0.69
                          # 007
                          MPN: 53211300
                          CAP
                          Supersession
                          Supersession
                          # 008
                          MPN: 312120313
                          CAP TO CLOSE HOLE OF THE FRONT INSIDE BODY-SIDE
                          from £1.08
                          from £1.08
                          # 009
                          MPN: 9459
                          SUPPORTS
                          from £9.73
                          from £9.73
                          # 010
                          MPN: 312520469
                          LH REAR ANGLE
                          from £0.69
                          from £0.69
                          # 011
                          MPN: 312520470
                          RH REAR ANGLE
                          from £15.38
                          from £15.38
                          # 012
                          MPN: 311350115
                          LH BEAM, IRON GIRDER
                          Supersession
                          Supersession
                          # 013
                          MPN: 311320116
                          RH BEAM, IRON GIRD
                          from £68.70
                          from £68.70
