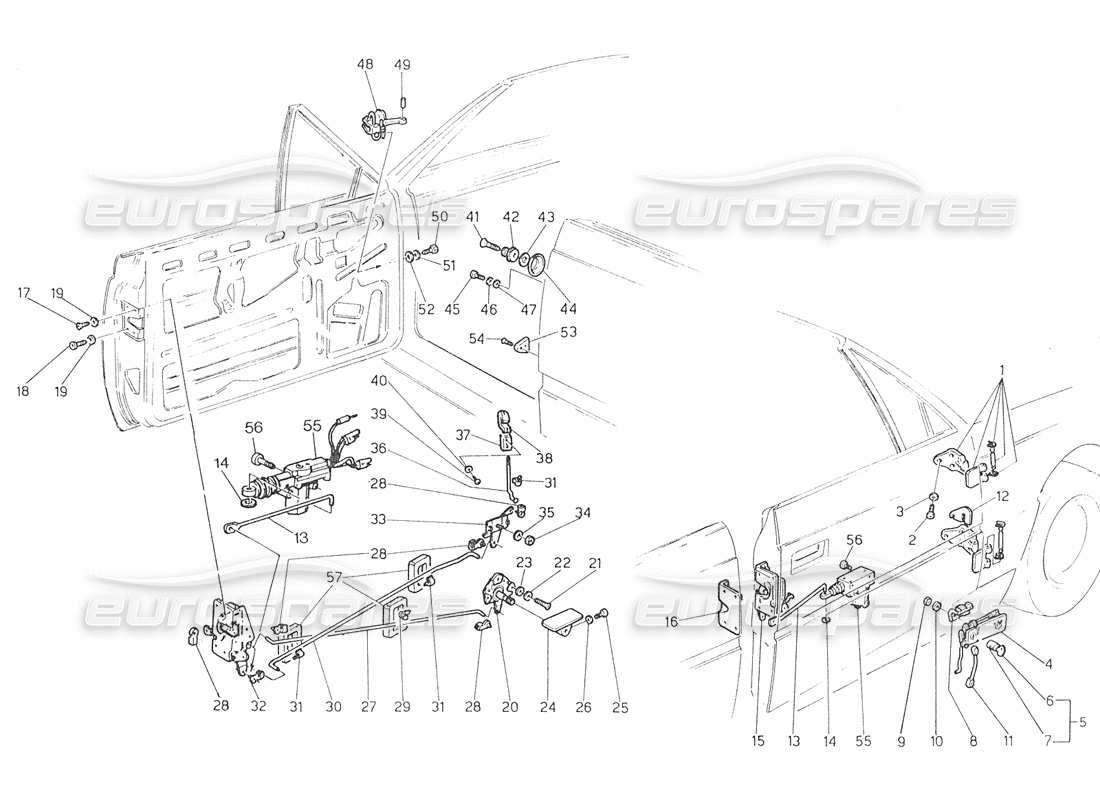

049 - Doors: Hinges and Inner Controls

Maserati Biturbo Spider Doors: Hinges and Inner Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                  #
                                                                                                                  Part number
                                                                                                                  Description
                                                                                                                  Price
                                                                                                                  # 001
                                                                                                                  MPN: 314520113
                                                                                                                  DOOR HINGE ASSY
                                                                                                                  from £21.10
                                                                                                                  from £21.10
                                                                                                                  # 002
                                                                                                                  MPN: 167570825
                                                                                                                  SCREW
                                                                                                                  from £0.85
                                                                                                                  from £0.85
                                                                                                                  # 004
                                                                                                                  MPN: 314520025
                                                                                                                  EXTERIOR HANDLE SET
                                                                                                                  from £71.48
                                                                                                                  from £71.48
                                                                                                                  # 005
                                                                                                                  MPN: 314520011
                                                                                                                  BARREL SET WITH THREE KEYS
                                                                                                                  from £17.70
                                                                                                                  from £17.70
                                                                                                                  # 006
                                                                                                                  MPN: 53451375
                                                                                                                  Key
                                                                                                                  Specify the profile type (three profile types are available - indentifiable from these initial figures: 1…3…5…)
                                                                                                                  from £12.60
                                                                                                                  from £12.60
                                                                                                                  # 007
                                                                                                                  -
                                                                                                                  BARREL FOR LH HANDLE (NOT SUPPLIED)
                                                                                                                  # 007
                                                                                                                  -
                                                                                                                  BARREL FOR RH HANDLE (NOT SUPPLIED)
                                                                                                                  # 008
                                                                                                                  MPN: 314520381
                                                                                                                  CRAMP
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 010
                                                                                                                  MPN: 314520417
                                                                                                                  SPRING WASHER
                                                                                                                  from £1.63
                                                                                                                  from £1.63
                                                                                                                  This part replaces part number 314520415
                                                                                                                  # 011
                                                                                                                  MPN: 314520019
                                                                                                                  ROD TO CONTROL LH HANDLE KEY
                                                                                                                  from £5.64
                                                                                                                  from £5.64
                                                                                                                  # 011
                                                                                                                  MPN: 314520020
                                                                                                                  ROD TO CONTROL RH HANDLE KEY
                                                                                                                  from £5.50
                                                                                                                  from £5.50
                                                                                                                  # 012
                                                                                                                  MPN: 314520402
                                                                                                                  SPACER PLATE
                                                                                                                  On request
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 012
                                                                                                                  MPN: 314520403
                                                                                                                  SPACER PLATE
                                                                                                                  On request
                                                                                                                  from £7.73
                                                                                                                  from £7.73
                                                                                                                  # 013
                                                                                                                  MPN: 314520461
                                                                                                                  ACTUATOR ROD LH
                                                                                                                  from £1.69
                                                                                                                  from £1.69
                                                                                                                  # 013
                                                                                                                  MPN: 314520462
                                                                                                                  ACTUATOR ROD RH
                                                                                                                  from £1.83
                                                                                                                  from £1.83
                                                                                                                  # 014
                                                                                                                  MPN: 53826313
                                                                                                                  WASHER
                                                                                                                  from £1.08
                                                                                                                  from £1.08
                                                                                                                  # 015
                                                                                                                  MPN: 314520145
                                                                                                                  LH DOOR LOCK
                                                                                                                  from £18.86
                                                                                                                  from £18.86
                                                                                                                  # 015
                                                                                                                  MPN: 314520146
                                                                                                                  RH DOOR LOCK
                                                                                                                  from £19.78
                                                                                                                  from £19.78
                                                                                                                  # 016
                                                                                                                  MPN: 314520411
                                                                                                                  LH COVER PLATE
                                                                                                                  from £440.52
                                                                                                                  from £440.52
                                                                                                                  # 016
                                                                                                                  MPN: 314520412
                                                                                                                  RH COVER PLATE
                                                                                                                  from £5.21
                                                                                                                  from £5.21
                                                                                                                  # 018
                                                                                                                  MPN: 112806030
                                                                                                                  SCREW
                                                                                                                  from £0.48
                                                                                                                  from £0.48
                                                                                                                  # 019
                                                                                                                  MPN: 135600060
                                                                                                                  WASHER
                                                                                                                  from £0.77
                                                                                                                  from £0.77
                                                                                                                  # 020
                                                                                                                  MPN: 314520183
                                                                                                                  LH REMOTE CONTROL
                                                                                                                  from £5.09
                                                                                                                  from £5.09
                                                                                                                  # 020
                                                                                                                  MPN: 314520184
                                                                                                                  RH REMOTE CONTROL
                                                                                                                  from £4.63
                                                                                                                  from £4.63
                                                                                                                  # 022
                                                                                                                  MPN: 135600050
                                                                                                                  SPRING WASHER
                                                                                                                  from £0.82
                                                                                                                  from £0.82
                                                                                                                  # 023
                                                                                                                  MPN: 135900064
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 024
                                                                                                                  MPN: 314553426
                                                                                                                  CONTROL LEVER (ANTRACITE COLOR)
                                                                                                                  from £13.60
                                                                                                                  from £13.60
                                                                                                                  This part replaces part number 314520426
                                                                                                                  # 027
                                                                                                                  MPN: 314520418
                                                                                                                  ROD
                                                                                                                  from £1.97
                                                                                                                  from £1.97
                                                                                                                  # 028
                                                                                                                  MPN: 53451371
                                                                                                                  CLAMP
                                                                                                                  from £0.70
                                                                                                                  from £0.70
                                                                                                                  This part replaces part number 14578080
                                                                                                                  # 029
                                                                                                                  MPN: 314520419
                                                                                                                  CLAMP
                                                                                                                  from £0.69
                                                                                                                  from £0.69
                                                                                                                  # 030
                                                                                                                  MPN: 314520416
                                                                                                                  ROD
                                                                                                                  from £2.33
                                                                                                                  from £2.33
                                                                                                                  # 031
                                                                                                                  MPN: 314520420
                                                                                                                  CLIP
                                                                                                                  from £0.69
                                                                                                                  from £0.69
                                                                                                                  # 033
                                                                                                                  MPN: 314520153
                                                                                                                  LH SAFETY CONTROL
                                                                                                                  from £2.32
                                                                                                                  from £2.32
                                                                                                                  # 033
                                                                                                                  MPN: 314520154
                                                                                                                  RH SAFETY CONTROL NUT
                                                                                                                  from £2.32
                                                                                                                  from £2.32
                                                                                                                  # 035
                                                                                                                  MPN: 135600060
                                                                                                                  WASHER
                                                                                                                  from £0.77
                                                                                                                  from £0.77
                                                                                                                  # 036
                                                                                                                  MPN: 314520421
                                                                                                                  LOCK BUTTON FOR DOOR SAFETY
                                                                                                                  from £8.40
                                                                                                                  from £8.40
                                                                                                                  # 037
                                                                                                                  MPN: 314520428
                                                                                                                  ELEMENT TO LINK ROD
                                                                                                                  from £1.08
                                                                                                                  from £1.08
                                                                                                                  # 038
                                                                                                                  MPN: 314520427
                                                                                                                  PULL KNOB COLOUR BROWN
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 039
                                                                                                                  MPN: 167590414
                                                                                                                  SCREW
                                                                                                                  from £1.55
                                                                                                                  from £1.55
                                                                                                                  # 040
                                                                                                                  MPN: 135900043
                                                                                                                  WASHER
                                                                                                                  from £1.08
                                                                                                                  from £1.08
                                                                                                                  This part replaces part number 14496207
                                                                                                                  # 041
                                                                                                                  MPN: 314520410
                                                                                                                  SCREW
                                                                                                                  from £1.55
                                                                                                                  from £1.55
                                                                                                                  # 042
                                                                                                                  MPN: 314520151
                                                                                                                  PIN
                                                                                                                  from £14.15
                                                                                                                  from £14.15
                                                                                                                  # 043
                                                                                                                  MPN: 314520406
                                                                                                                  SPACER 2MM
                                                                                                                  from £0.69
                                                                                                                  from £0.69
                                                                                                                  # 043
                                                                                                                  MPN: 314520407
                                                                                                                  SPACER 1 MM
                                                                                                                  from £0.69
                                                                                                                  from £0.69
                                                                                                                  # 044
                                                                                                                  MPN: 314520413
                                                                                                                  COVER PLATE
                                                                                                                  from £0.54
                                                                                                                  from £0.54
                                                                                                                  # 046
                                                                                                                  MPN: 135600060
                                                                                                                  WASHER
                                                                                                                  from £0.77
                                                                                                                  from £0.77
                                                                                                                  # 048
                                                                                                                  MPN: 314520142
                                                                                                                  ROD
                                                                                                                  from £56.24
                                                                                                                  from £56.24
                                                                                                                  # 049
                                                                                                                  MPN: 314520408
                                                                                                                  PIN
                                                                                                                  from £1.49
                                                                                                                  from £1.49
                                                                                                                  # 051
                                                                                                                  MPN: 135600050
                                                                                                                  WASHER
                                                                                                                  from £0.79
                                                                                                                  from £0.79
                                                                                                                  # 052
                                                                                                                  MPN: 136110055
                                                                                                                  WASHER
                                                                                                                  from £0.77
                                                                                                                  from £0.77
                                                                                                                  # 053
                                                                                                                  MPN: 314520140
                                                                                                                  PLATE
                                                                                                                  from £6.42
                                                                                                                  from £6.42
                                                                                                                  # 055
                                                                                                                  MPN: 323320194
                                                                                                                  MOTOR ACTUATOR
                                                                                                                  from £71.33
                                                                                                                  from £71.33
                                                                                                                  # 056
                                                                                                                  MPN: 61810516
                                                                                                                  SCREW
                                                                                                                  # 057
                                                                                                                  MPN: 314520429
                                                                                                                  VIBRATION-DAMPING ON REAR ROD
                                                                                                                  from £1.55
                                                                                                                  from £1.55
                                                                                                                  # 058
                                                                                                                  MPN: 314520414
                                                                                                                  WASHER
                                                                                                                  from £1.08
                                                                                                                  from £1.08
                                                                                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
