maserati biturbo spider tail light parts diagram

058 - TAIL LIGHT

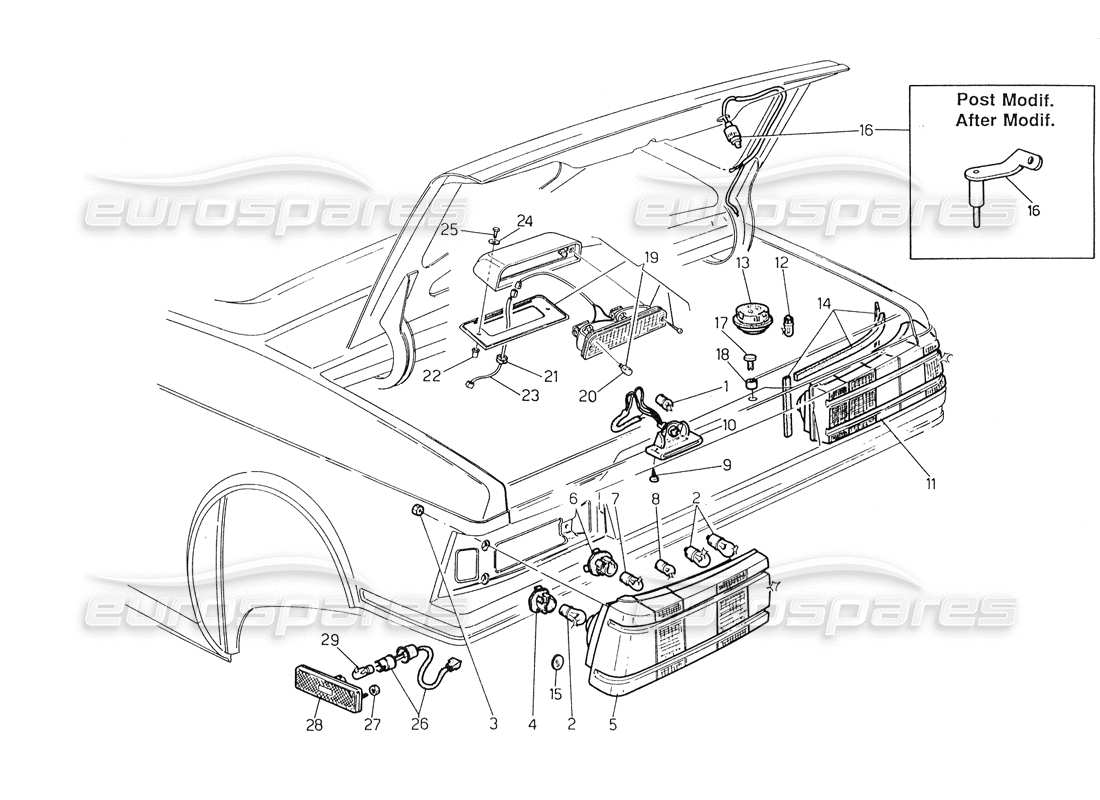

Maserati Biturbo Spider Tail Light Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 87540500
                              BULB12V5W
                              from £0.52
                              from £0.52
                              # 002
                              MPN: 87720021
                              BULB 12V 21 W
                              from £0.98
                              from £0.98
                              # 004
                              MPN: 313120404
                              BULB HOLDER
                              from £4.00
                              from £4.00
                              # 005
                              MPN: 313120138
                              LH REAR LAMP
                              Valid for 00, 02, 03, 40, 41, 44, 45
                              Supersession
                              Supersession
                              This part replaces part number 313120210
                              # 005
                              MPN: 313130108
                              LH REAR LAMP
                              Valid for 10, 11
                              from £4.75
                              from £4.75
                              # 006
                              MPN: 313120405
                              BULBHOLDER.
                              from £0.85
                              from £0.85
                              # 007
                              MPN: 87720521
                              BULB 12V 5/21 W
                              from £3.00
                              from £3.00
                              # 008
                              MPN: 87541000
                              BULB12V10W
                              # 010
                              MPN: 30311111
                              NUMBER - PLATE LAMP
                              # 011
                              MPN: 313120137
                              RH REAR LAMP
                              Valid for 00, 02, 03, 40, 41, 44, 45
                              Supersession
                              Supersession
                              This part replaces part number 313120211 which we have in stock
                              # 011
                              MPN: 313130107
                              RH REAR LAMP
                              Valid for 10, 11
                              from £7.33
                              from £7.33
                              # 012
                              MPN: 87760005
                              BULB 12V 5 W
                              from £0.64
                              from £0.64
                              # 013
                              MPN: 313120118
                              GLASS CEILING BROWN COLOR
                              from £1.37
                              from £1.37
                              This part replaces part number 323156116
                              # 014
                              MPN: 313120407
                              GASKET FOR TAIL LIGHT
                              minimum order quantity = 4
                              from £1.55
                              from £1.55
                              # 016
                              MPN: 30331111
                              SWITCH (AFTER MODIF.)
                              # 016
                              MPN: 323356104
                              SWITCH (PRE MODIF.)
                              Supersession
                              Supersession
                              # 017
                              MPN: 318320499
                              PLUG (PRE MODIF.)
                              from £0.77
                              from £0.77
                              # 018
                              MPN: 323356304
                              SPACER (PRE MODIF.)
                              from £0.69
                              from £0.69
                              # 019
                              MPN: 333110219
                              LAMP (COLOR BLACK)
                              Valid for 10, 11, 44, 45
                              from £46.33
                              from £46.33
                              # 019
                              MPN: 333110220
                              LAMP (COLOR DARK BLUE)
                              Valid for 10, 11, 44, 45
                              Supersession
                              Supersession
                              # 019
                              MPN: 333110221
                              LAMP (COLOR SWAM WHITE)
                              Valid for 10, 11, 44, 45
                              Supersession
                              Supersession
                              # 019
                              MPN: 333132217
                              LAMP (COLOR SILVER BLUE)
                              Valid for 10, 11, 44, 45
                              Supersession
                              Supersession
                              # 019
                              MPN: 333132218
                              LAMP (COLOR Maserati RED)
                              Valid for 10, 11, 44, 45
                              Supersession
                              Supersession
                              # 020
                              MPN: 323132325
                              BULB
                              Valid for 10, 11, 44, 45
                              from £0.47
                              from £0.47
                              # 021
                              MPN: 53241312
                              GROMMET
                              Valid for 10, 11, 44, 45
                              from £1.09
                              from £1.09
                              # 022
                              MPN: 315220303
                              NUT
                              Valid for 10, 11, 44, 45
                              from £0.69
                              from £0.69
                              # 023
                              MPN: 323132102
                              KIT CABLE
                              Valid for 10, 11, 44, 45
                              from £5.54
                              from £5.54
                              # 024
                              MPN: 53471344
                              WASHER
                              Valid for 10, 11, 44, 45
                              # 025
                              MPN: 101206025
                              SCREW
                              Valid for 10, 11, 44, 45
                              # 026
                              MPN: 30311128
                              LAMP HOLDER
                              Valid for 10, 11
                              from £3.91
                              from £3.91
                              # 027
                              MPN: 122600050
                              NUT
                              Valid for 10, 11
                              # 028
                              MPN: 30311122
                              REAR SIDE MARKER (RED)
                              Valid for 10, 11
                              from £12.96
                              from £12.96
                              # 029
                              MPN: 87760003
                              BULB, 12V/3W
                              Valid for 10, 11
                              from £0.47
                              from £0.47
