![maserati karif 2.8 evaporation system (rh steering with lambda feeler) parts diagram](/img/CxIAAMTaOW7uRVkWw65L35UUQRmiUWiQ63ycS98vUkHlkcOitRzGlgED/maserati-karif-2.8-part-diagram-010.4.webp)

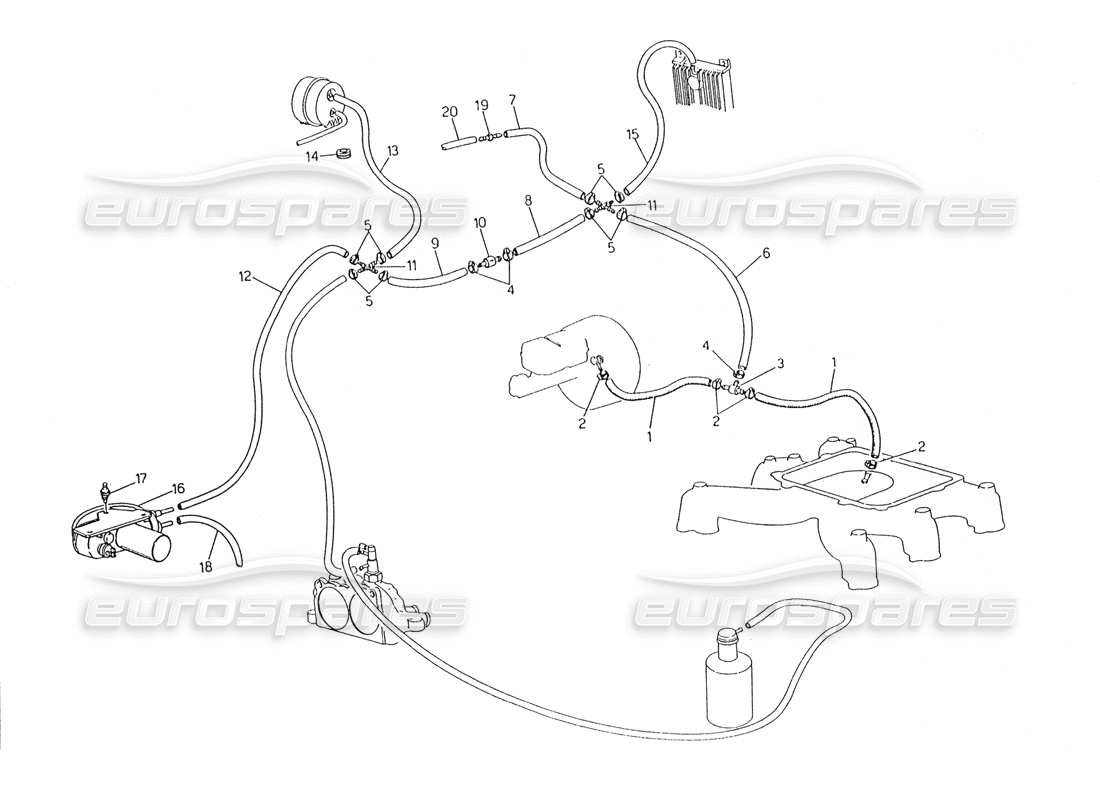

010.4 - Evaporation System (RH Steering With Lambda Feeler)
Maserati Karif 2.8 Evaporation System (R.H. Steering With Lambda Feeler) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 312048302
SLEEVE
Valid for Version 24
Supersession
Supersession
# 002
MPN: 312020404
CLAMP
Valid for Version 24
from £4.21
from £4.21
# 003
MPN: 312027337
THREE WAY-CONNECTOR
Valid for Version 24
# 004
MPN: 312050310
CLAMP
Valid for Version 24
from £1.09
from £1.09
# 005
MPN: 312020371
CLAMP
Valid for Version 24
# 006
MPN: 312020507
SLEEVE
Valid for Version 24
from £0.92
from £0.92
# 007
MPN: 313620304
SLEEVE
Valid for Version 24
Supersession
Supersession
# 008
MPN: 312053506
SLEEVE
Valid for Version 24
# 009
MPN: 312038315
SLEEVE
Valid for Version 24
# 010
MPN: 315520169
NOT RETURN VALVE
Valid for Version 24
from £7.03
from £7.03
# 011
MPN: 312030422
FOUR WAY-CONNECTOR
Valid for Version 24
from £0.99
from £0.99
# 012
MPN: 325520447
SLEEVE
Valid for Version 24
Supersession
Supersession
# 013
MPN: 312020479
SLEEVE
Valid for Version 24
# 014
MPN: 165010100
WIRE INLET
Valid for Version 24
from £0.99
from £0.99
# 015
-
SLEEVE N.S.
# 016
MPN: 325520172
VACUUM PUMP
Valid for Version 24
from £99.75
from £99.75
# 017
MPN: 325520345
RUBBER PAD
Valid for Version 24
from £1.09
from £1.09
# 018
MPN: 325520348
SLEEVE
Valid for Version 24
from £0.57
from £0.57
