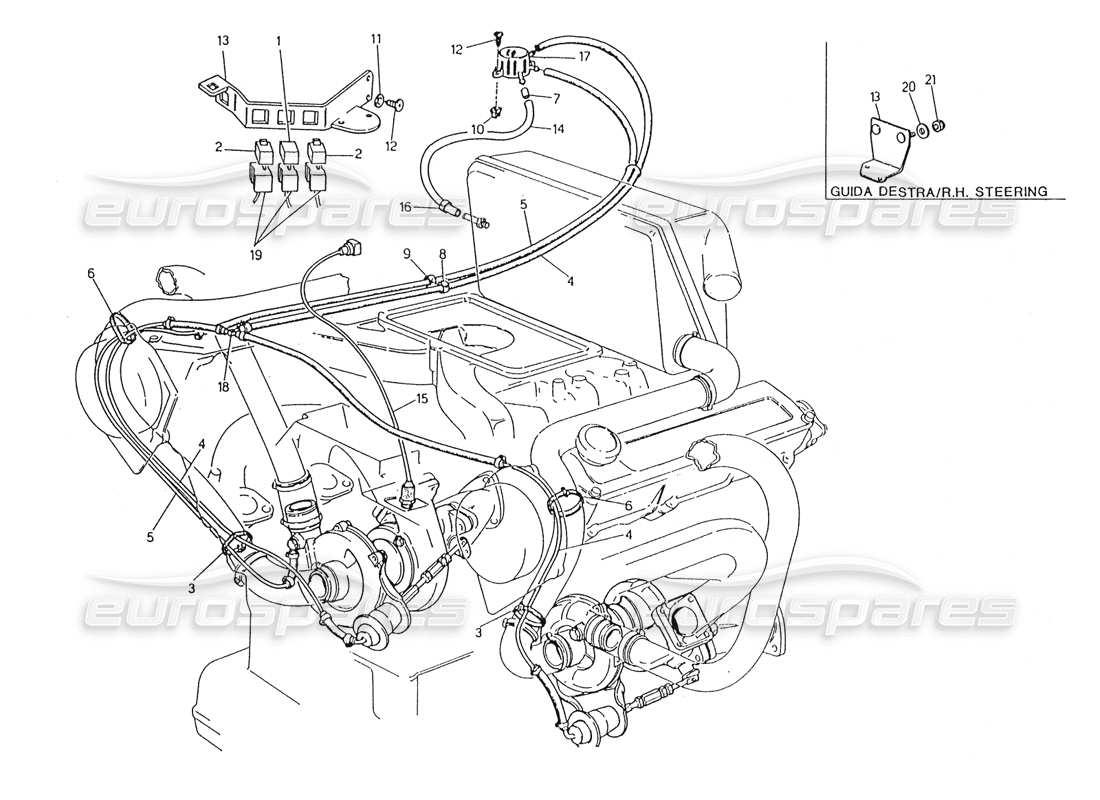

011.1 - Boost Control System

Maserati Karif 2.8 Boost Control System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 313320134
                                      IGNITION RELAY
                                      from £19.39
                                      from £19.39
                                      This part replaces part number 184101
                                      # 002
                                      MPN: 313353106
                                      RELAY
                                      from £9.08
                                      from £9.08
                                      This part replaces part number 313320106
                                      # 004
                                      MPN: 312053020
                                      PIPE TO CONN. LH AND RH TURBOB. WASTEGATE CC
                                      Supersession
                                      Supersession
                                      This part replaces part number 312020511
                                      # 005
                                      MPN: 312053025
                                      PIPE TO CONN. RH TURBOB. COMPLETE
                                      Supersession
                                      Supersession
                                      # 006
                                      MPN: 312020382
                                      CLAMP
                                      from £0.74
                                      from £0.74
                                      # 007
                                      MPN: 342000375
                                      RESTRICTION ON R OUTLET SOLENOID
                                      # 008
                                      MPN: 312020397
                                      IDENTIFICATION CLAMP (W)
                                      from £0.74
                                      from £0.74
                                      # 009
                                      MPN: 312020396
                                      IDENTIFICATION CLAMP (C)
                                      from £0.74
                                      from £0.74
                                      # 010
                                      MPN: 319220324
                                      SCREW
                                      from £0.68
                                      from £0.68
                                      This part replaces part number 82457087
                                      # 011
                                      MPN: 169020005
                                      WASHER
                                      from £1.17
                                      from £1.17
                                      # 012
                                      MPN: 119148130
                                      SCREW
                                      from £0.91
                                      from £0.91
                                      # 013
                                      MPN: 313347168
                                      SUPPORT ELEMENT FOR RH DRIVE
                                      Valid for Version 20 and 24
                                      # 013
                                      MPN: 313720102
                                      SUPPORT ELEMENT
                                      Valid for Version 00 and 02
                                      from £7.31
                                      from £7.31
                                      # 014
                                      MPN: 312020508
                                      SLEEVE TO CONN. R SOLENOID VALVE TO LOWER COVE
                                      Supersession
                                      Supersession
                                      # 015
                                      MPN: 470089701
                                      ACCELERATING SENSOR
                                      from £126.51
                                      from £126.51
                                      # 016
                                      MPN: 312020395
                                      IDENTIFICATION CLAMP (R)
                                      from £0.83
                                      from £0.83
                                      # 017
                                      MPN: 452089801
                                      SOLENOID VALVE
                                      from £122.90
                                      from £122.90
                                      # 018
                                      MPN: 312020399
                                      Y-CONNECTOR
                                      from £1.09
                                      from £1.09
                                      # 019
                                      MPN: N.F. sciolto
                                      RELAY SUPPORT
                                      # 020
                                      MPN: 135900064
                                      WASHER
                                      Valid for Version 20 and 24
                                      from £0.47
                                      from £0.47
                                      # 021
                                      MPN: 122600060
                                      NUT
                                      Valid for Version 20 and 24
