011.2 - Water Cooled Turboblowers

Maserati Karif 2.8 Water Cooled Turboblowers Parts Diagram

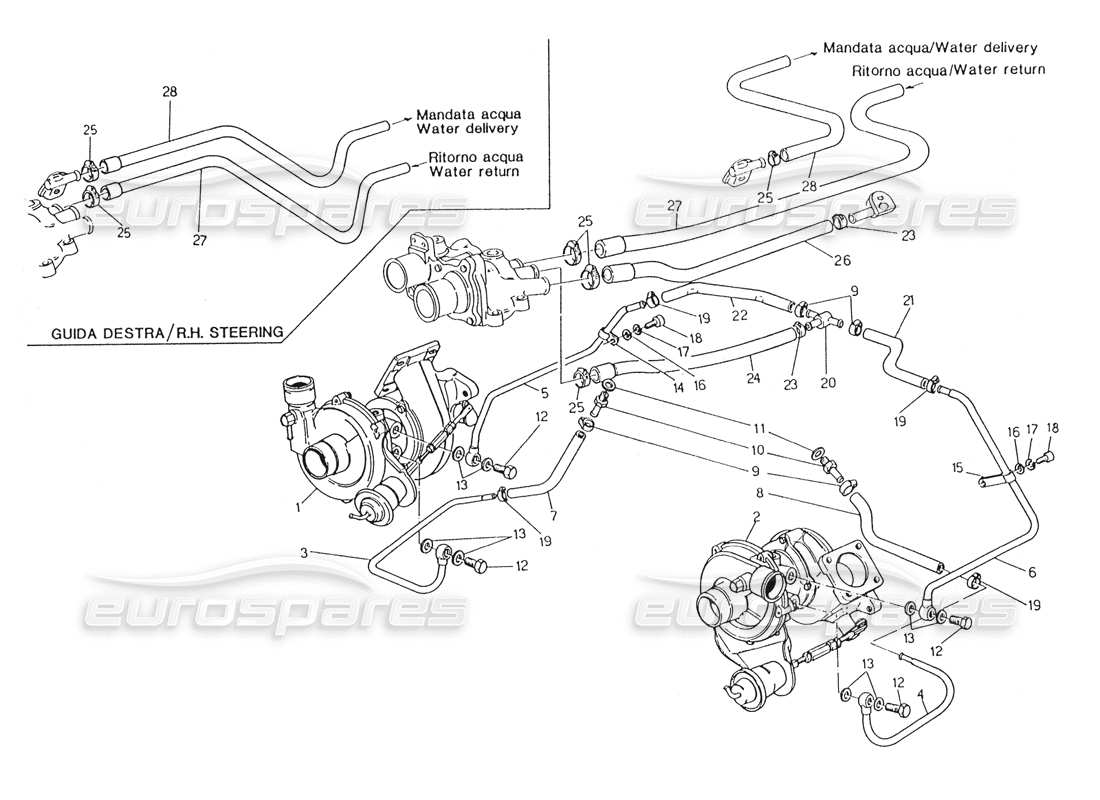

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 342000004
                                                    RH WATERCOOLED TURBOBLOWER
                                                    Supersession
                                                    Supersession
                                                    # 002
                                                    MPN: 467360100
                                                    LH WATERCOOLED TURBOBLOWER
                                                    from £420.00
                                                    from £420.00
                                                    This part replaces part number 342000003 - and 1 more. Click to view details
                                                    # 003
                                                    MPN: 312020138
                                                    RH WATER DELIVERY PIPE
                                                    Supersession
                                                    Supersession
                                                    # 004
                                                    MPN: 312020137
                                                    LH WATER DELIVERY PIPE
                                                    # 005
                                                    MPN: 342000124
                                                    RH WATER RETURN
                                                    # 006
                                                    MPN: 342000122
                                                    LH WATER RETURN
                                                    # 007
                                                    MPN: 452369601
                                                    RH WATER DELIVERY SLEEVE
                                                    from £35.64
                                                    from £35.64
                                                    # 008
                                                    MPN: 452369701
                                                    LH WATER DELIVERY SLEEVE
                                                    from £13.04
                                                    from £13.04
                                                    # 009
                                                    MPN: 312020404
                                                    CLAMP
                                                    from £4.17
                                                    from £4.17
                                                    # 011
                                                    MPN: 319220424
                                                    GASKET
                                                    from £1.70
                                                    from £1.70
                                                    # 013
                                                    MPN: 312020430
                                                    GASKET
                                                    (minimum order quantity = 10)
                                                    from £0.74
                                                    from £0.74
                                                    # 014
                                                    MPN: 312020433
                                                    RH CLAMP
                                                    from £1.74
                                                    from £1.74
                                                    # 015
                                                    MPN: 312020432
                                                    LH CLAMP
                                                    from £1.93
                                                    from £1.93
                                                    # 016
                                                    MPN: 312220411
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 018
                                                    MPN: 108006012
                                                    SCREW
                                                    from £0.54
                                                    from £0.54
                                                    # 020
                                                    MPN: 312020407
                                                    Y-CONNECTOR
                                                    from £65.87
                                                    from £65.87
                                                    # 021
                                                    MPN: 470369200
                                                    LH WATER RETURN SLEEVE
                                                    from £19.59
                                                    from £19.59
                                                    This part replaces part number 312020423 - and 1 more. Click to view details
                                                    # 022
                                                    MPN: 312020422
                                                    RH WATER RETURN SLEEVE
                                                    # 023
                                                    MPN: 312020404
                                                    CLAMP
                                                    from £4.17
                                                    from £4.17
                                                    # 024
                                                    MPN: 312020462
                                                    WATER RETURN SLEEVE
                                                    from £13.96
                                                    from £13.96
                                                    # 025
                                                    MPN: 314022365
                                                    CLAMP
                                                    # 026
                                                    MPN: 315520352
                                                    HEATING SYSTEM RETURN SLEEVE
                                                    from £33.45
                                                    from £33.45
                                                    # 027
                                                    MPN: 312020517
                                                    HEATING SYSTEM WATER RETURN
                                                    Valid for Version 00 and 02
                                                    Supersession
                                                    Supersession
                                                    # 027
                                                    MPN: 345524359
                                                    HEATING SYSTEM WATER RETURN
                                                    Valid for Version 20 and 24
                                                    # 028
                                                    MPN: 311848301
                                                    HEATING SYSTEM DELIVERY SLEEVE
                                                    Valid for Version 20 and 24
                                                    # 028
                                                    MPN: 312020464
                                                    HEATING SYSTEM DELIVERY SLEEVE
                                                    Valid for Version 00 and 02
                                                    Supersession
                                                    Supersession
