maserati karif 2.8 condenser (after modif.) parts diagram

018.5 - Condenser (After Modif.)

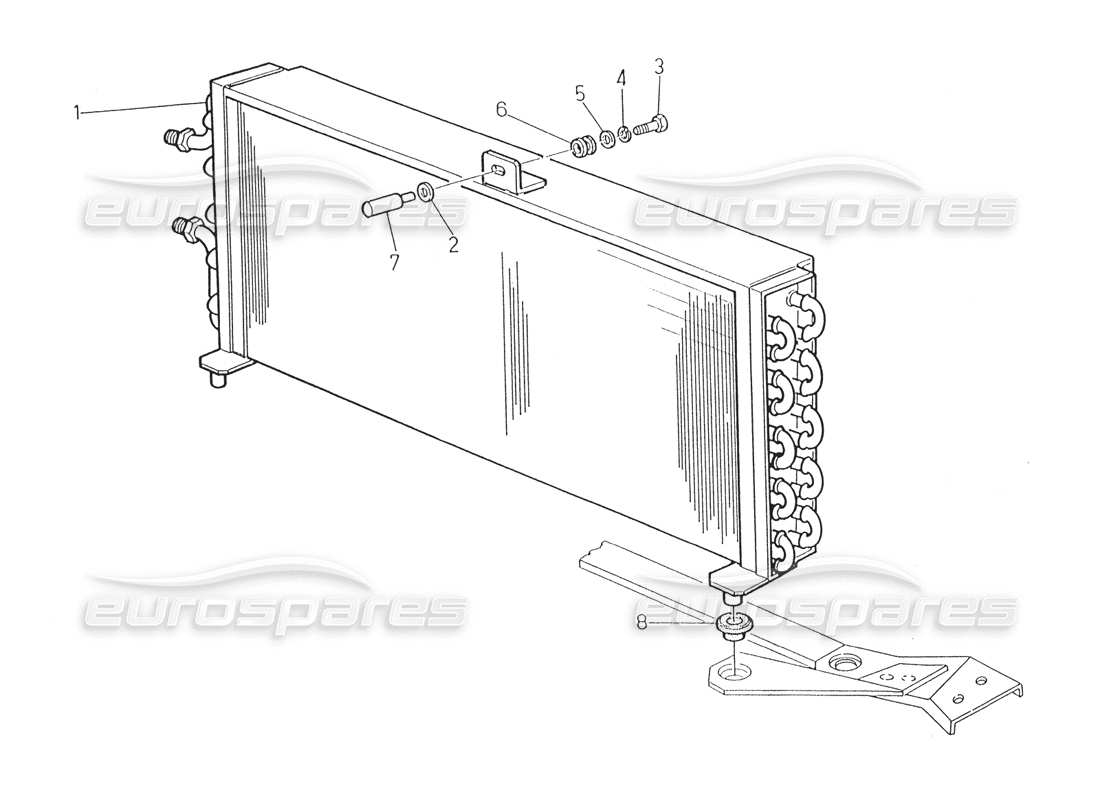

Maserati Karif 2.8 Condenser (After Modif.) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 315553177
                  OVERSIZE CONDENSER AFTER MODIF.
                  Supersession
                  Supersession
                  This part replaces part number 315537177
                  # 001
                  MPN: 325556177
                  Upper condenser pre modif.
                  # 002
                  MPN: 14496601
                  WASHER
                  Supersession
                  Supersession
                  # 005
                  MPN: 135900064
                  WASHER
                  from £0.47
                  from £0.47
                  # 006
                  MPN: 315520375
                  RING
                  Supersession
                  Supersession
                  # 007
                  MPN: 315553376
                  SPACER
                  from £4.17
                  from £4.17
                  # 008
                  MPN: 189453
                  BUSH
                  from £1.08
                  from £1.08
                  This part replaces part number 374030312
