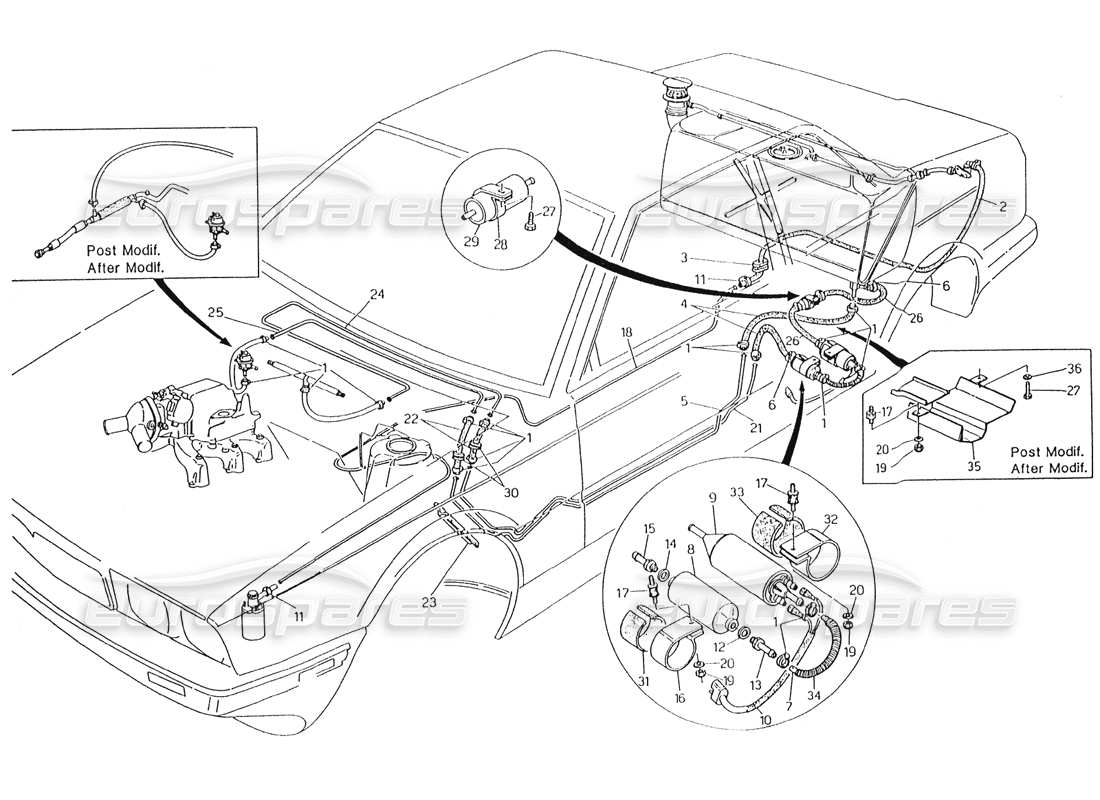

022 - Fuel Pipes
Maserati Karif 2.8 Fuel Pipes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 559221343
CLAMP
Supersession
Supersession
# 002
MPN: 319220391
VENT PIPE
Supersession
Supersession
# 003
MPN: 319220396
GROMMET
from £1.56
from £1.56
# 004
MPN: 319220357
SLEEVE TO CONN. RETURN PIPE TO FUEL TANK
Valid for Version 00 and 20
from £7.32
from £7.32
# 004
MPN: 319237357
SLEEVE TO CONN. FUEL FILTER TO DELIVERY PIPE
Valid for Version 02 and 24
# 005
MPN: 339232350
STILE RETURN FUEL PIPE
from £6.32
from £6.32
# 006
MPN: 319220113
CLAMP
from £1.09
from £1.09
# 007
MPN: 319230506
SLEEVE TO CONN, PUMP TO FILTER
Valid for Version 00 and 20
# 007
MPN: 319237506
SLEEVE
Valid for Version 02 and 24
from £7.24
from £7.24
# 008
MPN: 319220141
FUEL FILTER
Supersession
Supersession
# 009
MPN: 313720126
fuel pump
121727
from £414.75
from £414.75
# 010
MPN: 313720112
FUEL PUMP WIRING HARNESS
from £8.64
from £8.64
# 011
MPN: 30921108
CLAMP
# 012
MPN: 319220424
GASKET
from £1.05
from £1.05
# 013
MPN: 470072900
CONNECTOR
from £2.91
from £2.91
# 014
MPN: 319220424
GASKET
from £1.05
from £1.05
# 015
MPN: 470072800
OUTLET CONNECTOR
from £0.64
from £0.64
# 016
MPN: 339220409
CLAMP TO FIX. FILTER
from £5.14
from £5.14
# 017
MPN: 319220139
SPRING RETAINER
from £2.99
from £2.99
# 018
MPN: 339237350
VENT PIPE
Valid for Version 02 and 24
# 019
MPN: 128350060
NUT
# 020
MPN: 169020406
WASHER
from £0.78
from £0.78
# 021
MPN: 339232346
DELIVERY FUEL PIPE
from £6.18
from £6.18
# 022
MPN: 319237404
SLEEVE
Valid for Version 02 and 24
# 022
MPN: 329210404
SLEEVE
Valid for Version 00 and 20
from £1.14
from £1.14
# 023
MPN: 329232414
GUARD
# 024
MPN: 329220131
COOLED AND DELIVERY FUEL
from £5.54
from £5.54
# 026
MPN: 319220344
SLEEVE TO CONN TANK TO PUMP
from £5.61
from £5.61
# 027
MPN: 314320345
SCREW
from £42.00
from £42.00
# 028
MPN: 319220369
CLAMP
from £2.34
from £2.34
# 029
MPN: 319220125
FUEL FILTER
Supersession
Supersession
This part replaces part number 319220126
# 030
MPN: 349200428
GROMMET
# 031
MPN: 319220429
GASKET
# 032
MPN: 339220408
CLAMP
# 033
MPN: 319220429
Gasket, clamp
# 034
MPN: 319220521
SLEEVE
Valid for Version 00 and 20
from £2.55
from £2.55
# 034
MPN: 319237522
SLEEVE
Valid for Version 02 and 24
from £2.06
from £2.06
# 035
MPN: 339200412
GUARD SUPPORT AFTER MOD.
from £24.00
from £24.00
# 036
MPN: 136110066
WASHER AFTER MOD.
