![maserati karif 2.8 transmission box parts diagram](/img/CxEAAMTaOW5_H8myWJZL35UUQRmiUWiQ6XycSz8uckXjUcBTsbFlAAM%3D/maserati-karif-2.8-part-diagram-025.webp)

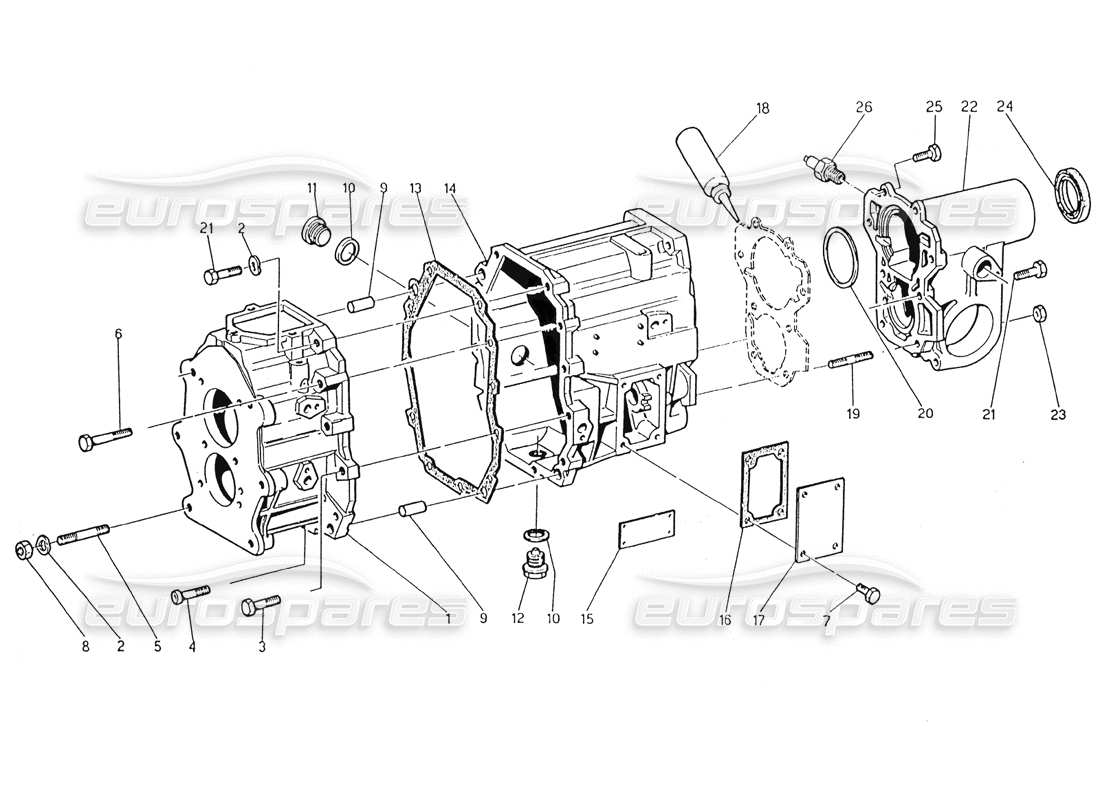

025 - Transmission Box
Maserati Karif 2.8 Transmission Box Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 314820006
TRANSMISSION BOX ASSY 0,79 5TH GEAR
Valid for Versions 00 and 02 and 20 and 24
from £1,526.71
from £1,526.71
# 000
MPN: 314825009
TRANSMISSION BOX ASSY 0,87 5TH GEAR
Valid for Version 02 and 20 and 24
from £1,101.31
from £1,101.31
# 001
MPN: 314820310
TRANS. HOUSING FRONT SIDE
from £179.64
from £179.64
# 002
MPN: 138410100
SPRING WASHER
# 003
MPN: 314820361
SCREW
# 004
MPN: 314820365
SCREW
# 005
MPN: 314820318
STUD
# 006
MPN: 314820360
SCREW
from £13.25
from £13.25
# 007
MPN: 314820364
SCREW
from £1.87
from £1.87
# 008
MPN: 314820300
NUT
from £0.78
from £0.78
# 009
MPN: 314820317
CENTERING PIN
# 010
MPN: 314820320
SEAL RING
from £1.05
from £1.05
# 011
MPN: 314820363
OIL FILTER PLUG
from £2.88
from £2.88
# 012
MPN: 314820362
OIL DRAIN PLUG
from £9.69
from £9.69
# 013
MPN: 314820323
GASKET
from £9.28
from £9.28
# 014
MPN: 314820324
TRANS. HOUSING REAR SIDE
from £400.19
from £400.19
# 015
MPN: 314820329
MARKING PLATE
Valid for Versions 00 and 02 and 20 and 24
# 015
MPN: 314825328
MARKING PLATE
Valid for Version 02 and 20 and 24
# 016
MPN: 314820325
GASKET
from £3.27
from £3.27
# 017
MPN: 314820326
COVER
from £2.31
from £2.31
# 018
MPN: 315020385
SILICON
from £19.17
from £19.17
# 019
MPN: 314820369
STUD
from £1.56
from £1.56
# 020
MPN: 314820341
THRUST RING (1)
from £3.59
from £3.59
# 020
MPN: 314820342
THRUST RING (0,9)
from £3.59
from £3.59
# 020
MPN: 314820343
THRUST RING (0,8)
from £3.59
from £3.59
# 020
MPN: 314820344
THRUST RING (0,7)
from £3.59
from £3.59
# 020
MPN: 314820345
THRUST RING (0,6)
from £3.59
from £3.59
# 020
MPN: 314820346
THRUST RING (0,5)
from £3.59
from £3.59
# 020
MPN: 314820347
THRUST RING (0,4)
from £3.59
from £3.59
# 020
MPN: 314820348
THRUST RING (1,1)
from £3.59
from £3.59
# 020
MPN: 314820349
THRUST RING (1,2)
from £1.64
from £1.64
# 020
MPN: 314820350
THRUST RING (1,3)
from £1.64
from £1.64
# 020
MPN: 314820351
THRUST RING (1,4)
from £1.64
from £1.64
# 020
MPN: 314820352
THRUST RING (1,5)
from £3.59
from £3.59
# 020
MPN: 314820353
THRUST RING (1,6)
from £1.64
from £1.64
# 020
MPN: 314820354
THRUST RING (1,7)
from £3.59
from £3.59
# 020
MPN: 314820355
THRUST RING (1,8)
from £3.59
from £3.59
# 020
MPN: 314820356
THRUST RING (1,9)
from £1.64
from £1.64
# 021
MPN: 314820368
SCREW
# 022
MPN: 314820334
REAR COVER
from £138.43
from £138.43
# 023
MPN: 314820370
NUT
# 024
MPN: 314820336
SEAL RING
from £23.14
from £23.14
# 025
MPN: 314820367
SCREW
from £6.09
from £6.09
# 026
MPN: 313620106
GENERATOR
from £58.22
from £58.22
