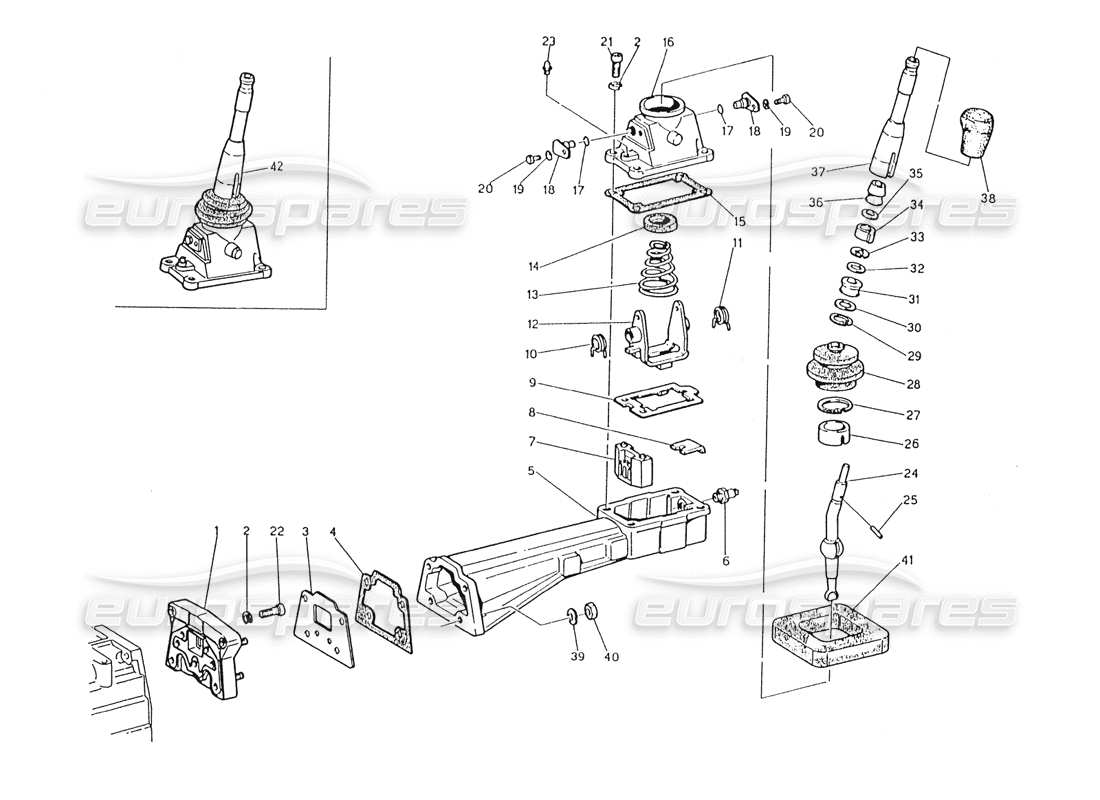

026 - Transmission - Outside Controls

Maserati Karif 2.8 Transmission - Outside Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 315220104
                                                                                      DAMPER
                                                                                      from £179.17
                                                                                      from £179.17
                                                                                      # 002
                                                                                      MPN: 315220376
                                                                                      SPRING WASHER
                                                                                      # 003
                                                                                      MPN: 315220317
                                                                                      SPACER
                                                                                      from £2.63
                                                                                      from £2.63
                                                                                      # 004
                                                                                      MPN: 315220318
                                                                                      GASKET
                                                                                      from £2.31
                                                                                      from £2.31
                                                                                      # 005
                                                                                      MPN: 315220316
                                                                                      CANTILEVER
                                                                                      from £95.95
                                                                                      from £95.95
                                                                                      # 006
                                                                                      MPN: 313320131
                                                                                      SWITCH
                                                                                      from £83.85
                                                                                      from £83.85
                                                                                      # 007
                                                                                      MPN: 315220319
                                                                                      GUIDE
                                                                                      from £5.93
                                                                                      from £5.93
                                                                                      # 008
                                                                                      MPN: 315220320
                                                                                      PLATE
                                                                                      from £2.31
                                                                                      from £2.31
                                                                                      # 009
                                                                                      MPN: 315220322
                                                                                      PLATE
                                                                                      from £18.95
                                                                                      from £18.95
                                                                                      # 010
                                                                                      MPN: 315220324
                                                                                      SPRING
                                                                                      from £5.03
                                                                                      from £5.03
                                                                                      # 011
                                                                                      MPN: 315220323
                                                                                      SPRING
                                                                                      from £4.26
                                                                                      from £4.26
                                                                                      # 012
                                                                                      MPN: 315220375
                                                                                      SUPPORT
                                                                                      # 013
                                                                                      MPN: 315220326
                                                                                      SPRING
                                                                                      from £0.98
                                                                                      from £0.98
                                                                                      # 014
                                                                                      MPN: 315220327
                                                                                      RING
                                                                                      from £4.16
                                                                                      from £4.16
                                                                                      # 015
                                                                                      MPN: 315220328
                                                                                      GASKET
                                                                                      from £0.69
                                                                                      from £0.69
                                                                                      # 016
                                                                                      MPN: 315220016
                                                                                      CONTROL TURRET
                                                                                      from £165.85
                                                                                      from £165.85
                                                                                      # 017
                                                                                      MPN: 315220332
                                                                                      GASKET
                                                                                      from £0.69
                                                                                      from £0.69
                                                                                      # 018
                                                                                      MPN: 315220335
                                                                                      GUIDE PIN
                                                                                      from £35.35
                                                                                      from £35.35
                                                                                      # 019
                                                                                      MPN: 315220330
                                                                                      SPRING WASHER
                                                                                      from £1.31
                                                                                      from £1.31
                                                                                      # 020
                                                                                      MPN: 315220374
                                                                                      SCREW
                                                                                      from £2.47
                                                                                      from £2.47
                                                                                      # 021
                                                                                      MPN: 315220377
                                                                                      SCREW
                                                                                      from £2.47
                                                                                      from £2.47
                                                                                      # 022
                                                                                      MPN: 314820367
                                                                                      SCREW
                                                                                      from £6.01
                                                                                      from £6.01
                                                                                      # 023
                                                                                      MPN: 315220333
                                                                                      BREATHER
                                                                                      from £1.92
                                                                                      from £1.92
                                                                                      # 024
                                                                                      MPN: 315220338
                                                                                      CONTROL LEVER
                                                                                      from £184.11
                                                                                      from £184.11
                                                                                      # 025
                                                                                      MPN: 315220339
                                                                                      PIN
                                                                                      from £0.69
                                                                                      from £0.69
                                                                                      # 026
                                                                                      MPN: 315220343
                                                                                      BUSH
                                                                                      from £2.85
                                                                                      from £2.85
                                                                                      # 027
                                                                                      MPN: 315220344
                                                                                      RING
                                                                                      from £1.55
                                                                                      from £1.55
                                                                                      # 028
                                                                                      MPN: 315220345
                                                                                      RUBBER CASING
                                                                                      from £24.26
                                                                                      from £24.26
                                                                                      # 029
                                                                                      MPN: 315220383
                                                                                      RETAINING WASHER
                                                                                      from £1.63
                                                                                      from £1.63
                                                                                      # 030
                                                                                      MPN: 315220382
                                                                                      SPACER
                                                                                      from £4.08
                                                                                      from £4.08
                                                                                      # 031
                                                                                      MPN: 315220348
                                                                                      RUBBER
                                                                                      from £7.16
                                                                                      from £7.16
                                                                                      # 032
                                                                                      MPN: 315220349
                                                                                      WASHER
                                                                                      from £10.01
                                                                                      from £10.01
                                                                                      # 033
                                                                                      MPN: 315220378
                                                                                      RETAINING RING
                                                                                      from £0.69
                                                                                      from £0.69
                                                                                      # 034
                                                                                      MPN: 315220351
                                                                                      COUPLING
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      # 035
                                                                                      MPN: 315220380
                                                                                      SPACER
                                                                                      from £5.69
                                                                                      from £5.69
                                                                                      # 036
                                                                                      MPN: 315220353
                                                                                      RUBBER
                                                                                      from £17.64
                                                                                      from £17.64
                                                                                      # 037
                                                                                      MPN: 315220354
                                                                                      LEVER EXTENSIONE
                                                                                      from £60.09
                                                                                      from £60.09
                                                                                      # 038
                                                                                      MPN: 315222102
                                                                                      KNOB
                                                                                      from £57.93
                                                                                      from £57.93
                                                                                      # 039
                                                                                      MPN: 314820371
                                                                                      SPRING WASHER
                                                                                      # 040
                                                                                      MPN: 314820370
                                                                                      NUT
                                                                                      # 041
                                                                                      MPN: 315220302
                                                                                      GASKET BETWEEN TRANS. AND BODY SHELL
                                                                                      from £1.92
                                                                                      from £1.92
                                                                                      # 042
                                                                                      MPN: 315220003
                                                                                      GEARBOX LEVER CPL.
                                                                                      from £829.15
                                                                                      from £829.15
