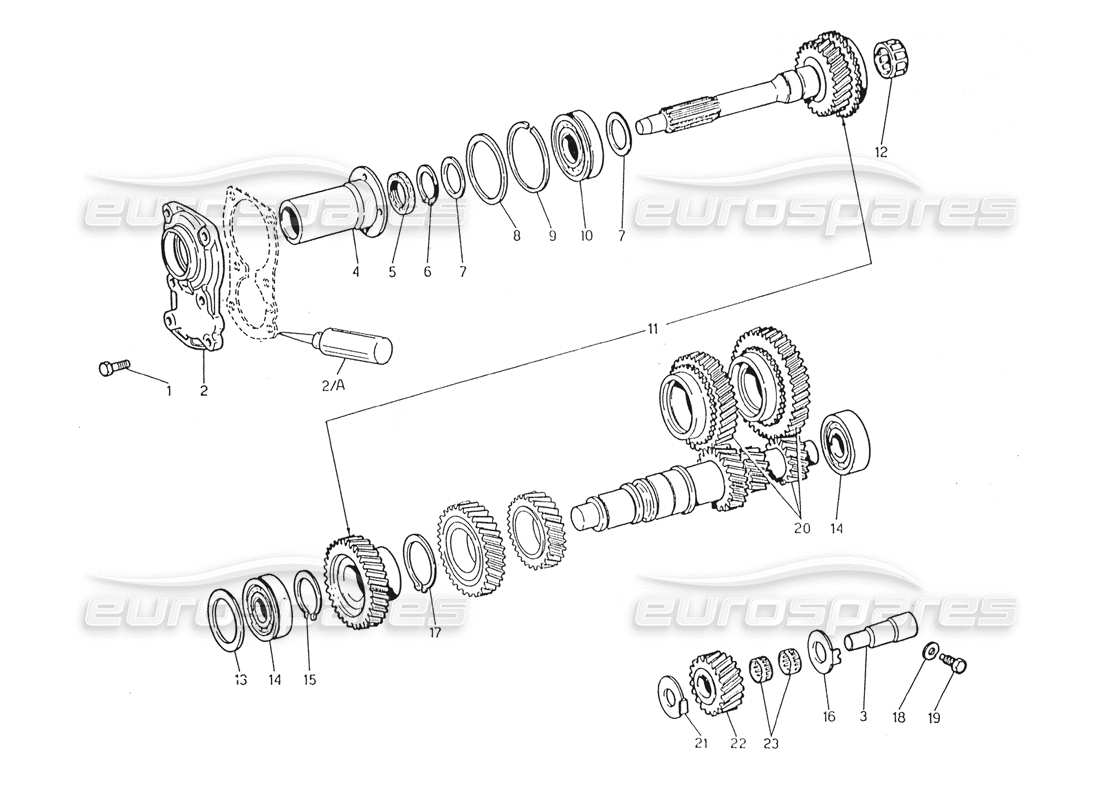

029 - Transmission - Layshaft and Directs-Drive
Maserati Karif 2.8 Transmission - Layshaft and Directs-Drive Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 315020384
SCREW
from £1.87
from £1.87
# 002
MPN: 315020381
CENTERING FLANGE
from £43.33
from £43.33
# 002
MPN: 315020385
SILICONE HOSE
2/A on Picture
from £19.17
from £19.17
# 003
MPN: 315020465
PIN
from £3.27
from £3.27
# 004
MPN: 315020383
GUIDE
from £12.51
from £12.51
# 005
MPN: 315020111
SEAL RING
from £23.14
from £23.14
# 006
MPN: 315020303
RETAINING RING
from £0.70
from £0.70
# 007
MPN: 315020388
THRUST RING (1,5)
from £1.32
from £1.32
# 007
MPN: 315020389
THRUST RING (1,4)
from £2.58
from £2.58
# 007
MPN: 315020390
THRUST RING (1,3)
# 007
MPN: 315020391
THRUST RING (1,2)
from £2.58
from £2.58
# 007
MPN: 315020392
THRUST RING (1,1)
from £2.58
from £2.58
# 007
MPN: 315020393
THRUST RING (1,0)
from £2.58
from £2.58
# 007
MPN: 315020394
THRUST RING (0,9)
from £1.32
from £1.32
# 007
MPN: 315020395
THRUST RING (0,8)
from £2.58
from £2.58
# 007
MPN: 315020396
THRUST RING (0,7)
from £2.58
from £2.58
# 007
MPN: 315020397
THRUST RING (0,6)
from £2.58
from £2.58
# 007
MPN: 315020398
THRUST RING (0,5)
from £1.32
from £1.32
# 008
MPN: 314820341
THRUST RING (1,0)
from £3.59
from £3.59
# 008
MPN: 314820342
THRUST RING (0,9)
from £3.59
from £3.59
# 008
MPN: 314820343
THRUST RING (0,8)
from £3.59
from £3.59
# 008
MPN: 314820344
THRUST RING (0,7)
from £3.59
from £3.59
# 008
MPN: 314820345
THRUST RING (0,6)
from £3.59
from £3.59
# 008
MPN: 314820346
THRUST RING (0,5)
from £3.59
from £3.59
# 008
MPN: 314820347
THRUST RING (0,4)
from £3.59
from £3.59
# 008
MPN: 315020409
THRUST RING (0,45)
from £11.38
from £11.38
# 008
MPN: 315020410
THRUST RING (0,55)
from £11.38
from £11.38
# 008
MPN: 315020411
THRUST RING (0,65)
from £11.38
from £11.38
# 008
MPN: 315020412
THRUST RING (0,75)
from £5.14
from £5.14
# 008
MPN: 315020413
THRUST RING (0,85)
from £11.38
from £11.38
# 008
MPN: 315020414
THRUST RING (0,95)
from £5.14
from £5.14
# 009
MPN: 315020341
SPRING
from £1.56
from £1.56
# 010
MPN: 315020112
BEARING
from £121.50
from £121.50
# 011
MPN: 315020008
DIRECT-DRIVE SHALL, SET
from £268.06
from £268.06
# 012
MPN: 315020113
BEARING
from £2.35
from £2.35
# 013
MPN: 315020421
THRUST RING (1,5)
from £5.14
from £5.14
# 013
MPN: 315020422
THRUST RING (1,4)
from £2.18
from £2.18
# 013
MPN: 315020423
THRUST RING (1,3)
from £5.14
from £5.14
# 013
MPN: 315020424
THRUST RING (1,25)
from £5.14
from £5.14
# 013
MPN: 315020425
THRUST RING (1,20)
from £5.14
from £5.14
# 013
MPN: 315020426
THRUST RING (1,15)
from £5.14
from £5.14
# 013
MPN: 315020427
THRUST RING (1,10)
from £5.14
from £5.14
# 013
MPN: 315020428
THRUST RING (1,05)
from £2.18
from £2.18
# 013
MPN: 315020429
THRUST RING (1,0)
from £5.14
from £5.14
# 013
MPN: 315020430
THRUST RING (0,95)
from £5.14
from £5.14
# 013
MPN: 315020431
THRUST RING (0,9)
from £5.14
from £5.14
# 013
MPN: 315020432
THRUST RING (0,8)
from £5.14
from £5.14
# 013
MPN: 315020433
THRUST RING (0,7)
from £2.18
from £2.18
# 013
MPN: 315020434
THRUST RING (0,6)
from £5.14
from £5.14
# 013
MPN: 315020435
THRUST RING (0,5)
from £2.18
from £2.18
# 013
MPN: 315020436
THRUST RING (0,4)
from £5.14
from £5.14
# 013
MPN: 315020437
THRUST RING (0,75)
from £2.18
from £2.18
# 013
MPN: 315020438
THRUST RING (0,85)
from £5.14
from £5.14
# 013
MPN: 315020439
THRUST RING (1,55)
from £5.14
from £5.14
# 013
MPN: 315020440
THRUST RING (1,60)
from £5.14
from £5.14
# 013
MPN: 315020441
THRUST RING (1,65)
from £5.14
from £5.14
# 013
MPN: 315020442
THRUST RING (1,70)
from £10.59
from £10.59
# 013
MPN: 315020443
THRUST RING (1,75)
from £5.14
from £5.14
# 013
MPN: 315020444
THRUST RING (1,85)
from £2.18
from £2.18
# 013
MPN: 315020445
THRUST RING (1,95)
from £5.14
from £5.14
# 013
MPN: 315020446
THRUST RING (2,05)
from £5.14
from £5.14
# 013
MPN: 315020447
THRUST RING (2,15)
from £5.14
from £5.14
# 014
MPN: 315020107
BEARING
from £20.90
from £20.90
# 015
MPN: 315020453
RETAINING RING
from £0.70
from £0.70
# 016
MPN: 315020454
LOCKING PLATE
from £7.02
from £7.02
# 017
MPN: 315020457
RETAINING RING
from £1.95
from £1.95
# 018
MPN: 315020458
SPRING WASHER
from £0.78
from £0.78
# 019
MPN: 315020459
SCREW
from £2.50
from £2.50
# 020
MPN: 315020010
LAYSHAFT WITH 1ST AND 2ND GEAR
from £603.20
from £603.20
# 021
MPN: 315020463
LOCKING PLATE
from £6.09
from £6.09
# 022
MPN: 315020464
REVERSE GEAR
from £38.77
from £38.77
# 023
MPN: 315020103
ROLLER BEARING
from £5.47
from £5.47
