maserati karif 2.8 differential parts diagram

031 - DIFFERENTIAL

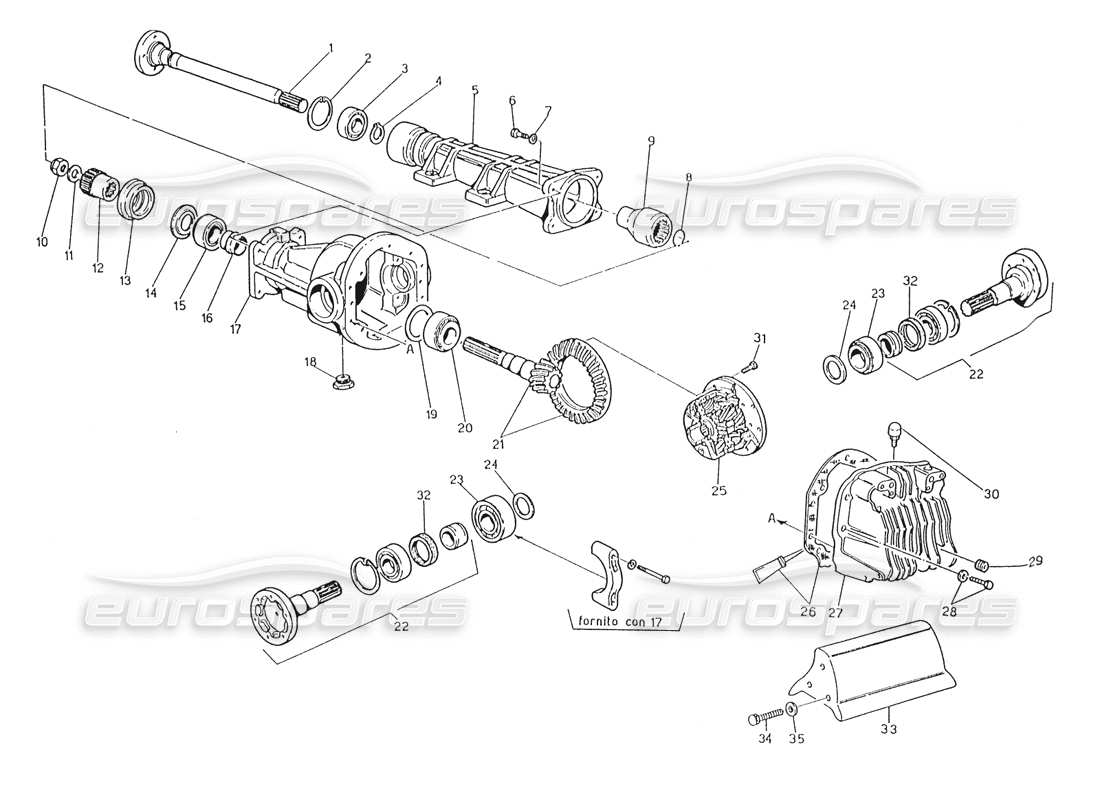

Maserati Karif 2.8 Differential Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 000
                                                                      MPN: 376200001
                                                                      DIFFERENTIAL ASSY
                                                                      from £1,608.37
                                                                      from £1,608.37
                                                                      This part replaces part number 396250004
                                                                      # 001
                                                                      MPN: 316220316
                                                                      SHAFT EXTENSION
                                                                      from £100.96
                                                                      from £100.96
                                                                      # 003
                                                                      MPN: 178402030
                                                                      SHAFT EXTENSION BEARING
                                                                      from £15.71
                                                                      from £15.71
                                                                      # 004
                                                                      MPN: 316220314
                                                                      CIRCLIP
                                                                      from £0.69
                                                                      from £0.69
                                                                      # 005
                                                                      MPN: 316250305
                                                                      SHAFT EXTENSION SUPPORT
                                                                      Supersession
                                                                      Supersession
                                                                      # 006
                                                                      MPN: 101212035
                                                                      SCREW
                                                                      # 007
                                                                      MPN: 138420120
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 009
                                                                      MPN: 316220319
                                                                      COUPLING
                                                                      from £96.68
                                                                      from £96.68
                                                                      This part replaces part number 316220317
                                                                      # 010
                                                                      MPN: 316220340
                                                                      SELF -LOCKING NUT
                                                                      from £25.27
                                                                      from £25.27
                                                                      # 011
                                                                      MPN: 316220341
                                                                      WASHER
                                                                      from £1.31
                                                                      from £1.31
                                                                      # 012
                                                                      MPN: 316220347
                                                                      UNION
                                                                      from £118.37
                                                                      from £118.37
                                                                      This part replaces part number 316220342
                                                                      # 013
                                                                      MPN: 316220121
                                                                      OIL SEAL
                                                                      from £53.64
                                                                      from £53.64
                                                                      # 014
                                                                      MPN: 316220351
                                                                      SPACER WASHER
                                                                      from £23.78
                                                                      from £23.78
                                                                      # 015
                                                                      MPN: 316220122
                                                                      FRONT BEARING
                                                                      from £86.10
                                                                      from £86.10
                                                                      # 016
                                                                      MPN: 316220345
                                                                      SPACER
                                                                      from £2.47
                                                                      from £2.47
                                                                      # 017
                                                                      -
                                                                      DIFFERENTIAL GEAR ASSY (NOT SUPPLIED)

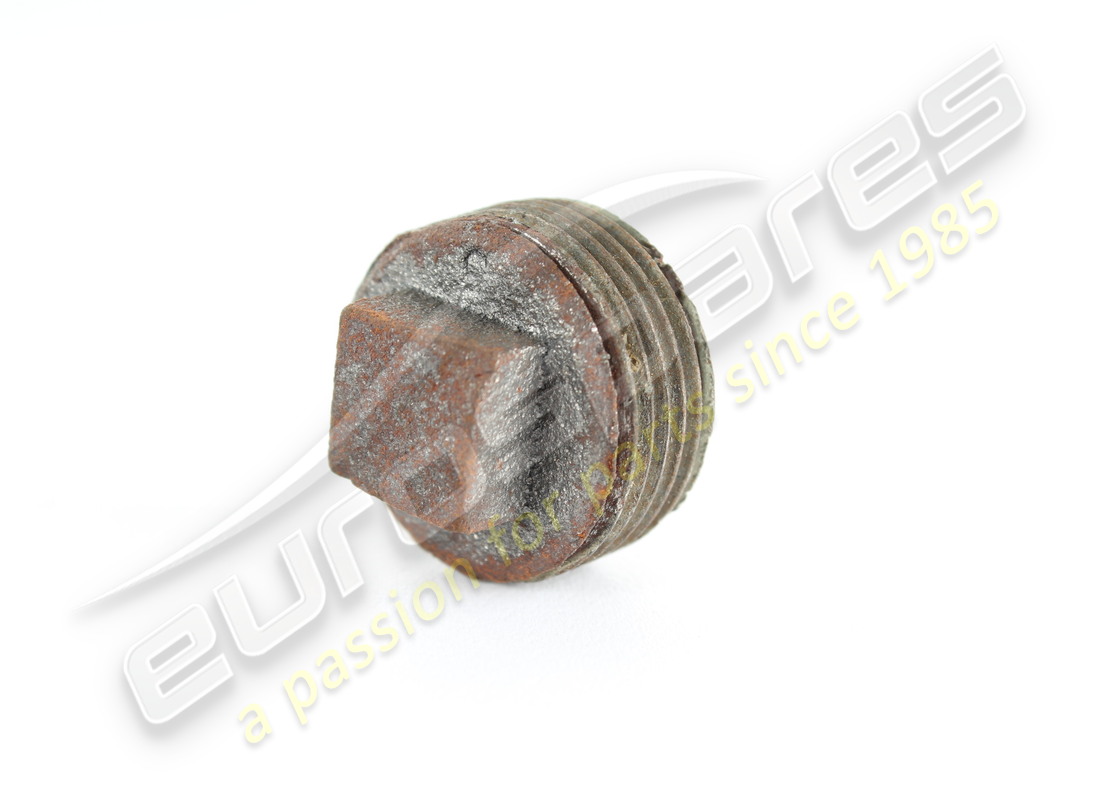

                                                                      # 018
                                                                      MPN: 316220346
                                                                      OIL FILLING PLUG
                                                                      from £12.21
                                                                      from £12.21
                                                                      This part replaces part number 316220362

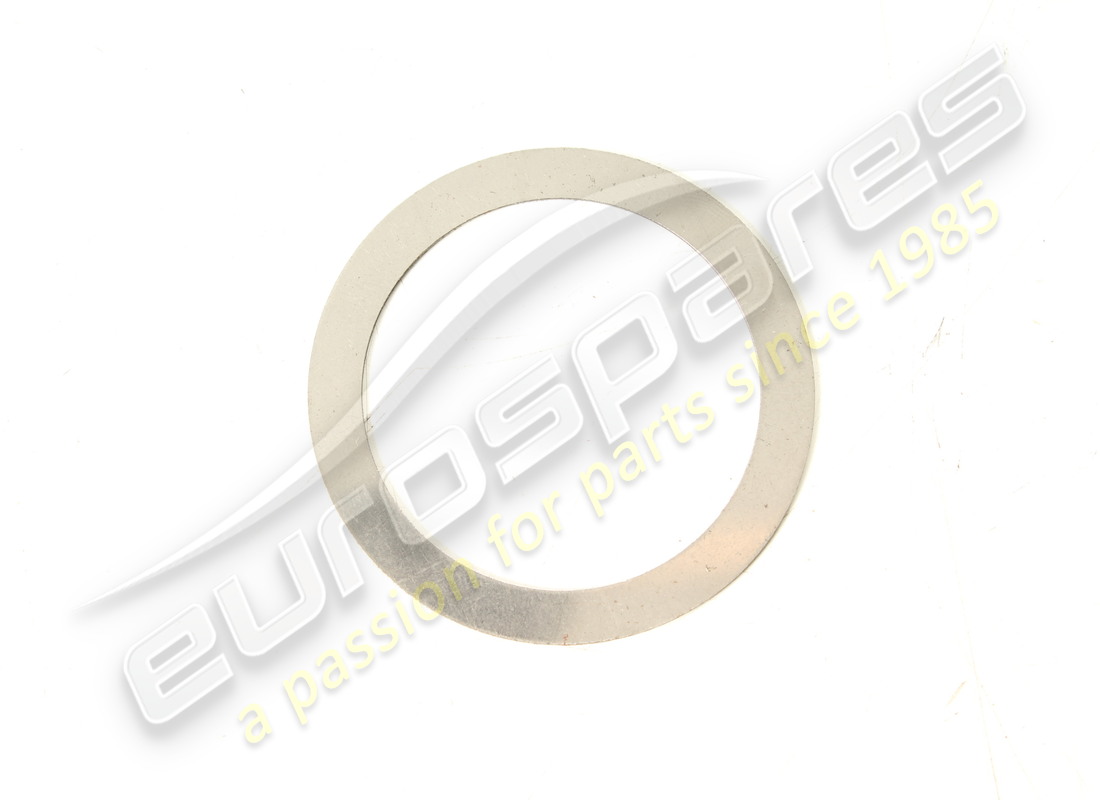

                                                                      # 019
                                                                      MPN: 316220348
                                                                      SPACER WASHER 003
                                                                      *as request
                                                                      from £4.09
                                                                      from £4.09
                                                                      # 019
                                                                      MPN: 316220349
                                                                      SPACER WASHER 005
                                                                      *as request
                                                                      from £4.57
                                                                      from £4.57
                                                                      # 019
                                                                      MPN: 316220350
                                                                      SPACER WASHER 010
                                                                      *as request
                                                                      from £14.21
                                                                      from £14.21
                                                                      # 020
                                                                      MPN: 316220123
                                                                      REAR BEARING
                                                                      from £121.27
                                                                      from £121.27
                                                                      # 021
                                                                      MPN: 316225025
                                                                      PINION AND GEAR (R=3.31) (INCLUDED PART N. 21-10-11-16-31)
                                                                      from £769.59
                                                                      from £769.59
                                                                      # 022
                                                                      MPN: 316220013
                                                                      propeller shaft
                                                                      from £338.35
                                                                      from £338.35
                                                                      # 023
                                                                      MPN: 316220126
                                                                      INSIDE BEARING
                                                                      from £129.65
                                                                      from £129.65
                                                                      # 024
                                                                      MPN: 316220353
                                                                      SPACER WASHER 003
                                                                      *as request
                                                                      from £1.63
                                                                      from £1.63
                                                                      # 024
                                                                      MPN: 316220354
                                                                      SPACER WASHER 005
                                                                      *as request
                                                                      from £105.11
                                                                      from £105.11
                                                                      # 024
                                                                      MPN: 316220355
                                                                      SPACER WASHER 010
                                                                      *as request
                                                                      from £1.63
                                                                      from £1.63
                                                                      # 024
                                                                      MPN: 316220356
                                                                      SPACER WASHER 030
                                                                      *as request
                                                                      from £2.16
                                                                      from £2.16
                                                                      # 025
                                                                      MPN: 326256010
                                                                      QUAIFE DIFFERENTIAL GEAR
                                                                      from £1,383.34
                                                                      from £1,383.34
                                                                      # 026
                                                                      MPN: 316220365
                                                                      GASKET
                                                                      from £3.63
                                                                      from £3.63
                                                                      # 026
                                                                      MPN: 9441
                                                                      NYLOSIL SILICON (ALTERNATIVES)
                                                                      from £15.85
                                                                      from £15.85
                                                                      # 027
                                                                      MPN: 316220363
                                                                      COVER
                                                                      from £226.79
                                                                      from £226.79
                                                                      # 028
                                                                      MPN: 316220364
                                                                      SCREW WITH WASHER
                                                                      from £1.31
                                                                      from £1.31
                                                                      # 029
                                                                      MPN: 316220362
                                                                      LEVEL PLUG
                                                                      Supersession
                                                                      Supersession
                                                                      # 030
                                                                      MPN: 316220107
                                                                      DRAIN VALVE
                                                                      from £17.69
                                                                      from £17.69
                                                                      # 031
                                                                      MPN: 316220357
                                                                      SCREW
                                                                      from £1.93
                                                                      from £1.93
                                                                      # 032
                                                                      MPN: 316220125
                                                                      OIL SEAL
                                                                      from £8.66
                                                                      from £8.66
                                                                      # 033
                                                                      MPN: 316220327
                                                                      AIR CONVEYOR
                                                                      from £0.56
                                                                      from £0.56
