040 - Hubs, Rear Brakes and Drive Shafts

Maserati Karif 2.8 Hubs, Rear Brakes and Drive Shafts Parts Diagram

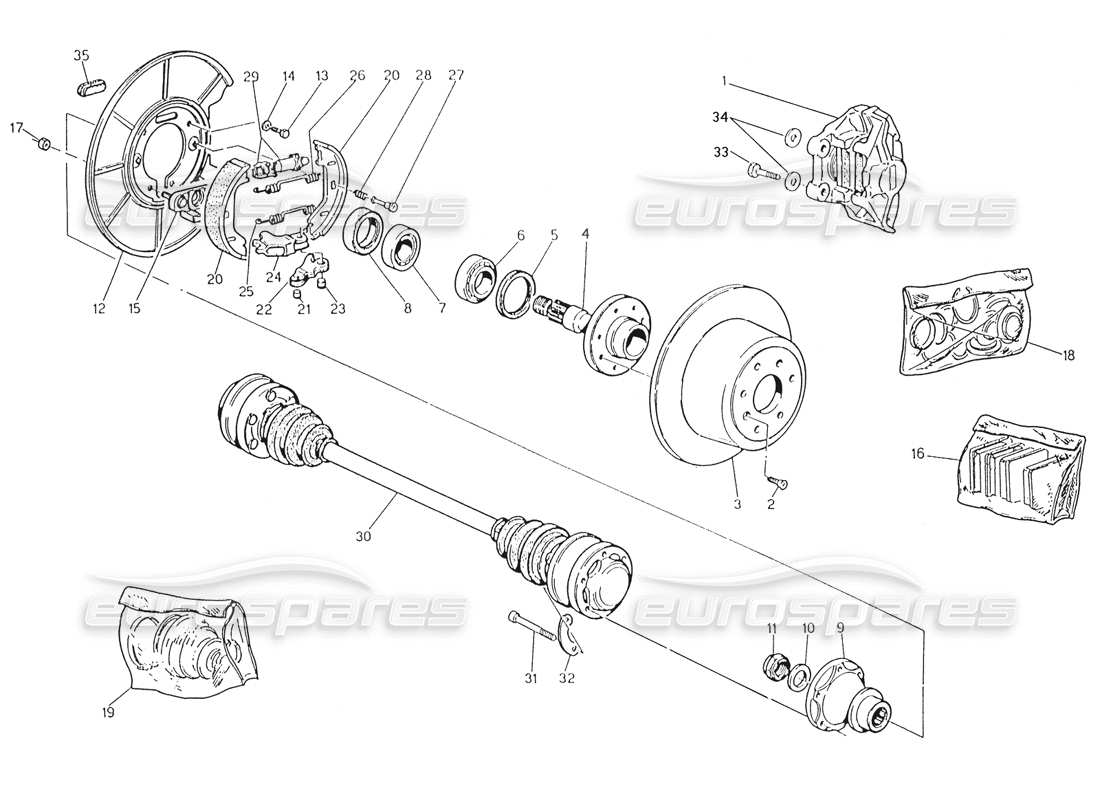

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 317220111
                                                                    REAR CALIPER LH ASSEMBLY
                                                                    Supersession
                                                                    Supersession
                                                                    # 001
                                                                    MPN: 317220112
                                                                    REAR CALIPER RH ASSEMBLY
                                                                    Supersession
                                                                    Supersession
                                                                    # 002
                                                                    MPN: 108506020
                                                                    BRAKE DISC BOLT
                                                                    from £1.14
                                                                    from £1.14
                                                                    # 003
                                                                    MPN: 327201351
                                                                    REAR BRAKE DISC
                                                                    # 004
                                                                    MPN: 347200126
                                                                    REAR HUB SHAFT
                                                                    from £248.45
                                                                    from £248.45
                                                                    # 005
                                                                    MPN: 317220347
                                                                    OUTER SEALING RING
                                                                    from £1.11
                                                                    from £1.11
                                                                    # 006
                                                                    MPN: 317220343
                                                                    OUTER BEARING
                                                                    from £38.83
                                                                    from £38.83
                                                                    # 007
                                                                    MPN: 327256345
                                                                    INNER BEARING
                                                                    from £109.38
                                                                    from £109.38
                                                                    # 008
                                                                    MPN: 317220346
                                                                    SEALING RING
                                                                    from £2.38
                                                                    from £2.38
                                                                    # 009
                                                                    MPN: 347200355
                                                                    SLEEVE
                                                                    from £65.64
                                                                    from £65.64
                                                                    # 010
                                                                    MPN: 317220348
                                                                    Roar thrust ring for sleeve
                                                                    Supersession
                                                                    Supersession
                                                                    # 011
                                                                    MPN: 317220340
                                                                    GROOVED NUT
                                                                    Supersession
                                                                    Supersession
                                                                    # 012
                                                                    MPN: 317020111
                                                                    LH REAR BRAKE COVER
                                                                    from £163.28
                                                                    from £163.28
                                                                    # 012
                                                                    MPN: 317020112
                                                                    RH REAR BRAKE COVER
                                                                    from £163.28
                                                                    from £163.28
                                                                    # 014
                                                                    MPN: 135600060
                                                                    SPRING WASHER
                                                                    from £0.79
                                                                    from £0.79
                                                                    # 015
                                                                    MPN: 318020115
                                                                    BRACKET FOR HAND BRAKE CABLE
                                                                    from £18.56
                                                                    from £18.56
                                                                    # 016
                                                                    -
                                                                    REAR BRAKE PADS, SET WITHOUT AMIANTHUS
                                                                    # 016
                                                                    MPN: 310220035
                                                                    REAR BRAKE PADS
                                                                    Supersession
                                                                    Supersession
                                                                    # 017
                                                                    MPN: 128350080
                                                                    NUT
                                                                    Supersession
                                                                    Supersession
                                                                    # 018
                                                                    MPN: 310220032
                                                                    REAR BRAKE CALIPER OVERHAUL SET
                                                                    each caliper
                                                                    from £103.84
                                                                    from £103.84
                                                                    # 019
                                                                    MPN: 310220036
                                                                    BELLOW AND CLIPS SET
                                                                    from £97.30
                                                                    from £97.30
                                                                    # 020
                                                                    MPN: 328060111
                                                                    BRAKE SHOE ASSEMBLY WITHOUT AMIANTHUS
                                                                    from £32.67
                                                                    from £32.67
                                                                    This part replaces part number 318020111
                                                                    # 021
                                                                    MPN: 318020332
                                                                    PIN FOR LEVER
                                                                    from £1.43
                                                                    from £1.43
                                                                    # 022
                                                                    MPN: 318020330
                                                                    CONTROL LOVER
                                                                    from £25.86
                                                                    from £25.86
                                                                    # 023
                                                                    MPN: 318020333
                                                                    PIN FOR LEVER
                                                                    from £1.90
                                                                    from £1.90
                                                                    # 024
                                                                    MPN: 318020331
                                                                    PRESSURE SHOE
                                                                    from £32.76
                                                                    from £32.76
                                                                    # 025
                                                                    MPN: 318020334
                                                                    LOWER DRAW SPRING
                                                                    from £20.32
                                                                    from £20.32
                                                                    # 026
                                                                    MPN: 318020335
                                                                    UPPER DRAW SPRING
                                                                    from £1.45
                                                                    from £1.45
                                                                    # 027
                                                                    MPN: 318020336
                                                                    BRAKE SHOO PIN
                                                                    from £4.88
                                                                    from £4.88
                                                                    # 028
                                                                    MPN: 318020337
                                                                    SPRING FOR PIN
                                                                    from £0.59
                                                                    from £0.59
                                                                    # 029
                                                                    MPN: 318020113
                                                                    ADJUSTING DEVICE FOR HAND BRAKE
                                                                    from £6.98
                                                                    from £6.98
                                                                    # 030
                                                                    MPN: 316020105
                                                                    DRIVE SHAFT ASSEMBLY
                                                                    from £449.95
                                                                    from £449.95
                                                                    # 032
                                                                    MPN: 316020310
                                                                    PLATE FOR BOLT
                                                                    from £1.98
                                                                    from £1.98
                                                                    # 033
                                                                    MPN: 101210030
                                                                    BOLT
                                                                    from £1.59
                                                                    from £1.59
                                                                    # 035
                                                                    MPN: 317020328
                                                                    PLUG
                                                                    from £0.71
                                                                    from £0.71
