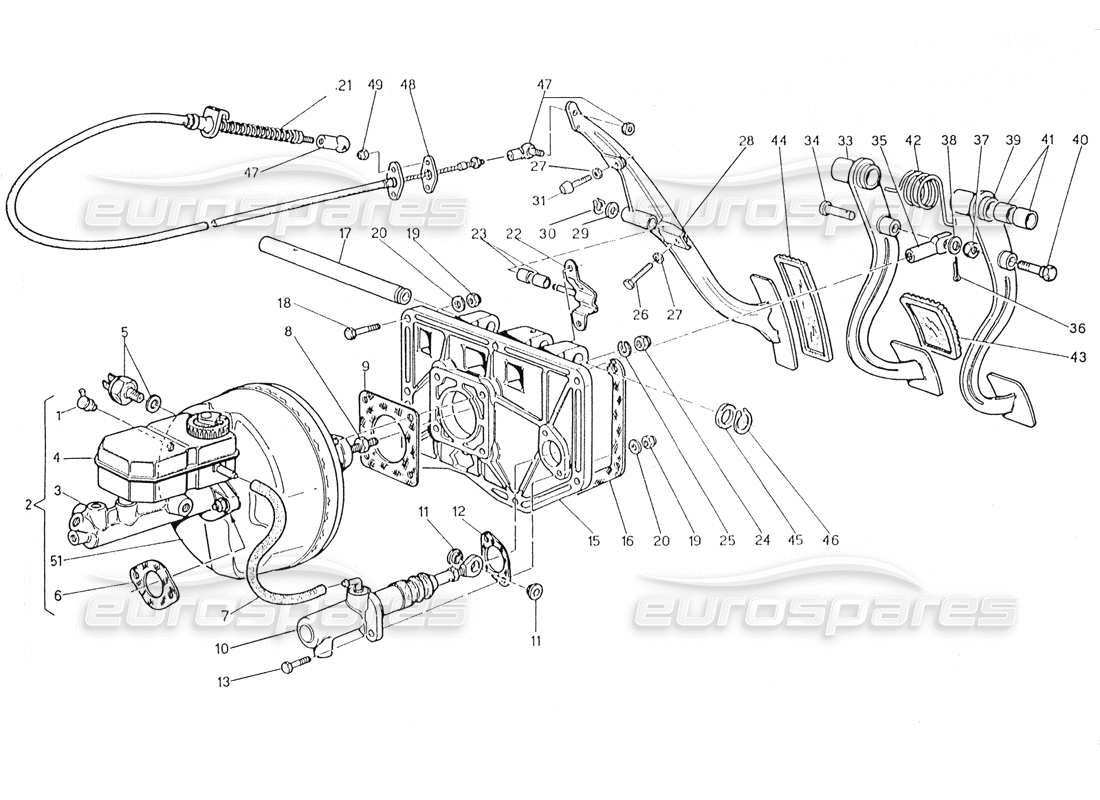

042 - Pedal Assy - Brake Booster Clutch Pump (LH Steering Cars)
Maserati Karif 2.8 Pedal Assy - Brake Booster Clutch Pump (L.H. Steering Cars) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 317420108
ONE WAY VALVE
Valid for Version 00 and 02
from £16.56
from £16.56
# 002
MPN: 317420112
BRAKE BOOSTER WITH PUMP ASSY
from £623.84
from £623.84
This part replaces part number 317420103
# 003
MPN: 317420101

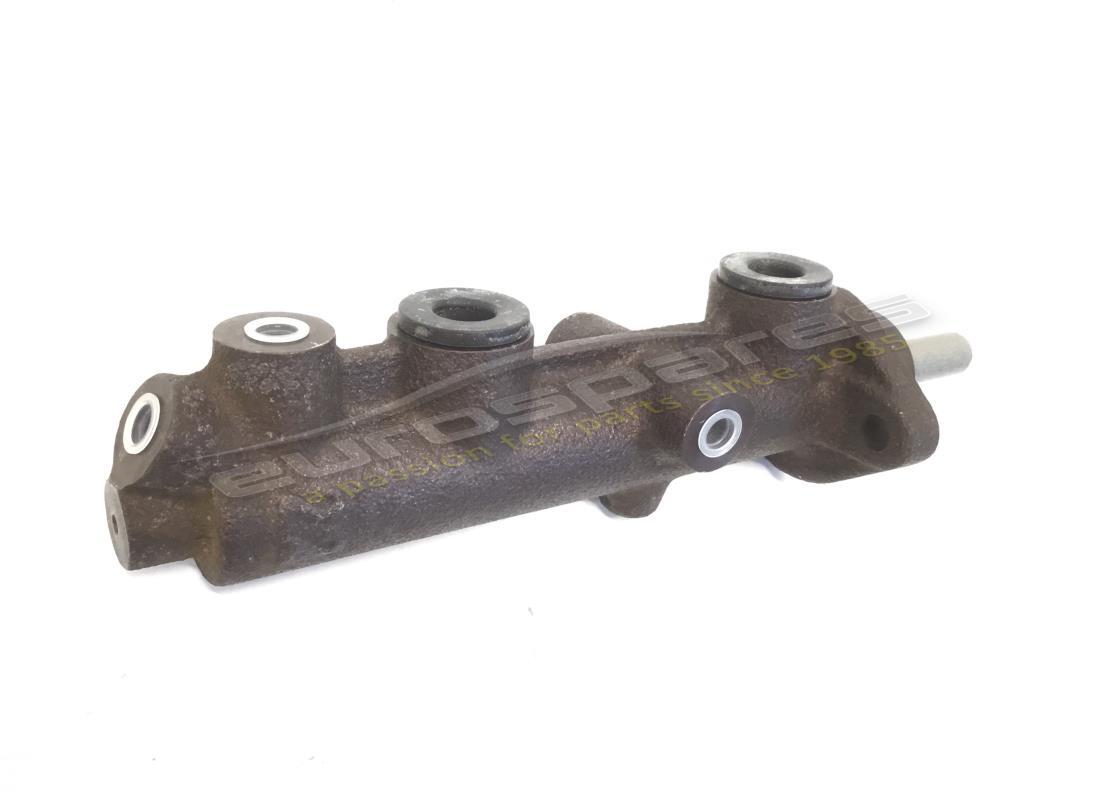

BRAKE PUMP
from £372.41
from £372.41
# 004
MPN: 317420104
TANK FOR BRAKES OIL
Valid for Version 00 and 02
from £18.70
from £18.70
# 005
MPN: 313320187
STOP SWITCH WITH WASHER
Valid for Version 00 and 02
from £45.25
from £45.25
# 006
MPN: 317420304
GASKET
Valid for Version 00 and 02
from £1.56
from £1.56
# 007
MPN: 318220329
CONNECTING PIPE
Valid for Version 00 and 02
from £1.06
from £1.06
# 008
MPN: 125300100
ADJUSTING NUT
Valid for Version 00 and 02
# 009
MPN: 317420303
GASKET
Valid for Version 00 and 02
from £1.56
from £1.56
# 010
MPN: 318220101
PUMP
Valid for Version 00 and 02
from £225.00
from £225.00
# 011
MPN: 318420325
BUSH
Valid for Version 00 and 02
from £1.09
from £1.09
# 012
MPN: 318220307
GASKET
Valid for Version 00 and 02
from £1.64
from £1.64
# 013
MPN: 100708040
SCREW
Valid for Version 00 and 02
# 015
MPN: 318420304
SUPPORT FOR PEDAL ASSY
Valid for Version 00 and 02
from £14.00
from £14.00
# 016
MPN: 318420348
GASKET
Valid for Version 00 and 02
from £0.70
from £0.70
# 017
MPN: 318420328
PEDAL PIN
Valid for Version 00 and 02
from £8.34
from £8.34
# 018
MPN: 100708030
SCREW
Valid for Version 00 and 02
# 019
MPN: 128350080
SELF -LOCKING NUT
Valid for Version 00 and 02
Supersession
Supersession
# 020
MPN: 135900084
WASHER
Valid for Version 00 and 02
# 021
MPN: 318220010
SPEED CONTROL CABLE
Valid for Version 00 and 02
# 022
MPN: 318420110
SUPPORT FOR SPEED PEDAL
Valid for Version 00 and 02
from £2.99
from £2.99
# 023
MPN: 318420334
BUSH
Valid for Version 00 and 02
from £1.56
from £1.56
# 024
MPN: 125100080
NUT
Valid for Version 00 and 02
from £0.86
from £0.86
# 025
MPN: 138410080
SPRING WASHER
Valid for Version 00 and 02
# 026
MPN: 101206040
ADJUSTING SCREW
Valid for Version 00 and 02
from £0.47
from £0.47
# 027
MPN: 125100060
NUT
Valid for Version 00 and 02
# 028
MPN: 318420113
SPEED PEDAL
Valid for Version 00 and 02
from £30.39
from £30.39
# 029
MPN: 318420346
WASHER
Valid for Version 00 and 02
from £1.09
from £1.09
# 030
MPN: 150800090
CIRCLIP
Valid for Version 00 and 02
from £0.47
from £0.47
# 031
MPN: 318420114
BUFFER
Valid for Version 00 and 02
from £1.93
from £1.93
# 033
MPN: 318420104
BRAKE PEDAL
Valid for Version 00 and 02
Supersession
Supersession
# 034
MPN: 318420312
BRAKE PEDAL PIN
Valid for Version 00 and 02
# 035
MPN: 317420300
THRUST PAD
Valid for Version 00 and 02
from £0.70
from £0.70
# 036
MPN: 146503220
SPLIT PIN
Valid for Version 00 and 02
# 037
MPN: 120300100
SELF LOCKING NUT
Valid for Version 00 and 02
# 038
MPN: 135910105
WASHER
Valid for Version 00 and 02
# 039
MPN: 318420108
CLUTCH PEDAL
Valid for Version 00 and 02
from £6.01
from £6.01
# 040
MPN: 318420326
THRUST PAD PIN
Valid for Version 00 and 02
from £8.34
from £8.34
# 041
MPN: 318420320
BUSH
Valid for Version 00 and 02
from £9.74
from £9.74
# 042
MPN: 318420308
SPRING
Valid for Version 00 and 02
from £2.15
from £2.15
# 043
MPN: 318420300
BRAKE AND CLUTCH PEDAL COVER
Valid for Version 00 and 02
from £3.27
from £3.27
# 044
MPN: 318420301
SPEED PEDAL COVER
Valid for Version 00 and 02
from £1.53
from £1.53
# 045
MPN: 318420321
SPACER WASHER
Valid for Version 00 and 02
# 046
MPN: 151100180
CIRCLIP
Valid for Version 00 and 02
from £0.70
from £0.70
# 047
MPN: 318420116
BALL-END PIN
Valid for Version 00 and 02
from £3.67
from £3.67
# 048
MPN: 318220300
GASKET
Valid for Version 00 and 02
from £0.70
from £0.70
# 049
MPN: 128350060
SELF LOCKING NUT
Valid for Version 00 and 02
