051 - Radiator Grille, Finishers-Fixed Glasses

Maserati Karif 2.8 Radiator Grille, Finishers-Fixed Glasses Parts Diagram

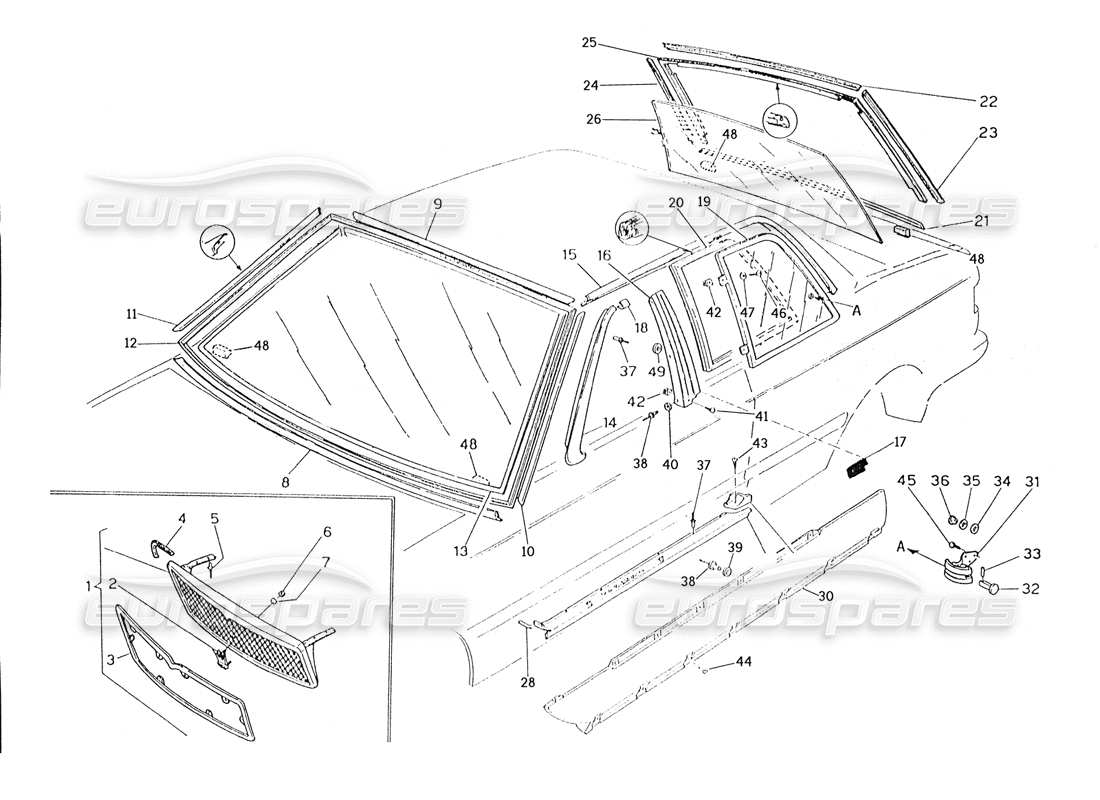

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 317753016
                                                                                        MOULDING SET
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 317721016
                                                                                        # 001
                                                                                        MPN: 324156005
                                                                                        RADIATOR GRILLE ASSY
                                                                                        from £287.82
                                                                                        from £287.82
                                                                                        This part replaces part number 314153005 which we have in stock
                                                                                        # 001
                                                                                        MPN: 397700017
                                                                                        REAR GLASSES MOULDING SET
                                                                                        from £91.41
                                                                                        from £91.41
                                                                                        # 002
                                                                                        MPN: 314120109
                                                                                        Badge
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 003
                                                                                        MPN: 324156100
                                                                                        bezel
                                                                                        from £35.85
                                                                                        from £35.85
                                                                                        # 004
                                                                                        MPN: 314120317
                                                                                        SEALING
                                                                                        from £3.40
                                                                                        from £3.40
                                                                                        # 005
                                                                                        MPN: 164354077
                                                                                        RIVET
                                                                                        # 006
                                                                                        MPN: 125100050
                                                                                        NUT
                                                                                        from £0.69
                                                                                        from £0.69
                                                                                        # 007
                                                                                        MPN: 135600050
                                                                                        SPRING WASHER
                                                                                        from £0.78
                                                                                        from £0.78
                                                                                        # 008
                                                                                        MPN: 317753301
                                                                                        FINISHER, LOWER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 317721301
                                                                                        # 009
                                                                                        MPN: 317753302
                                                                                        FINISHER, UPPER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 317721302
                                                                                        # 010
                                                                                        MPN: 317753303
                                                                                        LH SIDE FINISHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 317721303
                                                                                        # 011
                                                                                        MPN: 317753304
                                                                                        RH SIDE FINISHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 317721304
                                                                                        # 012
                                                                                        MPN: 317720013
                                                                                        WINDSHIELD WEATHERSTRIP SET
                                                                                        from £969.50
                                                                                        from £969.50
                                                                                        # 013
                                                                                        MPN: 317720120
                                                                                        WINDSHIELD GREEN TINTED
                                                                                        from £900.00
                                                                                        from £900.00
                                                                                        This part replaces part number 317747120
                                                                                        # 014
                                                                                        MPN: 310353329
                                                                                        LH central moulding finisher
                                                                                        # 014
                                                                                        MPN: 310353330
                                                                                        RH CENTRAL MOULDING FINISHER
                                                                                        # 015
                                                                                        MPN: 390300331
                                                                                        LH central moulding finisher
                                                                                        # 015
                                                                                        MPN: 390300332
                                                                                        RH CENTRAL MOULDING FINISHER
                                                                                        # 016
                                                                                        MPN: 390300339
                                                                                        LH central moulding finisher
                                                                                        # 016
                                                                                        MPN: 398300340
                                                                                        RH CENTRAL MOULDING FINISHER
                                                                                        from £16.60
                                                                                        from £16.60
                                                                                        # 017
                                                                                        MPN: 310320343
                                                                                        LH GASKET
                                                                                        # 017
                                                                                        MPN: 318320344
                                                                                        RH GASKET
                                                                                        from £0.70
                                                                                        from £0.70
                                                                                        # 018
                                                                                        MPN: 318353335
                                                                                        FRONT UNION
                                                                                        from £1.93
                                                                                        from £1.93
                                                                                        # 019
                                                                                        MPN: 397700131
                                                                                        LH REAR DOOR ASSY
                                                                                        from £1,067.91
                                                                                        from £1,067.91
                                                                                        # 019
                                                                                        MPN: 397700132
                                                                                        RH REAR DOOR ASSY
                                                                                        from £1,067.91
                                                                                        from £1,067.91
                                                                                        # 020
                                                                                        MPN: 397700149
                                                                                        LH GASKET (BROWN COLOR)
                                                                                        from £134.76
                                                                                        from £134.76
                                                                                        # 020
                                                                                        MPN: 397700150
                                                                                        RH GASKET (BROWN COLOR)
                                                                                        from £125.64
                                                                                        from £125.64
                                                                                        # 020
                                                                                        MPN: 397700157
                                                                                        LH GASKET (GREY 4226 COLOR)
                                                                                        from £125.64
                                                                                        from £125.64
                                                                                        # 020
                                                                                        MPN: 397700158
                                                                                        LH GASKET (GREY 4226 COLOR)
                                                                                        from £118.14
                                                                                        from £118.14
                                                                                        # 021
                                                                                        MPN: 397700421
                                                                                        FINISHER LOWER
                                                                                        # 022
                                                                                        MPN: 397700422
                                                                                        FINISHER UPPER
                                                                                        # 023
                                                                                        MPN: 397700423
                                                                                        LH SIDE FINISHER
                                                                                        # 025
                                                                                        MPN: 397700014
                                                                                        GASKET SOT
                                                                                        from £17.31
                                                                                        from £17.31
                                                                                        # 026
                                                                                        MPN: 397700156
                                                                                        TINTED, HEATED BACKLIGHT (GREEN)
                                                                                        from £311.78
                                                                                        from £311.78
                                                                                        # 027
                                                                                        MPN: 310320309
                                                                                        LH MOULDING
                                                                                        # 027
                                                                                        MPN: 318320310
                                                                                        RH MOULDING
                                                                                        from £5.19
                                                                                        from £5.19
                                                                                        # 028
                                                                                        MPN: 310320300
                                                                                        GASKET FOR RH MOULDING
                                                                                        # 028
                                                                                        MPN: 310320307
                                                                                        GASKET OR LH MOULDING
                                                                                        # 029
                                                                                        MPN: 310320313
                                                                                        END PIECE FOR LH FINISHER
                                                                                        # 029
                                                                                        MPN: 318320314
                                                                                        END PIECE FOR RH FINISHER
                                                                                        from £38.09
                                                                                        from £38.09
                                                                                        # 030
                                                                                        MPN: 330320330
                                                                                        RH OUTSIDE COVERING
                                                                                        # 030
                                                                                        MPN: 330320337
                                                                                        LH OUTSIDE COVERING
                                                                                        # 031
                                                                                        MPN: 317720145
                                                                                        LH OPENING DEVICE
                                                                                        from £5.34
                                                                                        from £5.34
                                                                                        # 031
                                                                                        MPN: 317720146
                                                                                        RH OPENING DEVICE
                                                                                        from £5.34
                                                                                        from £5.34
                                                                                        # 032
                                                                                        MPN: 317720390
                                                                                        PIN TO FIX GLASS
                                                                                        # 033
                                                                                        MPN: 144203530
                                                                                        PIN
                                                                                        from £0.70
                                                                                        from £0.70
                                                                                        # 034
                                                                                        MPN: 317720399
                                                                                        OUTSIDE PIN GASKET
                                                                                        from £0.70
                                                                                        from £0.70
                                                                                        # 035
                                                                                        MPN: 317720400
                                                                                        INSIDE PIN GASKET
                                                                                        from £0.70
                                                                                        from £0.70
                                                                                        # 036
                                                                                        MPN: 317720401
                                                                                        RING NUT
                                                                                        from £0.70
                                                                                        from £0.70
                                                                                        # 037
                                                                                        MPN: 164323308
                                                                                        POP RIVET
                                                                                        Order quantities as necessary
                                                                                        # 038
                                                                                        MPN: 164323311
                                                                                        POP RIVET
                                                                                        Order quantities as necessary
                                                                                        # 039
                                                                                        MPN: 136200043
                                                                                        WASHER
                                                                                        Order quantities as necessary
                                                                                        # 040
                                                                                        MPN: 135000043
                                                                                        WASHER
                                                                                        Order quantities as necessary
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        # 041
                                                                                        MPN: 119142160
                                                                                        SCREW
                                                                                        Order quantities as necessary
                                                                                        from £0.84
                                                                                        from £0.84
                                                                                        # 042
                                                                                        MPN: 310320341
                                                                                        NUT
                                                                                        Order quantities as necessary
                                                                                        # 044
                                                                                        MPN: 330320349
                                                                                        RIVET
                                                                                        # 045
                                                                                        MPN: 113305016
                                                                                        SCREW
                                                                                        # 047
                                                                                        MPN: 169020005
                                                                                        WASHER
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        # 048
                                                                                        MPN: 317720311
                                                                                        PLATE
                                                                                        from £3.09
                                                                                        from £3.09
                                                                                        # 049
                                                                                        MPN: 310320342
                                                                                        GASKET
                                                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
