052 - Front Bumper and Sound Proof Felts

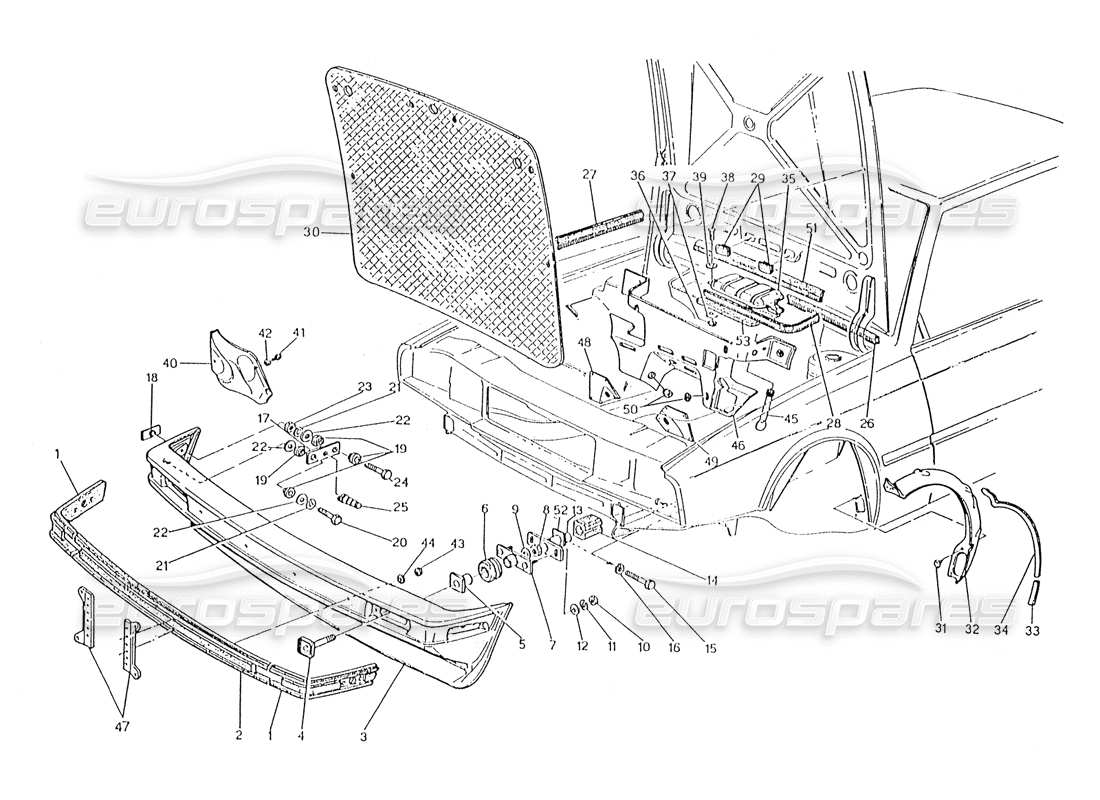

Maserati Karif 2.8 Front Bumper and Sound Proof Felts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 316327103
L.R. SEALING
from £17.15
from £17.15
# 001
MPN: 316327104
RH SEALING
from £13.73
from £13.73
This part replaces part number 316320104
# 002
MPN: 316327106
CENTRAL GASKET FOR FRONT BUMPER
from £63.20
from £63.20
This part replaces part number 316320106
# 003
MPN: 316320100
FRONT BUMPER
from £761.88
from £761.88
# 004
MPN: 316320112
STIFFENER
from £47.43
from £47.43
# 005
MPN: 316320114
SPACER PLATE
from £0.69
from £0.69
# 006
MPN: 316320315
ELASTIC RUBBER LUG
from £1.93
from £1.93
# 007
MPN: 316320117
SUPPORT PLATE
from £7.05
from £7.05
# 008
MPN: 120300100
NUT
# 009
MPN: 136110110
WASHER
from £2.16
from £2.16
# 010
MPN: 125100000
NUT
# 011
MPN: 135300004
SPRING WASHER
# 012
MPN: 136110090
WASHER
from £1.08
from £1.08
# 013
MPN: 316320121
SUPPORT BRACKET
from £54.38
from £54.38
# 014
MPN: 316320325
RUBBER LUG
from £1.55
from £1.55
# 015
MPN: 100014075
SCREW
# 016
MPN: 135300150
SPRING WASHER
from £1.08
from £1.08
# 017
MPN: 316320337
LEVER
from £1.55
from £1.55
# 018
MPN: 316320125
PLATO
from £1.08
from £1.08
# 019
MPN: 316320334
SPACER
from £1.16
from £1.16
# 020
MPN: 101200030
SCREW
# 021
MPN: 135300084
SPRING WASHER
# 022
MPN: 103030000
WASHER
# 023
MPN: 125100000
NUT
# 024
MPN: 101208020
SCREW
# 025
MPN: 374330426
SILENTBLOC ADJUSTER
from £1.08
from £1.08
This part replaces part number 53431319
# 026
MPN: 314320357
INSULATING PADDING
from £6.42
from £6.42
This part replaces part number 318720301
# 027
MPN: 314320359
RUBBER STRIP
from £28.50
from £28.50
# 028
MPN: 314320350
RUBBER STRIP
# 029
MPN: 53211300
PLUG
Supersession
Supersession
# 030
MPN: 314320362
INSULATING PADDING
from £225.00
from £225.00
This part replaces part number 314320361
# 031
MPN: 312520509
SCREW PLUG
from £1.08
from £1.08
This part replaces part number 312025509
# 032
MPN: 312520505
LH MUDGUARD
from £22.13
from £22.13
# 032
MPN: 312520506
R.R. MUDGUARD
from £22.13
from £22.13
# 033
MPN: 312520507
RUBBOR STRIP
from £4.17
from £4.17
# 034
MPN: 312520500
RUBBER STRIP
# 035
MPN: 312520510
WATER SHIELD
from £2.83
from £2.83
# 036
MPN: 319220324
NUT
from £0.63
from £0.63
This part replaces part number 82457087
# 037
MPN: 312520511
WATER SEAL
from £1.70
from £1.70
# 038
MPN: 119148160
SCREW
# 039
MPN: 169020005
WASHOR
from £1.08
from £1.08
# 040
MPN: 312520145
HORN SHIELD
from £2.29
from £2.29
# 041
MPN: 30151340
SCREW
from £0.47
from £0.47
# 042
MPN: 135000053
WASHER
# 043
MPN: 122700050
NUT
# 044
MPN: 136110055
WASHER
from £0.77
from £0.77
# 045
MPN: 312120321
DRAIN PIPE
from £1.41
from £1.41
# 046
MPN: 311553402
COVERING
Valid for Version 00 and 02
from £204.66
from £204.66
This part replaces part number 361500402 - and 1 more. Click to view details
# 046
MPN: 321570402
COVERING
Valid for Version 20 and 24
from £113.17
from £113.17
# 047
MPN: 556320109
PLATE SUPPORT
from £0.51
from £0.51
# 048
-
RH LOWER COVERING (AMIIANTHUS)
# 049
-
NOT SUPPLIED LH LOWER COVERING (AMIIANTHUS)
# 050
MPN: 311553426
NOT SUPPLIED PLATE
Order quantities as necessary
from £0.69
from £0.69
# 051
MPN: 312520513
RUBBER STRIP SEAL WATER
from £0.69
from £0.69
# 052
MPN: 316320321
GASKET
from £1.08
from £1.08
# 053
MPN: 311553400
COVERING
Valid for Version 00 and 02
from £11.96
from £11.96
# 053
MPN: 321570400
COVERING
Valid for Version 20 and 24
