maserati karif 2.8 rear bumper parts diagram

053 - REAR BUMPER

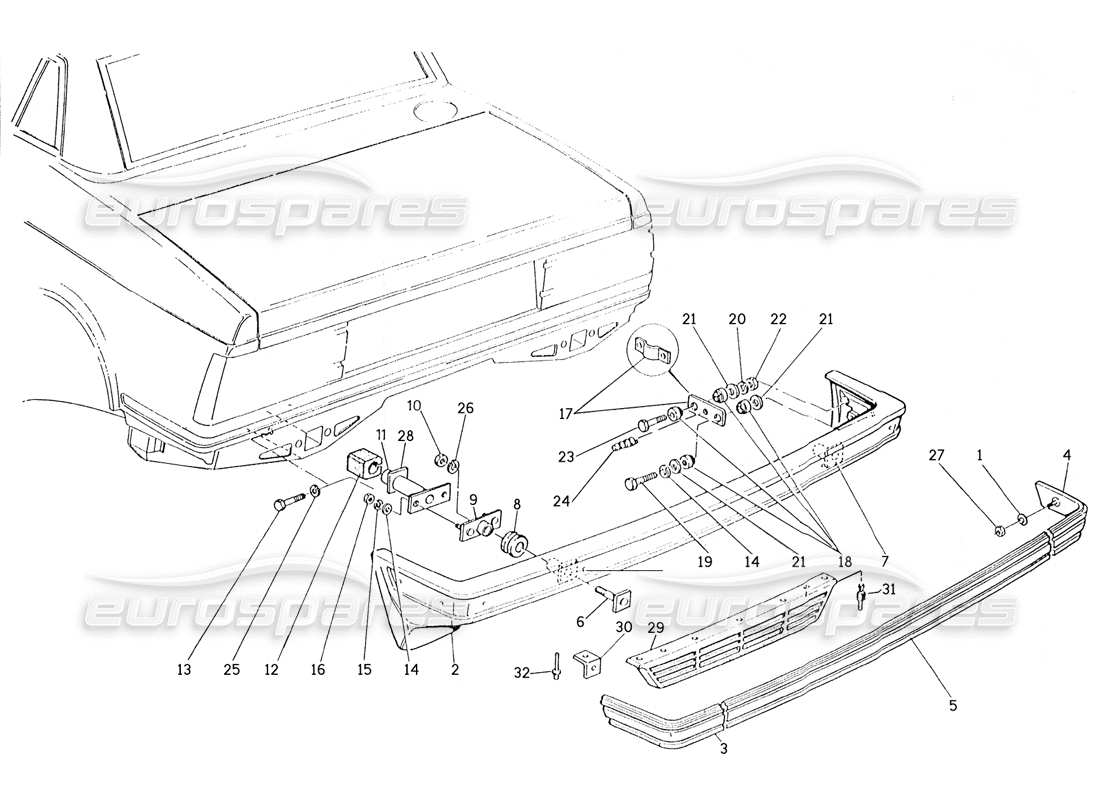

Maserati Karif 2.8 Rear Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Key
                                                                  Price
                                                                  # 001
                                                                  MPN: 136110055
                                                                  WASHER
                                                                  from £0.81
                                                                  from £0.81
                                                                  FLAT WASHER 5.3X15X1.3 Genuine Maserati Part - New In stock
                                                                  # 002
                                                                  MPN: 316320200
                                                                  REAR BUMPER
                                                                  from £209.95
                                                                  from £209.95
                                                                  PARAURTI POSTERIORE Genuine Maserati Part - New (to order)
                                                                  # 003
                                                                  MPN: 316327203
                                                                  L.M. rear bumper seal
                                                                  from £11.28
                                                                  from £11.28
                                                                  This part replaces part number 316320203
                                                                  LH GASKET FOR REAR BUMPER Genuine Maserati Part - New (to order)
                                                                  # 004
                                                                  MPN: 316327204
                                                                  RH REAR BUMPER SEAL
                                                                  from £11.28
                                                                  from £11.28
                                                                  This part replaces part number 316320204
                                                                  RH GASKET FOR REAR BUMPER Genuine Maserati Part - New (to order)
                                                                  # 005
                                                                  MPN: 316327206
                                                                  CONTRAL SEAL (OR REAR BUMPER)
                                                                  from £33.02
                                                                  from £33.02
                                                                  This part replaces part number 316320206
                                                                  CENTRAL GASKET FOR REAR BUMPER Genuine Maserati Part - New (to order)
                                                                  # 006
                                                                  MPN: 316320112
                                                                  STIFFENER
                                                                  from £48.98
                                                                  from £48.98
                                                                  CENTR. BUMPER COUPL. REINFOR Genuine Maserati Part - New (to order)
                                                                  # 007
                                                                  MPN: 316320114
                                                                  SPACER PLATO
                                                                  from £0.73
                                                                  from £0.73
                                                                  SPACER PLATE Genuine Maserati Part - New (to order)
                                                                  # 008
                                                                  MPN: 316320315
                                                                  ELASTIC RUBBER LUG
                                                                  from £2.02
                                                                  from £2.02
                                                                  Maserati PART 316320315 Genuine Maserati Part - New (to order)
                                                                  # 009
                                                                  MPN: 316320117
                                                                  SUPPORT PLATE
                                                                  from £7.05
                                                                  from £7.05
                                                                  PLATE Genuine Maserati Part - New (to order)
                                                                  # 011
                                                                  MPN: 316320121
                                                                  SUPPORT BRACKET
                                                                  from £37.78
                                                                  from £37.78
                                                                  FRONT/REAR BUMPER CENT. MOUN. BRA Genuine Maserati Part - New (to order)
                                                                  # 012
                                                                  MPN: 316320325
                                                                  BUMPER SUPPORT RUBBER LUG
                                                                  from £1.61
                                                                  from £1.61
                                                                  BUMPER SUPPORT Genuine Maserati Part - New (to order)
                                                                  # 014
                                                                  MPN: 136110110
                                                                  WASHER
                                                                  from £2.26
                                                                  from £2.26
                                                                  WASHER 10X30X2.5 Genuine Maserati Part - New In stock
                                                                  # 015
                                                                  MPN: 135300004
                                                                  SPRING WASHER
                                                                  SPRING WASHER Genuine Maserati Part - New (to order)
                                                                  # 016
                                                                  MPN: 125100000
                                                                  NUT
                                                                  NUT Genuine Maserati Part - New (to order)
                                                                  # 017
                                                                  MPN: 316320338
                                                                  LEVER
                                                                  from £1.61
                                                                  from £1.61
                                                                  LEVA ATTACCO LATERALE PARAUR Genuine Maserati Part - New (to order)
                                                                  # 018
                                                                  MPN: 316320334
                                                                  SPACER
                                                                  from £1.21
                                                                  from £1.21
                                                                  SPACER FOR FR. BUMPER SIDE COUPLI Genuine Maserati Part - New In stock
                                                                  # 019
                                                                  MPN: 101200030
                                                                  BOLT
                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                  # 020
                                                                  MPN: 135300004
                                                                  SPRING WASHER
                                                                  SPRING WASHER Genuine Maserati Part - New (to order)
                                                                  # 021
                                                                  MPN: 163030080
                                                                  WASHOR
                                                                  from £1.20
                                                                  from £1.20
                                                                  RONDELLA Genuine Maserati Part - New In stock
                                                                  # 022
                                                                  MPN: 125100000
                                                                  NUT
                                                                  NUT Genuine Maserati Part - New (to order)
                                                                  # 024
                                                                  MPN: 374330426
                                                                  SILENTBLOC ADJUSTER
                                                                  from £1.13
                                                                  from £1.13
                                                                  This part replaces part number 53431319
                                                                  TAMPONCINO Genuine Maserati Part - New In stock
                                                                  # 025
                                                                  MPN: 135300150
                                                                  SPRING WASHER
                                                                  from £1.13
                                                                  from £1.13
                                                                  RONDELLA Genuine Maserati Part - New In stock
                                                                  # 026
                                                                  MPN: 136110110
                                                                  WASHER
                                                                  from £2.26
                                                                  from £2.26
                                                                  WASHER 10X30X2.5 Genuine Maserati Part - New In stock
                                                                  # 028
                                                                  MPN: 316320321
                                                                  GASKET
                                                                  from £1.13
                                                                  from £1.13
                                                                  GASKET FOR BUMPER COUPLING B Genuine Maserati Part - New (to order)
                                                                  # 029
                                                                  MPN: 316353340
                                                                  SCREEN
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Maserati Part (no longer available to order)
                                                                  # 031
                                                                  MPN: 316353343
                                                                  BOTTOM
                                                                  from £0.88
                                                                  from £0.88
                                                                  BOTTONE FISSAGGIO Genuine Maserati Part - New (to order)
