Maserati Karif 2.8 Instrumentation Parts Diagram

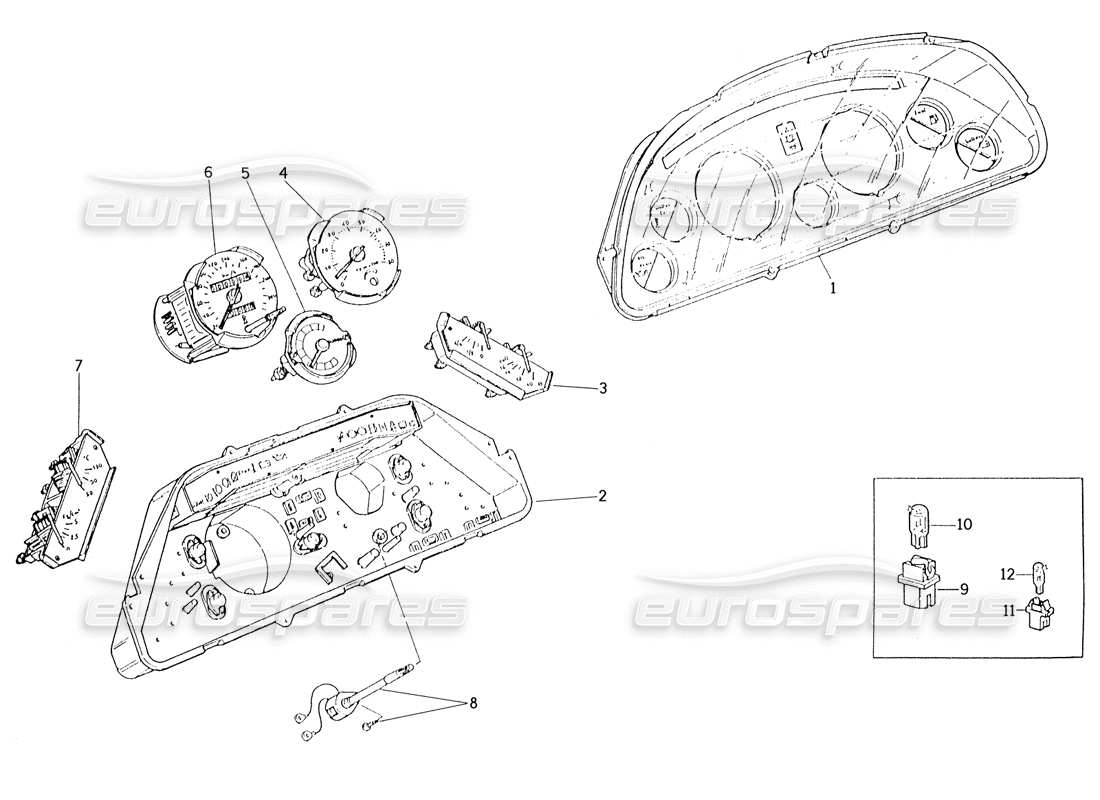

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 000
            MPN: 313627114
            INSTRUMENTATION, ASSY
            Valid for Version 20
            from £350.72
            from £350.72
            # 000
            MPN: 323656114
            INSTRUMENTATION, ASSY
            Valid for Version 00 and 02 and 24
            from £480.49
            from £480.49
            This part replaces part number 343600114
            # 001
            MPN: 313632208
            VISOR, ASSY
            Valid for Version 20
            from £38.94
            from £38.94
            # 001
            MPN: 323656208
            VISOR, ASSY
            Valid for Version 00 and 02 and 24
            from £75.80
            from £75.80
            # 002
            -
            BOX, ASSY (NOT SUPPLIED)
            # 003
            MPN: 313632206
            FUEL GAUGE AND VOLTMETER
            Valid for Version 20
            from £184.91
            from £184.91
            # 003
            MPN: 343600206
            FUEL GAUGE AND VOLTMETER
            Valid for Version 00 and 02 and 24
            from £80.55
            from £80.55
            # 004
            MPN: 313632214
            REV. COUNTER
            Valid for Version 20
            from £103.00
            from £103.00
            # 004
            MPN: 343600214
            REV. COUNTER
            Valid for Version 00 and 02 and 24
            from £125.65
            from £125.65
            # 005
            MPN: 313632204
            TURBO BLOWER PRESSURE GAUGE
            Valid for Version 00 and 02 and 24
            from £66.45
            from £66.45
            # 005
            MPN: 323620204
            TURBO BLOWER PRESSURE GAUGE
            Valid for Version 20
            from £66.99
            from £66.99
            # 006
            MPN: 313627201
            SPEEDOMETER
            Valid for Version 20
            from £229.95
            from £229.95
            # 006
            MPN: 343600201
            SPEEDOMETER
            Valid for Version 00 and 02 and 24
            from £376.96
            from £376.96
            # 007
            MPN: 313632203
            WALOR THERM. AND OIL PRESSURE
            Valid for Version 20
            from £55.55
            from £55.55
            # 007
            MPN: 343600203
            WATER THERM, AND OIL PRESSURE
            Valid for Version 00 and 02 and 24
            from £36.72
            from £36.72
            # 008
            MPN: 323620211
            RHEOSTAT
            from £10.20
            from £10.20
            # 009
            MPN: 313620403
            BULB HOLDER (3 W)
            # 010
            MPN: 87760003
            BULB 12V - 3 W
            from £0.47
            from £0.47
            # 011
            MPN: 313620402
            BULB HOLDER (1.2 W)
            # 012
            MPN: 87760012
            BULB 12 V - 1,2 W
            from £0.47
            from £0.47
