maserati karif 2.8 switches and steering parts diagram

061 - Switches and Steering

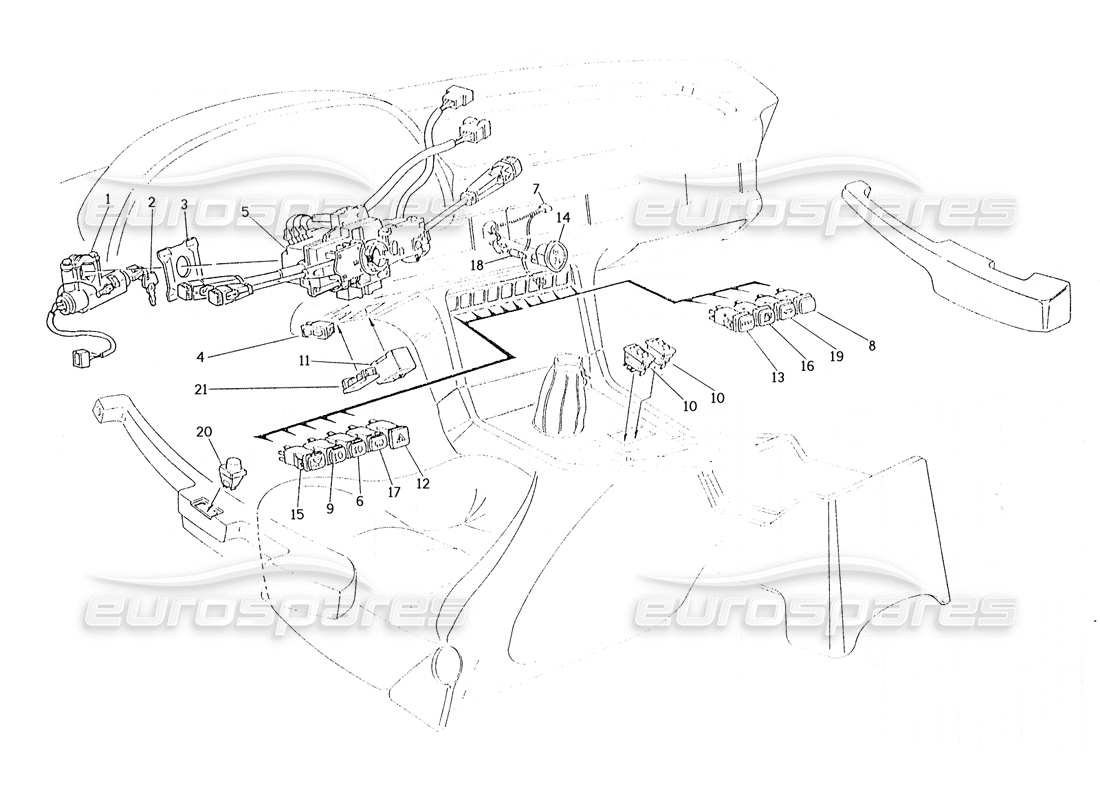

Maserati Karif 2.8 Switches and Steering Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 313420100
                                      Steering
                                      Supersession
                                      Supersession
                                      # 002
                                      MPN: 313420102
                                      Key
                                      Supersession
                                      Supersession
                                      # 003
                                      MPN: 313320303
                                      SWITCH PROTECTION
                                      from £1.92
                                      from £1.92
                                      # 004
                                      MPN: 313320112
                                      PARKING LIGHTS SWITCH
                                      from £8.16
                                      from £8.16
                                      # 005
                                      MPN: 313320114
                                      SWITCH
                                      from £225.75
                                      from £225.75
                                      # 006
                                      MPN: 323320126
                                      REAR FOG LIGHT SWITCH
                                      from £0.82
                                      from £0.82
                                      # 007
                                      MPN: 313620112
                                      WATCH LIGHTING
                                      Valid for Version 20 and 24 (pre modif.)
                                      # 007
                                      MPN: 313620116
                                      WATCH LIGHTING SWITCH
                                      Valid for Version 00 and 02 and 20 and 24 (post modif.)
                                      from £6.11
                                      from £6.11
                                      # 008
                                      MPN: 323320301
                                      PLUG
                                      Supersession
                                      Supersession
                                      # 009
                                      MPN: 323320125
                                      FRONT FOG LIGHT SWITCH
                                      from £6.40
                                      from £6.40
                                      # 010
                                      MPN: 323350150
                                      Electric window and doors locking switch
                                      from £4.42
                                      from £4.42
                                      This part replaces part number 323320150
                                      # 011
                                      MPN: 323120110
                                      HEADLAMP ADJUSTMENT CONTROL
                                      from £33.05
                                      from £33.05
                                      # 012
                                      MPN: 323320123
                                      HAZARD WARNING SWITCH
                                      from £7.88
                                      from £7.88
                                      # 013
                                      MPN: 323320141
                                      TOST
                                      from £2.11
                                      from £2.11
                                      # 014
                                      MPN: 313620117
                                      WATCH «LASSALE»
                                      Valid for Version 00 and 02
                                      from £453.36
                                      from £453.36
                                      This part replaces part number 313620109
                                      # 014
                                      MPN: 313627109
                                      WATCH WITH LIGTHTING
                                      Valid for Versioon 20 and 24 (pre modif.)
                                      Supersession
                                      Supersession
                                      # 014
                                      MPN: 313670119
                                      WATCH WITH LIGTHTING
                                      Valid for Versioon 20 and 24 (post modif.)
                                      from £317.81
                                      from £317.81
                                      This part replaces part number 313627109
                                      # 015
                                      MPN: 323320120
                                      WATCH LIGHTING SWITCH
                                      from £2.17
                                      from £2.17
                                      # 016
                                      MPN: 323320122
                                      FUEL DOOR SWITCH
                                      from £21.60
                                      from £21.60
                                      # 017
                                      MPN: 323320127
                                      SWITCH
                                      from £0.82
                                      from £0.82
                                      # 018
                                      MPN: 313620110
                                      BULB WITH LAMP
                                      from £0.85
                                      from £0.85
                                      # 019
                                      MPN: 323320124
                                      BAGGAGE DOOR SWITCH
                                      from £1.22
                                      from £1.22
                                      # 020
                                      MPN: 343300133
                                      RH /LH COMMUTATOR MIRROR
                                      from £16.78
                                      from £16.78
                                      This part replaces part number 343300181
                                      # 021
                                      MPN: 323320308
                                      PLUG
                                      (pre modif.)
                                      Supersession
                                      Supersession
                                      # 021
                                      MPN: 323350308
                                      PLUG
                                      (after modif.)
                                      from £1.08
                                      from £1.08
                                      This part replaces part number 323320308
