064 - Automatic Air Conditioner Set (LH Steering Cars)

Maserati Karif 2.8 Automatic Air Conditioner Set (L.H. Steering Cars) Parts Diagram

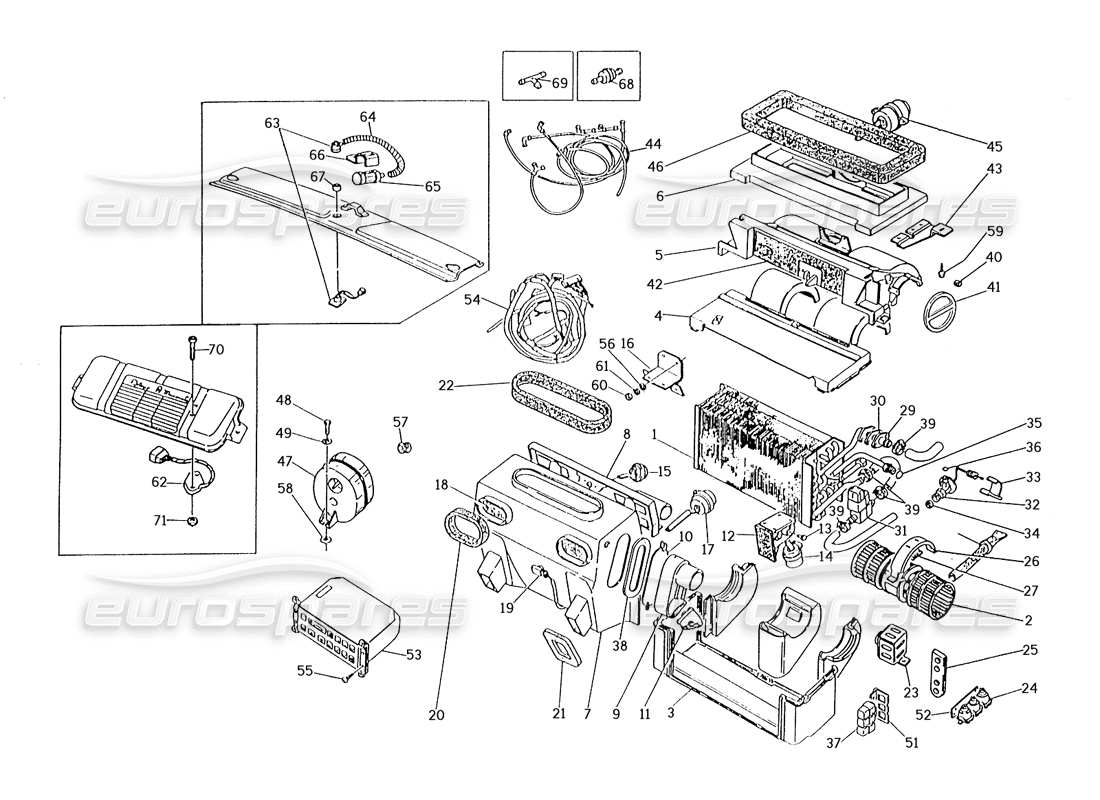

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 315550165
    EVAPORATOR-HEATER
    Valid for Version 00 and 02
    from £80.47
    from £80.47
    EVAPORATOR HEATER Genuine Maserati Part - New (to order)
    # 002
    MPN: 315520167
    ELECTRIC FAN
    Valid for Version 00 and 02
    from £156.04
    from £156.04
    ELECTRIC FAN 046851045 Genuine Maserati Part - New (to order)
    # 003
    MPN: 315520380
    LOWER BOX
    Valid for Version 00 and 02
    from £36.93
    from £36.93
    LOWER BOX Genuine Maserati Part - New (to order)
    # 004
    MPN: 315520381
    INTERMEDIATE BOX
    Valid for Version 00 and 02
    from £13.61
    from £13.61
    INTERMEDIATS BOX Genuine Maserati Part - New (to order)
    # 005
    MPN: 315520382
    UPPER BOX
    Valid for Version 00 and 02
    from £8.29
    from £8.29
    UPPER BOX Genuine Maserati Part - New (to order)
    # 006
    MPN: 315520470
    CONVEYOR
    Valid for Version 00 and 02
    from £45.06
    from £45.06
    DUCT Genuine Maserati Part - New (to order)
    # 007
    MPN: 315520471
    Front Body
    Valid for Version 00 and 02
    from £11.79
    from £11.79
    This part replaces part number 315520384
    Front Body Genuine Maserati Part - New (to order)
    # 008
    MPN: 315520472
    UPPER COVER
    Valid for Version 00 and 02
    UPPER COVER Genuine Maserati Part - New (to order)
    # 009
    MPN: 315520473
    NOZZLE FOR AIR, LH
    Valid for Version 00 and 02
    from £2.08
    from £2.08
    LH AIR PIPE NECK Genuine Maserati Part - New (to order)
    # 009
    MPN: 315520474
    NOZZLE FOR AIR, RH
    Valid for Version 00 and 02
    from £3.08
    from £3.08
    RH AIR PIPE NECK Genuine Maserati Part - New (to order)
    # 010
    MPN: 315520163
    DOOR FOR LH NOZZLE
    Valid for Version 00 and 02
    from £3.34
    from £3.34
    This part replaces part number 315520129
    LH DOOR 050.760.007 Genuine Maserati Part - New (to order)
    # 010
    MPN: 315520164
    DOOR FOR RH NOZZLE
    Valid for Version 00 and 02
    from £2.87
    from £2.87
    This part replaces part number 315520130
    RH DOOR 050.760.006 Genuine Maserati Part - New (to order)
    # 011
    MPN: 315520387
    INNER DUCT
    Valid for Version 00 and 02
    from £10.23
    from £10.23
    INNER DUCT Genuine Maserati Part - New (to order)
    # 012
    MPN: 315520018
    LOWER DOOR ASSY
    Valid for Version 00 and 02
    from £10.83
    from £10.83
    LOWER DOOR ASSEMBLY Genuine Maserati Part - New (to order)
    # 013
    -
    PIN FOR DOOR (NOT SUPPLIED)
    Valid for Version 00 and 02
    # 014
    MPN: 315520158
    ACTUATOR TO CONTROL DOOR
    Valid for Version 00 and 02
    from £9.84
    from £9.84
    ACTUATOR 050.760.048 Genuine Maserati Part - New (to order)
    # 015
    MPN: 315520162
    ACTUATOR WITH TWO POSITION
    Valid for Version 00 and 02
    from £4.89
    from £4.89
    ACTUATOR 050.760.045 Genuine Maserati Part - New (to order)
    # 016
    MPN: 315520138
    PAD TO SUPPORT CONDITIONER
    Valid for Version 00 and 02
    from £3.48
    from £3.48
    PAD Genuine Maserati Part - New (to order)
    # 017
    MPN: 315520159
    ACTUATOR
    Valid for Version 00 and 02
    from £13.73
    from £13.73
    ACTUATOR 050760047 Genuine Maserati Part - New (to order)
    # 018
    MPN: 315520134
    DOOR THROW AIR
    Valid for Version 00 and 02
    DOOR THROW AIR Genuine Maserati Part - New (to order)
    # 019
    MPN: 315520206
    SENSOR
    Valid for Version 00 and 02
    from £20.03
    from £20.03
    AIR TEMPERATURE SENSOR Genuine Maserati Part - New (to order)
    # 020
    MPN: 315520396
    GASKET FOR NOZZLE
    Valid for Version 00 and 02
    NOZZLE GASKET Genuine Maserati Part - New (to order)
    # 021
    MPN: 315520397
    GASKET FOR NOZZLE
    Valid for Version 00 and 02
    from £2.48
    from £2.48
    GASKET FOR NOZZLE Genuine Maserati Part - New (to order)
    # 022
    MPN: 315520398
    GASKET FOR NOZZLE
    Valid for Version 00 and 02
    from £2.48
    from £2.48
    GASKET FOR NOZZLE Genuine Maserati Part - New (to order)
    # 023
    MPN: 315520143
    RESISTANCE
    Valid for Version 00 and 02
    from £18.28
    from £18.28
    RESISTANCE 050760050 Genuine Maserati Part - New (to order)
    # 024
    MPN: 315520207
    SOLENOID VALVE
    Valid for Version 00 and 02
    from £29.46
    from £29.46
    SOLENOID VALVE Genuine Maserati Part - New (to order)
    # 025
    MPN: 315520475
    GASKET
    Valid for Version 00 and 02
    GASKET Genuine Maserati Part - New (to order)
    # 026
    MPN: 315520402
    PAD
    Valid for Version 00 and 02
    PAD Genuine Maserati Part - New (to order)
    # 027
    MPN: 315520403
    BUMPER
    Valid for Version 00 and 02
    GASKET Genuine Maserati Part - New (to order)
    # 028
    MPN: 315520017
    DRAIN PIPE
    Valid for Version 00 and 02
    from £1.89
    from £1.89
    EXHAUST PIPE Genuine Maserati Part - New (to order)
    # 029
    MPN: 315520210
    CONNECTOR
    Valid for Version 00 and 02
    from £4.82
    from £4.82
    SELF-CENTREING UNION Genuine Maserati Part - New (to order)
    # 030
    MPN: 315520482
    GASKET
    Valid for Version 00 and 02
    from £2.08
    from £2.08
    GASKET Genuine Maserati Part - New (to order)
    # 031
    MPN: 315522144
    COMPLEX COCK
    Valid for Version 00 and 02
    from £284.17
    from £284.17
    COMPLETE VALVE BORL.050761008 Genuine Maserati Part - New (to order)
    # 032
    MPN: 315520166
    EXPANSION VALVE
    Valid for Version 00 and 02 (after modif.)
    from £78.43
    from £78.43
    EXPANSION VALVE Genuine Maserati Part - New In stock
    # 032
    MPN: 315522166
    EXPANSION VALVE
    Valid for Version 00 and 02 (pre modif.)
    from £73.35
    from £73.35
    Maserati PART 315522166 Genuine Maserati Part - New (to order)
    # 033
    MPN: 315520408
    SPRING
    Valid for Version 00 and 02
    from £2.08
    from £2.08
    SPRING Genuine Maserati Part - New (to order)
    # 034
    MPN: 315520445
    SEAL RING
    Valid for Version 00 and 02
    from £0.74
    from £0.74
    RING Genuine Maserati Part - New (to order)
    # 035
    MPN: 315520444
    SEAL RING
    Valid for Version 00 and 02
    from £0.74
    from £0.74
    RING Genuine Maserati Part - New (to order)
    # 036
    MPN: 315520443
    SEAL RING
    Valid for Version 00 and 02
    from £0.74
    from £0.74
    RING Genuine Maserati Part - New (to order)
    # 037
    MPN: 30331137
    RELAY
    Valid for Version 00 and 02
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 038
    MPN: 315520403
    GASKET
    Valid for Version 00 and 02
    GASKET Genuine Maserati Part - New (to order)
    # 039
    MPN: 315520415
    CLAMP
    Valid for Version 00 and 02
    CLAMP Genuine Maserati Part - New (to order)
    # 040
    MPN: 315520417
    SPRING FOR DOOR
    Valid for Version 00 and 02
    SPRING FOR DOOR Genuine Maserati Part - New (to order)
    # 041
    MPN: 315520416
    DOOR
    Valid for Version 00 and 02
    from £9.88
    from £9.88
    DOOR Genuine Maserati Part - New (to order)
    # 042
    MPN: 315520136
    AIR CONTROL DOOR
    Valid for Version 00 and 02
    AIR FLAP Genuine Maserati Part - New (to order)
    # 043
    MPN: 315520419
    LH PAD FOR CONDITIONER
    Valid for Version 00 and 02
    LH BRACKET FOR AIR CONDITIONER Genuine Maserati Part - New (to order)
    # 043
    MPN: 315520420
    RH PAD FOR CONDITIONER
    Valid for Version 00 and 02
    RH BRACKET FOR AIR CONDITIONER Genuine Maserati Part - New (to order)
    # 044
    MPN: 315520208
    PNEUMATIC SYSTEM
    Valid for Version 00 and 02
    from £10.86
    from £10.86
    PNEUMATIC SYSTEM Genuine Maserati Part - New (to order)
    # 045
    MPN: 315520160
    ACTUATOR FOR AIR DOOR
    Valid for Version 00 and 02
    from £4.12
    from £4.12
    ACTUATOR 050220015 AIR CONDITIONING 55072 Genuine Maserati Part - New (to order)
    # 046
    MPN: 315520422
    GASKET
    Valid for Version 00 and 02
    from £2.08
    from £2.08
    GASKET Genuine Maserati Part - New (to order)
    # 047
    MPN: 30551155
    Tank
    Valid for Version 00 and 02
    Maserati PART 30551155 Genuine Maserati Part - New (to order)
    # 048
    MPN: 119148160
    SCREW
    Valid for Version 00 and 02
    Maserati PART 119148160 Genuine Maserati Part - New (to order)
    # 049
    MPN: 169020005
    WASHER
    Valid for Version 00 and 02
    from £1.17
    from £1.17
    WASHER Genuine Maserati Part - New (to order)
    # 050
    MPN: 315520423
    SPRING
    Valid for Version 00 and 02
    Spring closing box Genuine Maserati Part - New (to order)
    # 051
    MPN: 315520477
    BRACKET
    Valid for Version 00 and 02
    from £19.42
    from £19.42
    STAFFA RELE' BORL. 050761005 Genuine Maserati Part - New (to order)
    # 052
    MPN: 315520478
    SOLENOID VALVE BRACKET
    Valid for Version 00 and 02
    SOLENOID VALVE SUPPORTING BRACKET Genuine Maserati Part - New (to order)
    # 053
    MPN: 365500201
    CLIMATE CONTROL UNIT
    Supersession
    Supersession
    This part replaces part number 315550204
    Genuine Maserati Part (no longer available to order)
    # 053
    MPN: 365504201
    CLIMATE CONTROL UNIT
    from £1,357.89
    from £1,357.89
    This part replaces part number 365500201
    AIR CONDITIONING SYSTEM CONTROL ECU Genuine Maserati Part - New (to order)
    # 054
    MPN: 315520209
    WIRING HARNESS
    Valid for Version 00 and 02
    from £48.43
    from £48.43
    WIRING Genuine Maserati Part - New (to order)
    # 055
    MPN: 119529130
    SCREW
    Valid for Version 00 and 02
    from £1.17
    from £1.17
    SCREW Genuine Maserati Part - New (to order)
    # 056
    MPN: 169020406
    WASHER
    Valid for Version 00 and 02
    from £0.82
    from £0.82
    FLAT WASHER Genuine Maserati Part - New In stock
    # 057
    MPN: 53211308
    GROMMET
    Valid for Version 00 and 02
    from £0.60
    from £0.60
    GROMMET Genuine Maserati Part - New (to order)
    # 058
    MPN: 312520511
    GASKET
    Valid for Version 00 and 02
    from £1.74
    from £1.74
    RUBBER BUSHING FOR GLASS Genuine Maserati Part - New (to order)
    # 059
    MPN: 314320345
    SCREW
    Valid for Version 00 and 02
    from £48.08
    from £48.08
    ENGINE COMPT. LID FASTENING SCREW Genuine Maserati Part - New (to order)
    # 060
    MPN: 125100060
    NUT
    Valid for Version 00 and 02
    Maserati PART 125100060 Genuine Maserati Part - New (to order)
    # 061
    MPN: 135600060
    WASHER
    Valid for Version 00 and 02
    from £0.82
    from £0.82
    WASHER 6.15X11.8 Genuine Maserati Part - New In stock
    # 062
    MPN: 315520196
    FOOLER
    Valid for Version 00 and 02
    from £14.56
    from £14.56
    EXTERNAL AIR TEMPERATURE SENSOR Genuine Maserati Part - New (to order)
    # 063
    MPN: 315520199
    FOOLER
    Valid for Version 00 and 02
    from £29.86
    from £29.86
    INSIDE TEMPERATURE SENSOR Genuine Maserati Part - New (to order)
    # 064
    MPN: 315520467
    HOSE
    Valid for Version 00 and 02
    from £0.75
    from £0.75
    TUBE Genuine Maserati Part - New (to order)
    # 065
    MPN: 315520200
    FAN FOR FEELER
    Valid for Version 00 and 02
    from £64.32
    from £64.32
    SENSOR FAN Genuine Maserati Part - New (to order)
    # 066
    MPN: 315520465
    CLAMP
    Valid for Version 00 and 02
    from £3.48
    from £3.48
    CLAMP Genuine Maserati Part - New (to order)
    # 067
    MPN: 310320342
    BUSHING
    Valid for Version 00 and 02
    GASKET Genuine Maserati Part - New (to order)
    # 068
    MPN: 315520153
    VALVE
    Valid for Version 00 and 02
    from £8.97
    from £8.97
    VALVE Genuine Maserati Part - New (to order)
    # 069
    MPN: 315520424
    UNION
    Valid for Version 00 and 02
    from £0.53
    from £0.53
    Y UNION Genuine Maserati Part - New (to order)
    # 070
    MPN: 112804016
    SCREW
    Valid for Version 00 and 02
    SCREW Genuine Maserati Part - New (to order)
    # 071
    MPN: 122600040
    NUT
    Valid for Version 00 and 02
    from £0.47
    from £0.47
    DADO Genuine Maserati Part - New (to order)
