maserati karif 2.8 seat belts, mirrors and sun visor parts diagram

067 - Seat Belts, Mirrors and Sun Visor

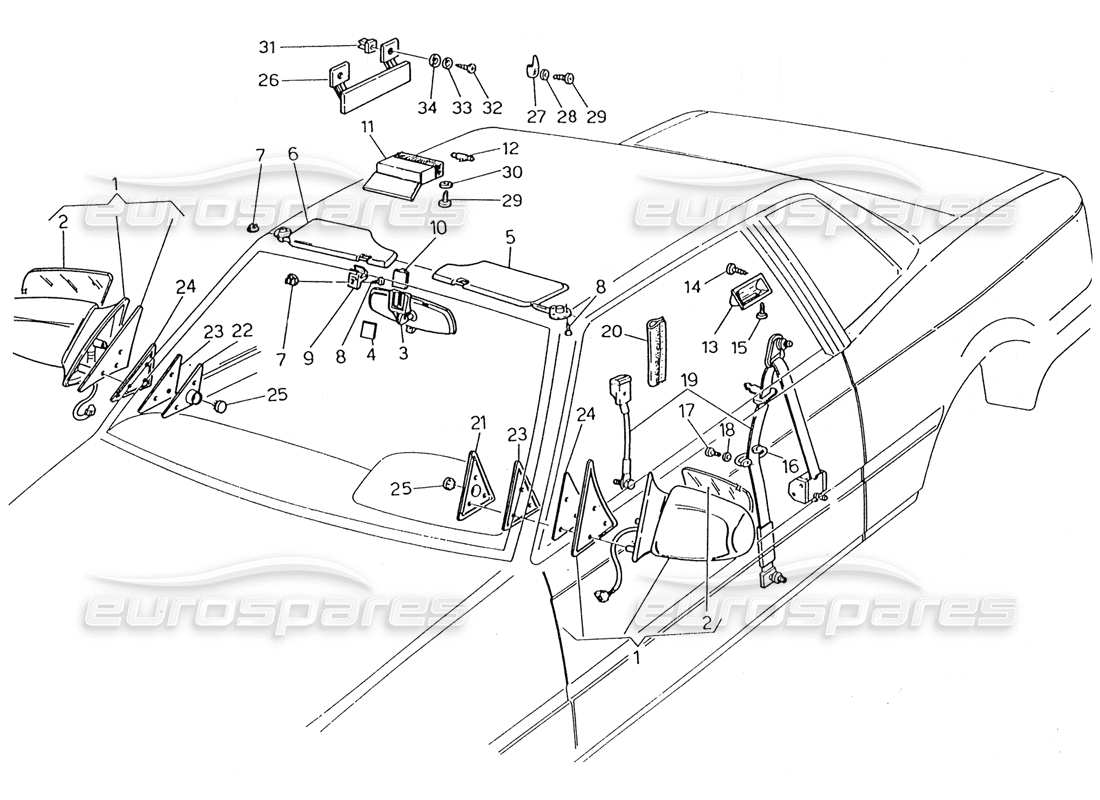

Maserati Karif 2.8 Seat Belts, Mirrors and Sun Visor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 318150107
                                                              LH EXTERIOR MIRROR, ASSY (PLANE)
                                                              Valid for Version 00 and 02
                                                              Supersession
                                                              Supersession
                                                              # 001
                                                              MPN: 318152032
                                                              RH EXTERNAL REARVIEW MIRROR
                                                              (curved type)
                                                              from £225.70
                                                              from £225.70
                                                              This part replaces part number 318150108
                                                              # 001
                                                              MPN: 318170107
                                                              LH EXTERNAL REARVIEW MIRROR
                                                              (curved type)
                                                              from £414.75
                                                              from £414.75
                                                              This part replaces part number 318169033 - and 1 more. Click to view details
                                                              # 001
                                                              MPN: 318170108
                                                              RH EXTERIOR MIRROR, ASSY (PLANE)
                                                              Valid for Version 20 and 24
                                                              from £225.01
                                                              from £225.01
                                                              # 002
                                                              MPN: 348100317
                                                              LH MIRROR GLASS (PLANE)
                                                              Valid for Version 00 and 02
                                                              from £26.45
                                                              from £26.45
                                                              # 002
                                                              MPN: 348100318
                                                              RH MIRROR GLASS (CURVE)
                                                              Valid for Version 00 and 02
                                                              Supersession
                                                              Supersession
                                                              # 002
                                                              MPN: 348120317
                                                              LH MIRROR GLASS (CURVE)
                                                              Valid for Version 20 and 24
                                                              from £9.55
                                                              from £9.55
                                                              # 002
                                                              MPN: 348120318
                                                              RH MIRROR GLASS (PLANE)
                                                              Valid for Version 20 and 24
                                                              from £7.44
                                                              from £7.44
                                                              # 003
                                                              MPN: 318120004
                                                              INTERIOR MIRROR ASSY
                                                              from £36.38
                                                              from £36.38
                                                              # 004
                                                              MPN: 318120345
                                                              MARKING PLATE
                                                              from £0.70
                                                              from £0.70
                                                              # 005
                                                              MPN: 318150163
                                                              LH sun visor (without orary disk) ivory pelt
                                                              # 005
                                                              MPN: 318150167
                                                              LH sun visor (without orary disk) black pelt
                                                              # 005
                                                              MPN: 318153157
                                                              LH sun visor (without orary disk) light grey pert
                                                              # 005
                                                              MPN: 318153161
                                                              LH sun visor (without orary disk) avio pelt
                                                              # 005
                                                              MPN: 319120131
                                                              LH SUN VISOR (WITHOUT ORARY DISK) BEIGE PELT
                                                              from £39.44
                                                              from £39.44
                                                              # 006
                                                              MPN: 318150164
                                                              RH sun visor (with mirror glass) (ivory pert)
                                                              # 006
                                                              MPN: 318150168
                                                              RH sun visor (with mirror glass) (Black pelt)
                                                              # 006
                                                              MPN: 318153158
                                                              RH sun visor (with mirror glass) (light grey pelt)
                                                              # 006
                                                              MPN: 318153162
                                                              RH sun visor (with mirror glass) (avio pert)
                                                              # 006
                                                              MPN: 319120132
                                                              RH SUN VISOR (WITH MIRROR GLASS) (BEIGE PELT)
                                                              from £55.39
                                                              from £55.39
                                                              # 007
                                                              MPN: 318320341
                                                              NUT
                                                              from £0.70
                                                              from £0.70
                                                              This part replaces part number 14229280
                                                              # 009
                                                              MPN: 318120301
                                                              RETAINER
                                                              Valid for Version 00 and 02
                                                              from £1.93
                                                              from £1.93
                                                              # 009
                                                              MPN: 318127300
                                                              RETAINER
                                                              Valid for Version 20 and 24
                                                              # 010
                                                              MPN: 318120346
                                                              BASE
                                                              from £1.00
                                                              from £1.00
                                                              # 011
                                                              MPN: 318120003
                                                              Mirror glass (brown color)
                                                              Supersession
                                                              Supersession
                                                              # 012
                                                              MPN: 87560500
                                                              LAMP FOR MIRROR
                                                              from £0.88
                                                              from £0.88
                                                              # 013
                                                              MPN: 318320406
                                                              SEAT BELTS PASSAGE (BROWN COLOR)
                                                              from £0.62
                                                              from £0.62
                                                              # 016
                                                              MPN: 318120349
                                                              LH BELT GUIDE
                                                              from £2.05
                                                              from £2.05
                                                              This part replaces part number 368100365
                                                              # 016
                                                              MPN: 318120350
                                                              RH BELT GUIDE
                                                              from £2.05
                                                              from £2.05
                                                              This part replaces part number 368100366
                                                              # 018
                                                              MPN: 135600050
                                                              SPRING WASHER
                                                              from £0.78
                                                              from £0.78
                                                              # 019
                                                              MPN: 9446
                                                              FRONT SAFETY BELT KIT
                                                              Valid for Version 00 and 02 and 20
                                                              Supersession
                                                              Supersession
                                                              # 019
                                                              MPN: 9448
                                                              FRONT SAFETY BELT KIT
                                                              Valid for Version 24
                                                              from £135.57
                                                              from £135.57
                                                              # 020
                                                              MPN: 319122128
                                                              COVERING ROD (BEIGE PELT)
                                                              from £4.64
                                                              from £4.64
                                                              # 020
                                                              MPN: 328156145
                                                              COVERING ROD (LIGHT GREY PELT)
                                                              from £4.64
                                                              from £4.64
                                                              # 020
                                                              MPN: 328156146
                                                              COVERING ROD (BLACK PELT)
                                                              from £1.93
                                                              from £1.93
                                                              # 020
                                                              MPN: 328156147
                                                              COVERING ROD (AVIO PELL)
                                                              from £9.20
                                                              from £9.20
                                                              # 020
                                                              MPN: 328156148
                                                              COVERING ROD (IVORY PELT)
                                                              from £4.64
                                                              from £4.64
                                                              # 021
                                                              MPN: 318320373
                                                              LH COVERING
                                                              from £2.52
                                                              from £2.52
                                                              # 022
                                                              MPN: 318330374
                                                              RH COVERING
                                                              Supersession
                                                              Supersession
                                                              # 023
                                                              MPN: 318120424
                                                              GASKET
                                                              from £0.70
                                                              from £0.70
                                                              # 024
                                                              MPN: 318150425
                                                              GASKET
                                                              from £1.08
                                                              from £1.08
                                                              This part replaces part number 318120425 - and 1 more. Click to view details
                                                              # 025
                                                              MPN: 568300349
                                                              PLUG
                                                              from £1.08
                                                              from £1.08
                                                              # 026
                                                              MPN: 328156136
                                                              HANDLE (LIGHT GREY PELT)
                                                              # 026
                                                              MPN: 328156138
                                                              HANDLE (BLACK PELT)
                                                              from £6.10
                                                              from £6.10
                                                              # 026
                                                              MPN: 328156140
                                                              HANDLE (AVIO PELT)
                                                              from £19.61
                                                              from £19.61
                                                              # 026
                                                              MPN: 328912121
                                                              HANDLE (IVORY PELT)
                                                              from £19.14
                                                              from £19.14
                                                              # 026
                                                              MPN: 398100135
                                                              HANDLE (BEIGE PELT)
                                                              from £2.21
                                                              from £2.21
                                                              # 027
                                                              MPN: 398120314
                                                              Hook (brown color)
                                                              # 028
                                                              MPN: 163000050
                                                              WASHER
                                                              # 029
                                                              MPN: 119142130
                                                              SCREW (MIRROR AND HOOK)
                                                              # 030
                                                              MPN: 135900043
                                                              WASHER
                                                              from £1.08
                                                              from £1.08
                                                              This part replaces part number 14496207
                                                              # 031
                                                              MPN: 318120111
                                                              BLOCK
                                                              from £0.70
                                                              from £0.70
                                                              # 033
                                                              MPN: 135600060
                                                              SPRING WASHER
                                                              from £0.78
                                                              from £0.78
                                                              # 034
                                                              MPN: 135900064
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
