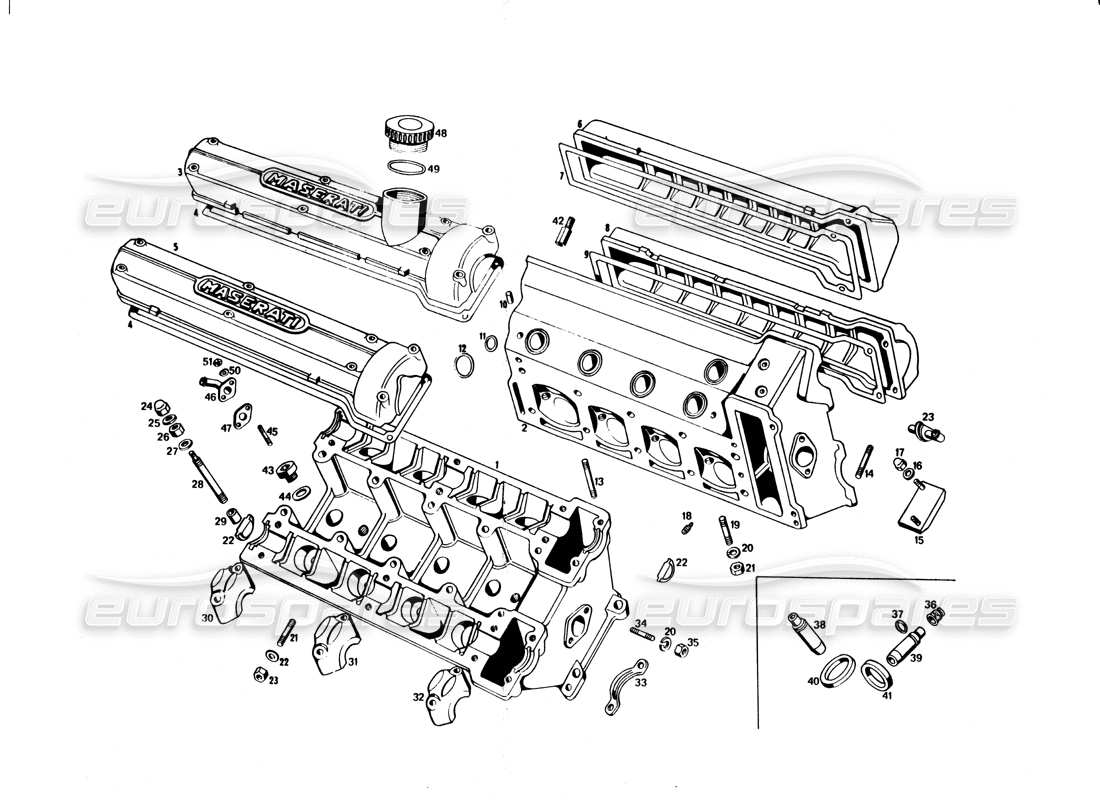

Maserati Bora Cylinder Heads Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 115 0349 MT 69834
CYLINDER HEAD RH
# 001
MPN: 117 MT 117547
CYLINDER HEAD RH
# 001
MPN: 117 MT 117548
LEFT CLLINDR HEAD COMPLETE WITH DISTRIBUTOR
# 002
MPN: 115 0349 MT 69835
CYLINDER HEAD LH
# 003
MPN: 107 3033 55143
COVER
# 004
MPN: 107MD55159
GUARNIZLONE PER COPERCHI TESTA DESTRA LATO ASPIRAZ. E SCAR.
(for cam cover gasket set use part number: MCCG003)
# 004
MPN: MCCG003
CAM COVER GASKET SET
from £96.49
from £96.49
# 005
MPN: 107 3032 55142
RIGHT HEAD DISTRIBUTION COVER EXHAUST SIDE
# 006
MPN: 107/3 MD 67453
LEFT HEAD DISTRIBUTION COVER, INTAKE SIDE
# 007
MPN: 107 MD 55160
Left intake side head cover gasket
# 008
MPN: 107.3032.55162
COVER
# 009
MPN: 107 MD 55161
Exhaust side left head cover gasket
# 010
MPN: G RN 61476
GRANO Ø 10X20 PER COLLETTORI ASPIRAZIONE
# 011
MPN: GOM 65805
RUBBER Ø 34,52X41,85X3,53 WATER SEAL BETWEEN MANIFOLD AND HEAD
# 012
MPN: Gom 66427
GOMMINO Ø 44.45 X 51,51 X 3,53
# 013
MPN: PN/35766
THREADED STUD
# 014
MPN: PN 35761
THREADED STUD
# 015
MPN: 107/2 MT 62604
Chain guide gib assembly for head and base
Supersession
Supersession
# 016
MPN: GN 63426
Guarnizlone 5.1 X 8.4 per detto
# 017
MPN: DST 46766
NUT
# 018
MPN: 107 MT 59644
DL OIL CALIBRATION GRAIN ON THE HEAD
# 019
MPN: PN 32662
PRIGIONLERO 8 X 1,25 X 30 FISSAGGIO FLANGIA Tubi DI SCARICO
# 020
MPN: RSN 3 2 6 3 5
WASHER
# 021
MPN: DN33691
NUT
# 022
MPN: 107 MD 55158
Rubber cover on the cylinder head
from £22.52
from £22.52
# 023
MPN: 107/3 MD 66955
Coperchietto in gomma sulla testa cilindri soffiante olio .
# 024
MPN: DST/48102
NUT
# 025
MPN: GN 65244
GUARNIZLONE Ø 6 X 12 X 1,5 PER DETTO
# 026
MPN: DN/32634
NUT 8X1.25X8
# 027
MPN: RNT47075
WASHER
This part replaces part number 47075
# 028
MPN: PN42020
PRIGIONLERO Ø 8 X 1,25 X 6 X 1 X 70 PER DETTO
# 029
MPN: GRN 56859
GRANO Ø 10 X 6 X 8 PER CENTRAGGIO CAPPELLI ALBERI DISTRIBUZ.
Supersession
Supersession
# 030
MPN: 103.3074.50698
REAR EXTERNAL CAP FOR TIMING SHAFT
# 031
MPN: 103.3064.50697
BEARING CAP CENTRAL
# 032
MPN: 103 MD 55182
FRONT OUTER CAP FOR TIMING SHAFT
# 033
MPN: 107MT56871
STAND FOR LIFTING ENGINE
# 034
MPN: PN 49752
PRIGIONLERO Ø 8 X 1,25 X 24 FISSAGGIO SUPPORTO TENDICATENA
# 035
MPN: DN 66854
NUT
# 036
MPN: 107/2 MD 63371
INTAKE VALVE OIL SEAL
# 037
MPN: ART 50532
RING
# 038
MPN: 107 1032 54597
Exhaust valve guides
from £24.24
from £24.24
# 039
MPN: 107/3 Mt 68724
Intake valve guides
# 040
MPN: 107 1022 54013
Exhaust valve seat
# 041
MPN: 107102054012
SEDE VALVOLA DI ASPIRAZIONE
# 042
MPN: A6 GCM 3124 41187
OIL LEVEL TUBE SUPPORT COLUMN
# 043
MPN: TN 67205
TAPPO Ø 12 X 1,5 X 12 CHLUSURA FORI TESTA
# 044
MPN: GN 47207
GUARNLZIONE 12,5 X 18 X 1 PER DETTO
This part replaces part number 47207
# 045
MPN: PN 32658
STUD 6 X 1 X 24 FOR DELIVERY CONNECTION FOR HEATING SYSTEM
# 046
MPN: 107 07 47 MT 72535
UNION
from £103.90
from £103.90
# 047
MPN: GN 67176
GASKET OR SEAL
# 048
MPN: TN 67810
Cap for oil introduction cover in the engine
# 049
MPN: GOM 42352
GOMMINO PER TAPPO INTRODUZ. OLIO NEL MOTORE Ø 32 X 38 X 3
# 050
MPN: RDI53899
WASHER
# 051
MPN: DNT 47047
NUT
