005 - Belts and pullys

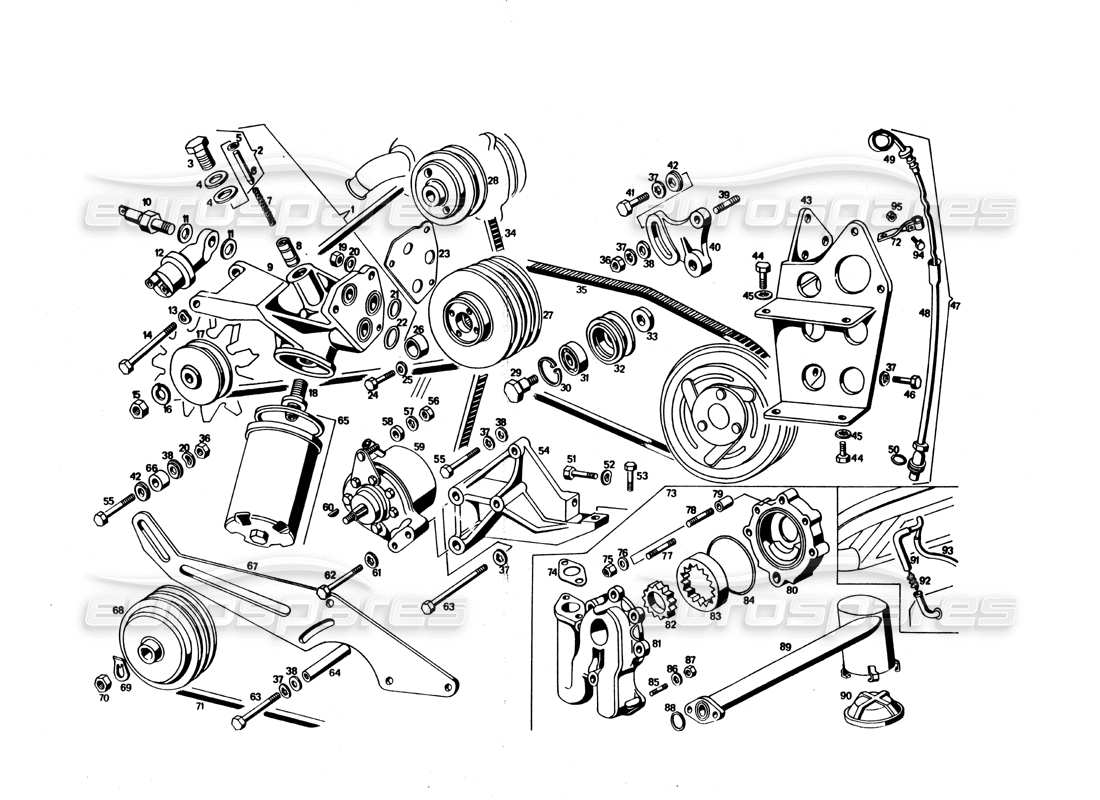

Maserati Bora Belts and pullys Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 117 ML 117582
SUPPORT
# 002
MPN: 115 ML 63315
CAP WITH GUIDE PIN FOR OIL PRESSURE VALVE SPRING
Supersession
Supersession
# 003
MPN: 115 ML 63313
TAPPO PER VALVOLINA PRESSIONE OLIO
# 004
MPN: GN46637
GUARNLZLONE Ø 22.5 X 30 X 1 PER TAPPO TENUTA MOLLA REGOLAZ. PRESS. OLIO
from £2.20
from £2.20
# 005
MPN: RN 51581
WASHER
# 006
MPN: 115 ML 63314
PIVOT
# 007
MPN: 115 ML 70288
MOLLS PER VALVOLINA DI REGOLAZIONE PRESSIONE OLIO
# 008
MPN: 107 07 47 ML 76126
VALVOLINE REGOLAZIONE PRESSIONE OLIO
# 009
MPN: 107 07 47 ML 68664
SUPPORT
# 010
MPN: 115 ML 65506
TESTINA PER SPIA PRESSLONE OLIO CON STRUMENII BORLETTI
# 011
MPN: GN 35569
Guarnlzlone per tenuta testina pressione olio e spin olio Ø 12 X 22 X 1
# 012
MPN: 115 ML 65220
HEAD FOR OIL PRESSURE WITH BORLETTI INSTRUMENTS
# 013
MPN: RAT/45680
WASHER
# 014
MPN: BNT 60057
BOLT
# 015
MPN: DN 32721
NUT
# 017
MPN: 707 07 47 ME 69030
ALTERNATOR CONTROL PULLEY
# 018
MPN: 107/3 ML 67177
PIVOT
# 019
MPN: DN 66854
NUT
# 020
MPN: RAT/45680
WASHER
# 021
MPN: GOM42693
RUBBER FOR OIL FILTER BODY AND OIL PUMP PIPE
from £6.16
from £6.16
# 022
MPN: GOM 42866
Rubber on the oil filter body
from £4.40
from £4.40
# 023
MPN: 101/A 4201 51149
GUARNLZLONE PER CORPO FILTRO OLIO
# 025
MPN: RSN 3 2 6 3 5
WASHER
# 026
MPN: 107 07 47 MM 73350
TAPPO SULLA PULEGGIS ANTERLORE TENUTA BARRA
# 027
MPN: 107 07 47 MM 76121
FRONT CRANKSHAFT PULLEY
# 028
MPN: 107 07 47 ML 68549
PULEGGIA POMPA ECQU.
# 029
MPN: 107 07 47 MM 72618
PIVOT
# 030
MPN: ART/46284
RING
# 031
MPN: CSC 45315
Cuscinetto soils puleggia tendicinghia
# 032
MPN: 107 07 47 MM 72617
BELT TENSIONER PULLEY
# 033
MPN: 107/3 MM 67412
WASHER
# 034
MPN: CTR 69552
WATER PUMP DRIVING BELT
from £75.00
from £75.00
# 035
MPN: CTR 72619
CINGHLA TARSCLNAMENTO COMPRESSORE
from £160.36
from £160.36
# 036
MPN: DNT. 47031
NUT
# 037
MPN: RDI55990
WASHER
# 038
MPN: RNT 55379
WASHER
# 039
MPN: PN 72171
PRL9FONIERO FOR SUPPORT TENDICLN9HIS
# 040
MPN: 107 07 47 MM 72616
SUPPORT
# 041
MPN: BNT 47017
BOLT
# 042
MPN: RN 73530
WASHER
# 043
MPN: 107 07 47 70659
SUPPORT
# 044
MPN: BNT 60984
BOLT
# 046
MPN: BNT. 47015
BOLT
# 047
MPN: C114/1 ML 68186
COMPLESSIVO ASTA ILVELLO OLIO
# 048
MPN: C114/1 ML 69986
SHEATH ASSEMBLY FOR OIL LEVEL DIPSTICK
# 049
MPN: C114/1 ML 68118
ASTA ILVELLO OLIO
# 050
MPN: C114/1 ML 68191
Gommino per asta Ilvello olio
# 051
MPN: BNT 55,117
BOLT
# 052
MPN: RAT 68720
WASHER
# 053
MPN: BNT 68563
BOLT
# 054
MPN: 1011 07 47 NB 72600
SUPPORT
# 055
MPN: BNT/47014
BOLT
# 056
MPN: DNT 47080
NUT
# 057
MPN: RDI 60333
WASHER
# 058
MPN: 117 Fl 72603
SPACER FOR SITE BRAKE PRESSURE PUMP
# 059
MPN: 117 Fl 73440
SITE PRESSURE PUMP FOR BRAKES
# 060
MPN: 107/3 ML 66523
OIL FILTER
Screw on Type11
from £32.08
from £32.08
# 060
MPN: LN 76420
Drag tab for said
# 061
MPN: RDI 73377
WASHER
# 062
MPN: BN 73373
BOLT
# 063
MPN: BNT 58749
BOLT
# 064
MPN: 107 07 47 ME 72667
SPACER FOR ALTERNATOR PIN CUP
# 065
MPN: 107/3 ML 66533
FILTRO OLIO
# 066
MPN: 107 07 47 ME 72602
DISTANZLALE PER ALTERNATORE E PUNTALINO
# 067
MPN: 107 07 47 ME 72601
END CAP FOR ALTERNATOR AND BRAKE PUMP
# 068
MPN: 117 Fl 76122
PULLEY FOR BRAKE OIL PUMP
# 069
MPN: RDL 76421
Ferns for brake pump pulley fixing nut
# 070
MPN: DNT 64309
NUT
# 071
MPN: CTR 72620
CINGHLA TRASCINAMENTO POMPA TRENL
from £160.36
from £160.36
# 072
MPN: 107 07 47 ML 74217
FASCETTA FISSAGGIO ASTA ILVELLO OLIO
# 073
MPN: ML 116020
OIL PUMP ASSEMBLY
# 074
MPN: GN55099
GUARNLZLONE 26 X 44 X 1 TENUTA FRA COPERCHIO POMPA OLIO E BASAMENTO E FRANGIA PER SATE IIVELLO OLIO
from £4.40
from £4.40
# 075
MPN: DST 53397
NUT
This part replaces part number 53397
# 076
MPN: RNT47075
WASHER
This part replaces part number 47075
# 077
MPN: PM 53067
PRLGFONIERO Ø 8 X 1,25 X 38 PER DETTO
# 078
MPN: PN 45843
PRIGIONLERO Ø 8 X 1.25 X 38 FIRS. CENTRALS COPERCHIO POMPA OLIO AL CORPO
from £10.58
from £10.58
# 079
MPN: GRN 49494
Normal wheat. 10 X 8 X 8,25 for oil pump body
# 080
MPN: 103.4002.51374
CIRCULATION OIL PUMP BODY
# 080
MPN: 116 ML 116018
CORPO POMPA OLIO COMPLETO
# 081
MPN: 103 412 52842
Crchlo pompa olio dl circolazione
# 081
MPN: 116 ML 116019
COPERCHLO POMPA OLIO COMPLETO
# 081
MPN: DNT 47047
NUT
# 082
MPN: 103402251376
INGRANAGGFO CONDUTTORE POMPA OLIO
# 083
MPN: 103 - 4024 51377
INGRANAGGIO CONDOTTO POMPA OLIO
from £568.28
from £568.28
# 084
MPN: GOM 50315.
GOMMINO 70 X 1.2 FRO CORPO E COPERCHLO POMPA OLIO
# 085
MPN: PN 56475
PRIGLONIERO 6 X 1 X 27 PER FISS. FLANGLA TUBO ASPIRAZ OLIO DALLA COPPA
from £10.58
from £10.58
# 086
MPN: RDI53899
WASHER
# 088
MPN: GOM 54022
RUBBER 34.6 X 39.7 X 3,65 FOR OIL SEALING ON THE SUCTION PIPE
# 089
MPN: 107/2 66219
OIL SUCTION FILTER ASSEMBLY FROM THE SUMP
# 090
MPN: 107/2 ML 66206
FILTRO PER PESCANTE NAILS COPPA
# 091
MPN: GI 73125
SLEEVE CONNECTING OIL BLOWER TO BOXES
# 092
MPN: C114/1 MC 67199
Retina spegni Hamm per soffiante
# 093
MPN: TPN. 60537
TUBO IN PLASTICS BENZORESIVITE Ø 5 X 9 X 15
# 094
MPN: BNT 47019
BOLT
# 095
MPN: DNT 47047
NUT
